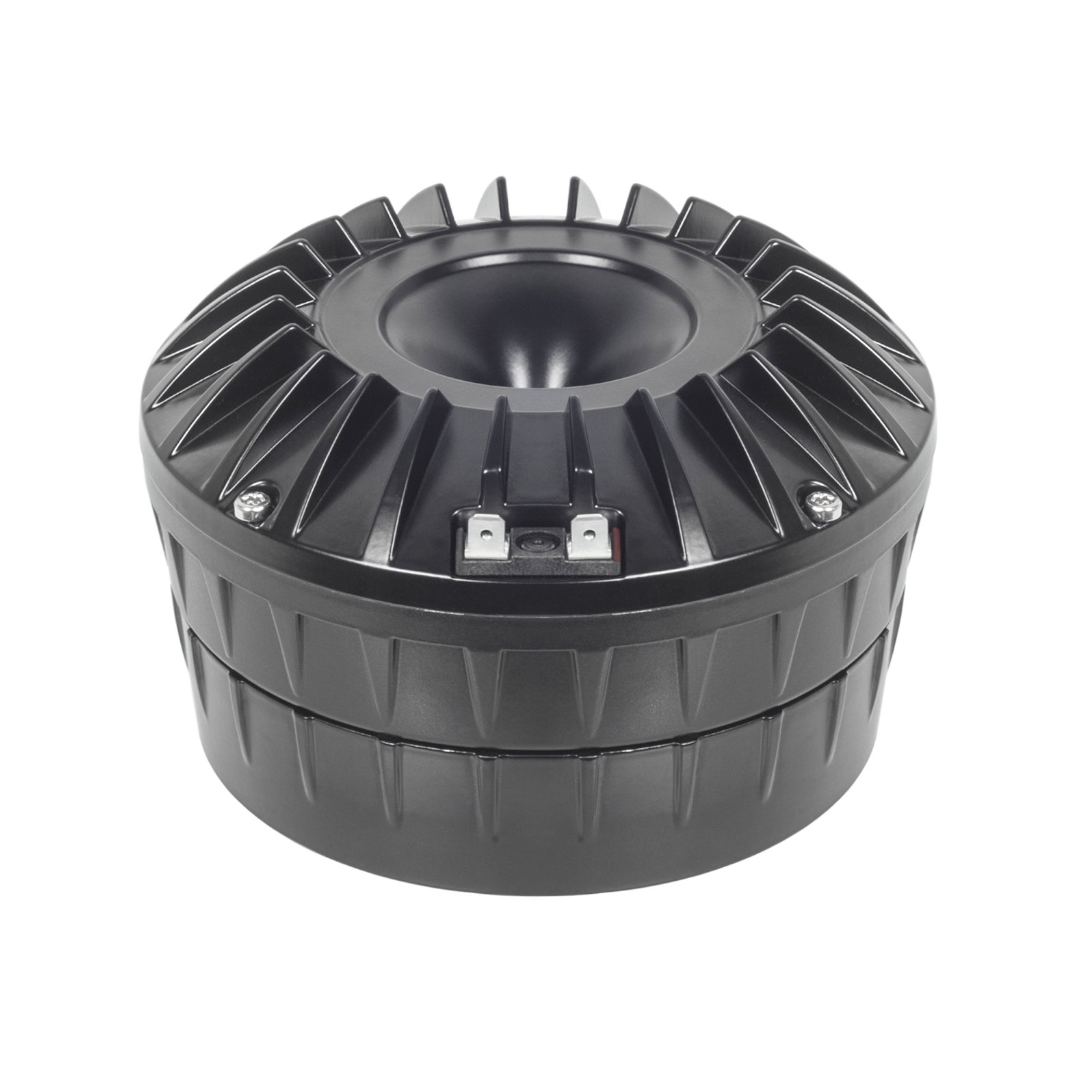

B&C DCM420 – Next-Generation 2-Inch Ring Radiator Midrange Compression Driver with 112 dB Sensitivity
The B&C DCM420 is the product of five years of dedicated engineering — a next-generation ring radiator midrange compression driver designed from scratch to advance the state of the art. With 112 dB sensitivity — 3.5 dB higher than any other compression driver in B&C’s HF range — a 100 mm voice coil, 110 W AES power handling, and a recommended crossover frequency of just 300 Hz, the B&C DCM420 represents a fundamentally different approach to mid-range reproduction in professional speaker systems.
This is not a conventional wide-bandwidth compression driver. The B&C DCM420 is a dedicated midrange transducer covering 300 Hz to 6 kHz. It replaces cone midrange drivers — the 8, 10, and 12-inch cone transducers that typically handle the mid-range in three-way and four-way systems — with a compression driver on a horn that produces 112 dB sensitivity, horn-controlled directivity from 300 Hz upward, and the lowest distortion at any given SPL that B&C has ever achieved.
B&C describes the engineering behind the B&C DCM420 directly: compression drivers are the linchpin of a PA system, operating at wavelengths too small to readily couple with other drivers, fighting distance and atmospheric losses to deliver concert sound pressure levels to ever larger audiences. Brand new materials and thousands of hours of modelling and testing result in lower distortion at higher SPL than has ever been possible before.
The 112 dB sensitivity is the specification that changes system architecture. A conventional 10-inch cone midrange at 98–100 dB requires roughly 15 times more amplifier power to produce the same SPL as the B&C DCM420. A system built around the B&C DCM420 needs a fraction of the amplification for the mid-range section, and the horn controls directivity from 300 Hz — a frequency so low that most horn-loaded systems haven’t even begun to operate.
Available in 8 and 16 Ω with a user-replaceable HT polymer ring diaphragm (part number MMDDCX464MF8). At 2.6 kg, 152 mm overall diameter, and 95 mm depth, the B&C DCM420 is the most compact, lightest alternative to a 10-inch cone midrange driver that professional audio has ever seen.
Design and Construction of the B&C DCM420
The B&C DCM420 uses a 100 mm (4-inch) aluminium voice coil driving an HT polymer ring radiator diaphragm through a 2-inch (50 mm) exit throat. The 100 mm coil matches the DE1095TN as the largest in B&C’s HF range, providing the thermal mass for 110 W AES sustained operation and the drive area for the exceptional 112 dB sensitivity.
The ring radiator architecture is the defining design decision. Like the DE36 at the 1-inch exit scale, the B&C DCM420 uses an annular (ring-shaped) diaphragm that radiates from the perimeter of the phase plug rather than from a conventional central dome. The ring radiator topology eliminates the centre-of-dome resonance that causes breakup peaks in conventional compression drivers, producing fundamentally smoother frequency response across the operating band.
At the 100 mm coil / 2-inch exit scale, the ring radiator advantage is even more significant than at smaller formats. Larger conventional domes have more pronounced breakup modes because the dome surface area is larger and the resonant frequencies are lower — placing them squarely in the audible range where the human ear is most sensitive to distortion. The B&C DCM420’s ring radiator eliminates these modes entirely, which is the engineering foundation of B&C’s claim that the driver delivers lower distortion at higher SPL than has ever been possible before.
The HT polymer ring diaphragm uses brand new materials that B&C developed specifically for this driver family. High-temperature engineering polymer provides the stiffness needed for controlled pistonic motion and the thermal stability needed for sustained 110 W AES operation. The polymer ring produces smooth, natural-sounding mid-range output without the resonant artefacts that metal diaphragms introduce — critical for a midrange driver operating in the 300 Hz – 6 kHz band where the human ear is most sensitive to coloration.
The magnetic circuit produces 1.9 T of flux density from a neodymium magnet assembly. The 1.9 T driving a 100 mm voice coil generates the extreme motor force that produces 112 dB sensitivity — a figure unmatched by any other compression driver in B&C’s range. The 0.28 mH inductance is higher than the smaller-coil HF drivers, reflecting the larger coil’s greater conductor mass in the gap. For the 300 Hz – 6 kHz operating range, the inductance behaviour is well-managed.
The 2-inch exit throat provides the acoustic coupling area needed for the B&C DCM420’s extraordinary low-frequency capability. At 300 Hz, wavelengths are nearly a metre long — generating meaningful acoustic output at these frequencies through a compression driver exit requires the largest throat diameter possible. The 50 mm exit is why the B&C DCM420 can recommend a crossover at 300 Hz where smaller-exit drivers are physically incapable of coupling enough energy.
At 2.6 kg, 152 mm overall diameter, and 95 mm depth, the B&C DCM420 is larger than the DE1095TN (2.14 kg, 127 mm, 89 mm) — the ring radiator architecture and new materials add some size and mass. Four M6 mounting holes on a 102 mm bolt circle match the standard professional 2-inch pattern.
Performance and Applications for the B&C DCM420
The B&C DCM420 delivers 112 dB sensitivity across a 0.3 kHz – 6 kHz bandwidth with a recommended crossover frequency of 0.3 kHz. These specifications place the B&C DCM420 in a different product category from every other compression driver in B&C’s range. It’s not competing with the DE1095TN or DE900TN for wide-bandwidth HF duties. It’s replacing cone midrange drivers.
The 112 dB sensitivity is 12–14 dB higher than a typical 10-inch cone midrange driver at 98–100 dB. In amplifier power terms, the B&C DCM420 produces the same mid-range SPL from approximately 6 watts that a cone midrange requires 100 watts to achieve. The efficiency advantage is so large that it fundamentally changes amplifier requirements — a mid-range section built around the B&C DCM420 needs a fraction of the amplification that a cone-based section requires.
The 300 Hz recommended crossover is the lowest of any driver in B&C’s HF range — 500 Hz lower than the DE1095TN’s 0.8 kHz. At 300 Hz, the B&C DCM420 takes over from the bass driver in the upper bass region, giving the horn control of directivity from a frequency where most professional systems are still relying on direct-radiating cone drivers. The directivity improvement is dramatic. A horn loading the B&C DCM420 produces consistent, controlled coverage from 300 Hz upward — the entire vocal range, the presence band, and the lower treble, all with horn-defined pattern control.
The 6 kHz upper limit means the B&C DCM420 needs a separate HF driver above it — a conventional compression driver like the DE1095TN, DE880TN, or DE900TN handles the treble from 6 kHz upward. In a three-way system, the architecture becomes: bass driver below 300 Hz, B&C DCM420 from 300 Hz to 6 kHz, conventional HF compression driver from 6 kHz to 18–20 kHz. This three-way architecture produces horn-controlled directivity across virtually the entire audible spectrum — a design approach previously limited to the most expensive large-format professional systems.
The 110 W AES / 220 W program power handling provides sustained output capability for the most demanding professional applications. The ring radiator diaphragm and 100 mm coil sustain this power level with the lowest distortion B&C has ever measured from a midrange transducer at these SPL levels.
The 8 and 16 Ω impedance variants provide multi-driver flexibility for line arrays and systems using multiple mid-range compression drivers per element. The 16 Ω variant supports parallel and series-parallel wiring configurations.
For system designers accustomed to using cone midrange drivers, the B&C DCM420 represents a paradigm shift. The advantages are clear: 12+ dB more sensitivity, horn-controlled directivity, lower distortion, less amplifier power required, and a smaller, lighter package than a 10-inch cone midrange with its enclosure. The trade-off is that the system now requires a horn for the mid-range section — but for professional systems where horns are already standard, the B&C DCM420 is a transformative upgrade.
Ideal applications for the B&C DCM420 include:
- Flagship three-way and four-way touring speaker systems with dedicated mid-range horn sections
- Large-format line arrays where mid-range compression drivers replace cone midrange drivers
- Arena and stadium installations requiring maximum mid-range output with horn-controlled directivity
- Systems where 112 dB mid-range sensitivity reduces amplifier requirements for the mid section
- Three-way architectures crossing at 300 Hz and 6 kHz for full-spectrum horn-controlled directivity
- Premium installed sound in theatres, concert halls, and performance venues
- Next-generation speaker system designs built around the B&C DCM420’s capabilities
- Multi-driver mid-range arrays using the 16 Ω variant for impedance management
Specifications – B&C DCM420
- Throat Diameter: 50 mm (2 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.7 Ω
- Nominal Power Handling: 110 W
- Continuous Power Handling: 220 W
- Sensitivity: 112 dB
- Frequency Range: 0.3 kHz – 6 kHz
- Recommended Crossover: 0.3 kHz
- Voice Coil Diameter: 100 mm (4 in)
- Winding Material: Aluminium
- Inductance: 0.28 mH
- Flux Density: 1.9 T
- Magnet Material: Neodymium
- Diaphragm Material: HT Polymer Ring (Ring Radiator)
- Replacement Diaphragm: MMDDCX464MF8
- Available Impedances: 8 Ω, 16 Ω
- Net Weight: 2.6 kg (5.73 lb)
Mounting Information – B&C DCM420
- Overall Diameter: 152 mm (6 in)
- Depth: 95 mm (3.74 in)
- Bolt Pattern: Four M6 holes on 102 mm (4 in) bolt circle, 90° apart
Conclusion – B&C DCM420 Compression Driver
The B&C DCM420 is B&C’s most ambitious HF driver — a five-year engineering programme that produced a next-generation ring radiator midrange compression driver with no direct precedent in B&C’s catalogue. The 112 dB sensitivity is 3.5 dB higher than any other B&C compression driver. The 300 Hz recommended crossover is 500 Hz lower than the next closest. The ring radiator HT polymer diaphragm with brand new materials delivers the lowest distortion at any given SPL that B&C has ever measured from a midrange transducer.
The B&C DCM420 doesn’t compete with B&C’s conventional compression drivers. It replaces cone midrange drivers entirely — delivering 12+ dB more sensitivity, horn-controlled directivity from 300 Hz, and lower distortion from a 2.6 kg package that is smaller and lighter than any 10-inch cone midrange with its enclosure. For system designers, it enables three-way architectures with horn-controlled directivity across virtually the entire audible spectrum.
B&C’s own recommendation stands: consider the B&C DCM420 for your next design, and enjoy a new standard in fidelity. Five years of development, thousands of hours of modelling and testing, brand new materials — and 112 dB of midrange output that changes what professional speaker systems can achieve. This is B&C’s statement to the industry, and the 112 dB sensitivity speaks louder than any marketing ever could.
