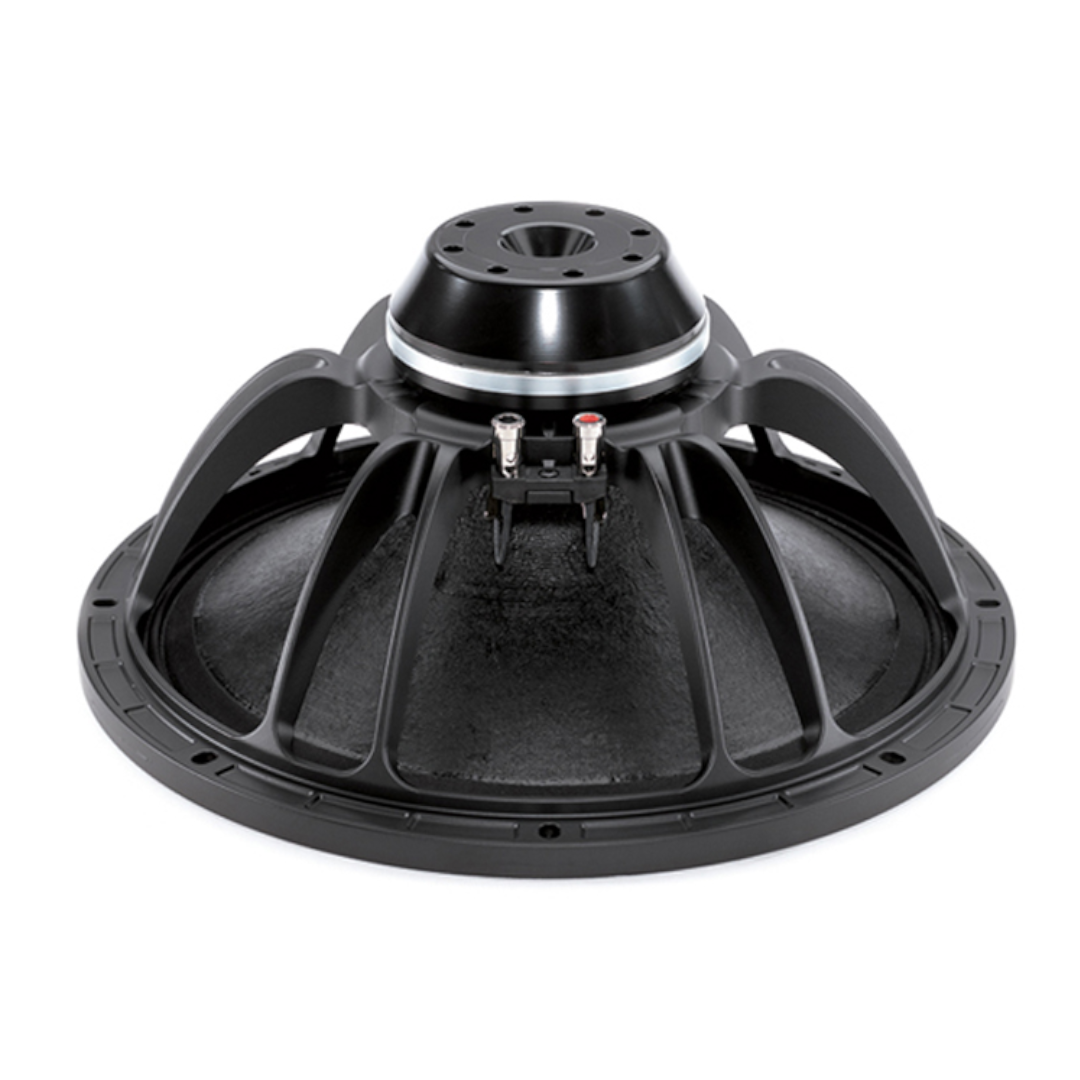

B&C 15NW76 – Highest-Sensitivity 15-Inch Neodymium Woofer in B&C’s Entire Range

The B&C 15NW76 in its 8 Ω configuration is the most efficient 15-inch driver B&C makes — period. At 100.5 dB sensitivity, 4.4% reference efficiency, and just 5.6 kg, this driver produces more acoustic output per watt than any other 15-inch woofer in B&C’s range, including the ferrite PLB76 that held that title at 100 dB. The 8 Ω version of the B&C 15NW76 doesn’t just beat it — it beats it by half a dB while weighing 3 kg less and carrying a demodulating ring, ventilated gap, and double spider that the PLB76 doesn’t have.

The 8 Ω winding pushes every spec higher than the 4 Ω version. The force factor jumps to 25.5 Tm (vs 20.64 Tm), the moving mass drops to 104 g (vs 119 g), sensitivity gains 1.5 dB (100.5 vs 99 dB), and efficiency climbs to 4.4% (vs 3.88%). Same 5.6 kg, same frame, same enclosure — a categorically better driver for systems where the 8 Ω impedance works.

For builders designing multi-driver cabinets, the 8 Ω impedance is the natural choice — two B&C 15NW76 drivers in parallel present a 4 Ω load at a combined 11.2 kg, delivering over 100 dB sensitivity with doubled cone area and displacement. That’s the kind of math that makes system designers rethink whether they need 18-inch subs at all.

Design and Construction of the B&C 15NW76

The B&C 15NW76 uses a 76 mm (3-inch) copper voice coil wound on a glass fibre former. The 19 mm winding depth operating in an 11 mm magnetic gap yields 8 mm of linear one-way excursion (Xmax) with an additional 10 mm of travel (Xvar) before mechanical limits — the same excursion capability as the 4 Ω version, providing substantial headroom for transient peaks during sustained high-output use.

The motor is what separates the B&C 15NW76 from everything else in the 76 mm 15-inch range. A neodymium ring magnet in a T-pole configuration produces 1.3 T of flux density and a force factor (Bl) of 25.5 Tm — significantly stronger than the 4 Ω variant’s 20.64 Tm. That massive Bl driving a 104 g moving mass creates the highest acceleration factor of any 15-inch woofer B&C makes, which is the direct engineering reason for the 100.5 dB sensitivity and 4.4% efficiency figures.

An aluminium demodulating ring reduces flux modulation in the voice coil gap, keeping distortion controlled as excursion and power increase. A ventilated voice coil gap allows air circulation around the coil, reducing power compression during sustained use. Suspension is handled by a double silicone spider with optimised compliance and a triple-roll surround — the dual-spider design providing the progressive stiffness and excursion control that supports the driver’s 600 W AES power rating.

The exponential cone features TWP waterproof treatment on both sides. The physical frame is identical to the 4 Ω version — same 393 mm overall diameter, same 177 mm depth, same 5.6 kg net weight. Either impedance variant drops into the same cabinet without modification.

Performance and Applications for the B&C 15NW76

The B&C 15NW76 (8 Ω) delivers 100.5 dB sensitivity and 4.4% reference efficiency across a 40 Hz – 2000 Hz bandwidth. That 4.4% efficiency means this driver converts nearly one out of every twenty watts into acoustic energy — an extraordinary conversion rate that makes a 600 W amplifier channel sound like it has far more power behind it. In practical terms, you’d need roughly 1350 W driving a 97 dB driver to match the output of 600 W into the B&C 15NW76.

The Thiele–Small parameters mirror the 4 Ω version’s aggressive alignment profile. A Qts of 0.22 and an EBP of 183 Hz define a driver built exclusively for vented and horn-loaded enclosures. B&C recommends a 90-litre (3.18 ft³) vented enclosure tuned to 53 Hz — the same compact, high-tuned alignment as the 4 Ω variant, maximising punch and mid-bass output density in the 60–300 Hz range.

In horn-loaded applications, the B&C 15NW76 (8 Ω) is effectively untouchable in B&C’s 15-inch range. The combination of 100.5 dB sensitivity, very low Qts, exponential cone, demodulating ring, and light moving mass means the horn amplifies an already-extreme efficiency advantage — producing real-world horn-loaded sensitivity figures that are difficult to replicate with any other 15-inch driver at any weight or price.

Ideal applications for the B&C 15NW76 (8 Ω) include:

• Premium horn-loaded mid-bass bins and bass cabinets for touring
• Multi-driver cabinets using 8 Ω parallel pairs for 4 Ω loading with doubled output
• High-efficiency vented tops for portable PA and live sound reinforcement
• Line array modules where maximum sensitivity per kilogram drives the design
• Systems running limited amplifier power that need maximum acoustic output per watt

Specifications – B&C 15NW76

• Nominal Diameter: 380 mm (15 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.9 Ω
• Nominal Power Handling: 600 W
• Continuous Power Handling: 1200 W
• Sensitivity: 100.5 dB
• Frequency Range: 40 Hz – 2000 Hz
• Voice Coil Diameter: 76 mm (3 in)
• Winding Material: Copper
• Former Material: Glass Fibre
• Winding Depth: 19 mm (0.75 in)
• Magnetic Gap Depth: 11 mm (0.43 in)
• Flux Density: 1.3 T
• Magnet Material: Neodymium Ring
• Cone Shape: Exponential
• Cone Treatment: TWP Waterproof (both sides)
• Surround Shape: Triple Roll
• Spider: Double Silicone
• Pole Design: T-Pole
• Net Weight: 5.6 kg (12.3 lb)

Thiele–Small Parameters – B&C 15NW76

• Fs: 42 Hz
• Re: 5.3 Ω
• Qes: 0.23
• Qms: 4.3
• Qts: 0.22
• Vas: 130 dm³ (4.5 ft³)
• Sd: 855 cm² (132.5 in²)
• η0: 4.4%
• Xmax: 8 mm
• Xvar: 10 mm
• Mms: 104 g
• Bl: 25.5 Tm
• Le: 1.25 mH
• EBP: 183 Hz

Mounting Information – B&C 15NW76

• Overall Diameter: 393 mm (15.5 in)
• Bolt Circle Diameter: 374 mm (14.7 in)
• Baffle Cutout Diameter: 354 mm (13.9 in)
• Depth: 177 mm (7 in)
• Flange and Gasket Thickness: 16 mm (0.62 in)
• Air Volume Occupied by Driver: 3.7 dm³ (0.13 ft³)
• Recommended Enclosure Volume: 90 dm³ (3.18 ft³)
• Recommended Tuning Frequency: 53 Hz

Conclusion – B&C 15NW76 Woofer

The B&C 15NW76 in 8 Ω is the single most efficient 15-inch driver in B&C’s entire product range. At 100.5 dB sensitivity and 4.4% efficiency from 5.6 kg, it surpasses even the ferrite PLB76 that held the sensitivity crown at 100 dB — while weighing 3 kg less and carrying the demodulating ring, double spider, and ventilated gap that the PLB76 doesn’t offer. The 25.5 Tm Bl driving a 104 g moving mass produces an acceleration factor that no other 15-inch driver in the lineup can match.

The 8 Ω winding is definitively the better variant of the two. Every measurable performance metric improves over the 4 Ω version — sensitivity, efficiency, force factor, moving mass — while the parallel wiring capability opens up multi-driver system designs that the 4 Ω can’t support. Two in parallel at 11.2 kg combined deliver over 100 dB sensitivity with doubled cone area — performance that genuinely challenges single 18-inch sub cabinets on output while weighing a fraction of what they do.

If you’re building the highest-output, lowest-weight, cleanest-sounding 15-inch system possible, the B&C 15NW76 in 8 Ω is where the conversation begins and ends. Nothing else in B&C’s 15-inch range — neo or ferrite — produces this much output per watt per kilogram. It’s the benchmark.
