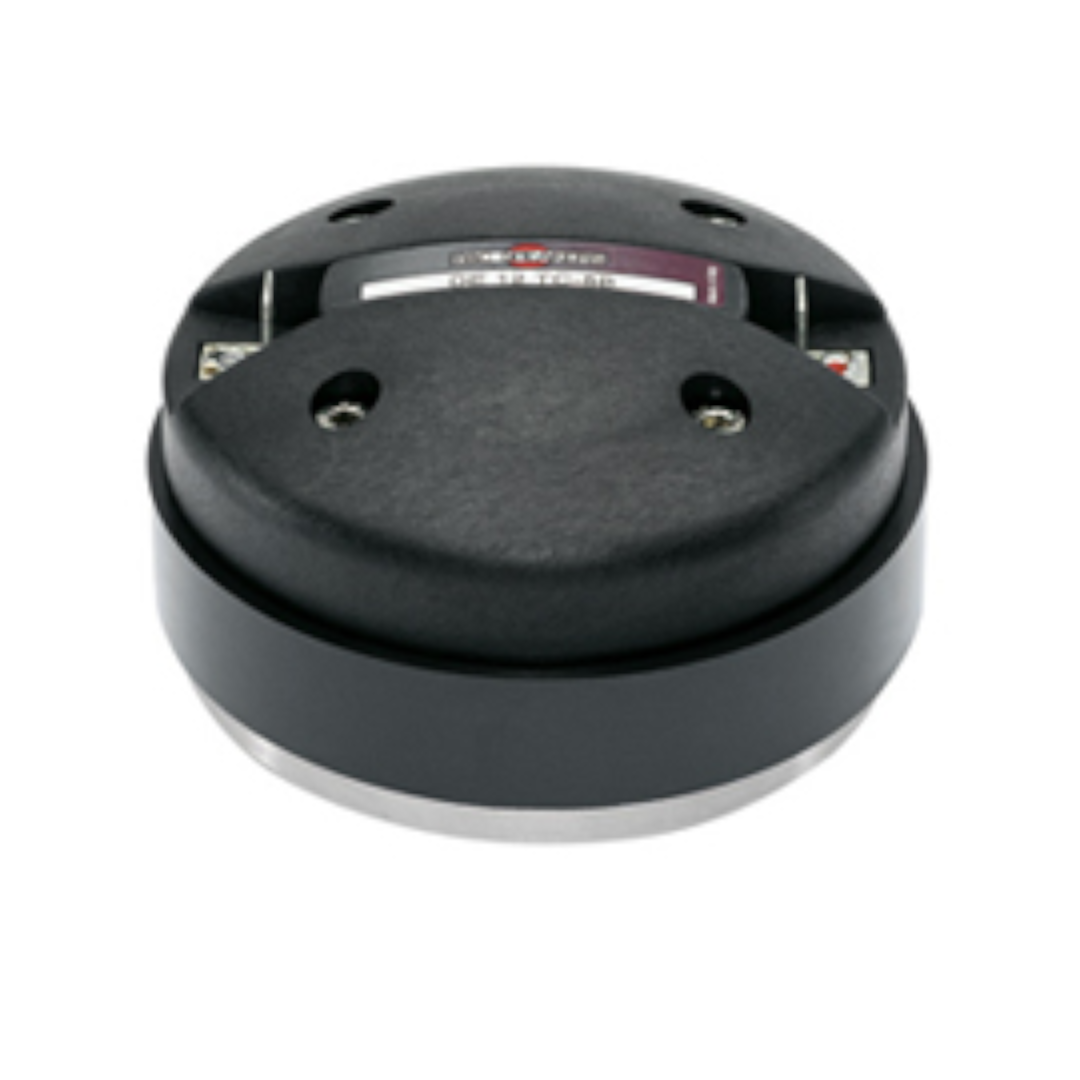

B&C DE12TC – Precision 1-Inch Titanium Compression Driver for Professional Two-Way Systems
The B&C DE12TC is B&C’s titanium-diaphragm 1-inch exit compression driver — stepping up from the entry-level DE10 with a larger 36 mm voice coil, 50% more power handling, and the brighter, more detailed high-frequency character that titanium diaphragms deliver. With 105 dB sensitivity, a 2 kHz – 18 kHz bandwidth, and a recommended crossover of 2.2 kHz, the B&C DE12TC is built for two-way speaker systems where the HF section needs to handle real power and deliver the kind of treble definition that polyester diaphragms can’t match.
The titanium diaphragm is the fundamental upgrade over the DE10’s Mylar. Titanium is stiffer and lighter per unit area than polyester, which means it maintains pistonic behaviour at higher frequencies and produces more detailed, more defined treble output — the kind of high-frequency character that makes cymbals shimmer, vocals cut through a mix, and percussive transients snap with clarity. For professional PA systems, live sound reinforcement, and any application where the high-frequency section needs to deliver presence and detail under real working conditions, the B&C DE12TC is the 1-inch driver that bridges the gap between entry-level and premium.
The 36 mm voice coil is the other key upgrade. The larger coil provides more thermal mass than the DE10’s 25 mm, supporting the increase to 30 W AES power handling and making the B&C DE12TC more resilient under sustained high-power use. At 1.05 kg and 49 mm deep — actually 4 mm shallower than the DE10 — the B&C DE12TC uses the same 90 mm body and 76 mm bolt pattern, making it a direct physical upgrade for any cabinet currently running the DE10.
The user-replaceable titanium diaphragm (part number MMD012TN8B) keeps the B&C DE12TC field-serviceable. A damaged diaphragm swaps out in minutes without removing the driver from the horn — a practical advantage for touring companies and rental fleets where downtime costs money.
Design and Construction of the B&C DE12TC
The B&C DE12TC uses a 36 mm (1.4-inch) aluminium voice coil driving a titanium diaphragm through a 1-inch exit throat. The 36 mm coil is a meaningful step up from the DE10’s 25 mm — the larger coil diameter provides more surface area for heat dissipation and more diaphragm drive area, which is why the B&C DE12TC handles 30 W AES compared to the DE10’s 20 W. The coil-to-throat ratio — a 36 mm coil compressing into a 25 mm exit — provides the acoustic impedance transformation that generates the high sound pressure levels compression drivers are known for.
The titanium diaphragm is the defining component. Titanium is approximately 60% stiffer than aluminium and significantly stiffer than polyester, which means the diaphragm maintains controlled pistonic motion at higher frequencies before the onset of breakup. When breakup does occur — typically in the 8–12 kHz region depending on the specific diaphragm geometry — titanium produces a characteristic resonant peak that gives the driver its bright, forward treble character. This peak can be left untreated for applications where maximum presence and cut-through are desired, or EQ’d smooth for more neutral reproduction. Either way, the titanium diaphragm produces more high-frequency energy and detail than the DE10’s polyester alternative.
The magnetic circuit produces 1.45 T of flux density — slightly lower than the DE10’s 1.55 T, reflecting the different motor geometry required to accommodate the larger 36 mm coil. The 0.14 mH inductance remains very low, supporting flat impedance behaviour through the operating range. The combination of 1.45 T flux and the 36 mm coil produces a driver optimised for sustained output quality rather than peak sensitivity — the B&C DE12TC’s 105 dB is 2 dB lower than the DE10’s 107 dB, but the titanium diaphragm and larger coil deliver meaningfully better performance under load.
The B&C DE12TC shares the DE10’s 90 mm overall diameter and 76 mm bolt pattern with two M5 mounting holes at 180°, but at 49 mm depth it’s actually 4 mm shallower than the DE10 — making it a direct physical replacement in any DE10-compatible cabinet. The 1.05 kg weight adds just 250 g over the DE10, a negligible increase for the performance gains the titanium diaphragm and larger coil provide.
Performance and Applications for the B&C DE12TC
The B&C DE12TC delivers 105 dB sensitivity across a 2 kHz – 18 kHz bandwidth with a recommended crossover frequency of 2.2 kHz. The 2.2 kHz recommended crossover is 300 Hz lower than the DE10’s 2.5 kHz, which gives the B&C DE12TC more operating range in the upper mid-frequencies. That lower crossover point is particularly useful in two-way systems where the woofer section benefits from handing off to the compression driver as early as possible — reducing the woofer’s beaming at higher frequencies and letting the horn control the directivity sooner.
The 105 dB sensitivity provides comfortable headroom above woofer sections in the 96–100 dB range. While it’s 2 dB lower than the DE10’s 107 dB, the B&C DE12TC produces that output with more high-frequency detail, more presence, and better sustained performance. In practical terms, the sensitivity difference is easily managed with passive crossover component selection or a minor level adjustment on the HF amplifier channel — and the improvement in treble quality more than compensates for the 2 dB reduction.
The 30 W AES power handling represents a 50% increase over the DE10’s 20 W. For two-way systems running at moderate to high levels, that additional thermal headroom means the B&C DE12TC sustains its output longer and compresses less during extended use. In applications where the PA system runs at full power for hours — live bands, DJ events, sustained playback — the difference between 20 W and 30 W AES translates to more reliable, more consistent high-frequency output across the duration of the event.
The titanium diaphragm’s brighter character is a strength or a consideration depending on the application. In live sound reinforcement where the HF section needs to cut through ambient noise, room reflections, and competing sound sources, the B&C DE12TC’s forward treble is an asset. In near-field monitoring, speech reinforcement, or background music applications where a smoother treble is preferred, the DE10’s Mylar diaphragm may be the more appropriate choice. The decision between the two drivers is about tonal character and power handling, not quality — both are well-engineered for their intended roles.
Ideal applications for the B&C DE12TC include:
- Professional two-way PA tops paired with 10 or 12-inch woofers
- Live sound reinforcement where treble presence and cut-through matter
- Compact stage monitors requiring more HF power handling than the DE10 provides
- Two-way active speaker systems with DSP crossover and level management
- Upgrades from DE10 installations needing more power handling and titanium detail
- DJ and playback systems running sustained high-power operation
Specifications – B&C DE12TC
- Throat Diameter: 25 mm (1 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 8.1 Ω
- Nominal Power Handling: 30 W
- Continuous Power Handling: 60 W
- Sensitivity: 105 dB
- Frequency Range: 2 kHz – 18 kHz
- Recommended Crossover: 2.2 kHz
- Voice Coil Diameter: 36 mm (1.4 in)
- Winding Material: Aluminium
- Inductance: 0.14 mH
- Flux Density: 1.45 T
- Diaphragm Material: Titanium
- Replacement Diaphragm: MMD012TN8B
- Net Weight: 1.05 kg (2.31 lb)
Mounting Information – B&C DE12TC
- Overall Diameter: 90 mm (3.5 in)
- Depth: 49 mm (2 in)
- Bolt Pattern: Two M5 holes on 76 mm (3 in) bolt circle, 180° apart
Conclusion – B&C DE12TC Compression Driver
The B&C DE12TC is the titanium upgrade in B&C’s 1-inch compression driver range. The step from the DE10’s Mylar diaphragm to titanium delivers more treble detail, more presence, and a brighter high-frequency character that cuts through in live sound environments. The larger 36 mm voice coil adds 50% more power handling, and the same 90 mm body and 76 mm bolt pattern make the B&C DE12TC a direct physical replacement for the DE10 in any existing cabinet.
The choice between the B&C DE12TC and the DE10 comes down to tonal character and power requirements. The DE10 delivers smoother, more forgiving treble with 2 dB more sensitivity — better for background music, vocal reinforcement, and systems without DSP. The B&C DE12TC delivers brighter, more detailed treble with 50% more power handling — better for live sound, DJ applications, and systems where the HF section needs to project through a noisy room. Both share the same physical dimensions, the same bolt pattern, and the same field-replaceable diaphragm serviceability.
For professional two-way PA systems, live sound reinforcement, stage monitors, and any application where a 1-inch compression driver needs titanium detail and enough power handling for sustained professional use, the B&C DE12TC is the 1-inch driver that delivers the step up from entry-level without the step up to premium pricing. It’s B&C’s most practical titanium 1-inch — the right balance of performance, power, and price for working speaker systems.
