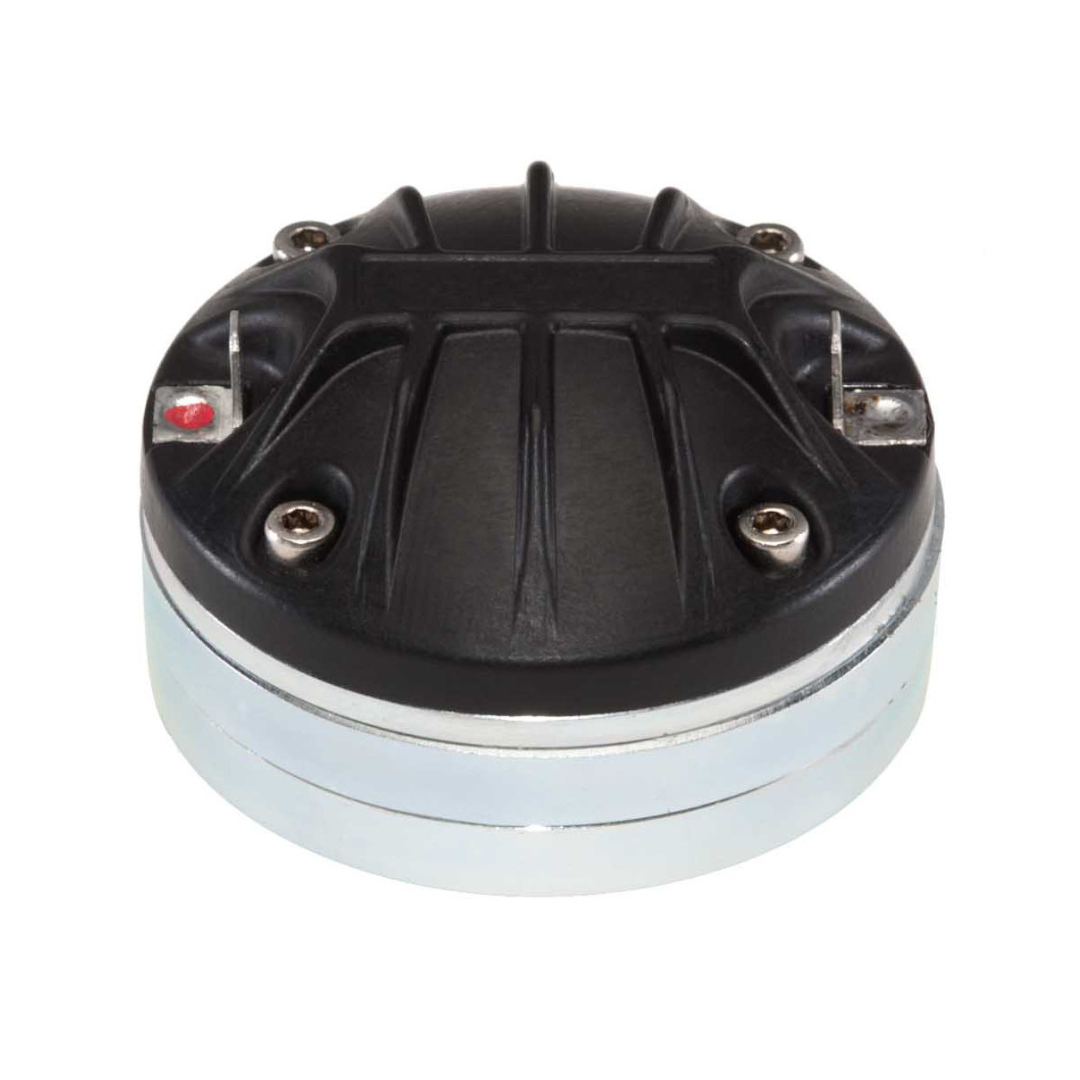

B&C DE110 1″ Professional High Frequency Compression Driver
The B&C DE110 is a compact professional 1-inch high frequency compression driver engineered for applications requiring excellent efficiency, low weight, and reliable high-frequency reproduction. Designed for compact loudspeaker systems, portable PA applications, stage monitors, and installed sound reinforcement products, the B&C DE110 combines a lightweight motor structure with advanced diaphragm technology to deliver clean, articulate sound reproduction across its operating range.
Developed using B&C’s proven compression driver design philosophy, the B&C DE110 utilizes a precision-engineered motor assembly and lightweight moving components to achieve excellent sensitivity while maintaining compact dimensions. Its small footprint makes it particularly suitable for loudspeaker systems where space limitations and reduced weight are important design priorities.
At the center of the B&C DE110 is a 36 mm aluminium voice coil coupled to an advanced HT Polymer diaphragm, providing strong thermal stability and consistent performance across demanding operating conditions. This combination enables the driver to deliver accurate vocal reproduction, improved intelligibility, and smooth high-frequency performance while maintaining professional reliability.
With a frequency response extending from 2 kHz to 18 kHz, high magnetic flux density, and compact physical dimensions, the B&C DE110 provides system designers with a highly versatile compression driver solution suitable for a broad range of professional loudspeaker applications.
Key Features
- 1-inch throat diameter
- 25 W nominal power handling
- 50 W continuous power handling
- 106 dB sensitivity
- 2 kHz – 18 kHz frequency response
- 36 mm (1.4 inch) aluminium voice coil
- HT Polymer diaphragm assembly
- Compact lightweight design
- High-efficiency compression driver architecture
- 1.8 T magnetic flux density
- Low inductance motor structure
- Optimized for compact professional loudspeaker systems
Compact Compression Driver Design
The B&C DE110 has been engineered specifically for applications requiring professional high-frequency performance from an extremely compact package. Featuring a 25 mm (1 inch) throat diameter, the driver integrates easily with a wide range of compact horns and waveguides used in professional loudspeaker systems.
Its compact dimensions make the driver particularly attractive for portable loudspeakers, compact stage monitors, installation products, and space-constrained sound reinforcement designs.
Despite its reduced size, the driver delivers impressive acoustic performance with 106 dB sensitivity, allowing strong output levels while minimizing amplifier power requirements.
The compression driver architecture promotes efficient acoustic loading, helping maintain consistent response and reliable high-frequency reproduction.
High-Energy Magnetic Structure
A defining feature of the B&C DE110 is its powerful magnetic assembly, engineered to maximize efficiency and diaphragm control.
The motor structure generates an impressive 1.8 Tesla magnetic flux density, providing strong control over diaphragm movement and contributing significantly to the driver’s sensitivity and transient performance.
The high magnetic field strength helps maintain accurate reproduction of complex high-frequency content while reducing distortion under demanding operating conditions.
Combined with the lightweight moving assembly, the magnetic system contributes to improved efficiency, strong output capability, and consistent long-term performance.
This optimized magnetic structure allows the B&C DE110 to deliver professional-grade performance while maintaining its compact physical footprint.
Advanced HT Polymer Diaphragm Technology
The B&C DE110 features an advanced HT Polymer diaphragm, designed to provide excellent reliability, thermal stability, and smooth frequency response characteristics.
HT Polymer diaphragm technology offers a balance between lightweight construction and mechanical durability, enabling the diaphragm to maintain stable operation during extended professional use.
The diaphragm assembly contributes to smooth high-frequency reproduction while supporting excellent vocal articulation and speech intelligibility.
Its lightweight characteristics help the driver reproduce upper frequencies efficiently while maintaining controlled transient behaviour.
The diaphragm construction also supports long-term reliability in portable and installed sound applications where continuous operation may be required.
Large Diameter Voice Coil Assembly
The B&C DE110 incorporates a 36 mm (1.4 inch) aluminium voice coil optimized for thermal stability and efficient operation.
The aluminium winding material reduces moving mass, improving transient response and allowing the diaphragm assembly to react quickly to incoming signals. This contributes to cleaner sound reproduction and improved detail retrieval.
The voice coil design supports 25 W nominal power handling and 50 W continuous power handling, providing sufficient capability for numerous compact professional loudspeaker applications.
The driver also features low inductance at 0.14 mH, helping preserve upper-frequency extension while maintaining smooth response characteristics throughout the operating range.
The combination of lightweight materials and efficient thermal performance contributes to the overall reliability of the driver.
Extended High Frequency Performance
The B&C DE110 provides an operating bandwidth extending from 2 kHz to 18 kHz, covering the frequency range necessary for clear speech reproduction and detailed musical performance.
Its frequency response supports accurate reproduction of vocal harmonics, instrument detail, and critical speech information, helping improve overall system intelligibility.
B&C recommends a crossover frequency of 2 kHz, allowing the driver to integrate effectively with compatible low-frequency transducers while maintaining reliable operation.
The combination of wide bandwidth and strong sensitivity allows the B&C DE110 to perform effectively across a broad range of sound reinforcement applications.
Professional System Integration
The compact dimensions and lightweight construction of the B&C DE110 make it suitable for numerous professional loudspeaker designs.
Typical applications include:
- Compact two-way loudspeakers
- Portable PA systems
- Column loudspeaker systems
- Installed sound systems
- Stage monitoring systems
- Speech reinforcement systems
- Background music systems
- Compact professional audio products
Its small physical size and professional acoustic performance provide loudspeaker designers with considerable integration flexibility.
Technical Specifications
Throat Diameter: 25 mm (1 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8 Ω
Nominal Power Handling: 25 W
Continuous Power Handling: 50 W
Sensitivity: 106 dB
Frequency Range: 2 kHz – 18 kHz
Recommended Crossover: 2 kHz
Voice Coil Diameter: 36 mm (1.4 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.8 T
Diaphragm Material: HT Polymer
Design Features
Driver Type: High Frequency Compression Driver
Throat Diameter: 25 mm (1 in)
Voice Coil Diameter: 36 mm (1.4 in)
Diaphragm Material: HT Polymer
Winding Material: Aluminium
Magnetic Flux Density: 1.8 T
Recommended Crossover Frequency: 2 kHz
Mounting Information
Mounting Configuration: Two M5 holes 180° on 52 mm (2.05 in) diameter
Overall Diameter: 60 mm (2.36 in)
Depth: 35 mm (1.38 in)
Net Weight: 0.32 kg (0.71 lb)
Shipping Units: 1 Piece
Shipping Weight: 0.35 kg (0.76 lb)
Shipping Box: 105 × 105 × 65 mm
Applications
The B&C DE110 is engineered for professional applications requiring compact dimensions, excellent efficiency, and dependable high-frequency reproduction. Its advanced HT Polymer diaphragm, lightweight construction, and powerful magnetic structure make it particularly suitable for compact PA systems, stage monitoring products, installed sound reinforcement systems, and portable loudspeaker applications.
With strong sensitivity, professional reliability, and efficient operation, the B&C DE110 provides loudspeaker designers with a compact compression driver solution capable of delivering clear and articulate high-frequency performance. For applications requiring lightweight construction combined with professional sound quality, the B&C DE110 offers an effective and reliable solution.
