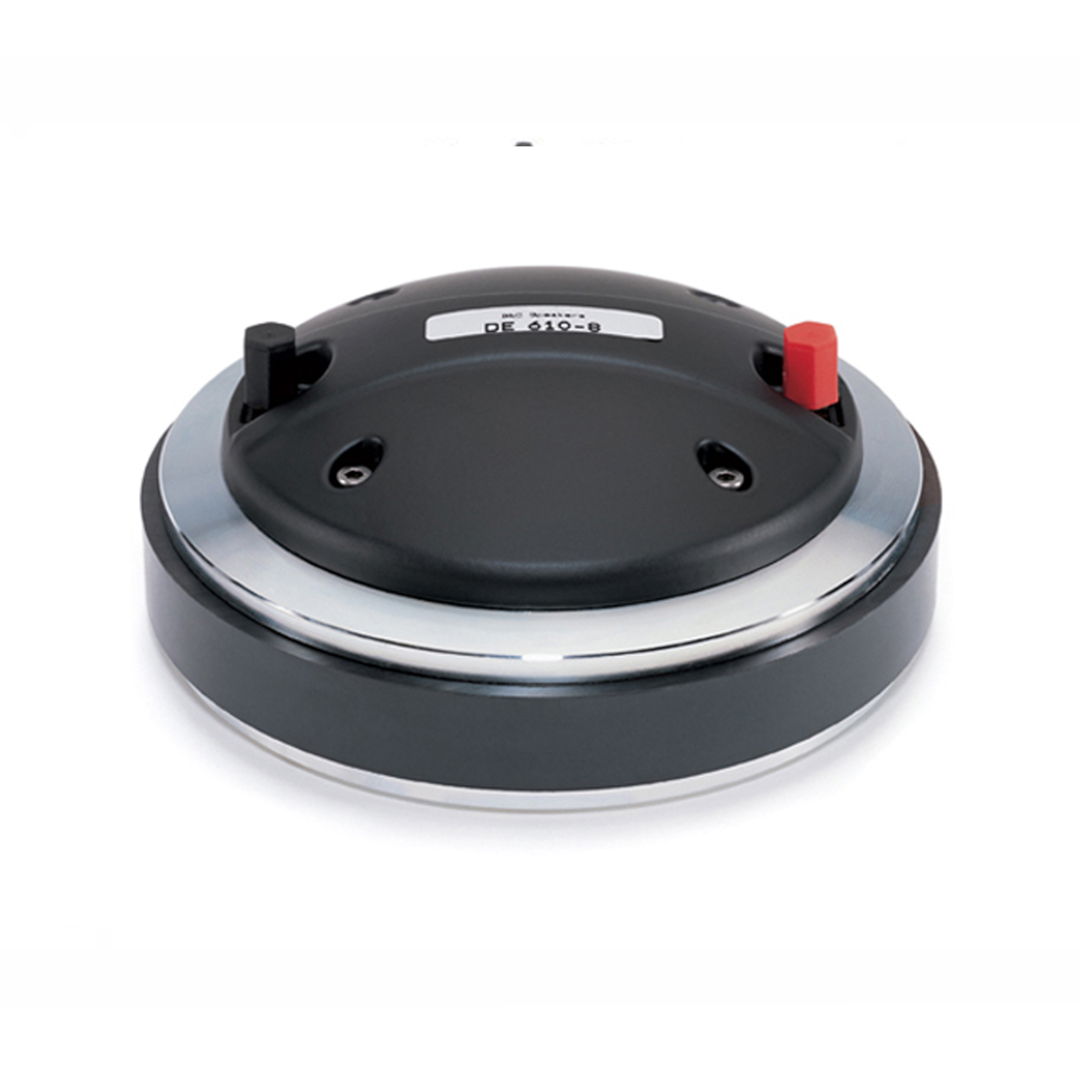

B&C DE610 – Premium 1.4-Inch Titanium Compression Driver with Enhanced Motor and 16 Ohm Option
The B&C DE610 is the enhanced-motor variant of B&C’s 65 mm voice coil 1.4-inch exit platform — sharing the DE602’s titanium diaphragm, 108 dB sensitivity, 80 W AES power handling, and shorting copper cap, but stepping up to a 1.75 T neodymium motor that provides significantly more magnetic authority over the diaphragm assembly. The stronger motor, combined with the addition of a 16 Ω impedance variant for multi-driver configurations, makes the B&C DE610 the most complete 65 mm coil 1.4-inch compression driver in B&C’s range.
The headline specs — 108 dB, 80 W AES, 1 kHz – 18 kHz, 1.2 kHz crossover — match the DE602 exactly. The difference between the two drivers isn’t visible on a sensitivity measurement at 1 watt. It’s visible at 80 watts, at full rated power, during the fourth hour of a festival set — where the B&C DE610’s 1.75 T motor maintains more consistent control over the titanium diaphragm than the DE602’s 1.55 T can achieve under the same conditions.
The 13% increase in flux density translates to more linear diaphragm behaviour at high excursion, lower distortion under sustained load, and less power compression during extended high-power operation. For builders specifying a compression driver for touring systems where the HF section runs at or near full power for hours, the B&C DE610’s stronger motor delivers measurably better performance when it matters most — not at 1 watt on the test bench, but at full power on the stage.
The 16 Ω variant is the other key differentiator. The DE602 is available in 8 Ω only. The B&C DE610 adds the 16 Ω option that system designers need for line arrays, multi-driver HF sections, and any configuration where multiple compression drivers share a single amplifier channel. Two 16 Ω drivers in parallel present 8 Ω. Four in series-parallel present 16 Ω. These are standard impedance values that professional amplifiers drive efficiently.
At 3.8 kg and 156 mm overall diameter, the B&C DE610 is larger and heavier than the DE602 (3.4 kg, 145 mm). The stronger motor requires a larger magnet assembly, which accounts for the additional 400 g and 11 mm of body diameter. Both drivers share the same 65 mm depth and the same four M6 mounting holes on a 102 mm bolt circle — the B&C DE610 fits the same horn flanges as the DE602, just with a slightly wider body behind the mounting interface.
The user-replaceable titanium diaphragm (part number MMD6108) is shared with the DE602, confirming the two drivers use identical diaphragm assemblies and differ only in motor strength, body size, and impedance availability.
Design and Construction of the B&C DE610
The B&C DE610 uses a 65 mm (2.5-inch) aluminium voice coil driving a titanium diaphragm through a 1.4-inch (36 mm) exit throat. The coil and diaphragm are identical to the DE602 — same diameter, same material, same dome geometry. The motor behind them is where the B&C DE610 diverges.
The magnetic circuit produces 1.75 T of flux density from a neodymium magnet assembly — a 13% increase over the DE602’s 1.55 T. That increase means the 65 mm voice coil operates in a substantially stronger magnetic field, which provides more force per ampere of current flowing through the coil. More force means more control over the diaphragm’s motion, and more control means more linear behaviour at high excursion levels.
The practical consequence of higher flux density is lower distortion under load. At 1 watt, both drivers produce 108 dB and the distortion difference is negligible. At 40 watts, the B&C DE610’s stronger motor keeps the diaphragm behaving more linearly — the dome moves more symmetrically, the restoring force is more consistent, and the harmonic distortion products are measurably lower. At 80 watts sustained, the difference becomes significant — the B&C DE610 maintains cleaner, more controlled output than the DE602 at the same power level.
The titanium diaphragm delivers the bright, detailed, forward treble character that defines professional titanium compression drivers. The stiffness-to-weight ratio maintains pistonic dome behaviour at high frequencies, and the characteristic titanium resonant peak provides the presence and projection that live sound applications require.
The shorting copper cap on the pole piece reduces voice coil inductance rise at higher frequencies, flattening the impedance curve and extending the usable response to 18 kHz. The 0.15 mH inductance with the cap is the same as the DE602 — confirming that the coil and cap are shared, and only the magnetic circuit behind them differs.
At 3.8 kg, 156 mm overall diameter, and 65 mm depth, the B&C DE610 is the heaviest and widest 1.4-inch exit driver in B&C’s range. The 156 mm body diameter is 11 mm wider than the DE602’s 145 mm — the additional radial space accommodates the larger neodymium magnet assembly required for 1.75 T. Builders upgrading from the DE602 should verify that the wider body clears their horn or cabinet mounting geometry, even though the bolt circle and depth are identical.
Four M6 mounting holes on a 102 mm (4-inch) bolt circle at 90° intervals match the standard pattern shared across B&C’s professional 1.4-inch range. The shared bolt pattern means the B&C DE610 mounts on the same horns as the DE602 and DE254TN without adapter plates or modifications.
Performance and Applications for the B&C DE610
The B&C DE610 delivers 108 dB sensitivity across a 1 kHz – 18 kHz bandwidth with a recommended crossover frequency of 1.2 kHz. Every headline specification matches the DE602 — the two drivers are indistinguishable on a datasheet measured at standard conditions. The B&C DE610’s advantage is in sustained performance under real-world operating conditions where the stronger motor delivers measurably better results.
Power compression is the metric where the stronger motor shows its value. As a compression driver operates at high power for extended periods, the voice coil heats up, resistance increases, and the driver produces less output than its rated sensitivity predicts. A stronger magnetic field partially counteracts this effect — the higher flux generates more force per ampere even as the coil resistance rises, which means the B&C DE610 maintains its rated output longer and compresses less over the course of an event.
For touring systems running sustained high power — festivals, arena shows, multi-hour club nights — the difference between the DE602’s 1.55 T and the B&C DE610’s 1.75 T translates to more consistent high-frequency output from the first song to the last. The HF section doesn’t gradually fade as the coil heats up. It stays present, stays defined, and stays at the output level the system was tuned for.
The 80 W AES / 160 W program power handling matches the DE602 as the highest in B&C’s 1.4-inch range. Combined with the stronger motor’s resistance to power compression, the B&C DE610 delivers more real-world sustained output than any other 1.4-inch driver in the catalogue — not because it’s rated for more power, but because it loses less output to thermal compression at the same power level.
The 1.2 kHz recommended crossover provides the same early woofer-to-horn handoff as the DE602, giving the horn control of directivity from the upper mid-range upward. The 108 dB sensitivity ensures the B&C DE610 maintains authoritative output through the vocal presence band and beyond.
The 16 Ω impedance variant is the system design feature that the DE602 doesn’t offer. For line arrays using multiple compression drivers per element, the 16 Ω variant simplifies impedance management. Two 16 Ω drivers in parallel present a clean 8 Ω load — efficient and safe for any professional amplifier. Four in series-parallel present 16 Ω. The DE602’s 8 Ω limitation means two drivers in parallel present 4 Ω and four present 2 Ω — workable on some amplifiers but problematic on many.
For system designers building a product line that includes both single-driver and multi-driver HF configurations, the B&C DE610’s 16 Ω option allows them to standardise on one driver model across the entire range. The same compression driver works in a single-driver two-way top (8 Ω) and a four-driver line array element (16 Ω series-parallel) without requiring different driver models or impedance-matching transformers.
The titanium diaphragm with shorting copper cap provides the same tonal character as the DE602 — bright, detailed titanium presence with extended, smoothed upper treble from the copper cap. The B&C DE610 sounds identical to the DE602 at moderate power levels. The difference reveals itself at sustained high power, where the stronger motor keeps the output cleaner and more controlled.
Ideal applications for the B&C DE610 include:
- Premium touring speaker systems requiring the strongest motor authority in a 1.4-inch exit
- Festival rigs and arena installations where sustained high-power performance is critical
- Line arrays using the 16 Ω variant for multi-driver HF configurations
- High-output installed sound where power compression must be minimised over extended hours
- Two-way and three-way systems crossing over at 1.2 kHz for optimised directivity control
- System platforms standardising on one driver model across single and multi-driver configurations
- Upgrades from DE602 installations needing stronger motor performance and 16 Ω availability
- Applications where measured distortion under sustained load justifies the stronger motor
Specifications – B&C DE610
- Throat Diameter: 36 mm (1.4 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.6 Ω
- Nominal Power Handling: 80 W
- Continuous Power Handling: 160 W
- Sensitivity: 108 dB
- Frequency Range: 1 kHz – 18 kHz
- Recommended Crossover: 1.2 kHz
- Voice Coil Diameter: 65 mm (2.5 in)
- Winding Material: Aluminium
- Inductance: 0.15 mH
- Flux Density: 1.75 T
- Magnet Material: Neodymium
- Diaphragm Material: Titanium
- Replacement Diaphragm: MMD6108
- Available Impedances: 8 Ω, 16 Ω
- Net Weight: 3.8 kg (8.4 lb)
Mounting Information – B&C DE610
- Overall Diameter: 156 mm (6.1 in)
- Depth: 65 mm (2.5 in)
- Bolt Pattern: Four M6 holes on 102 mm (4 in) bolt circle, 90° apart
Conclusion – B&C DE610 Compression Driver
The B&C DE610 is the most refined 65 mm coil 1.4-inch compression driver in B&C’s range. The 1.75 T neodymium motor delivers 13% more flux density than the DE602’s 1.55 T, providing stronger control over the titanium diaphragm at sustained high power levels where the difference between 1.55 T and 1.75 T shows up as lower distortion, less power compression, and more consistent output over time.
The datasheet specs match the DE602 — same 108 dB, same 80 W AES, same bandwidth, same crossover. The B&C DE610’s advantage is in sustained real-world performance. The stronger motor keeps the driver sounding the same at 11 PM as it did at 8 PM — holding its output level, its transient definition, and its tonal character while weaker-motored drivers have gradually compressed and faded.
The 16 Ω variant and the shared MMD6108 replacement diaphragm add practical system design advantages the DE602 can’t offer. Multi-driver line array configurations, single-model standardisation across a product range, and parts commonality with the DE602 all simplify the decisions system designers and rental companies face.
For premium touring rigs, festival systems, high-output installations, line arrays, and any application where a 1.4-inch titanium compression driver needs to deliver the most consistent, lowest-distortion sustained performance available in B&C’s 65 mm coil class, the B&C DE610 is the driver that keeps performing long after lesser motors have started to fade. Stronger motor, 16 Ω option, same proven titanium platform — the complete 65 mm 1.4-inch package.
