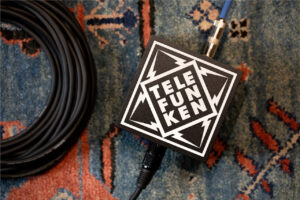

Description
The Telefunken TDP-1 Mono Passive DI combine premium though-hole components, European-made transformers and rugged, road-ready construction to deliver rich, warm tone in any environment. Boasting an ultra-flat frequency response with extremely low distortion and self-noise, the TDP direct boxes excel at capturing everything from synthesizers and keyboards to acoustic-electric guitar and electric bass with a certain subtle and unique character.
At the heart of all TELEFUNKEN Elektroakustik direct boxes are custom-wound output transformers made in England by OEP/Carnhill. Each channel features premium metal Amphenol connectors and recessed metal switches to engage the -15 dB pad and ground lift. These elements combined with premium passive components (including 1% tolerance metal film resistors, and WIMA and Nichicon capacitors) are all housed in a rugged aluminum chassis designed to withstand the wear and tear of the road. Like all TELEFUNKEN microphones, all TDP direct boxes are assembled and critically tested in Connecticut, USA.
Telefunken TDP-1 Mono Passive DI FEATURES
- Custom-wound OEP/Carnhill transformer, made in the UK
- -15 dB pad switch
- Ground lift switch
- Rugged aluminum construction
- Recessed switches and connectors for protection
- 100% through-hole components
- Amphenol connectors
- WIMA and Nichicon capacitors
- 1% 1/4W metal film resistors
- 3-year warranty
- Type: Passive Direct Box
TECHNICAL SPECIFICATIONS
Type: Passive Direct Box
Frequency Range: 10 Hz – 70 kHz, ±1 dB
Transformer: Custom-Wound OEP/Carnhill
Input Impedance: > 20 kΩ
Output Impedance: < 200 Ω
Maximum SPL (for 1% THD): > +18 dBV
Input Connections: 1/4″ Jack
Output Connections: XLR Output, 1/4″ Thru
Dimensions: 100 mm L x 100 mm W x 50 mm H
Weight: 490 g
Included Accessories: Cloth Drawstring Bag
