18 Sound 10W650 – LF Driver

18 Sound 10W650 – Versatile 10-Inch Ferrite Woofer with SDR Distortion Reduction and 0.48 Qts Enclosure Flexibility

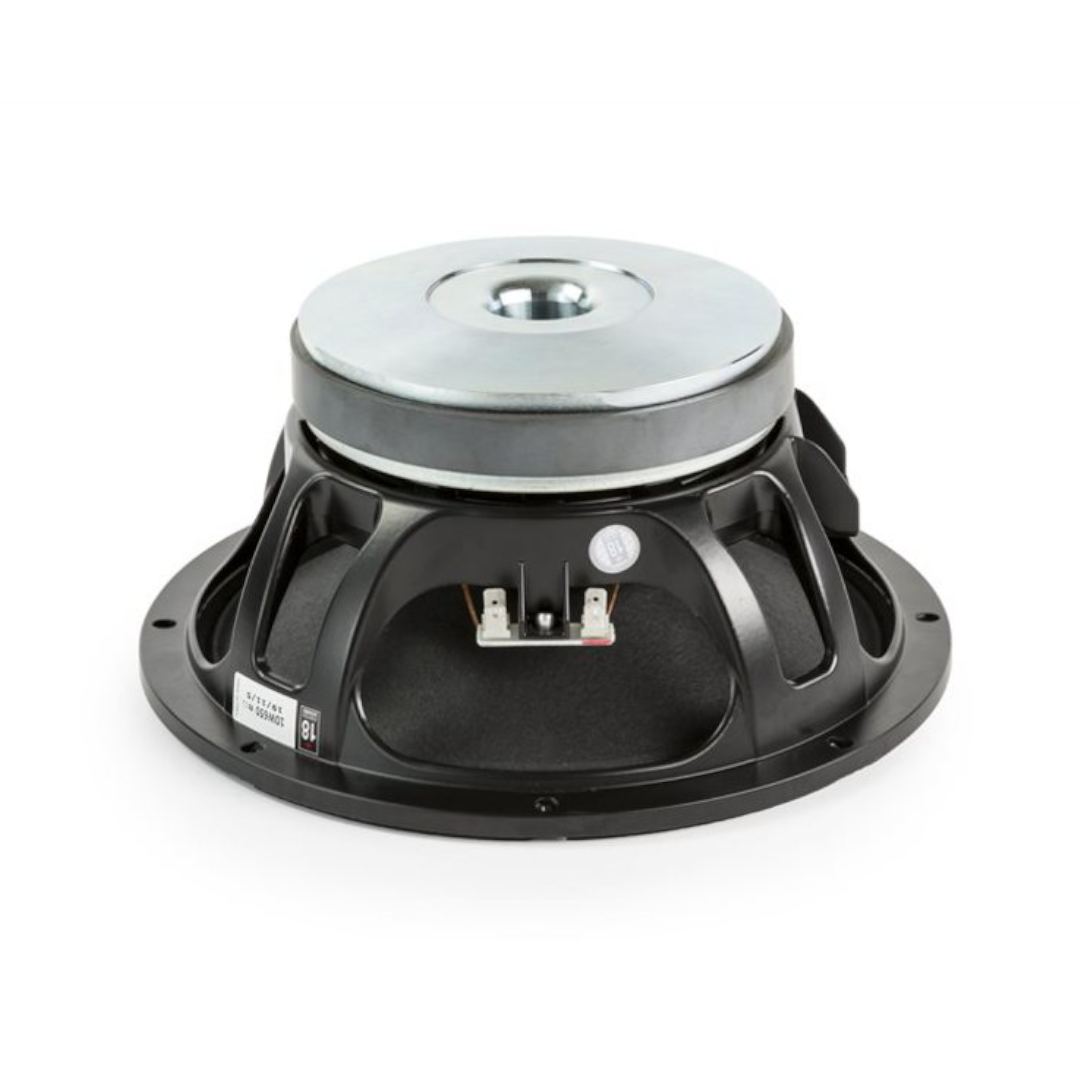

The 18 Sound 10W650 is the ferrite-motored 10-inch woofer in 18 Sound’s 650-series platform — matching the neodymium 10NW650’s 96 dB sensitivity while adding the SDR distortion reduction that the neodymium version doesn’t carry, producing lower inductance (0.59 vs 0.7 mH), and delivering the most versatile enclosure alignment of any 10-inch driver in 18 Sound’s range with a Qts of 0.48 that works in sealed, vented, or any topology in between.

The SDR on the ferrite but not the neodymium is the counterintuitive engineering story. Most builders expect neodymium models to carry the more sophisticated motor features. The 18 Sound 10W650 reverses that assumption — the ferrite version includes a demodulating ring for flux modulation cancellation, which the neodymium 10NW650 doesn’t have. The SDR reduces harmonic distortion during excursion and lowers the inductance from 0.7 mH (10NW650 without SDR) to 0.59 mH (18 Sound 10W650 with SDR). The ferrite driver has lower distortion and flatter impedance than its neodymium counterpart.

The 0.48 Qts is the specification that makes the 18 Sound 10W650 the most enclosure-versatile 10-inch in 18 Sound’s range. The 10NW650’s 0.28 Qts is strictly vented. The 10NW750’s 0.31 is firmly vented. The 10NTLW2500’s 0.33 is vented. The 18 Sound 10W650’s 0.48 sits well above the sealed/vented boundary — builders can design sealed enclosures for tight, controlled bass with a gentle natural rolloff, or vented enclosures for extended output and deeper bass reach. No other 18 Sound 10-inch driver gives builders this much freedom.

The 96 dB sensitivity matches the 10NW650 exactly — the ferrite motor produces the same output per watt as neodymium. The trade-off is weight: 4.3 kg versus the 10NW650’s 2.7 kg. For applications where weight matters more than cost, the neodymium wins. For applications where enclosure flexibility, lower distortion, lower inductance, and lower cost matter more than minimum weight, the 18 Sound 10W650 is the stronger specification.

At 4.3 kg, 260 mm overall diameter, 230 mm baffle cutout, 121 mm depth — matching the 10NW650’s dimensions exactly — with a 25-litre recommended enclosure tuned to 70 Hz, and available in 8 and 16 Ω.

Design and Construction of the 18 Sound 10W650

The 18 Sound 10W650 uses a 65 mm (2.5-inch) edgewound aluminium voice coil on a high-strength fibreglass former — the same EWAL (Edge-Wound Aluminium) coil technology found on the 10NW650. The edgewound construction packs more conductor into the magnetic gap per unit of coil height, maximising force output. The fibreglass former provides mechanical strength for efficient force transmission from the voice coil to the cone.

The ferrite magnetic structure has been optimised using 18 Sound’s in-house FEA CAD resource, maximising flux density in the voice coil gap. The 12.4 Tm force factor is lower than the 10NW650’s 14 Tm — the ferrite motor’s lower flux concentration per unit of magnetic mass produces less force from the same coil. But the 12.4 Tm driving 36.6 g of moving mass still produces 96 dB sensitivity — matching the neodymium version.

The SDR (Single Demodulating Ring) is the distortion reduction feature that the neodymium 10NW650 lacks. The SDR absorbs the flux modulations that occur as the voice coil moves through the magnetic gap during excursion, reducing harmonic distortion and linearising the impedance behaviour. The practical consequence is the 0.59 mH Le — lower than the 10NW650’s 0.7 mH despite the ferrite motor’s typically higher inductance characteristics. The SDR compensates for the ferrite’s higher baseline inductance and then some, producing a net inductance that beats the neodymium alternative.

Voice coil cooling uses airways between the chassis back plate and the magnet face plate, with heated air channelled away from the voice coil and gap for dissipation through the chassis basket. 18 Sound developed this cooling architecture using 3D CAD resources for optimised thermal exchange.

The curvilinear cone uses 18 Sound’s high-strength wood pulp composition treated against extremely aggressive environmental conditions. The M-roll surround provides controlled damping and excursion through the 5.7 mm Xmax, using a material more resistant to ageing and fatigue than traditional surround materials.

The 0.48 Qts and 131 Hz EBP are the alignment parameters that distinguish the 18 Sound 10W650 from every other 10-inch driver in the range. The 0.48 places the driver well into sealed-compatible territory. In a sealed enclosure, the 18 Sound 10W650 produces a Butterworth-type response with gentle rolloff below the system resonance — no port, no tuning, just smooth, controlled bass. In a vented enclosure, the 0.48 Qts produces slightly less tight bass than the lower-Qts neodymium models but with a warmer, fuller character that many installations prefer.

At 4.3 kg, 260 mm overall diameter, 244 mm bolt circle, 230 mm baffle cutout, 121 mm depth, and 9 mm flange, the 18 Sound 10W650 matches the 10NW650’s mounting interface exactly. The two drivers are physically interchangeable.

Performance and Applications for the 18 Sound 10W650

The 18 Sound 10W650 delivers 96 dB sensitivity across a 55 Hz – 5700 Hz bandwidth. The 96 dB matches the 10NW650. The 5700 Hz upper bandwidth is slightly narrower than the 10NW650’s 6000 Hz — a 300 Hz difference that is negligible in practice. The 55 Hz lower limit matches exactly.

The 250 W AES / 500 W program power handling is 50 W less AES and 100 W less program than the 10NW650’s 300/600 W. The ferrite motor’s thermal characteristics limit the sustained power rating compared to neodymium. For moderate to high-power applications, 250 W AES is adequate — and the 96 dB sensitivity means the 18 Sound 10W650 reaches any given SPL with the same amplifier power as the 10NW650.

The 0.48 Qts is the 18 Sound 10W650’s defining performance characteristic. In a sealed 15-litre enclosure, the driver produces clean, controlled bass with a gentle −3 dB rolloff around 90–100 Hz — the kind of tight, well-damped response that studio monitors and high-accuracy installed systems demand. In a vented 25-litre enclosure tuned to 70 Hz, the bass extends deeper with more output below 80 Hz.

18 Sound recommends the 25-litre vented alignment at 70 Hz, but the beauty of the 0.48 Qts is that builders aren’t locked in. Sealed, vented, bandpass, isobaric — the high Qts produces workable response in all of them. No other 18 Sound 10-inch driver offers this flexibility.

The SDR’s lower distortion is most audible in the mid-range — the 200–2000 Hz band where the human ear is most sensitive to coloration. The demodulating ring keeps the output cleaner as excursion increases, which matters most during loud passages where the cone is moving through more of its Xmax. The 10NW650’s output degrades slightly more at equivalent excursion because it lacks the SDR’s flux stabilisation.

The 5.7 mm Xmax is 1.3 mm less than the 10NW650’s 7 mm — a displacement trade-off for the ferrite motor. For bass-extension applications where displacement defines the output below 80 Hz, the 10NW650’s higher Xmax produces more low-frequency content. For mid-bass applications where the driver operates above 80 Hz, the 5.7 mm is adequate and the SDR’s distortion advantage matters more than the missing 1.3 mm of excursion.

The comparison to the 10NW650 defines a clear ferrite vs neodymium decision for the 650 platform. The 10NW650 delivers lighter weight (2.7 vs 4.3 kg), more Xmax (7 vs 5.7 mm), more power (300 vs 250 W AES), and lower Qts (0.28) for tighter vented bass. The 18 Sound 10W650 delivers SDR distortion reduction, lower inductance (0.59 vs 0.7 mH), more enclosure flexibility (0.48 Qts), and lower cost from the ferrite motor. Same sensitivity, same dimensions, same cutout — different priorities.

Within the full 10-inch range, the 18 Sound 10W650 is the only ferrite option currently available. Every other 10-inch driver (10NW650, 10NW750, 10NTLW2000, 10NTLS2000, 10NTLW2500, 10MB400, 10M600) uses either neodymium or ferrite — but the 18 Sound 10W650 is the sole 10-inch ferrite woofer with SDR distortion reduction. For builders who need ferrite pricing with distortion-reduced performance, it’s the only option.

Conclusion – 18 Sound 10W650 Woofer

The 18 Sound 10W650 is the most enclosure-versatile 10-inch woofer in 18 Sound’s range. The 0.48 Qts works in sealed, vented, and everything in between — a flexibility that no other 18 Sound 10-inch driver matches. The SDR distortion reduction produces lower inductance (0.59 mH) and lower harmonic distortion than the neodymium 10NW650 — the ferrite version delivering cleaner output than the neo.

The 96 dB sensitivity matches the 10NW650 exactly. The 55 Hz – 5700 Hz bandwidth matches closely. The physical dimensions match precisely — one cabinet, two motor options. The 18 Sound 10W650 is the ferrite half of the 650 platform, and it brings features the neodymium half doesn’t carry.

For sealed enclosures, vented enclosures, compact two-way systems, installed sound, studio monitoring, and any application where a 10-inch woofer needs maximum enclosure flexibility with SDR-cleaned output from a cost-effective ferrite platform, the 18 Sound 10W650 is the 10-inch that lets the builder choose the enclosure and delivers clean 96 dB output regardless of the topology. Ferrite, SDR, 0.48 Qts — the most versatile 10-inch in the catalogue.
