18 Sound 10NMB420 – LF Drivers

18 Sound 10NMB420 – High-Sensitivity 10-Inch Neodymium Mid-Bass with ISV Voice Coil and SDR Distortion Reduction

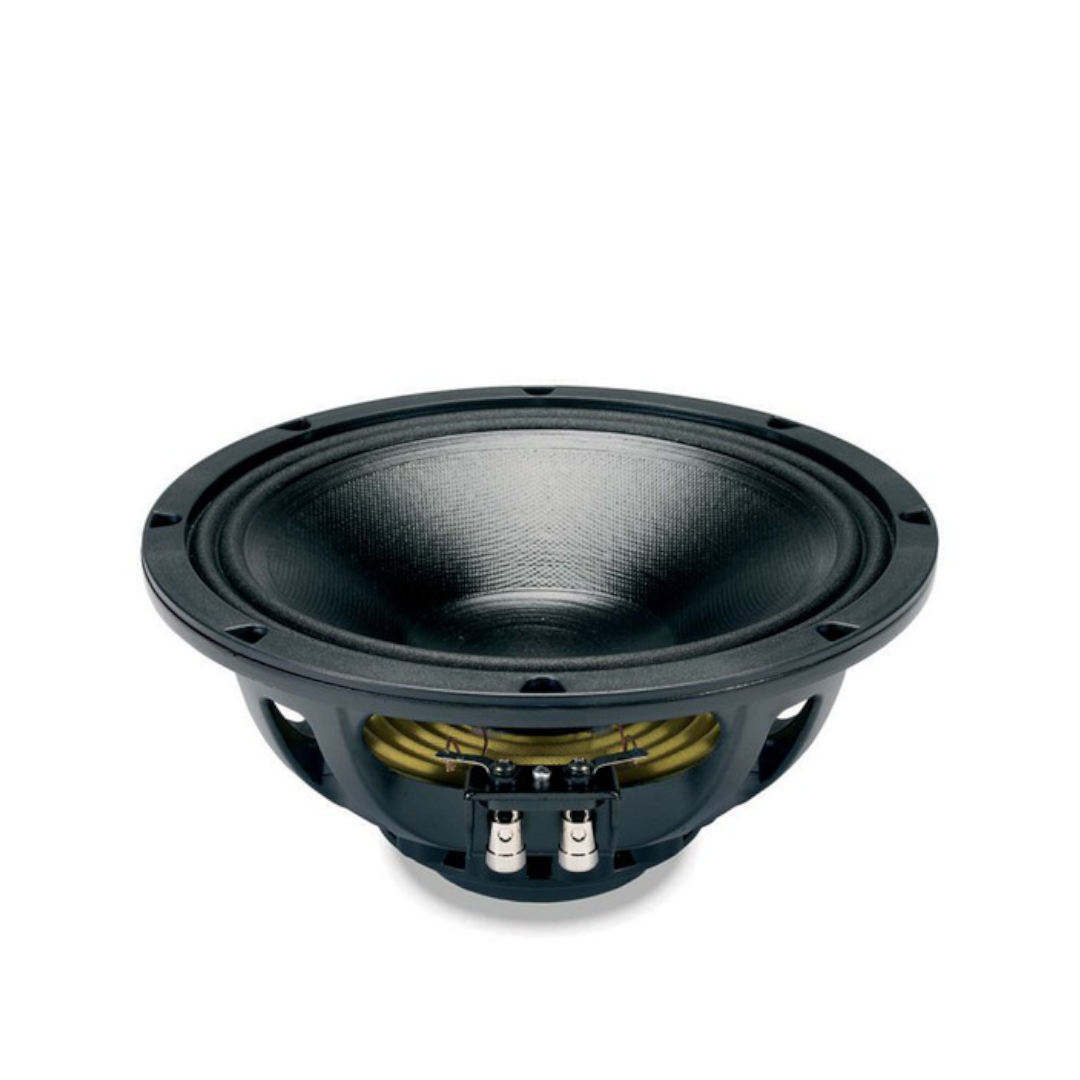

The 18 Sound 10NMB420 is a 10-inch neodymium mid-bass driver that combines the ISV voice coil and SDR demodulating ring into a platform delivering 99 dB sensitivity — 3 dB above the 10NW650 replacement and the second-highest sensitivity of any 18 Sound 10-inch mid-bass after the AIC-equipped 10NMBA520 and the ferrite 10MB400. With a 65 mm ISV coil, 14.5 Tm force factor, 350 W AES power handling, 0.37 mH inductance, and a 29.5 g moving mass, the 18 Sound 10NMB420 delivers the ISV/SDR technology combination at the highest mid-bass sensitivity in the neodymium 10-inch range.

The 99 dB sensitivity is the specification that positions the 18 Sound 10NMB420 above the 10NW650 (96 dB) and below the 10NMBA520 (100.5 dB with AIC). The 29.5 g moving mass — lighter than the 10NW650’s 34 g — produces more output per watt from a lighter cone assembly. The 14.5 Tm Bl provides firm motor authority through the 4 mm Xmax.

The SDR produces 0.37 mH inductance — half the 10NW650’s 0.7 mH (which has no SDR) and lower than the 10W650’s 0.59 mH (which does have SDR from a ferrite motor). The SDR’s flux modulation cancellation reduces harmonic distortion and flattens the impedance curve through the 5000 Hz upper bandwidth.

The 4 mm Xmax confirms the 18 Sound 10NMB420’s mid-bass design intent. This is not a bass-extension driver — it’s a sensitivity-optimised transducer designed for the mid-bass and mid-range frequency bands in line arrays and compact two-way systems. 18 Sound specifically recommends positioning the low-pass filter as high as 2000 Hz.

At 3.0 kg with a 65 Hz – 5000 Hz bandwidth, 25-litre recommended enclosure tuned to 70 Hz, and 8/16 Ω availability. 18 Sound lists the 10NW650 as the alternative/current model.

Design and Construction of the 18 Sound 10NMB420

The 18 Sound 10NMB420 uses a 65 mm (2.5-inch) aluminium ISV (Interleaved Sandwich Voice Coil) wound on a fibreglass former. The ISV places conductor on both surfaces of the former for mass-balanced, linear motor behaviour. The fibreglass former improves force transmission and power handling.

The SDR (Single Demodulating Ring) reduces flux modulation during excursion and reduces intermodulation distortion — 18 Sound specifically highlights the SDR’s role in reproducing instantaneous peaks on mid frequencies. The combined ISV + SDR motor produces the 0.37 mH inductance — significantly lower than the ISV-only designs without SDR.

The external neodymium magnet provides high flux concentration, low power compression, and excellent heat exchange. The 14.5 Tm force factor driving 29.5 g of moving mass produces 99 dB sensitivity and the 0.25 Qts / 215 Hz EBP that define a motor-dominant mid-bass alignment suited for vented and horn-loaded applications.

Voice coil cooling uses airways between the chassis back plate and the magnet faceplate, channelling heated air away from the coil and gap. The weather-protected cone treatment renders the cone humidity repellent without increasing moving mass. Corrosion-resistant plate coatings protect against salt and oxidation.

At 3.0 kg, 260 mm overall diameter, 232 mm baffle cutout, 122 mm depth, and 11 mm flange.

Performance and Applications for the 18 Sound 10NMB420

The 18 Sound 10NMB420 delivers 99 dB sensitivity across a 65 Hz – 5000 Hz bandwidth. The 99 dB is 3 dB above the 10NW650 — roughly double the acoustic power per watt. For line arrays where each element runs from a shared amplifier channel, 3 dB more sensitivity per element translates to either 3 dB more total array output or the same output at half the amplifier power.

The 350 W AES / 500 W program power handling exceeds the 10NW650’s 300 W AES by 50 W. Combined with the 3 dB higher sensitivity, the maximum sustained output exceeds the 10NW650 by approximately 3.7 dB — a substantial advantage.

The 0.37 mH Le is the ISV + SDR combination’s practical benefit for crossover designers. Lower inductance means flatter impedance, simpler passive crossover design, and more accurate DSP response. The SDR absorbs the flux modulations and eddy currents that generate inductance variation, keeping the 10NMB420’s impedance behaviour significantly more predictable than the 10NW650’s 0.7 mH.

The 4 mm Xmax limits bass displacement. The 18 Sound 10NMB420 operates best from 70 Hz upward — the mid-bass and mid-range bands — with a sub section handling deep bass. The 5000 Hz upper bandwidth provides over an octave of overlap with compression drivers crossed over at 2000 Hz.

18 Sound recommends a 25-litre enclosure tuned to 70 Hz. The 0.25 Qts and 215 Hz EBP produce tight, controlled mid-bass in the vented cabinet.

The comparison across the three ISV/SDR-class 10-inch drivers shows distinct evolution. The 10NMBA520 delivers AIC-class inductance (0.01 mH) and 100.5 dB sensitivity but only 300 W AES, 8 Ω only, and 104 mm depth. The 18 Sound 10NMB420 delivers ISV/SDR inductance (0.37 mH) and 99 dB with 350 W AES, 8/16 Ω, and 122 mm depth. The 10NW650 delivers ISV-only inductance (0.7 mH) and 96 dB with 300 W AES, 8/16 Ω, 7 mm Xmax, and 131 mm depth. The 10NMBA520 leads on inductance and sensitivity. The 18 Sound 10NMB420 balances sensitivity, power, and SDR-reduced inductance. The 10NW650 leads on displacement and bandwidth.

Conclusion – 18 Sound 10NMB420 Mid-Bass Driver

The 18 Sound 10NMB420 delivers the highest neodymium ISV/SDR sensitivity in the 10-inch range at 99 dB — 3 dB above the 10NW650 that replaced it. The 65 mm ISV coil with SDR produces 0.37 mH inductance — half the 10NW650’s figure. The 350 W AES power handling exceeds the 10NW650 by 50 W. The 29.5 g moving mass produces more output per watt than the 10NW650’s 34 g.

The trade-off is displacement — 4 mm Xmax versus the 10NW650’s 7 mm. The 10NW650 improved the platform with more bass displacement and wider bandwidth (6000 vs 5000 Hz) at the cost of sensitivity and inductance. For mid-bass applications above 70 Hz where sensitivity and SDR-quality inductance define the system’s mid-band performance, the 18 Sound 10NMB420 delivers 3 dB more output per watt with half the inductance.

For line arrays, compact two-way systems, and any application where a 10-inch mid-bass needs to deliver 99 dB sensitivity with ISV/SDR linearity from a 3.0 kg neodymium platform, the 18 Sound 10NMB420 is the ISV/SDR 10-inch that prioritises mid-band output above displacement. Ninety-nine dB, 0.37 millihenries, 350 watts — the highest-sensitivity ISV/SDR 10-inch in the catalogue.
