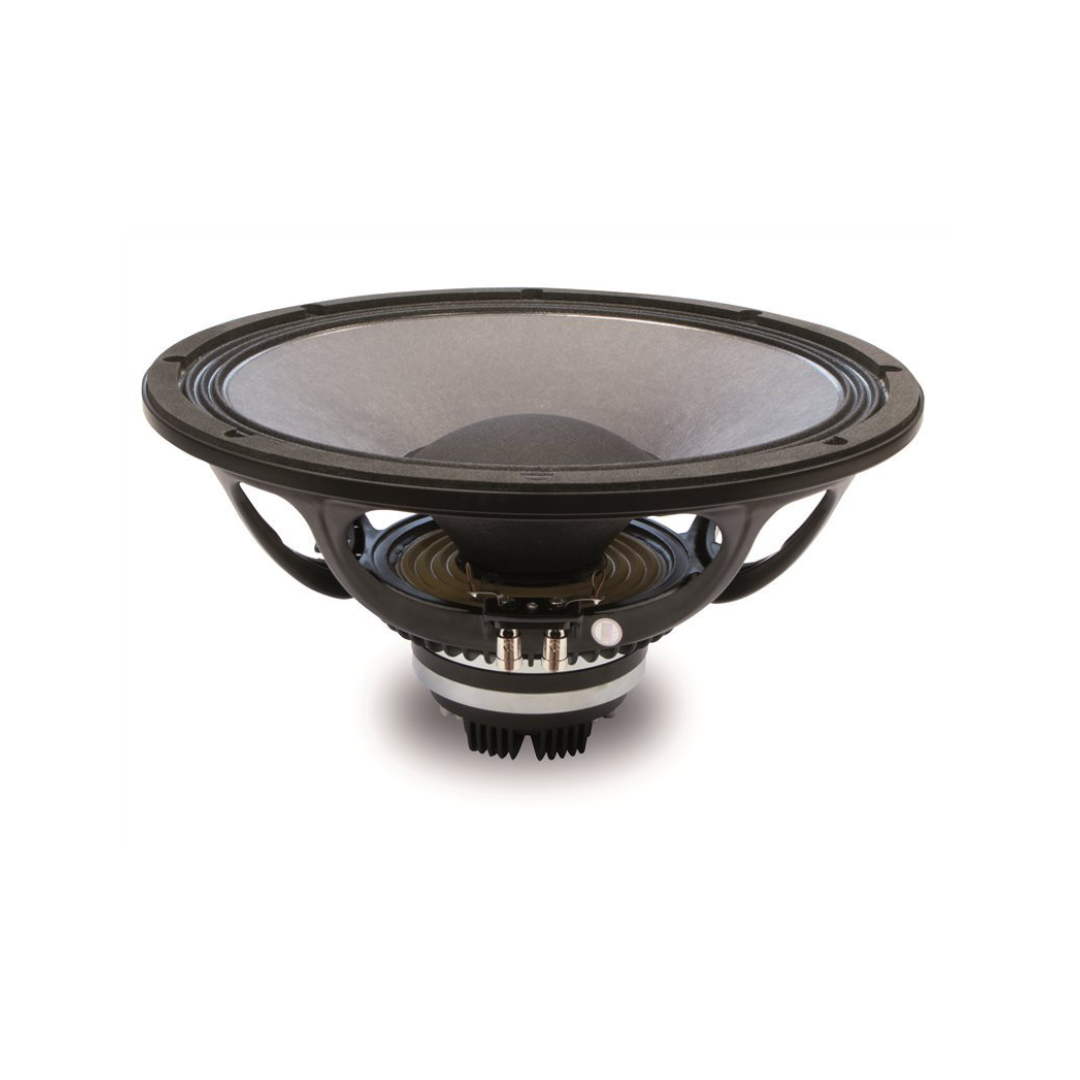

18 Sound 12NCX750 – Coaxial Driver

18 Sound 12NCX750 – Lightest 12-Inch Neodymium Coaxial with ISV Voice Coil and 5000 Hz LF Bandwidth

The 18 Sound 12NCX750 is the lightest and most compact coaxial transducer in 18 Sound’s entire range. At 4.5 kg — lighter than every 15-inch coaxial in the catalogue including the 15NCX750’s 4.9 kg — with 97 dB LF sensitivity, 107 dB HF sensitivity, a 75 mm ISV copper LF coil, a 64 mm EWAL titanium HF compression driver, 80° conical point-source dispersion, and the widest LF bandwidth of any 18 Sound coaxial at 60 Hz – 5000 Hz, the 18 Sound 12NCX750 delivers professional two-way coaxial performance from a 12-inch format that weighs less than most standalone 12-inch woofers.

The 12-inch format changes what a coaxial can fit into. Where the 15-inch coaxials require cabinets designed around a 360 mm baffle cutout and 185–205 mm of depth, the 18 Sound 12NCX750 needs just a 280 mm cutout and 148 mm of depth. That’s 80 mm less cutout and 37 mm less depth than the shallowest 15-inch coaxial — dimensions that make the 18 Sound 12NCX750 suitable for the compact stage monitors, under-balcony fills, and ultra-compact PA tops that 15-inch coaxials are too large to serve.

The 5000 Hz LF bandwidth is the widest of any coaxial in 18 Sound’s range — wider than the 15NCX750’s 4500 Hz, the 15NCX910’s 4000 Hz, and the 15NCX1000’s 3600 Hz. The lighter 48 g moving mass (versus 81–110 g on the 15-inch coaxials) allows the 12-inch LF cone to maintain controlled output higher into the mid-range, providing more overlap with the HF section through the crossover region and supporting smoother transitions with gentler filter slopes.

A dedicated passive crossover — the XO12NCX — makes the 18 Sound 12NCX750 a ready-to-use transducer system with a factory-designed 24 dB/oct low-pass and 12 dB/oct high-pass filter. At 4.5 kg, 310 mm overall diameter, and 148 mm depth, it’s the coaxial that fits where others can’t and weighs less than any alternative in 18 Sound’s catalogue.

Design and Construction of the 18 Sound 12NCX750

The 18 Sound 12NCX750 integrates a two-way coaxial transducer system into a single chassis powered by a single neodymium magnet motor. The design shares the same platform philosophy as the 15NCX750 — the same ISV LF technology, the same EWAL titanium HF section, the same 3P phase plug — scaled to the 12-inch format.

The LF section uses a 75 mm (3-inch) copper ISV (Interleaved Sandwich Voice Coil) — the same coil diameter and technology used on the 15NCX750 and 15NCX910 platforms. The ISV architecture places conductor on both inner and outer surfaces of the former, creating the mass-balanced coil that delivers linear motor behaviour. The copper winding provides the thermal conductivity that sustains the 400 W AES / 800 W program power rating — identical power handling to the larger 15NCX750 from the same 75 mm coil.

An aluminium demodulating ring (SDR) reduces flux modulation during excursion. The combination of ISV and SDR produces clean, low-distortion bass output with flattened LF impedance and phase — constant power transfer across the excursion range.

The 17.5 Tm force factor driving just 48 g of moving mass produces 97 dB sensitivity, 4.8% reference efficiency, and the most motor-dominant alignment of any 18 Sound coaxial. The Qts of 0.29 and EBP of 187 Hz are lower and higher respectively than any 15-inch coaxial in the range — the 12-inch LF section has more electromagnetic control over its lighter cone than the 15-inch sections have over their heavier assemblies. This extreme motor dominance produces tight, fast, precisely controlled bass and mid-bass output in vented enclosures.

The 48 g Mms is the lightest LF moving mass of any 18 Sound coaxial — 33 g lighter than the 15NCX750’s 81 g and 62 g lighter than the 15NCX1000’s 110 g. The lighter mass is the primary reason the 18 Sound 12NCX750 achieves the widest LF bandwidth in the coaxial range — at 5000 Hz, the 48 g cone maintains controlled pistonic motion where heavier cones have already broken up and rolled off.

The curvilinear paper cone uses 18 Sound’s high-damping pulp composition. The water-repellent treatment provides outdoor durability. The 5.5 mm Xmax matches the 15NCX750 — the same displacement from a smaller cone means proportionally less total volume displacement, which is the trade-off for the 12-inch format’s more compact size.

The HF section uses the same 64 mm (2.5-inch) EWAL (Edge-Wound Aluminium) voice coil and titanium diaphragm as the 15NCX750. The 60 mm titanium dome is joined to a high-strength Nomex former at its upper bend edge — the same bent edge joint construction used across 18 Sound’s coaxial range for extended frequency energy transfer and improved linearity.

The proprietary 3P hybrid radial tangerine phase plug produces smooth, coherent wavefronts with low distortion and high manufacturing consistency. A copper sleeve on the HF pole piece reduces inductance above 10 kHz for improved phase and impedance linearisation. The specific HF exit profile maximises coupling between the compression driver output and the 12-inch LF cone’s profile, shaping the combined 80° conical dispersion.

The single neodymium magnet motor powers both sections from a compact assembly that keeps total weight to 4.5 kg. The high-force neodymium motor is the engineering that makes a 12-inch coaxial with a 75 mm ISV LF coil and a 64 mm EWAL HF section possible at this weight.

At 4.5 kg, 310 mm overall diameter, 280 mm baffle cutout, and 148 mm depth, the 18 Sound 12NCX750 is the most compact coaxial 18 Sound makes. The 148 mm depth is 37 mm shallower than the shallowest 15-inch coaxial (15NCX750H at 185 mm). The 14 mm flange thickness provides a secure mounting interface.

Performance and Applications for the 18 Sound 12NCX750

The 18 Sound 12NCX750 delivers 97 dB LF sensitivity from 60 Hz to 5000 Hz and 107 dB HF sensitivity from the 1.2 kHz crossover point upward. The 10 dB sensitivity difference between sections is managed through the crossover network, with the HF section padded to match the LF output level.

The 80° conical dispersion provides uniform point-source coverage in both horizontal and vertical planes. Both LF and HF sections share the same acoustic axis — no offset, no lobing, no comb-filtering at the crossover frequency. The conical pattern matches the 15NCX750 and 15NCX910 exactly, which means the 18 Sound 12NCX750 produces the same angular coverage from a smaller, lighter cabinet.

The 5000 Hz LF bandwidth is the 18 Sound 12NCX750’s strongest performance differentiator. In the 15-inch coaxials, the LF section rolls off between 3600 Hz (15NCX1000) and 4500 Hz (15NCX750). The 18 Sound 12NCX750 maintains useful LF output to 5000 Hz — providing nearly two octaves of overlap between the LF and HF sections above the 1.2 kHz crossover. This extensive overlap means the crossover transition is smoother and more gradual, reducing the audibility of the handoff between sections. In passive crossover designs — where steep filter slopes add phase distortion — the wider overlap allows gentler slopes that maintain better phase behaviour.

The 0.29 Qts and 187 Hz EBP define the most motor-dominant coaxial alignment in 18 Sound’s range. These parameters place the 18 Sound 12NCX750 firmly in vented territory — the low Qts produces tight, fast, well-damped bass response in tuned enclosures. 18 Sound recommends enclosures as compact as 40 litres — the same minimum volume as the 15NCX750H, but for a 12-inch driver in a significantly smaller cabinet.

The 58 Hz Fs and 60 Hz lower frequency limit confirm the 18 Sound 12NCX750 reaches into the upper bass. For compact stage monitors and small PA tops, the 60 Hz lower limit provides enough low-end content for vocal reinforcement, speech systems, and music playback at moderate levels without requiring a dedicated sub. For high-output applications requiring deep bass, a sub section complements the 18 Sound 12NCX750’s mid-bass and mid-range output.

The 400 W AES / 800 W program LF power handling matches the 15NCX750 — identical thermal capacity from the shared 75 mm ISV copper coil platform. The 70 W AES / 140 W program HF power handling also matches the 15NCX750. The 12-inch format doesn’t sacrifice power handling to achieve its more compact dimensions.

The 0.62 mH LF inductance is the lowest of any 18 Sound coaxial — lower than the 15NCX750’s 0.66 mH and substantially lower than the 15NCX910’s 1.1 mH and 15NCX1000’s 1.4 mH. The low inductance produces the flattest impedance behaviour in the upper LF range, supporting the widest bandwidth and the smoothest crossover transitions in the coaxial range.

The XO12NCX dedicated passive crossover provides a factory-designed, tested filter solution with 24 dB/oct low-pass and 12 dB/oct high-pass slopes. For DIY builders, small manufacturers, and installers, the passive crossover eliminates the complexity of custom crossover design — connect the crossover, wire the amplifier, and the two-way coaxial system is complete.

The 4.5 kg weight and 148 mm depth open up applications that no 15-inch coaxial can serve. Ultra-thin stage monitors where the wedge profile must be as low as possible. Under-balcony fills where the speaker must be shallow enough to mount flush. Compact column-style PA where the 12-inch format matches the cabinet width. Portable systems where every gram determines whether the rig fits in one vehicle or two.

The comparison to the 15NCX750 is straightforward. The 15NCX750 offers more LF sensitivity (98 vs 97 dB), more LF displacement (larger Sd from the 15-inch cone), deeper bass reach (55 vs 60 Hz lower limit), and more enclosure flexibility (0.37 vs 0.29 Qts). The 18 Sound 12NCX750 offers lighter weight (4.5 vs 4.9 kg), shallower depth (148 vs 185 mm), wider LF bandwidth (5000 vs 4500 Hz), lower inductance (0.62 vs 0.66 mH), and higher efficiency (4.8% vs 4.5%). The 15-inch format moves more air. The 12-inch format is more compact, lighter, and reaches higher.

Conclusion – 18 Sound 12NCX750 Coaxial Driver

The 18 Sound 12NCX750 is the lightest, most compact, and widest-bandwidth coaxial in 18 Sound’s entire range. The 4.5 kg weight, 148 mm depth, and 280 mm baffle cutout define a coaxial point source that fits into cabinet formats no 15-inch driver can reach. The 5000 Hz LF bandwidth provides the most overlap with the HF section of any 18 Sound coaxial. The 0.29 Qts and 4.8% efficiency confirm a motor-dominant driver that produces tight, controlled output in vented enclosures as compact as 40 litres.

The 75 mm ISV copper LF coil, SDR distortion reduction, 64 mm EWAL titanium HF compression driver with 3P tangerine phase plug, and single neodymium motor deliver the same core technologies found in the 15-inch coaxial range — scaled to a 12-inch format that weighs 400 g less than the lightest 15-inch alternative.

The XO12NCX passive crossover makes the 18 Sound 12NCX750 a ready-to-use two-way point source for builders who want coaxial coherence without custom crossover design. At 4.5 kg and 148 mm, it’s the coaxial that proves a 12-inch format can deliver professional point-source performance without requiring a 15-inch footprint.

For compact stage monitors, under-balcony fills, ultra-compact PA tops, portable systems, and any application where the lightest, shallowest, widest-bandwidth coaxial point source is the specification requirement, the 18 Sound 12NCX750 is the driver that sets the floor on size and weight while delivering the ISV, SDR, and EWAL technologies that define 18 Sound’s coaxial engineering. Four point five kilograms, 148 millimetres deep, 80° conical — the smallest coaxial in the catalogue.
