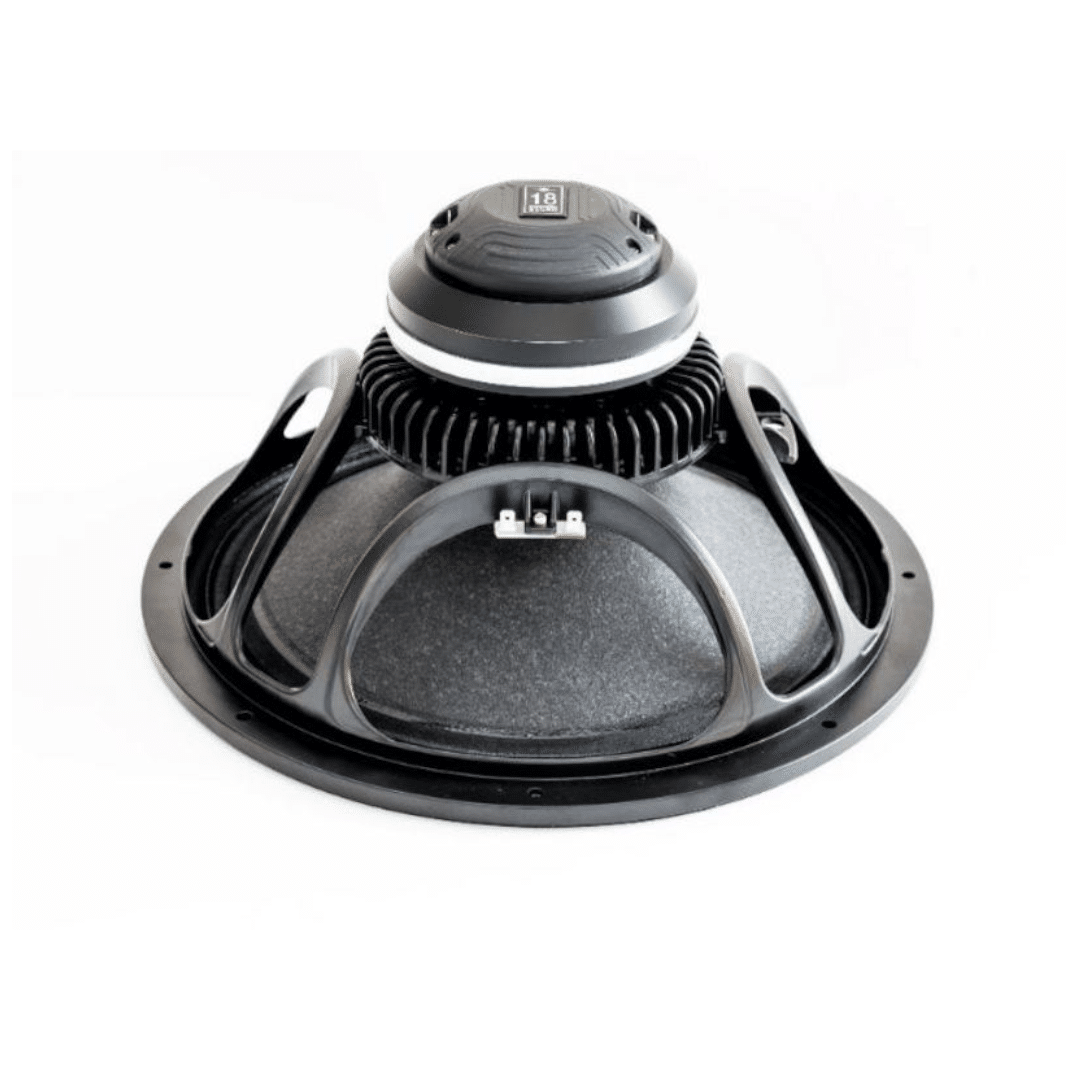

18 Sound 15NCX910 – High-Performance 15-Inch Neodymium Coaxial with Titanium HF Diaphragm and 99.5 dB LF Sensitivity
The 18 Sound 15NCX910 is the titanium-diaphragm version of 18 Sound’s flagship 15-inch coaxial platform. It shares every specification with the beryllium-equipped 15NCX910BE — the same 99.5 dB LF sensitivity, the same 109 dB HF sensitivity, the same 75 mm ISV copper LF coil, the same 75 mm EWAL HF coil, the same SDR distortion reduction, the same 80° conical dispersion, the same 6.5 kg weight, and the same physical dimensions. The only difference is the HF diaphragm: titanium instead of beryllium.
That single material change is the decision every builder and system designer needs to make when specifying between the 18 Sound 15NCX910 and the 15NCX910BE. Beryllium provides twice the stiffness of titanium, lower distortion, smoother upper treble response, and reduced listening fatigue — the ultimate HF performance at a premium price. Titanium provides proven durability, a brighter more projecting treble character that live sound environments exploit, more widely available replacement diaphragms, and significantly lower cost — professional-grade HF performance at a practical price.
The 18 Sound 15NCX910 is not the lesser driver. The 109 dB HF sensitivity matches the beryllium version exactly. The 99.5 dB LF sensitivity is the highest of any 18 Sound 15-inch coaxial. The 5% LF reference efficiency is the highest in the range. Every LF and HF output specification is identical to the 15NCX910BE — the titanium diaphragm delivers the same measured sensitivity from the same motor, the same coil, and the same exit profile.
At 6.5 kg with a single neodymium motor, 80° conical point-source dispersion, and suitability for compact enclosures from 50 litres, the 18 Sound 15NCX910 delivers the full performance of the 910 platform at a price point that makes it accessible to a wider range of professional applications.
Design and Construction of the 18 Sound 15NCX910
The 18 Sound 15NCX910 integrates two complete transducer sections into a single chassis powered by a single neodymium magnet motor — the same architecture as the 15NCX910BE, shared in every detail except the HF diaphragm.
The LF section uses a 75 mm (3-inch) copper ISV (Interleaved Sandwich Voice Coil). The ISV architecture places conductor on both inner and outer surfaces of the former, creating the mass-balanced coil that produces linear motor behaviour. The copper winding provides superior thermal conductivity, supporting the 450 W AES / 900 W continuous program power rating through sustained operation.
An aluminium demodulating ring (SDR) in the LF magnetic circuit reduces flux modulation during excursion. The SDR flattens LF impedance and phase with constant power transfer, reducing harmonic distortion at higher excursion levels. The combination of ISV and SDR produces the clean, low-distortion bass output that defines 18 Sound’s coaxial engineering.
The 21 Tm force factor driving the 86 g moving mass produces 99.5 dB sensitivity and 5% reference efficiency — the highest LF efficiency of any 18 Sound 15-inch coaxial. The 7 mm Xmax provides solid displacement capability for compact enclosures, and the curvilinear paper cone with water-repellent treatment provides outdoor durability and smooth response within the LF operating range.
The HF section uses a 75 mm (3-inch) EWAL (Edge-Wound Aluminium) voice coil driving a pure titanium diaphragm. The titanium is joined to a high-strength, high-temperature treated Nomex voice coil former at its upper bend edge — the same bent edge joint construction used across 18 Sound’s premium coaxial range. The bent edge distributes the mechanical connection across a wider area than a straight joint, reducing stress concentrations and improving linearity with superior reliability.
The titanium diaphragm provides the stiff, lightweight dome behaviour that professional compression drivers require. Titanium maintains pistonic motion at higher frequencies than polymer alternatives, producing detailed, defined treble output with the forward presence and projection that live sound applications value. The characteristic titanium resonance in the upper treble provides energy in the 5–12 kHz brilliance band — the frequency range where vocals cut through a mix and cymbals shimmer.
A copper sleeve on the HF pole piece reduces inductance at frequencies above 10 kHz, improving phase and impedance linearisation in the upper treble. The proprietary HF architecture with its specific exit profile maximises coupling between the compression driver output and the woofer cone’s profile, shaping the combined 80° conical dispersion.
The single neodymium magnet motor powers both LF and HF sections. The shared motor keeps the total weight to 6.5 kg — competitive with standalone 15-inch woofers that don’t include an HF section. 18 Sound’s exclusive cone and magnet plate treatment processes provide corrosion resistance and water repellency for outdoor operation.
At 6.5 kg, 393 mm overall diameter, 360 mm baffle cutout, and 205 mm depth, the 18 Sound 15NCX910 is physically identical to the 15NCX910BE. Same weight, same dimensions, same mounting interface, same flange thickness. The two drivers are completely interchangeable — builders can swap between titanium and beryllium diaphragms without modifying the cabinet, crossover, or amplifier configuration.
Performance and Applications for the 18 Sound 15NCX910
The 18 Sound 15NCX910 delivers 99.5 dB LF sensitivity from 50 Hz to 4000 Hz and 109 dB HF sensitivity from the 1.2 kHz crossover point upward. Every measured output specification matches the 15NCX910BE — the titanium diaphragm produces the same sensitivity as beryllium from the same motor and coil platform.
The difference between titanium and beryllium is in the distortion and frequency response behaviour — not in the sensitivity. Beryllium’s twice-higher stiffness pushes its first breakup resonance higher in frequency, often above the audible range entirely. Titanium’s breakup resonance sits in the upper treble — typically 8–15 kHz — where it produces the bright, forward character that titanium is known for.
For live sound reinforcement, that titanium character is often an advantage. The resonant energy adds presence and projection in the brilliance band, helping the HF section cut through ambient noise, stage volume, and distance attenuation. The 18 Sound 15NCX910’s titanium diaphragm delivers treble that projects into large venues with authority — exactly what touring PA, festival monitors, and high-SPL club installations need.
For near-field applications, studio monitoring, and extended listening where treble fatigue matters, the beryllium 15NCX910BE’s smoother upper response provides a more neutral, less fatiguing listening experience. The material choice maps directly to the application’s demands.
The 80° conical dispersion provides uniform coverage in both horizontal and vertical planes from a single point source. Both LF and HF sections share the same acoustic axis — no offset, no lobing, no comb-filtering at the crossover frequency. The conical pattern is ideal for stage monitors where the performer needs consistent coverage regardless of position, and for compact PA where the audience occupies multiple angles relative to the cabinet.
The 99.5 dB LF sensitivity is the highest of any 18 Sound 15-inch coaxial LF section — 1.5 dB above the 15NCX750’s 98 dB and 3.5 dB above the 15NCX1000’s 96 dB. The 5% LF efficiency means the 18 Sound 15NCX910 produces more acoustic output per watt of LF amplification than any other coaxial in the range. For systems where amplifier power is limited or where efficiency determines how loud the system gets before running out of headroom, the 18 Sound 15NCX910’s LF sensitivity advantage is decisive.
The 450 W AES / 900 W program LF power handling sits between the 15NCX750’s 400 W and the 15NCX1000’s 600 W. Combined with the 99.5 dB sensitivity, the 18 Sound 15NCX910 produces the highest sustained maximum SPL of any 18 Sound 15-inch coaxial — higher sensitivity at similar power produces more total output than the 15NCX1000’s lower sensitivity at higher power.
The 1.2 kHz recommended crossover with a 12 dB/oct or steeper high-pass places the transition in the upper mid-range. The LF section’s 4000 Hz bandwidth provides extensive overlap with the HF section. The titanium diaphragm produces clean, authoritative output from 1.2 kHz without issues — titanium’s resonance problems are in the upper treble, not at the crossover point.
18 Sound recommends enclosures from 50 litres. The Qts of 0.33 and EBP of 161 Hz favour vented enclosures, producing tight, well-controlled bass response in tuned cabinets. The 50 Hz lower frequency limit confirms the LF section reaches into the upper bass — deep enough for compact main PA and stage monitors to operate without a dedicated sub in many applications.
The comparison across 18 Sound’s full 15-inch coaxial range provides clear decision criteria. The 15NCX1000 is the maximum-power choice (600 W AES, 90° dispersion, 1.0 kHz crossover) at 8.5 kg. The 15NCX910BE is the ultimate-fidelity choice (beryllium HF, 99.5 dB LF) at 6.5 kg. The 18 Sound 15NCX910 is the high-performance titanium choice (same specs as 15NCX910BE, titanium instead of beryllium, lower cost) at 6.5 kg. The 15NCX750 is the lightweight entry (4.9 kg, 98 dB LF, passive crossover available). The 15NCX750H is the asymmetric-dispersion choice (70° × 50°, 40L enclosure) at 5.3 kg.
Conclusion – 18 Sound 15NCX910 Coaxial Driver
The 18 Sound 15NCX910 is the titanium version of 18 Sound’s highest-sensitivity 15-inch coaxial platform. Every specification matches the beryllium 15NCX910BE — 99.5 dB LF, 109 dB HF, 450 W AES, 80° conical, 6.5 kg, identical dimensions. The only difference is diaphragm material, and the only consequence is treble character and cost.
Titanium delivers the bright, projecting, forward treble that live sound demands — presence and cut-through in environments where the audience is distant and ambient noise is high. Beryllium delivers smoother, lower-distortion treble that near-field and extended-listening applications prefer. Both deliver the same sensitivity, the same output, and the same point-source coherence.
For builders who want the 910 platform’s 99.5 dB LF sensitivity, 5% efficiency, ISV copper coil, SDR distortion reduction, and 80° conical point-source coherence at a lower cost than beryllium, the 18 Sound 15NCX910 is the driver that delivers the full performance of the platform with the titanium HF diaphragm that professional live sound has trusted for decades. Same motor, same coils, same output — titanium instead of beryllium, professional performance at a practical price.
