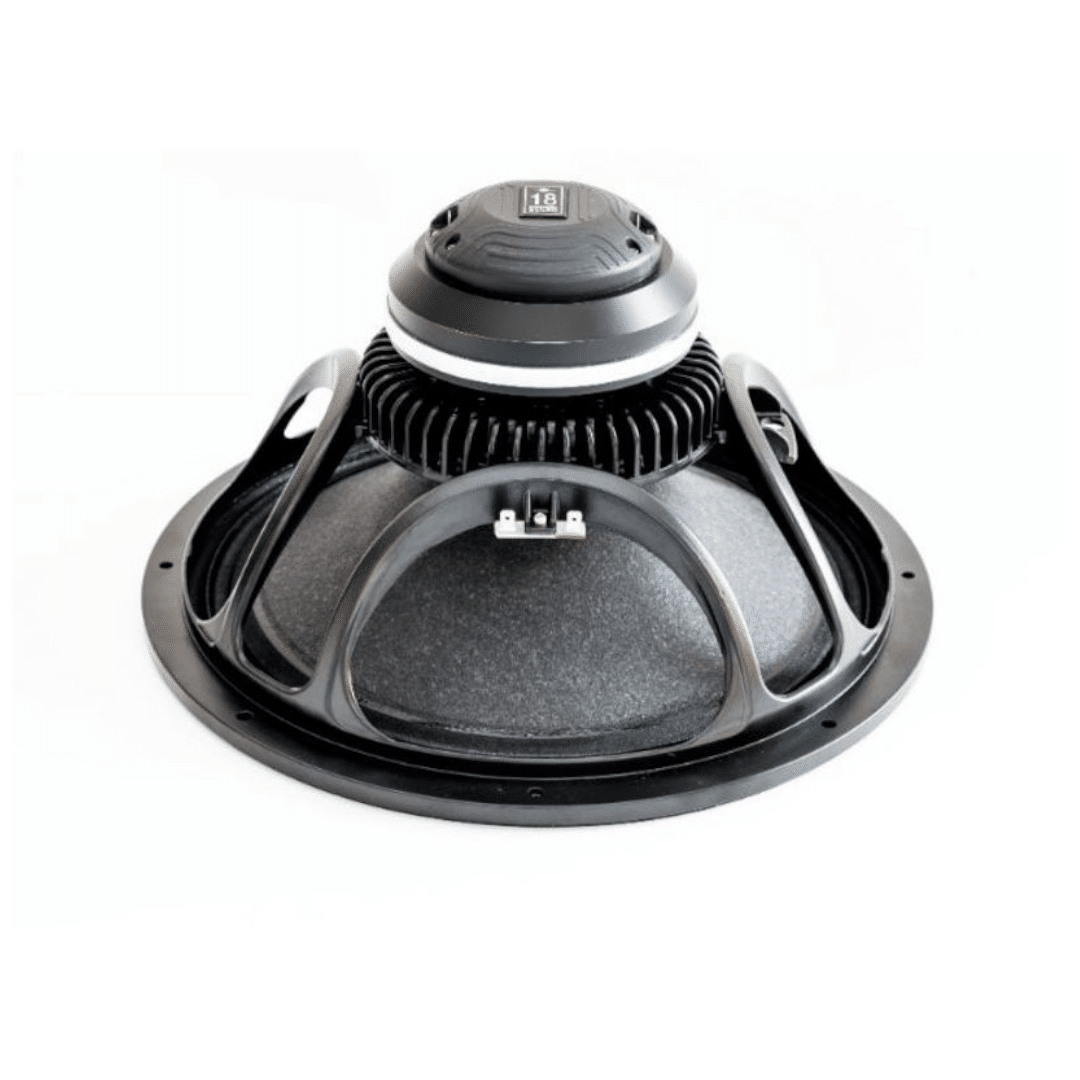

18 Sound 15NCX910BE – Premium 15-Inch Neodymium Coaxial with Beryllium HF Diaphragm and Point-Source Output
The 18 Sound 15NCX910BE is 18 Sound’s flagship 15-inch coaxial transducer — a true point-source driver that integrates a high-power 15-inch woofer section and a beryllium-diaphragm compression driver into a single, coaxially aligned unit. With 99.5 dB LF sensitivity, 109 dB HF sensitivity, a 75 mm ISV voice coil on the woofer, a 75 mm pure beryllium diaphragm on the compression driver, and a shared neodymium motor that powers both sections from a 6.5 kg package, the 18 Sound 15NCX910BE delivers the output, bandwidth, and coherence of a discrete two-way system from a single driver that fits a standard 15-inch baffle cutout.
The beryllium diaphragm is the specification that defines the BE designation. Beryllium is twice the stiffness of titanium — the stiffest diaphragm material commercially available for compression drivers. That stiffness reduces dome resonances and breakup modes dramatically compared to titanium, producing the cleanest, most distortion-free high-frequency output achievable from any diaphragm material. Beryllium is also extremely lightweight, maintaining high sensitivity without the mass penalty that other ultra-stiff materials would impose. The material is rare, expensive, and difficult to manufacture — which is why the 18 Sound 15NCX910BE sits at the top of 18 Sound’s coaxial range.
The coaxial architecture is the design principle that makes the 18 Sound 15NCX910BE a point source. The HF compression driver is mounted behind the woofer cone, with its exit emerging at the acoustic centre of the 15-inch cone. Both the LF and HF sections share the same acoustic axis — every frequency from 50 Hz to beyond 18 kHz radiates from the same point in space. There’s no vertical or horizontal offset between the woofer and the compression driver, which means there’s no path length difference between the two sections, no lobing, and no comb-filtering at the crossover frequency.
At 6.5 kg with 80° nominal conical dispersion, a 1.2 kHz recommended crossover, and suitability for compact enclosures from 50 litres, the 18 Sound 15NCX910BE is built for premium stage monitors, compact main PA, and any application where true point-source coherence from a single driver defines the system quality.
Design and Construction of the 18 Sound 15NCX910BE
The 18 Sound 15NCX910BE integrates two complete transducer sections — LF and HF — into a single chassis that shares a neodymium motor assembly.
The LF section uses a 75 mm (3-inch) copper ISV (Interleaved Sandwich Voice Coil) wound on a high-strength former. The ISV architecture places conductor on both inner and outer surfaces of the former, creating the mass-balanced coil that produces 18 Sound’s signature linear motor behaviour. The copper winding provides superior thermal conductivity compared to aluminium, supporting the 450 W AES / 900 W program power rating through sustained operation.
An aluminium demodulating ring (SDR) in the LF magnetic circuit reduces flux modulation as the voice coil moves through the gap. The SDR flattens LF impedance and phase with constant power transfer, reducing harmonic distortion at higher excursion levels. The 21 Tm force factor driving the 86 g moving mass produces the 99.5 dB sensitivity and 5% reference efficiency — exceptional figures for a 15-inch coaxial woofer section.
The curvilinear paper cone uses 18 Sound’s high-damping pulp composition, providing smooth response within the LF operating range. The cone profile is engineered to work acoustically with the HF exit at its centre — the wavefront from the compression driver emerges through the cone and couples with the woofer’s output coherently across the crossover region.
The HF section uses a 75 mm (3-inch) pure beryllium diaphragm with a polymer surround. Beryllium is the ultimate diaphragm material — twice the stiffness of titanium at lower density, which means the dome maintains pistonic behaviour at higher frequencies than any other material with lower distortion. 18 Sound states the beryllium diaphragm reduces resonances and distortion dramatically compared to titanium — this isn’t marketing language, it’s a measurable consequence of beryllium’s superior stiffness-to-mass ratio.
The HF voice coil uses edge-wound CCAW (copper-clad aluminium wire) — 18 Sound’s EWAL technology. Edge winding packs more conductor into the gap per unit of coil height, maximising force output and sensitivity. A copper sleeve on the HF pole piece reduces inductance at frequencies above 10 kHz, improving phase and impedance linearisation in the upper treble where beryllium’s extended response is most valuable.
The proprietary HF architecture, including the compression driver’s internal geometry and exit profile, is designed to produce a smooth, coherent wavefront at the horn entrance across the entire HF operating range. A specific HF exit profile maximises the coupling between the compression driver output and the woofer cone’s profile — the cone itself acts as a waveguide for the HF output, shaping the combined dispersion into the 80° conical pattern.
The single neodymium motor is shared between both sections. This shared-motor architecture is what keeps the 18 Sound 15NCX910BE to 6.5 kg — a dedicated motor for each section would add significant mass. The neodymium magnet provides the flux density both voice coils need from a compact, lightweight assembly.
18 Sound’s exclusive cone and magnet plate treatment processes provide resistance against corrosion and make the cone water-repellent. For outdoor events and touring applications where weather exposure is a routine operating condition, the environmental protection ensures long-term durability.
At 6.5 kg, 393 mm overall diameter, 360 mm baffle cutout, and 205 mm depth, the 18 Sound 15NCX910BE fits standard 15-inch cabinet designs. The 14 mm flange thickness provides a secure mounting interface.
Performance and Applications for the 18 Sound 15NCX910BE
The 18 Sound 15NCX910BE delivers 99.5 dB LF sensitivity from 50 Hz to 4000 Hz and 109 dB HF sensitivity from the 1.2 kHz crossover point upward. The 9.5 dB sensitivity difference between the LF and HF sections is managed through the crossover network — the HF section is padded to match the LF output level, and the excess HF sensitivity provides headroom that prevents the compression driver from working hard.
The 80° nominal conical dispersion provides uniform coverage in both horizontal and vertical planes from a single driver. This is the inherent advantage of a coaxial: the coverage pattern is conical — the same angle in every direction — rather than the asymmetric patterns that separate woofer-and-horn systems produce. For stage monitors, where the performer needs consistent coverage regardless of their position relative to the wedge, conical dispersion is the ideal geometry.
The point-source coherence is the 18 Sound 15NCX910BE’s primary acoustic advantage over discrete two-way systems. In a conventional two-way cabinet with a separate woofer and horn, the acoustic centres of the two drivers are physically offset — typically 100–200 mm apart. This offset creates path length differences that produce comb-filtering and lobing at the crossover frequency, degrading the frequency response at different listening angles.
The 18 Sound 15NCX910BE eliminates this problem entirely. Both sections radiate from the same point — there’s no offset, no path length difference, no lobing, and no comb-filtering. The crossover transition is seamless at every listening angle, producing consistent frequency response across the entire 80° dispersion pattern. This is particularly valuable in stage monitor applications where the performer moves relative to the speaker, and in compact main PA where the audience occupies multiple angles relative to the cabinet.
The 1.2 kHz recommended crossover with a 12 dB/octave or steeper high-pass filter places the transition in the upper mid-range. The LF section’s 4000 Hz upper bandwidth provides extensive overlap with the HF section, and the beryllium diaphragm’s extended, smooth response ensures the HF section produces clean output from 1.2 kHz without the resonant artefacts that titanium diaphragms can exhibit near the crossover point.
The beryllium diaphragm’s advantage over titanium is most audible in the 3–15 kHz presence and brilliance bands. Where titanium produces a resonant peak that can sound harsh or aggressive, beryllium’s superior stiffness pushes the breakup frequency higher — often above the audible range entirely. The result is treble that sounds detailed and extended without harshness, present without aggression. For stage monitors where the performer listens at close range for hours, the beryllium’s smoother character reduces listening fatigue measurably compared to titanium alternatives.
The LF section’s 99.5 dB sensitivity and 5% efficiency are strong figures for a 15-inch coaxial woofer. The 450 W AES power handling provides headroom for high-output applications. The 50 Hz lower frequency and 55 Hz Fs confirm the LF section reaches into the upper bass — deep enough for compact main PA and stage monitors to produce meaningful low-frequency content without a dedicated sub.
18 Sound recommends enclosures from 50 litres. The Qts of 0.33 and EBP of 161 Hz place the LF section in the vented/sealed transitional zone, providing flexibility for builders to design vented or sealed cabinets depending on the application’s low-frequency requirements.
Conclusion – 18 Sound 15NCX910BE Coaxial Driver
The 18 Sound 15NCX910BE is the flagship of 18 Sound’s coaxial range. The beryllium HF diaphragm delivers the cleanest, most detailed, lowest-distortion high-frequency output available from any compression driver diaphragm material — twice the stiffness of titanium, dramatically reduced resonances, extended frequency response without breakup artefacts. No other diaphragm material approaches beryllium’s performance.
The coaxial architecture provides true point-source coherence that discrete two-way systems can’t achieve. Both sections share the same acoustic axis — no offset, no lobing, no comb-filtering. The 80° conical dispersion is uniform in every direction. And the single neodymium motor keeps the total weight to 6.5 kg — competitive with many standalone 15-inch woofers.
The 99.5 dB LF sensitivity with ISV coil and SDR distortion reduction paired with 109 dB HF sensitivity from a beryllium dome on a copper-sleeved pole piece creates a coaxial that delivers both high output and high fidelity. The 1.2 kHz crossover places the transition where the beryllium’s clean response overlaps with the woofer’s smooth upper range — a seamless handoff that sounds coherent at every angle.
For premium stage monitors, compact main PA, high-fidelity touring systems, and any application where true point-source coherence, beryllium HF quality, and maximum output from a single 15-inch driver define the system’s performance standard, the 18 Sound 15NCX910BE is the coaxial that carries everything 18 Sound’s best technologies offer in one transducer. ISV, SDR, EWAL, beryllium — the complete package.
