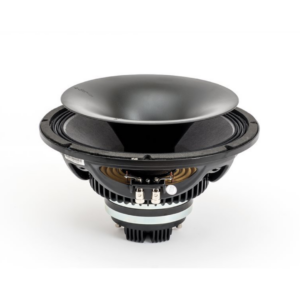

18 Sound 12NCX750H – Coaxial Driver

18 Sound 12NCX750H – Asymmetric-Dispersion 12-Inch Neodymium Coaxial with 70° × 50° Coverage and 110 dB HF Sensitivity

The 18 Sound 12NCX750H is the PA-optimised variant of 18 Sound’s compact 12-inch coaxial platform. Where the 12NCX750 produces an 80° conical pattern for stage monitoring applications, the 18 Sound 12NCX750H produces a 70° × 50° asymmetric pattern that provides wider horizontal coverage than vertical — the dispersion geometry that front-of-house PA, side-fill, and installed sound applications require. The asymmetric exit profile also produces 110.3 dB HF sensitivity — 3.3 dB above the 12NCX750’s 107 dB and the highest HF sensitivity of any 12-inch coaxial in 18 Sound’s range.

The 110.3 dB HF sensitivity is the most striking specification difference from the conical 12NCX750. The tighter 70° × 50° coverage concentrates the compression driver’s output into a smaller listening window, raising the SPL within that window by a substantial margin. For PA applications where the compression driver needs to project treble into the audience at distance, the 18 Sound 12NCX750H delivers more HF reach from the same 64 mm EWAL titanium compression driver than the wider-coverage 12NCX750 can achieve.

The 70° × 50° pattern matches the 15NCX750H exactly — the same asymmetric coverage scaled to the 12-inch format. Wider horizontal for audience coverage, tighter vertical for controlled spill. Both LF and HF sections share the same acoustic axis, maintaining the coaxial point-source coherence that eliminates lobing and comb-filtering regardless of the dispersion pattern.

The trade-off for the asymmetric pattern and higher HF sensitivity is lower LF sensitivity — 95.3 dB versus the 12NCX750’s 97 dB — and narrower LF bandwidth — 4000 Hz versus 5000 Hz. The different cone-as-waveguide profile needed for the asymmetric HF pattern affects the LF section’s acoustic behaviour, reducing its upper-frequency extension and efficiency. These are honest engineering consequences of the exit profile change.

At 4.7 kg, 310 mm overall diameter, 280 mm baffle cutout, and 148 mm depth — with a dedicated XO12NCX passive crossover available — the 18 Sound 12NCX750H delivers asymmetric PA-grade coverage from the second-lightest coaxial in 18 Sound’s catalogue.

Design and Construction of the 18 Sound 12NCX750H

The 18 Sound 12NCX750H shares the 12NCX750’s core platform. The LF and HF transducer sections, the motor, the coils, and the chassis are the same. The difference is the HF exit profile and cone-waveguide geometry that produce the asymmetric dispersion pattern.

The LF section uses the same 75 mm (3-inch) copper ISV (Interleaved Sandwich Voice Coil) found on the 12NCX750. The ISV architecture places conductor on both inner and outer surfaces of the former, creating the mass-balanced coil that delivers linear motor behaviour. The copper winding sustains the 400 W AES / 800 W program power rating. The aluminium SDR demodulating ring reduces flux modulation during excursion.

The 17.5 Tm force factor driving 47 g of moving mass produces 95.3 dB sensitivity and 3.8% reference efficiency. The 1.7 dB lower LF sensitivity and 1% lower efficiency compared to the 12NCX750’s 97 dB and 4.8% reflect the different cone profile required for the asymmetric HF waveguide. The cone’s shape is modified to produce the 70° × 50° HF pattern, and that modification changes the LF acoustic loading — the LF section produces less output per watt as a consequence of optimising the cone-waveguide for asymmetric HF dispersion.

The 60 Hz – 4000 Hz LF bandwidth is 1000 Hz narrower at the top than the 12NCX750’s 5000 Hz. The asymmetric cone profile affects the LF section’s upper-frequency behaviour more significantly than it does on the 15-inch platform (where the 15NCX750H actually gained 200 Hz of upper bandwidth versus the 15NCX750). The 4000 Hz upper limit still provides adequate overlap with the HF section above the 1.2 kHz crossover — nearly two octaves of overlap for smooth crossover transitions.

The curvilinear paper cone with water-repellent treatment, 5.5 mm Xmax, 58 Hz Fs, 0.29 Qts, and 187 Hz EBP are essentially identical to the 12NCX750. The LF alignment is the same — the same motor-dominant, vented-enclosure-focused alignment from the same ISV coil and SDR motor.

The HF section uses the same 64 mm (2.5-inch) EWAL (Edge-Wound Aluminium) voice coil, the same 60 mm titanium diaphragm with Nomex bent edge former, the same copper sleeve on the pole piece, and the same 3P hybrid radial tangerine phase plug. The compression driver itself is identical to the 12NCX750’s HF section.

The difference is the HF exit profile. The 18 Sound 12NCX750H uses a specific exit geometry that shapes the compression driver’s output into the asymmetric 70° × 50° pattern as it couples with the modified cone-waveguide. The tighter asymmetric coverage concentrates more HF energy into the listening window — which is why the 18 Sound 12NCX750H achieves 110.3 dB HF sensitivity versus the 12NCX750’s 107 dB. The same compression driver produces 3.3 dB more output per watt within the coverage area because the energy is focused into a smaller angular window.

The 110.3 dB HF sensitivity is the highest of any 12-inch coaxial in 18 Sound’s range. It exceeds the 15NCX750H’s 109 dB by 1.3 dB — the 12-inch cone-waveguide’s different geometry produces even more HF concentration than the 15-inch version. For PA applications where the HF section needs to project at distance, the 18 Sound 12NCX750H’s 110.3 dB provides the most reach of any coaxial in the 12-inch format.

The single neodymium magnet motor powers both sections. At 4.7 kg, 310 mm overall diameter, 280 mm baffle cutout, and 148 mm depth, the 18 Sound 12NCX750H is physically identical to the 12NCX750 in every dimension. The two drivers are completely interchangeable — one cabinet design serves both the conical monitor application and the asymmetric PA application.

Performance and Applications for the 18 Sound 12NCX750H

The 18 Sound 12NCX750H delivers 95.3 dB LF sensitivity from 60 Hz to 4000 Hz and 110.3 dB HF sensitivity from the 1.2 kHz crossover point upward. The 15 dB sensitivity difference between sections is the largest of any 18 Sound coaxial — the asymmetric exit profile dramatically boosts HF output while the modified cone-waveguide slightly reduces LF output. The crossover network pads the HF section to match the LF level.

The 70° × 50° asymmetric dispersion provides the coverage geometry that PA applications need. The 70° horizontal fills a moderate listening area without requiring multiple cabinets for horizontal coverage. The 50° vertical focuses energy on the audience plane with precision — tighter than the 12NCX750’s 80° conical, reducing ceiling and floor reflections and improving the direct-to-reflected sound ratio.

The asymmetric pattern is the dispersion shape that loudspeaker designers use for front-of-house PA, delay fills, and installed sound. The audience occupies a wide horizontal area at various vertical angles — wider horizontal and tighter vertical covers the most listeners with the best tonal consistency. The 18 Sound 12NCX750H provides this from a coaxial point source, maintaining the zero-lobing, zero-comb-filtering coherence that discrete two-way systems can’t deliver.

The 110.3 dB HF sensitivity means the compression driver section produces roughly twice the HF acoustic power within the coverage window compared to the 12NCX750’s 107 dB. For venues where the audience is 10–20 metres from the speaker and atmospheric absorption attenuates high frequencies over distance, the 18 Sound 12NCX750H’s concentrated HF output ensures the treble arrives at the listener with presence and clarity.

The 95.3 dB LF sensitivity is the trade-off. It’s 1.7 dB below the 12NCX750’s 97 dB and the lowest LF sensitivity of any 18 Sound coaxial. At 400 W AES, the maximum sustained LF output is approximately 2 dB lower than the 12NCX750 at the same power. For applications where LF output is the priority, the conical 12NCX750 is the stronger LF performer. For applications where HF projection and asymmetric coverage define the system’s effectiveness, the 18 Sound 12NCX750H is the better choice.

The 4000 Hz LF bandwidth provides nearly two octaves of overlap with the HF section above the 1.2 kHz crossover point. While narrower than the 12NCX750’s 5000 Hz, the overlap is sufficient for smooth crossover transitions in both active and passive designs.

18 Sound recommends enclosures as compact as 40 litres — the same minimum volume as the 12NCX750. The 0.29 Qts and 187 Hz EBP define the same motor-dominant vented alignment. The T/S parameters are essentially identical between the two variants.

The XO12NCX dedicated passive crossover provides a factory-designed filter matched to the 18 Sound 12NCX750H’s specific LF/HF sensitivity balance. The same part number as the 12NCX750’s crossover works because the filter topology accommodates both variants — the HF padding is adjusted at the component level to match the different HF sensitivity.

The physical interchangeability with the 12NCX750 is the system design advantage. One cabinet platform serves two applications. The 12NCX750 for stage monitors where 80° conical coverage is optimal. The 18 Sound 12NCX750H for PA tops where 70° × 50° asymmetric coverage is required. Same baffle cutout, same depth, same bolt circle — different horn, different coverage, same cabinet.

Conclusion – 18 Sound 12NCX750H Coaxial Driver

The 18 Sound 12NCX750H is the PA-optimised 12-inch coaxial in 18 Sound’s range. The 70° × 50° asymmetric dispersion provides the wider-horizontal, tighter-vertical coverage that PA applications demand, and the 110.3 dB HF sensitivity — the highest of any 12-inch coaxial — delivers the treble projection needed to reach audiences at distance.

The trade-offs against the conical 12NCX750 are honest: 1.7 dB less LF sensitivity (95.3 vs 97 dB), 1000 Hz less LF bandwidth (4000 vs 5000 Hz), and 200 g more weight (4.7 vs 4.5 kg). The LF section pays for the HF section’s gains. For PA applications where HF projection matters more than maximum LF efficiency, the exchange is worthwhile.

The physical interchangeability with the 12NCX750 gives system designers two products from one cabinet. Monitor wedge with 80° conical coverage using the 12NCX750. PA top with 70° × 50° asymmetric coverage using the 18 Sound 12NCX750H. Same enclosure, same baffle, same crossover compatibility — different coverage pattern, different application.

At 4.7 kg, 148 mm deep, and 280 mm cutout, the 18 Sound 12NCX750H is the most compact asymmetric-dispersion coaxial in 18 Sound’s range. It delivers PA-grade coverage and HF projection from a 12-inch format that is lighter, shallower, and more compact than any 15-inch alternative. Point-source coherence, asymmetric coverage, 110 dB HF sensitivity — from a 12-inch coaxial weighing less than five kilograms.
