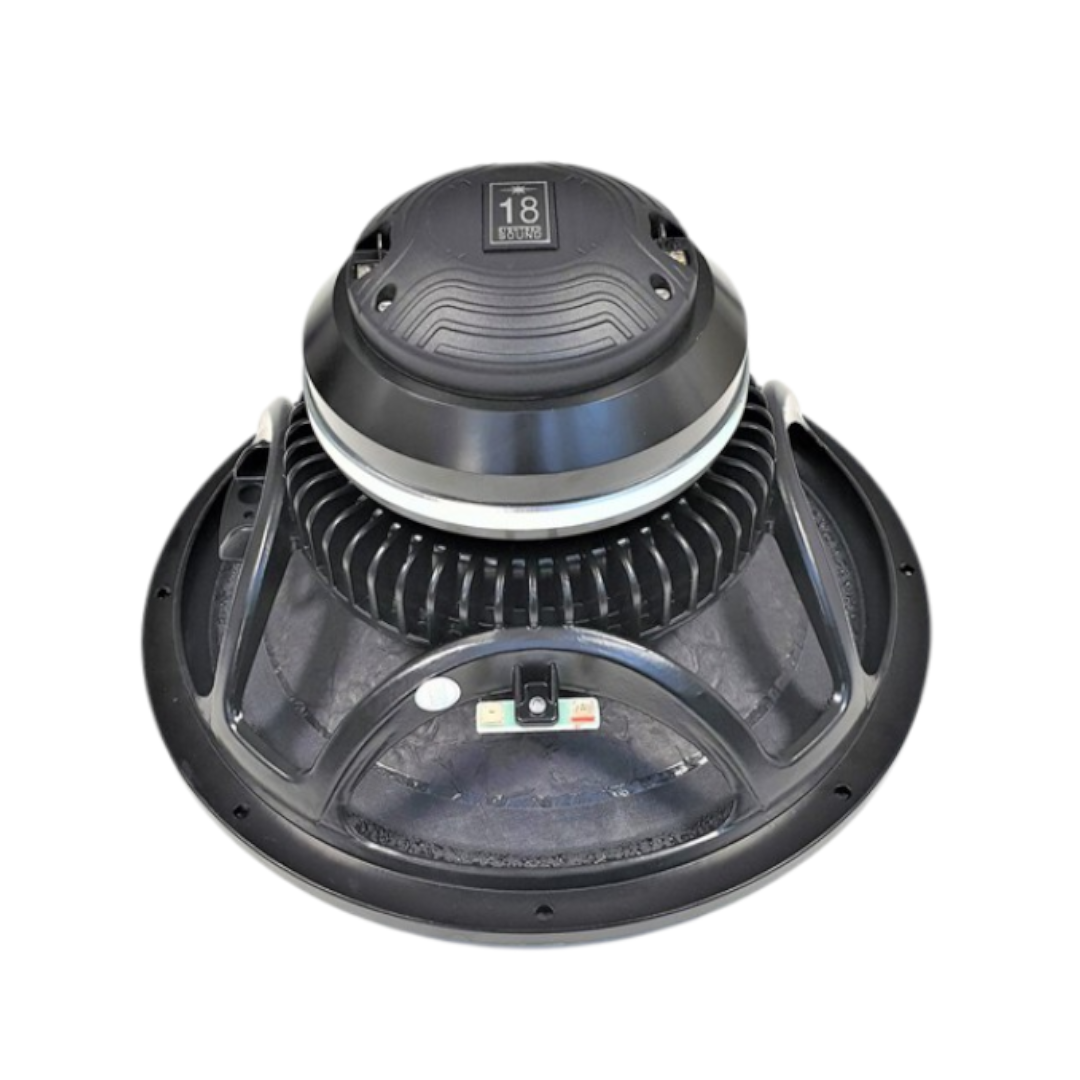

18 Sound 12NCX910 – High-Output 12-Inch Neodymium Coaxial with 99.5 dB LF Sensitivity and 120 Watt HF Section
The 18 Sound 12NCX910 is the highest-output 12-inch coaxial transducer in 18 Sound’s range. With 99.5 dB LF sensitivity — matching the 15-inch 15NCX910 platform and leading the 12-inch format by 2.5 dB — 450 W AES LF power handling, a 75 mm EWAL HF compression driver delivering 108 dB and 120 W AES, 6.9 mm of LF excursion, and suitability for enclosures as compact as 25 litres, the 18 Sound 12NCX910 delivers 15-inch-class sensitivity and power handling from a 12-inch coaxial format.
The 99.5 dB LF sensitivity from a 12-inch coaxial is the specification that changes what the format can do. The 12NCX750 delivers 97 dB. The 18 Sound 12NCX910 delivers 2.5 dB more — roughly 78% more acoustic power per watt. That sensitivity advantage means the 18 Sound 12NCX910 matches or exceeds the measured output of many standalone 15-inch woofers while fitting a 12-inch cabinet and producing true coaxial point-source coherence.
The 75 mm HF section is the other major step up from the 12NCX750’s 64 mm. The larger HF coil and titanium diaphragm deliver 108 dB HF sensitivity at 120 W AES — 1 dB more sensitivity and 71% more power handling than the 12NCX750’s 64 mm section. The 18 Sound 12NCX910 handles more sustained HF power than any other 12-inch coaxial in the range.
The 25-litre minimum enclosure is the smallest of any 18 Sound coaxial — smaller than the 12NCX750’s 40 litres, smaller than the 15NCX750H’s 40 litres, and dramatically smaller than the 15-inch options. A 12-inch coaxial with 99.5 dB LF sensitivity in a 25-litre cabinet produces a complete two-way point-source speaker system in a package that competes with compact active speakers on size while delivering vastly more output and coherence.
At 6.0 kg with 80° conical dispersion, single neodymium motor, and ISV/SDR/EWAL technology throughout, the 18 Sound 12NCX910 is the most capable 12-inch coaxial 18 Sound makes.
Design and Construction of the 18 Sound 12NCX910
The 18 Sound 12NCX910 integrates a two-way coaxial transducer system into a single chassis powered by a single neodymium magnet motor. The driver scales the 910 platform’s 75 mm LF/HF architecture down to the 12-inch format.
The LF section uses a 75 mm (3-inch) CCAW aluminium ISV (Interleaved Sandwich Voice Coil). The ISV architecture places conductor on both inner and outer surfaces of the former, creating the mass-balanced coil that produces linear motor behaviour. The CCAW aluminium winding provides the thermal capacity for the 450 W AES / 900 W program power rating — the highest LF power handling of any 18 Sound 12-inch coaxial.
An aluminium demodulating ring (SDR) in the LF magnetic circuit reduces flux modulation during excursion. The SDR flattens LF impedance and phase with constant power transfer, reducing harmonic distortion at higher excursion levels. The ISV and SDR combination produces the same clean, low-distortion LF output found across 18 Sound’s premium coaxial range.
The 18.1 Tm force factor driving 53 g of moving mass produces 99.5 dB LF sensitivity. The 53 g Mms is 5 g heavier than the 12NCX750’s 48 g — the 910 platform’s higher-flux motor requires slightly more magnetic circuit mass in the moving assembly. The 18.1 Tm Bl is the highest of any 18 Sound 12-inch coaxial LF section, providing firm motor authority over the cone through the 6.9 mm Xmax.
The 6.9 mm Xmax is 1.4 mm more than the 12NCX750’s 5.5 mm — 25% more linear excursion. Combined with the 531 cm² radiating area and 99.5 dB sensitivity, the 18 Sound 12NCX910 produces more sustained bass output from the 12-inch format than any other 18 Sound coaxial. The 7.5 mm Xvar provides additional headroom beyond the linear limit.
The curvilinear paper cone uses 18 Sound’s high-damping pulp composition. The water-repellent treatment and corrosion-resistant magnet plate coatings provide outdoor durability. The 60 Hz – 4000 Hz LF bandwidth provides nearly two octaves of overlap with the HF section above the 1.5 kHz crossover.
The HF section uses a 75 mm (3-inch) EWAL (Edge-Wound Aluminium) voice coil driving a titanium diaphragm. The 75 mm HF section is the same size class as the 15NCX910’s HF driver — stepped up from the 12NCX750’s smaller 64 mm. The larger coil provides 71% more HF power handling (120 vs 70 W AES) and 1 dB more HF sensitivity (108 vs 107 dB).
The titanium diaphragm is joined to a high-strength, high-temperature treated Nomex voice coil former at its upper bend edge. The bent edge joint distributes mechanical stress across a wider area than a straight joint, improving linearity and reliability. A copper ring on the HF pole piece reduces inductance above 10 kHz for improved phase and impedance linearisation in the upper treble.
The proprietary HF architecture produces smooth, coherent wavefronts across the HF operating range. A specific HF exit profile maximises coupling between the compression driver output and the 12-inch LF cone’s profile, shaping the combined 80° conical dispersion.
The 1.5 kHz recommended crossover is 300 Hz higher than the 12NCX750’s 1.2 kHz. The 12-inch cone-waveguide geometry with the larger 75 mm HF section requires a slightly higher crossover point for optimal integration. At 1.5 kHz with a 12 dB/oct or steeper high-pass, the transition sits in the upper mid-range where both sections produce controlled, coherent output.
At 6.0 kg, 310 mm overall diameter, 283 mm baffle cutout, and 210 mm depth, the 18 Sound 12NCX910 is the heaviest and deepest 12-inch coaxial in the range. The 75 mm HF section, higher-flux motor, and larger magnetic circuit account for the additional 1.5 kg and 62 mm of depth compared to the 12NCX750. The 13 mm flange thickness provides a secure mounting interface.
Performance and Applications for the 18 Sound 12NCX910
The 18 Sound 12NCX910 delivers 99.5 dB LF sensitivity from 60 Hz to 4000 Hz and 108 dB HF sensitivity from the 1.5 kHz crossover point upward. The 8.5 dB sensitivity difference between sections is managed through the crossover network, with the HF section padded to match the LF output level.
The 99.5 dB LF sensitivity is remarkable for a 12-inch coaxial. It matches the 15-inch 15NCX910 and 15NCX910BE platforms — drivers with 66% more cone area from a 15-inch frame. The 18 Sound 12NCX910 achieves this sensitivity through the 18.1 Tm force factor and 53 g moving mass, which produce a motor authority that extracts maximum output per watt from the 12-inch cone. For compact PA tops and stage monitors where the cabinet must be 12-inch format but the output must match 15-inch systems, the 18 Sound 12NCX910 delivers.
The 450 W AES / 900 W program LF power handling is the highest of any 18 Sound 12-inch coaxial. Combined with the 99.5 dB sensitivity, the maximum sustained LF output exceeds the 12NCX750 by approximately 3 dB — a meaningful advantage for systems running at high power. The 120 W AES HF power handling matches the 15-inch 15NCX910 and provides 71% more sustained HF headroom than the 12NCX750’s 70 W.
The 80° conical dispersion provides uniform point-source coverage in both horizontal and vertical planes. Both sections radiate from the same acoustic axis — no offset, no lobing, no comb-filtering. The 80° coverage matches the 12NCX750 and the 15NCX750/15NCX910 platforms, providing consistent coverage geometry across format sizes.
The 25-litre minimum enclosure is the smallest of any 18 Sound coaxial. The 0.30 Qts and 183 Hz EBP define a motor-dominant driver that produces tight, well-controlled bass in compact vented enclosures. A 25-litre cabinet with the 18 Sound 12NCX910 produces a complete two-way coaxial point-source speaker that fits into the smallest professional cabinet formats — compact stage monitors, under-seat fills, and ultra-compact tops where every litre of internal volume matters.
The 6.9 mm Xmax is the highest of any 18 Sound 12-inch coaxial. The 7.5 mm Xvar provides additional headroom. Combined with the 531 cm² radiating area, the displacement capability produces meaningful bass output from the 60 Hz lower limit — deep enough for compact systems operating without a dedicated sub.
The comparison between the 18 Sound 12NCX910 and the 12NCX750 defines the two tiers of 18 Sound’s 12-inch coaxial range. The 12NCX750 delivers lighter weight (4.5 vs 6.0 kg), shallower depth (148 vs 210 mm), wider LF bandwidth (5000 vs 4000 Hz), lower inductance (0.62 vs 0.78 mH), higher efficiency (4.8% vs 3.4%), and a lower recommended crossover (1.2 vs 1.5 kHz). The 18 Sound 12NCX910 delivers higher LF sensitivity (99.5 vs 97 dB), more LF power (450 vs 400 W AES), more HF power (120 vs 70 W AES), more Xmax (6.9 vs 5.5 mm), higher HF sensitivity (108 vs 107 dB), and a smaller minimum enclosure (25 vs 40 litres).
The 12NCX750 is the lightweight, compact option optimised for minimum weight and shallowest depth. The 18 Sound 12NCX910 is the maximum-output option optimised for highest sensitivity, highest power handling, and most excursion from the 12-inch format. Different priorities, different drivers — same coaxial coherence.
Conclusion – 18 Sound 12NCX910 Coaxial Driver
The 18 Sound 12NCX910 is the most capable 12-inch coaxial in 18 Sound’s range by every output metric. The 99.5 dB LF sensitivity matches 15-inch coaxials. The 450 W AES LF and 120 W AES HF power handling are the highest in the 12-inch format. The 6.9 mm Xmax provides the most displacement. And the 25-litre minimum enclosure is the smallest of any 18 Sound coaxial — putting 15-inch-class output into a 12-inch cabinet as compact as 25 litres.
The 75 mm ISV LF coil and 75 mm EWAL titanium HF section bring the full 910 platform architecture to the 12-inch format. The SDR distortion reduction, copper HF sleeve, Nomex bent edge former, and single neodymium motor deliver the same technologies found on the 15-inch 910 platform — scaled to a 12-inch driver that weighs 6.0 kg.
The trade-offs against the 12NCX750 are weight (6.0 vs 4.5 kg) and depth (210 vs 148 mm). For applications where maximum 12-inch output matters more than minimum 12-inch weight, the 18 Sound 12NCX910 is the driver that proves a 12-inch coaxial can match 15-inch sensitivity from a smaller cabinet. Ninety-nine point five dB, 450 watts, 25 litres — the most output ever from a 12-inch coaxial point source.
