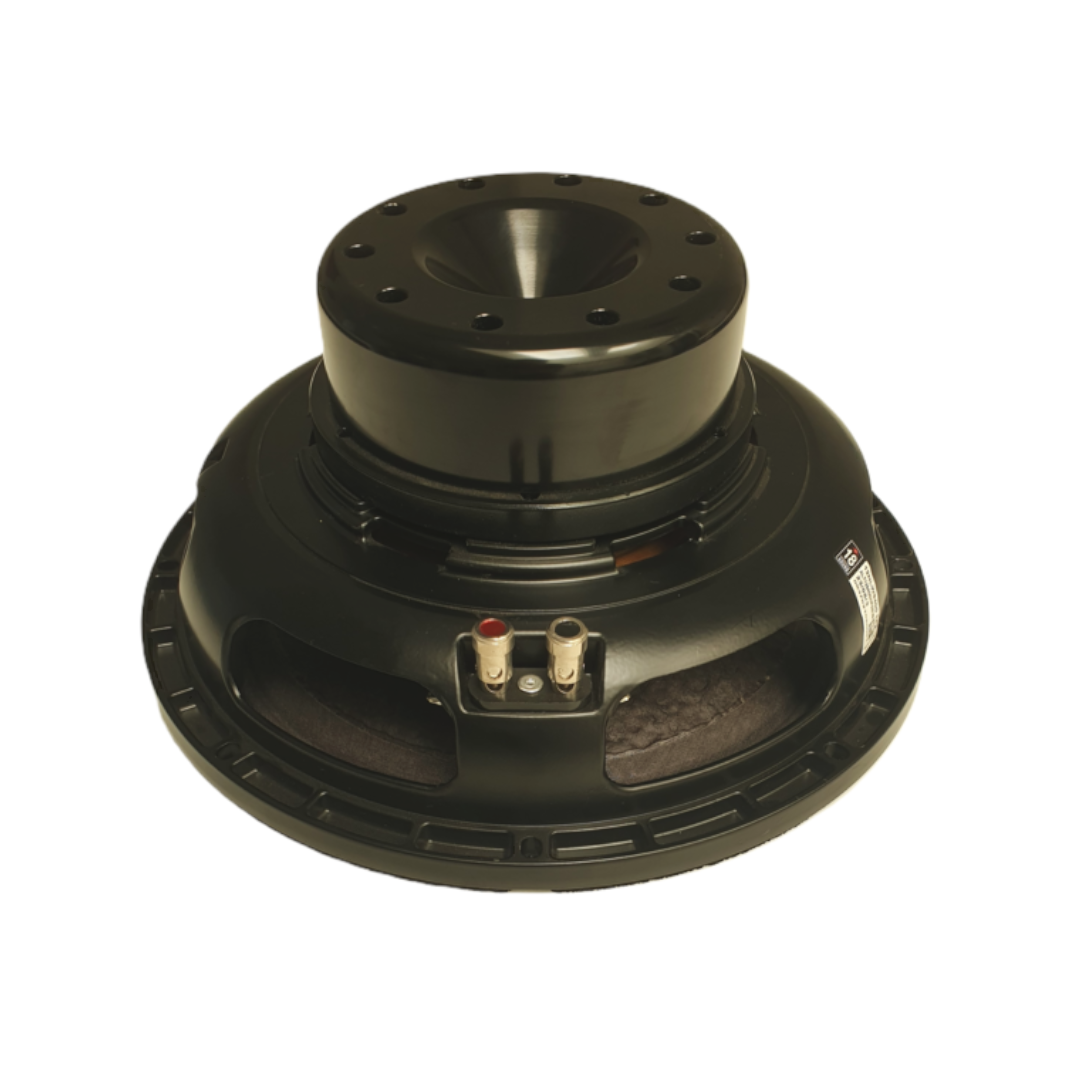

18 Sound 12NLW9410 – Extended Low Frequency 12-Inch Neodymium Subwoofer with 100 mm Coil and 2000 Watt Handling
The 18 Sound 12NLW9410 is a 12-inch neodymium extended low frequency loudspeaker with a 100 mm (4-inch) diameter voice coil — the highest power handling and by far the highest excursion of any 12-inch driver in 18 Sound’s range. Designed for use as a low bass or subwoofer component in either a compact reflex, band-pass, or horn-loaded configuration, the 18 Sound 12NLW9410 delivers 1000 W AES / 2000 W continuous program power handling and an extraordinary 11.0 mm Xmax with 12.0 mm Xvar — nearly a third more linear excursion than any other 12-inch driver we’ve covered.
It provides clean, linear, undistorted low-frequency reproduction at very high power levels. In its reflex configuration, the 18 Sound 12NLW9410 can be used in extremely compact enclosures — 40 to 80 litres — with tuning frequency as low as 45 Hz. The high excursion capabilities of the surround and suspension system enable the driver to achieve high levels of linear travel while maintaining full control of the moving mass, even at the 105 g Mms that is the heaviest moving assembly of any 18 Sound 12-inch driver.
The high-grade neodymium magnet assembly assures high flux concentration, low power compression, and excellent heat exchange, resulting in high levels of force factor and power handling with an optimum power-to-weight ratio. The 21.7 Tm force factor driving that substantial 105 g moving mass produces the 0.26 Qts alignment that keeps the extreme excursion range under firm electromagnetic control.
At 7.3 kg with a reinforced water-repellent treated cone showing high damping mode behaviour, and a suspension system that provides symmetric large-signal characteristics throughout the whole working range for low harmonic distortion at different excitation levels, the 18 Sound 12NLW9410 is purpose-built for compact subwoofer cabinets demanding maximum sustained power and displacement.
Design and Construction of the 18 Sound 12NLW9410
The 18 Sound 12NLW9410 uses a 100 mm (4-inch) Interleaved Sandwich Voice Coil (ISV) with a substantial 28 mm winding depth operating in a 12 mm magnetic gap — the deepest winding of any 12-inch driver we’ve covered, directly responsible for the driver’s exceptional 11.0 mm Xmax. The weight of the windings is evenly distributed, providing a uniform motive drive that, in conjunction with Single Demodulating Ring (SDR) technology, results in an extremely linear motor assembly and low distortion along the entire working band.
The 100 mm ISV coil provides high levels of thermal stability and durability — the large coil surface area and substantial winding mass give the 18 Sound 12NLW9410 the thermal capacity to sustain 1000 W AES / 2000 W continuous program power handling, the highest of any 12-inch driver in 18 Sound’s range.
The high-grade neodymium magnet assembly assures high flux concentration, low power compression, and excellent heat exchange, resulting in high levels of force factor and power handling with an optimum power-to-weight ratio. The 21.7 Tm force factor is substantial though not the highest in the 12-inch range — the 105 g moving mass this motor controls is considerably heavier than any competing driver, reflecting the deep 28 mm winding’s added conductor mass.
The high excursion capabilities of the surround and suspension system enable the 18 Sound 12NLW9410 to achieve high levels of linear travel and maintain full control of the moving mass. The triple roll suspension provides the mechanical range needed for 11.0 mm of linear excursion with 12.0 mm Xvar headroom beyond that.
The dedicated reinforced water-repellent treated cone shows a high damping mode behaviour — the reinforcement adds structural rigidity to withstand the mechanical stresses of extreme excursion cycling, while the damping properties control cone resonances at the high displacement levels the driver regularly operates at.
The suspension system provides symmetric large-signal characteristics throughout the whole working range, providing low harmonic distortion at different excitation levels — the same design goal found in 18 Sound’s DSS technology on other drivers, here achieved through the suspension geometry and material selection without a dedicated dual-spider architecture.
The ability to perform properly under inclement weather conditions has been achieved using a special coating applied to the metal plates. Improved heat dissipation is achieved via multiple back-plate vents — a specific thermal management feature 18 Sound highlights for this driver.
At 7.3 kg, 310 mm overall diameter, 283 mm baffle cutout, and 143 mm depth, the 18 Sound 12NLW9410 carries substantial mass reflecting its 100 mm coil, deep 28 mm winding, and reinforced cone construction.
Performance and Applications for the 18 Sound 12NLW9410
The 18 Sound 12NLW9410 delivers 95 dB sensitivity across a 45 Hz – 3000 Hz bandwidth. The 1000 W AES / 2000 W continuous program power handling is the highest of any 12-inch driver in 18 Sound’s range we’ve covered — a genuinely extreme power rating for the format, supported by the 100 mm coil’s thermal mass and the multiple back-plate ventilation.
18 Sound recommends a 40-litre (1.41 ft³) reflex enclosure tuned to 45 Hz, with the driver capable of extremely compact enclosures ranging from 40 to 80 litres and tuning frequencies as low as 45 Hz. This combination of compact cabinet compatibility and deep tuning capability makes the 18 Sound 12NLW9410 particularly suited to touring subwoofer applications where cabinet size is constrained but low-frequency extension and output remain the priority.
The 11.0 mm Xmax is the specification that fundamentally distinguishes the 18 Sound 12NLW9410 from every other 12-inch driver we’ve covered — 33% more linear excursion than the 12NTLW3500’s 8.3 mm and nearly triple the 12NMB1000’s 3.5 mm. Combined with the 531 cm² radiating area, this produces the highest volume displacement of any 18 Sound 12-inch driver, directly translating to maximum low-frequency output at high power.
The 42 Hz Fs and 45 Hz lower frequency limit confirm genuine sub-bass extension, deeper than most of 18 Sound’s other 12-inch subwoofer-oriented drivers. The 0.26 Qts and 155 Hz EBP define a motor-dominant vented alignment that keeps the substantial 105 g moving mass under control despite the extreme excursion range.
The symmetric large-signal suspension behaviour is most valuable precisely at the operating conditions this driver experiences constantly — high excursion, high power, sustained touring use. Where conventional suspensions can exhibit increasingly asymmetric stiffness as excursion approaches Xmax, generating distortion that compounds at high SPL, the 18 Sound 12NLW9410’s suspension design maintains consistent behaviour, keeping harmonic distortion low even at the driver’s extreme displacement limits.
For horn-loaded configurations, the combination of high power handling, substantial Xmax, and controlled distortion makes the 18 Sound 12NLW9410 a strong candidate for demanding professional subwoofer horn applications where sustained high-SPL output over extended events is the requirement.
Conclusion – 18 Sound 12NLW9410 Subwoofer Driver
The 18 Sound 12NLW9410 is the extreme-performance subwoofer specialist in 18 Sound’s 12-inch range. The 1000 W AES / 2000 W continuous program power handling is the highest of any 12-inch driver we’ve covered, and the 11.0 mm Xmax with 12.0 mm Xvar is nearly a third more excursion than any competing 18 Sound 12-inch driver — a genuinely extreme specification combination for the format.
The 100 mm ISV coil with 28 mm winding depth, SDR distortion reduction, and symmetric large-signal suspension design combine to deliver clean, linear, undistorted low-frequency reproduction at the very high power levels the driver is rated for. The reinforced water-repellent cone and multiple back-plate ventilation confirm this is a driver engineered for sustained, demanding touring and outdoor operation.
For compact reflex, band-pass, or horn-loaded subwoofer cabinets requiring maximum sustained power handling and the highest displacement available in a 12-inch neodymium format, the 18 Sound 12NLW9410 is the driver 18 Sound built specifically for the job. One thousand watts AES, 11 millimetres of Xmax, extended low frequency reproduction — the extreme performance benchmark of the 12-inch range.
