18 Sound 8NM610 – LF Driver

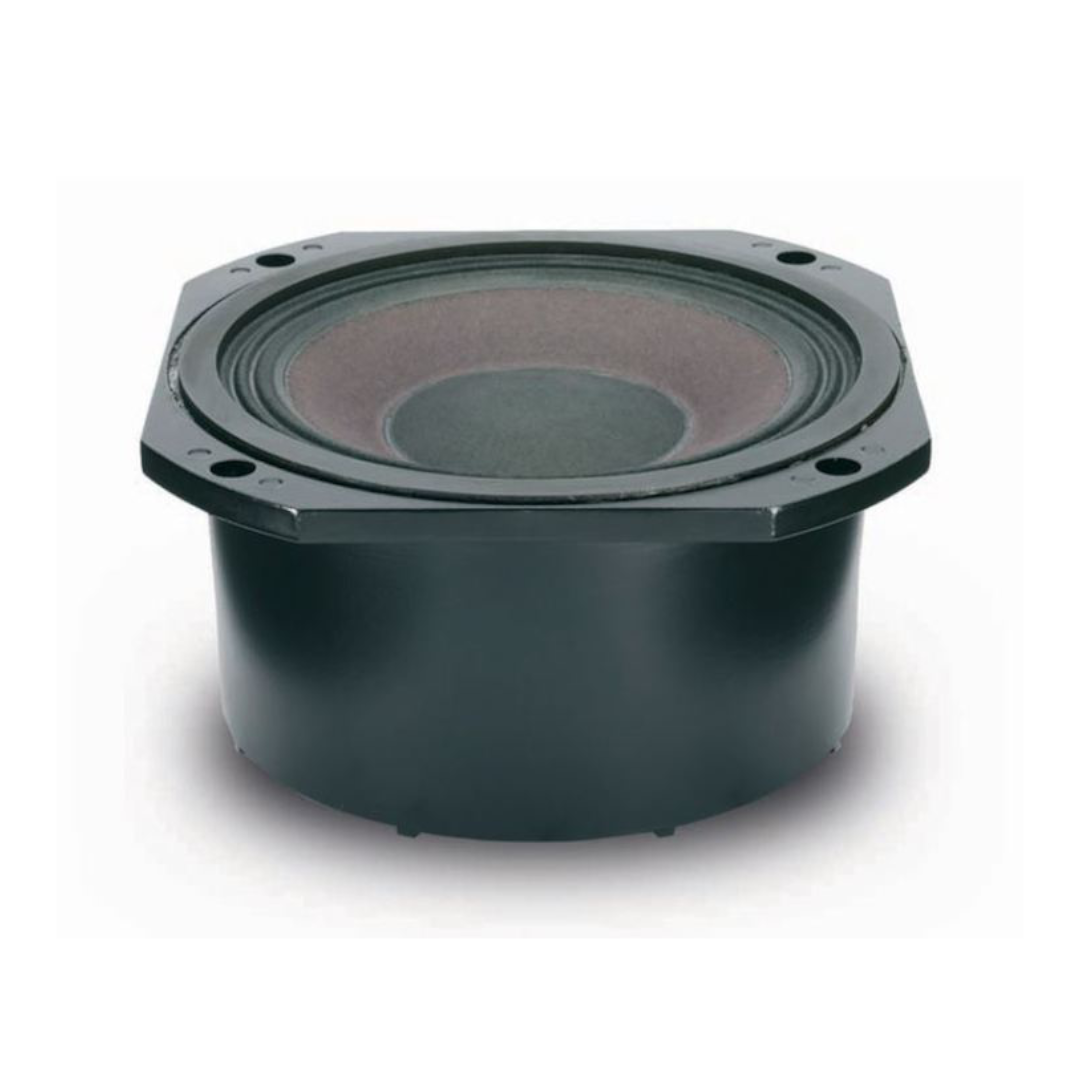

18 Sound 8NM610 – High-Output 8-Inch Sealed-Back Neodymium Midrange for Horn-Loaded Systems

The 18 Sound 8NM610 is a sealed-back 8-inch neodymium midrange driver engineered for the highest-output horn-loaded and direct-radiating midrange applications in professional audio. With 104 dB sensitivity, 400 W AES / 600 W program power handling, a 28.3 Tm force factor, a cast aluminium sealed basket that eliminates rear-wave interference and functions as a heatsink, and an EBP of 1083 Hz that confirms absolute motor dominance, the 18 Sound 8NM610 delivers midrange output and motor authority that puts it in a class above any other 8-inch driver in 18 Sound’s range — and above most 10 and 12-inch midrange drivers from any manufacturer.

The 28.3 Tm force factor is the specification that defines this driver. For an 8-inch midrange with a 75 mm voice coil and 18 g moving mass, 28.3 Tm represents an extreme level of electromagnetic control. The Bl/Mms ratio of 1.57 Tm/g is the highest of any 18 Sound 8-inch driver by a massive margin — the motor grips the 18 g cone with the authority that produces 104 dB sensitivity and an EBP of 1083 Hz.

The sealed-back cast aluminium basket serves dual purposes. It provides a controlled, enclosed air volume behind the cone — eliminating rear-wave resonances that degrade midrange clarity in open-back designs. And it functions as a massive heatsink, conducting heat from the motor through the cast aluminium structure for reduced power compression during sustained 400 W AES operation.

18 Sound designed the 18 Sound 8NM610 for horn-loaded line array configurations and high-SPL direct-radiating midrange applications. The back cavity volume has been optimised for horn applications, and the oversized external neodymium magnet provides flux density and distortion control beyond traditional under-pole topologies.

At 4.5 kg with humidity-block cone treatment and corrosion-resistant plate coatings, available in 8 and 16 Ω.

Design and Construction of the 18 Sound 8NM610

The 18 Sound 8NM610 uses a 75 mm (3-inch) aluminium ISV (Interleaved Sandwich Voice Coil) wound on a high-strength glass fibre former. The ISV architecture places conductor on both inner and outer surfaces of the former, creating the mass-balanced coil that the 28.3 Tm force factor demands for linear motor operation across the excursion range.

The 28.3 Tm Bl is extraordinary for an 8-inch driver — it exceeds many professional 12 and 15-inch woofers. For context within 18 Sound’s own 8-inch range: the 8NMB750’s 18.7 Tm is the highest of any 8-inch woofer, and the 18 Sound 8NM610 surpasses it by 51% from the same 75 mm ISV coil platform. The sealed-back motor architecture concentrates more magnetic flux in the gap than the open-back woofer motors can achieve.

The 3 mm Xmax is deliberately short — this is a midrange driver operating in the 400–5000 Hz band where wavelengths are short enough that minimal cone displacement generates high sound pressure. Every parameter trades excursion for sensitivity.

The external neodymium magnet is oversized relative to conventional 8-inch drivers. The external topology provides higher flux density and better heat exchange than internal-magnet designs. A copper flux-stabilising ring minimises harmonic and intermodulation distortion, keeping the output clean at all power levels.

The curvilinear cone uses a high-damping wood pulp composition for maximum linearity within the mid-frequency range. The natural damping properties reduce cone resonances and breakup modes. The humidity-block cone treatment provides weather resistance, and a special corrosion-resistant coating on top and back plates protects against salt and oxidation.

The sealed cast aluminium basket is the defining structural feature. The sealed back provides a precisely controlled rear air volume that loads the cone with predictable back-pressure, eliminating the acoustic interactions that degrade midrange clarity in open-back designs. The aluminium simultaneously conducts heat from the motor to the surrounding air, reducing operating temperature and maintaining consistent performance during sustained high-power use.

At 4.5 kg, 240 mm overall diameter, 192 mm baffle cutout, and 113 mm depth, the 18 Sound 8NM610 is compact enough for line array elements while carrying the motor mass needed for 104 dB sensitivity.

Performance and Applications for the 18 Sound 8NM610

The 18 Sound 8NM610 delivers 104 dB sensitivity across a 400 Hz – 5000 Hz bandwidth. The 104 dB from an 8-inch sealed-back midrange is a benchmark figure that matches or exceeds the sensitivity of many 10 and 12-inch cone midrange drivers.

The 1083 Hz EBP is the highest of any driver we’ve covered across any manufacturer — confirming the 18 Sound 8NM610 is designed exclusively for horn-loaded applications where the motor’s overwhelming electromagnetic control produces the tightest, fastest, most authoritative midrange output possible.

In horn-loaded line array configurations, the 104 dB sensitivity on a horn produces real-world mid-range SPL levels that would require multiple cone midrange drivers to match. The sealed back eliminates the need for a separate sealed midrange chamber inside the line array element — the driver mounts directly to the horn or baffle and its own sealed enclosure is built in.

The 400 W AES / 600 W program power handling sustains output for extended professional operation. The copper flux ring ensures distortion stays low even as power and excursion approach rated limits. The 0.4 mH Le produces flat impedance behaviour through the operating range.

The 18 Sound 8NM610 stands apart from every other driver in the 8-inch range. The woofer and mid-bass models (8NMB420, 8NW650, 8NTLW2000, 8NMB750) produce 95–97.5 dB sensitivity for bass and mid-bass reproduction. The 18 Sound 8NM610 produces 104 dB for midrange reproduction only — 6.5–9 dB above the woofer range. Different format, different application, different performance class entirely.

Conclusion – 18 Sound 8NM610 Midrange Driver

The 18 Sound 8NM610 is the highest-output 8-inch driver in 18 Sound’s range by a wide margin. The 28.3 Tm force factor, 104 dB sensitivity, and 1083 Hz EBP define a driver with motor dominance that is unmatched in the 8-inch format from any manufacturer. The sealed cast aluminium basket eliminates rear-wave interference and functions as a heatsink — no separate sealed chamber is needed. The driver mounts directly to the baffle or horn and operates as a complete, self-enclosed midrange section.

The 75 mm ISV coil, copper flux ring, humidity-block cone treatment, and corrosion-resistant plate coatings confirm the 18 Sound 8NM610 is built for professional outdoor use at the highest sustained power levels. For horn-loaded line arrays, high-SPL three-way systems, arena installations, and any application where an 8-inch midrange needs to deliver 104 dB sensitivity with the lowest distortion and most extreme motor authority available in the format, the 18 Sound 8NM610 is the sealed-back midrange that sets the benchmark. Twenty-eight point three Tesla-metres, 104 dB, 400 watts, sealed back — nothing else at 8 inches comes close.
