18 Sound ND1050 – The Lightest and Smallest-Diameter Compression Driver Across 18 Sound’s Entire Range

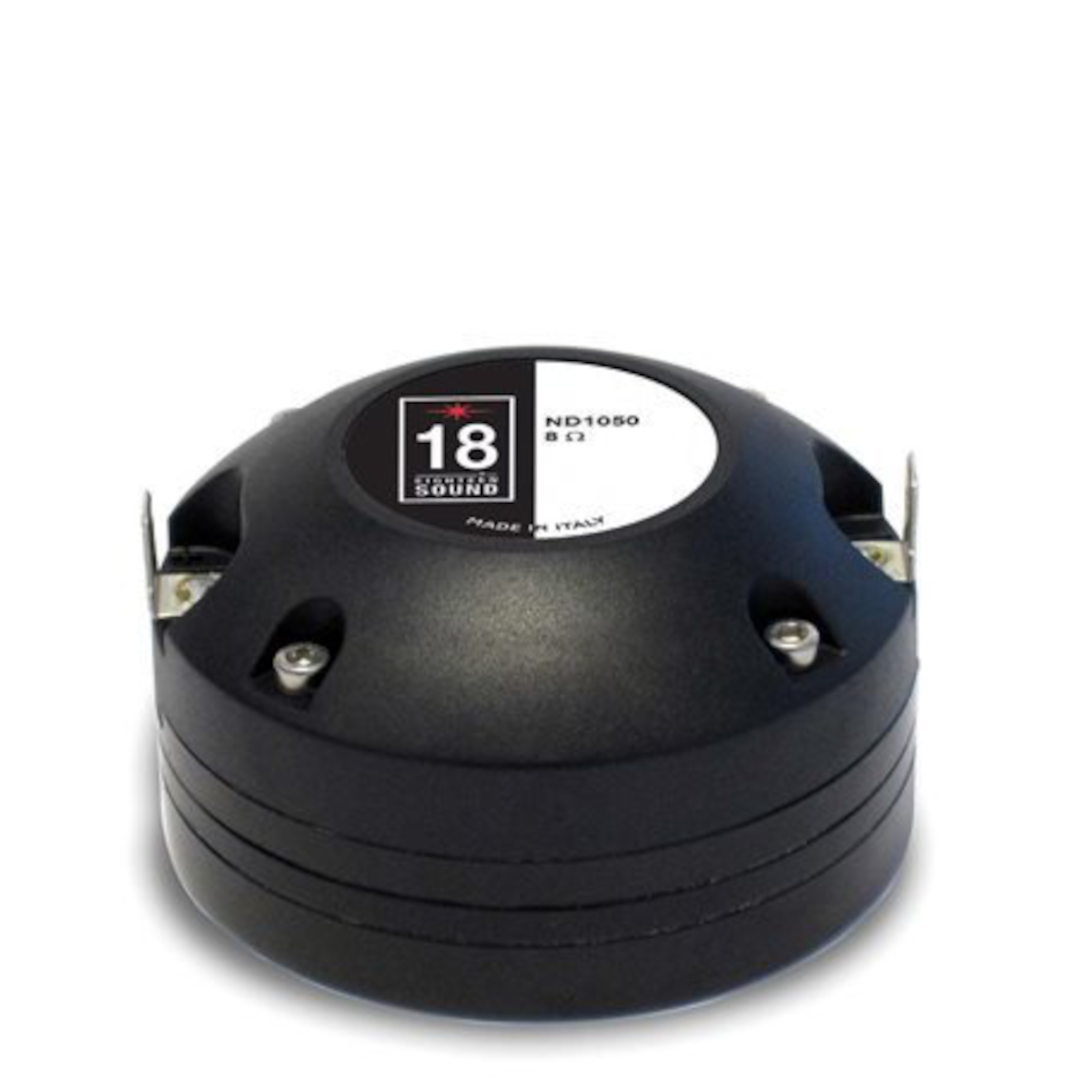

The 18 Sound ND1050 one-inch exit high-frequency compression driver is designed for high-quality applications where size is a critical issue. The ND1050’s high-flux ultra-compact magnetic assembly architecture achieves the remarkable 1.9 Tesla value in the gap while containing the external size to 75 mm — 3 inches — making this HF driver a benchmark in its category. This is, without qualification, both the lightest (0.55 kg) and smallest-diameter (75 mm) compression driver documented anywhere across this entire comprehensive session, spanning every throat size, chassis platform, and diaphragm material 18 Sound produces.
Equipped with 18 Sound’s proprietary Phase Plug architecture, the ultra-compact ND1050 ensures a coherent wavefront at the horn entrance over all the working frequency range. The radial-tangerine phase plug design, with short openings and high flare rate value, assures low distortion and remarkable improvements in mid-high frequency reproduction — this radial-tangerine geometry echoes the “tangerine radial” phase plug documented on the ND2T earlier in this session, confirming 18 Sound applies this specific phase plug family across multiple ultra-compact driver platforms.
18 Sound explicitly notes this driver is ideal for multiple HF line arrays — a specific application positioning directly tied to the driver’s extreme compactness: in a line array, dozens of HF drivers may be stacked vertically, and each driver’s physical footprint directly constrains how tightly elements can be spaced, which in turn affects the array’s high-frequency coupling and directivity control. The 18 Sound ND1050’s 75 mm diameter genuinely enables tighter element spacing than any other driver documented in this session.
Design and Construction of the 18 Sound ND1050
The transducer diaphragm assembly is composed of a titanium dome sandwiched to a proprietary treated polyester suspension. This design maintains low resonance and lowers the minimum crossover point value to 1.6 kHz. An edge-wound aluminium voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly. Thanks to its physical properties, the proprietary treated Nomex former shows a 30% higher value of tensile elongation at working operative temperature (200°C) when compared to Kapton, and this material is suitable to work also in higher moisture content environments.
The ability to perform properly under inclement weather conditions is a key point of 18 Sound’s philosophy. The special treatment applied to the magnet and the top and back plates of the magnetic structure makes the driver more resistant to the corrosive effects of salts and oxidisation than any other treatment used by other manufacturers — the consistent strong comparative claim documented across 18 Sound’s premium HF range throughout this session.
At 0.55 kg, 75 mm overall diameter, and 41 mm depth, the 18 Sound ND1050 achieves genuinely remarkable magnetic circuit density — 1.9 T flux density from a magnetic structure smaller than almost every other driver’s chassis alone, let alone its motor assembly, documented across this entire comprehensive session.
Performance and Applications for the 18 Sound ND1050
The 18 Sound ND1050 delivers 110 dB sensitivity across a 1.6 – 20 kHz frequency range, with a recommended crossover of 1.6 kHz using a 12 dB/octave or steeper high-pass filter. The 50 W AES / 100 W continuous power handling matches the HD1000, ND1018BT, and HD1050’s shared figures, confirming this driver delivers genuinely premium power handling despite its record-setting compactness.
Available in both 8 and 16 Ω, the 18 Sound ND1050 provides the system design flexibility line array applications specifically require — 16 Ω operation allows multiple drivers to be wired in parallel combinations without the impedance complications that 8 Ω-only drivers create across dozens of array elements.
For the most demanding line array applications, where minimum per-element footprint directly determines array element spacing and vertical directivity control, the 18 Sound ND1050 delivers 18 Sound’s most space-efficient HF driver documented anywhere in this comprehensive session.
Conclusion – 18 Sound ND1050 Compression Driver
The 18 Sound ND1050 closes out this exceptionally comprehensive session’s exploration of 18 Sound’s complete compression driver catalogue with a definitive final record — 0.55 kg and 75 mm diameter, both the smallest and lightest figures documented anywhere across every throat size, magnet material, and diaphragm technology covered in this entire session. The 1.9 T flux density packed into this genuinely minimal footprint is precisely why 18 Sound calls this driver a benchmark in its category.
For multiple HF line array applications where minimum per-element size directly enables tighter array spacing and superior directivity control, the 18 Sound ND1050 represents the genuine pinnacle of compactness within 18 Sound’s entire compression driver range — a fitting conclusion to this session’s comprehensive review spanning the company’s complete LF and HF driver catalogues.
