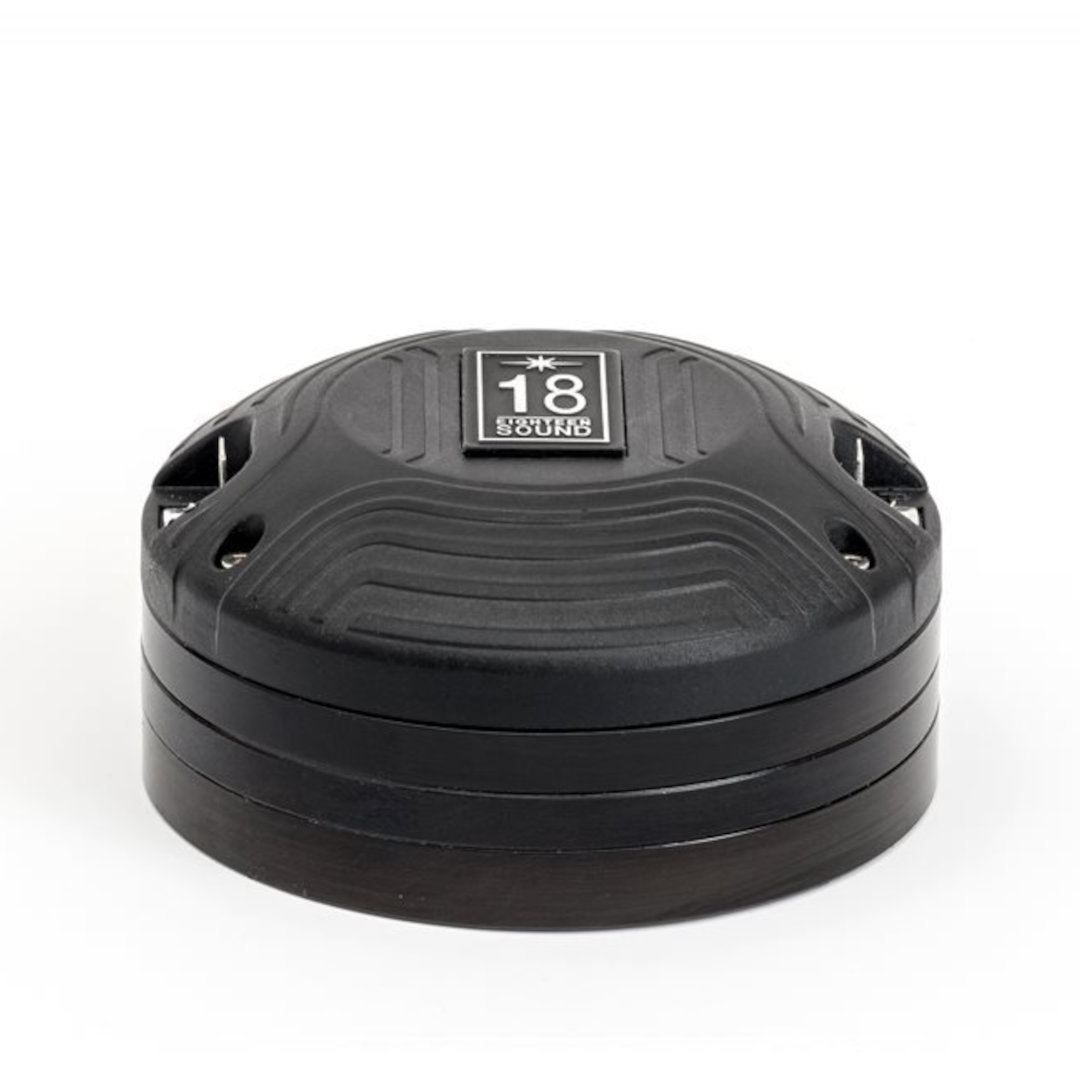

18 Sound ND3A – Ultra Compact 109mm Diameter Flagship with 75mm Coil and Self-Centering Diaphragm
The 18 Sound ND3A 1.4-inch exit neodymium high-frequency compression driver has been designed for high level sound systems applications. The unit has been developed to fulfil tight geometrical requirements, thanks to its ultra compact 109 mm overall diameter — a genuinely remarkable engineering achievement given this driver also carries a substantial 75 mm CCAW voice coil, the same coil scale documented on the considerably larger HD2080T (169 mm diameter) and HD1480T platforms.
The diaphragm assembly is composed of an aluminium dome sandwiched to a proprietary treated PEN (polyethylene naphthalate) suspension. This design maintains low resonance and, when compared to the titanium version, lowers the minimum crossover point value to 1000 Hz. The composite diaphragm assembly is made by an aluminium dome strongly joined to the PEN suspension, in order to assure unmatched transient response. The lower density of the aluminium and PEN structure permits higher levels of sensitivity, especially in the mid-high frequency range.
Despite its compact size, the 18 Sound ND3A neodymium magnet assembly has been designed to obtain 20 kGauss in the gap for major benefits in transient response — 18 Sound’s own phrasing directly acknowledges the engineering achievement of packing this flux density into such a small overall footprint.
Design and Construction of the 18 Sound ND3A
A bended former edge-wound aluminium 75 mm voice coil completes the diaphragm assembly. In comparison with a usual straight former joint, the ND3A moving assembly design assures extended frequency energy transfer for improved response linearity and unparalleled reliability. This feature facilitates proper motion control of the dome in real working conditions. A proprietary treated Nomex former is used, showing the same 30% higher tensile elongation figure versus Kapton documented consistently throughout 18 Sound’s HF range, and suitable for use in higher moisture content environments.
The diaphragm kit self-centering design allows high-precision mounting and at the same time makes the servicing procedure very easy — matching the same serviceability philosophy documented on the ND32ST and ND2T.
The motor structure, through the precisely coherent metal alloy phase plug with 4 circumferential slots and copper ring on the pole piece, reduces inductance effect and distortion — the next-gen 4-slot metal alloy design matches the phase plug technology documented on the ND4020Ti2/ND4015Ti2 flagship family, here scaled down to this ultra-compact chassis.
A special treatment is applied to the magnet and the top and back plates of the magnetic structure in order to make the driver more resistant to the corrosive effects of salts and oxidisation — this treatment is more effective than any other coating commonly used, the consistent strong comparative claim documented across 18 Sound’s premium HF range.
At 1.65 kg, 109 mm overall diameter, and 53 mm depth, the 18 Sound ND3A packs a 75 mm coil into a chassis smaller in diameter than the 61 mm-coil ND2T (104 mm) — a genuinely impressive engineering density achievement.
Performance and Applications for the 18 Sound ND3A
The 18 Sound ND3A delivers 112 dB sensitivity across a 0.8 – 20 kHz frequency range, with a recommended crossover of 1.2 kHz using a 12 dB/octave or steeper high-pass filter — matching the ND3T’s sensitivity level within this session’s broader 1.4-inch flagship comparisons.
The 110 W AES / 220 W continuous power handling is substantial for a driver of this genuinely compact scale, confirming the 75 mm coil’s thermal capacity translates directly into real-world power handling despite the driver’s ultra-compact overall footprint.
For applications with tight geometrical constraints — compact horn interfaces, space-limited cabinet designs, or line array elements where minimum driver footprint matters — the 18 Sound ND3A delivers substantial power handling and sensitivity from 18 Sound’s most space-efficient large-coil compression driver platform documented in this session.
Conclusion – 18 Sound ND3A Compression Driver
The 18 Sound ND3A is 18 Sound’s ultra-compact flagship compression driver — a 75 mm coil, 20 kGauss neodymium ring magnet, and next-gen 4-slot phase plug all packed into a genuinely remarkable 109 mm overall diameter. The self-centering d-kit ensures this compact, high-density design remains easy to service despite its tight tolerances.
For applications where geometrical constraints are the defining design challenge, and substantial power handling and sensitivity must still be delivered, the 18 Sound ND3A represents 18 Sound’s most space-efficient answer.
