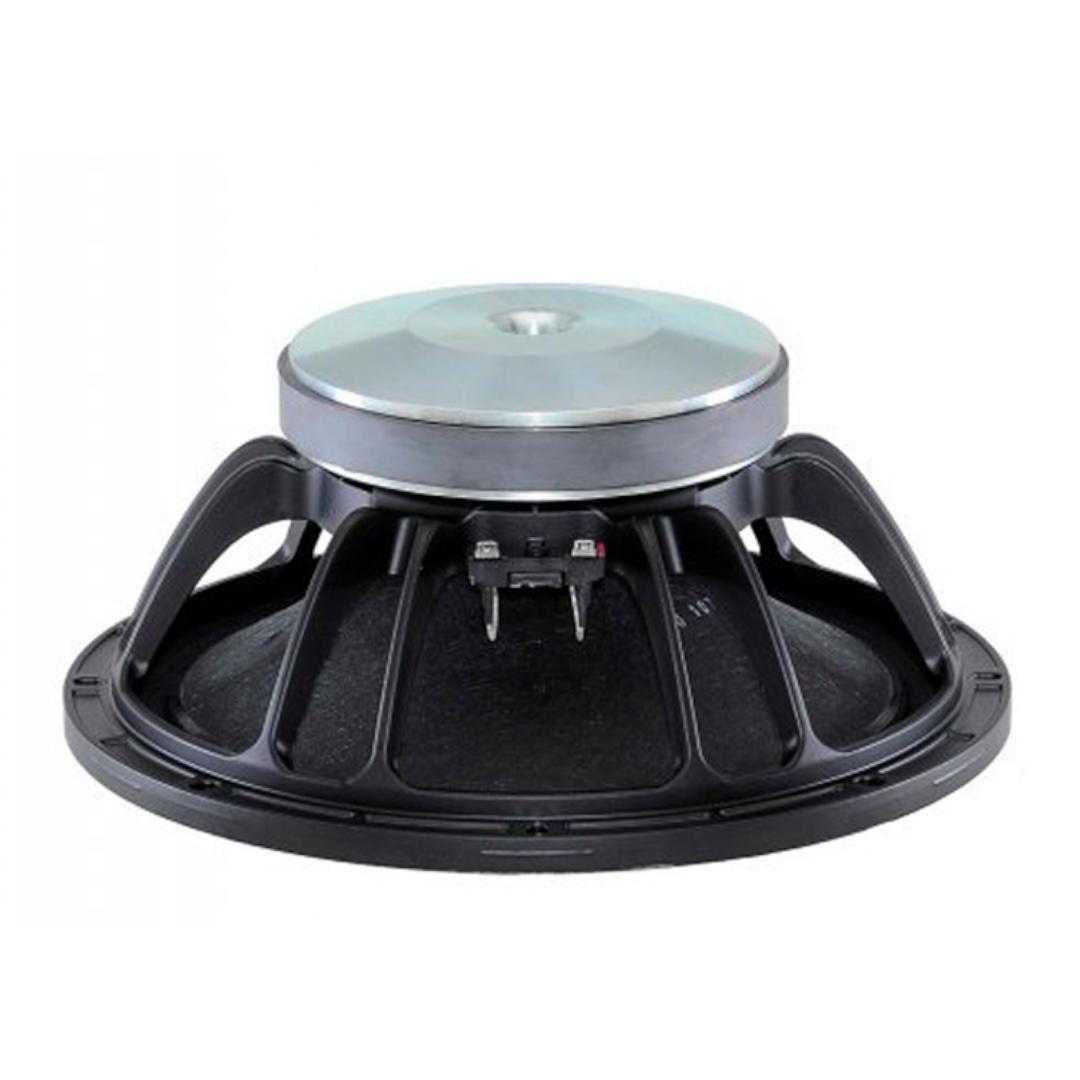

B&C 12FW64 – Versatile 12-Inch Ferrite Woofer for Compact High-Efficiency Systems
The B&C 12FW64 is B&C’s lightweight, versatile 12-inch ferrite woofer — a 98 dB, 3.6% efficiency driver that weighs just 5.65 kg and covers a 55 Hz – 3000 Hz bandwidth from a 47 g moving assembly. Where B&C’s other ferrite 12s push extreme motor dominance at the cost of weight and alignment flexibility, the B&C 12FW64 takes a more balanced approach: strong efficiency, a manageable Qts, and a 3000 Hz upper limit that makes two-way system design straightforward — all in a package that’s 3 kg lighter than the 12FW76.
The Qts of 0.29 is the key differentiator. It’s high enough to give builders genuine flexibility in enclosure design — vented cabinets work well across a range of tuning frequencies, and moderately horn-loaded designs are viable — without the ultra-aggressive alignment requirements that the FW76’s 0.18 Qts demands. For builders who want B&C build quality and efficiency in a 12-inch ferrite woofer that doesn’t require an engineering degree to design an enclosure for, the B&C 12FW64 is the practical choice.
B&C recommends a 40-litre vented enclosure tuned to 55 Hz — a compact cabinet that delivers punchy mid-bass output from a driver light enough and small enough to build into portable PA tops, compact stage monitors, and lightweight two-way speaker systems.
Design and Construction of the B&C 12FW64
The B&C 12FW64 uses a 64 mm (2.5-inch) aluminium voice coil wound on a glass fibre former. The aluminium winding keeps the moving assembly light — the 47 g Mms is among the lightest in B&C’s 12-inch range — while providing adequate thermal capacity for the 250 W AES power rating. The 14 mm winding depth operating in an 8 mm magnetic gap yields 5 mm of linear one-way excursion (Xmax) with an additional 5 mm of travel (Xvar) before mechanical limits.
The motor uses a ferrite magnet in a T-pole configuration, producing 1.3 T of flux density and a force factor (Bl) of 15.5 Tm. The T-pole geometry concentrates flux efficiently, and the 15.5 Tm Bl driving the 47 g moving mass produces the 3.6% reference efficiency and 98 dB sensitivity that characterise the B&C 12FW64. While the Bl figure is lower than the 12FW76’s 26.4 Tm, the lighter moving mass and different motor geometry produce a driver with a more moderate, more versatile alignment profile — the kind of balance that suits a wider range of cabinet designs.
The exponential cone profile supports pistonic behaviour well into the upper frequencies, enabling the 3000 Hz upper bandwidth that makes the B&C 12FW64 a natural fit for two-way systems crossing over to a compression driver at 1.5–2.5 kHz. WP waterproof treatment on the front side provides moisture resistance for outdoor use — an upgrade over the PE32 and MH32 mid-bass drivers, which have no cone treatment.
A single spider handles suspension, paired with a double-roll surround. At 5.65 kg and 136 mm deep, the B&C 12FW64 is the lightest ferrite 12-inch woofer in B&C’s range — 2.9 kg lighter than the 12FW76 and nearly 2 kg lighter than the mid-bass specialists. That weight advantage matters when you’re building portable tops that need to be carried by one person or loaded quickly between sets.
Performance and Applications for the B&C 12FW64
The B&C 12FW64 delivers 98 dB sensitivity and 3.6% reference efficiency across a 55 Hz – 3000 Hz bandwidth. That 98 dB sensitivity means a 250 W amplifier channel driving the B&C 12FW64 produces output that would require roughly 400 W into a 96 dB driver to match. The efficiency advantage reduces amplifier requirements, which in a portable system translates to smaller, lighter, cheaper amplification — savings that compound across a full rig.
The Thiele–Small parameters strike a practical balance. A Qts of 0.29 and an EBP of 172 Hz place the B&C 12FW64 in vented territory with enough flexibility for builders to experiment with different tuning strategies without the risk of an over-damped, thin-sounding response. B&C recommends a 40-litre (1.4 ft³) vented enclosure tuned to 55 Hz — 10 Hz lower than the FW76’s 65 Hz recommendation, giving the B&C 12FW64 slightly more low-end reach in the vented alignment.
Compared to the 12FW76, the B&C 12FW64 trades sensitivity (98 vs 100 dB) and motor authority (15.5 vs 26.4 Tm Bl) for a 3 kg weight reduction, a more flexible alignment profile, and a lower tuning frequency. The FW76 is the specialist — extreme motor dominance for horn-loaded bins and high-output vented designs. The B&C 12FW64 is the generalist — strong efficiency with practical versatility for everyday two-way tops, monitors, and portable PA systems.
Ideal applications for the B&C 12FW64 include:
- Compact two-way active and passive speaker systems
- Lightweight portable PA tops and stage monitors
- Vented 12-inch cabinets for live sound reinforcement and DJ systems
- Three-way systems where the 12-inch handles bass and low-mid duties
- Budget-friendly DIY builds where weight, efficiency, and bandwidth all matter
Specifications – B&C 12FW64
- Nominal Diameter: 320 mm (12 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.7 Ω
- Nominal Power Handling: 250 W
- Continuous Power Handling: 500 W
- Sensitivity: 98 dB
- Frequency Range: 55 Hz – 3000 Hz
- Voice Coil Diameter: 64 mm (2.5 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 14 mm (0.55 in)
- Magnetic Gap Depth: 8 mm (0.31 in)
- Flux Density: 1.3 T
- Magnet Material: Ferrite
- Cone Shape: Exponential
- Cone Treatment: WP Waterproof (front side)
- Surround Shape: Double Roll
- Spider: Single
- Pole Design: T-Pole
- Net Weight: 5.65 kg (12.46 lb)
Thiele–Small Parameters – B&C 12FW64
- Fs: 55 Hz
- Re: 5.2 Ω
- Qes: 0.32
- Qms: 3.5
- Qts: 0.29
- Vas: 64 dm³ (2.26 ft³)
- Sd: 522 cm² (80.9 in²)
- η0: 3.6%
- Xmax: 5 mm
- Xvar: 5 mm
- Mms: 47 g
- Bl: 15.5 Tm
- Le: 1 mH
- EBP: 172 Hz
Mounting Information – B&C 12FW64
- Overall Diameter: 315 mm (12.4 in)
- Bolt Circle Diameter: 298 mm (11.7 in)
- Baffle Cutout Diameter: 283 mm (11.1 in)
- Depth: 136 mm (5.35 in)
- Flange and Gasket Thickness: 13 mm (0.51 in)
- Air Volume Occupied by Driver: 3 dm³ (0.1 ft³)
- Recommended Enclosure Volume: 40 dm³ (1.4 ft³)
- Recommended Tuning Frequency: 55 Hz
Conclusion – B&C 12FW64 Woofer
The B&C 12FW64 is the practical generalist in B&C’s ferrite 12-inch range. It doesn’t chase the extreme 100+ dB sensitivity of the FW76 and mid-bass specialists, and it doesn’t try to deliver the motor dominance of a 26 Tm force factor driver. What it does is deliver 98 dB sensitivity and 3000 Hz bandwidth from 5.65 kg — the lightest ferrite 12-inch woofer B&C makes — with a Qts that gives builders real design freedom and WP waterproof treatment that the mid-bass drivers don’t carry.
The 40-litre recommended enclosure tuned to 55 Hz is compact and practical, and the 0.29 Qts means builders can comfortably deviate from that recommendation without ending up with a response curve that fights them. For first-time builders or designers working on a range of cabinet types, that alignment flexibility is worth more than the 2 dB of sensitivity the more extreme drivers offer.
For compact two-way tops, portable PA systems, stage monitors, and any 12-inch application where weight, bandwidth, and ease of design matter as much as peak output, the B&C 12FW64 delivers B&C build quality and solid efficiency without the compromises that extreme specialisation demands. It’s the 12-inch ferrite woofer that works everywhere — reliably, efficiently, and without drama.
