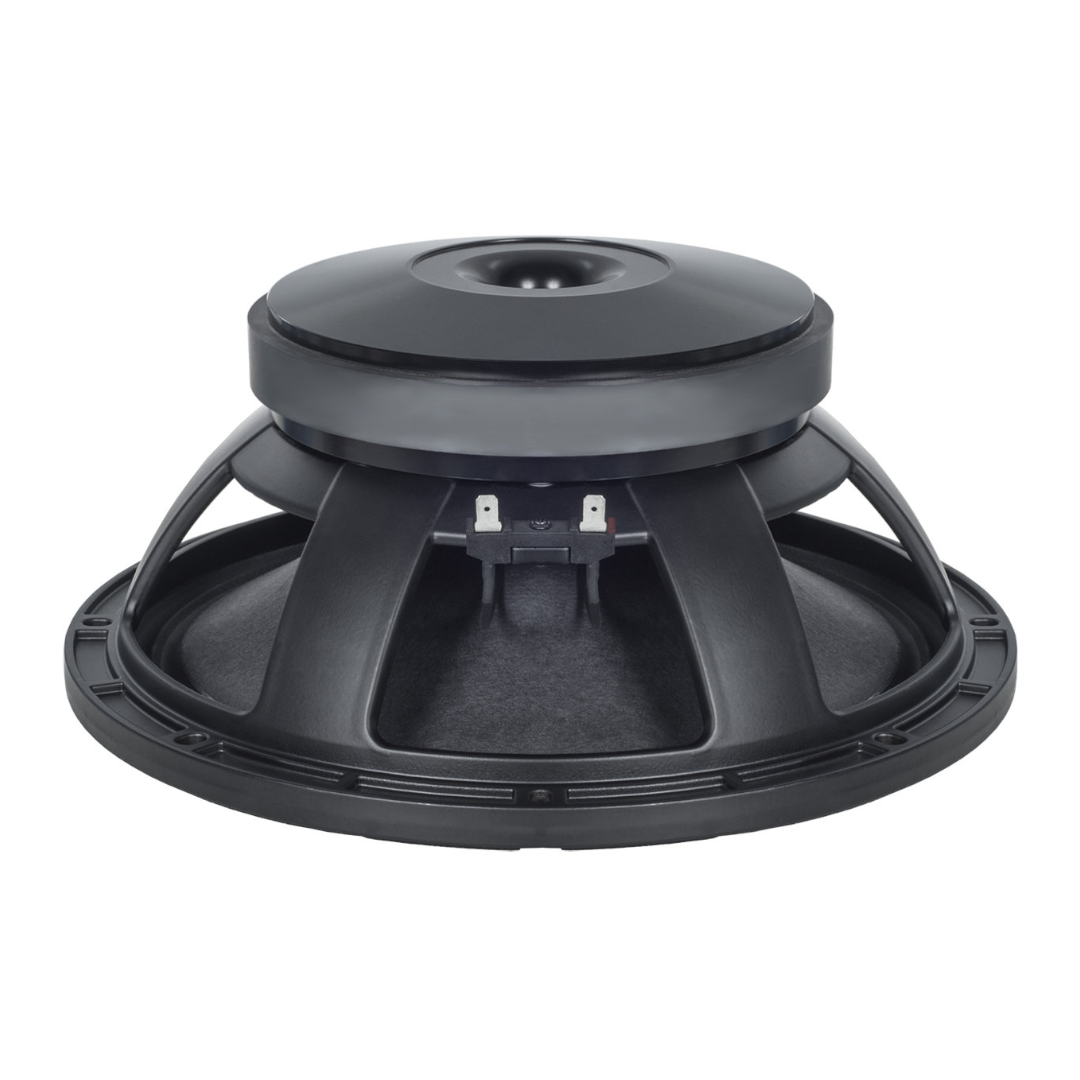

B&C 12MH32 – Precision 12-Inch Mid-Bass Driver with Low-Distortion High-Output Motor
The B&C 12MH32 is B&C’s premium ferrite 12-inch mid-bass driver — a 101 dB, 4.8% efficiency transducer that upgrades the PE32’s raw efficiency with a larger voice coil, an aluminium demodulating ring, 60% more power handling, and nearly double the linear excursion. Where the PE32 chases maximum output per watt above all else, the B&C 12MH32 balances that efficiency with the power handling, motor authority, and distortion performance that professional multi-way systems demand.
The 76 mm copper voice coil, 22.3 Tm force factor, and 1.4 T flux density drive a 54 g moving mass with commanding authority — producing the same 101 dB sensitivity as the PE32 from a substantially more robust platform. The B&C 12MH32 handles 400 W AES (vs the PE32’s 250 W), delivers 5 mm of Xmax (vs 2.8 mm), and carries the demodulating ring that keeps distortion measurably lower as power increases. It’s the mid-bass driver you choose when 101 dB sensitivity is the starting point, not the only requirement.
With a Qts of 0.19, an EBP of 265 Hz, and a 50 Hz – 3000 Hz bandwidth, the B&C 12MH32 is purpose-built for vented and horn-loaded mid-bass sections in three-way and four-way speaker systems. At 7.5 kg and just 133 mm deep — the shallowest 12-inch driver in B&C’s range — it fits into compact cabinet designs where depth is a constraint.
Design and Construction of the B&C 12MH32
The B&C 12MH32 uses a 76 mm (3-inch) copper voice coil wound on a glass fibre former. The step up from the PE32’s 2.5-inch aluminium coil to a 3-inch copper coil is significant on two fronts: the larger coil provides more surface area for heat dissipation (supporting the 400 W AES rating), and the copper winding offers better thermal conductivity than aluminium. The 14 mm winding depth operating in an 8 mm magnetic gap yields 5 mm of linear one-way excursion (Xmax) with an additional 7 mm of travel (Xvar) before mechanical limits.
The motor uses a ferrite magnet in a T-pole configuration — an upgrade from the PE32’s straight pole design. The T-pole geometry concentrates flux more efficiently, and the motor produces 1.4 T of flux density and a force factor (Bl) of 22.3 Tm. That 22.3 Tm is substantially stronger than the PE32’s 19.1 Tm, and the T-pole design delivers that force with better flux uniformity across the voice coil gap.
An aluminium demodulating ring in the motor assembly is the B&C 12MH32’s headline upgrade over the PE32. It reduces flux modulation in the voice coil gap, directly lowering harmonic and intermodulation distortion as power and excursion increase. For a mid-bass driver operating in the frequency range where the human ear is most sensitive to distortion — the 200–2000 Hz region — this is a critical feature. The low 0.83 mH voice coil inductance keeps the impedance curve flat through the upper operating range, supporting clean crossover behaviour.
The radial cone profile differs from the PE32’s exponential shape — it’s optimised for controlled mid-bass output rather than maximum upper-frequency extension, which is reflected in the slightly narrower 3000 Hz upper bandwidth (vs the PE32’s 4000 Hz). The cone has no waterproof treatment, keeping mass minimal. A single spider handles suspension, paired with a double-roll surround. At 133 mm deep, the B&C 12MH32 is 2 mm shallower than the PE32 — the shallowest 12-inch driver in B&C’s LF range.
Performance and Applications for the B&C 12MH32
The B&C 12MH32 delivers 101 dB sensitivity and 4.8% reference efficiency across a 50 Hz – 3000 Hz bandwidth. The sensitivity matches the PE32 exactly, but the way it gets there is different — the heavier 54 g moving mass (vs 37 g) is compensated by the stronger 22.3 Tm Bl (vs 19.1 Tm), resulting in the same 101 dB output per watt but with significantly more headroom for sustained high-power operation and a cleaner distortion profile through the demodulating ring.
The Thiele–Small parameters are aggressive. A Qts of 0.19 and an EBP of 265 Hz define a driver with extreme motor dominance — the B&C 12MH32 is categorically a vented or horn-loaded enclosure driver. Builders should model the T/S parameters in simulation software to optimise their alignment — expect optimal results in the 25–40 litre range with tuning frequencies in the 65–90 Hz region depending on the target response shape. The 54 Hz Fs and 63-litre Vas provide enough flexibility for a range of compact vented designs.
The choice between the B&C 12MH32 and the PE32 comes down to what your system needs more: raw efficiency or sustained power handling with lower distortion. The PE32’s 6.8% efficiency wins on output per watt from low-power amplification. The B&C 12MH32’s 400 W AES, 5 mm Xmax, demodulating ring, and stronger motor win on everything else. For professional systems running real power into the mid-bass section, the B&C 12MH32 is the more capable and more refined driver.
Ideal applications for the B&C 12MH32 include:
- Dedicated mid-bass sections in three-way and four-way professional speaker systems
- Horn-loaded 12-inch mid-bass bins where low distortion and motor authority matter
- High-efficiency vented two-way tops crossing over at 1.5–2.5 kHz
- Compact stage monitors requiring 101 dB sensitivity with sustained power handling
- Systems where the demodulating ring’s distortion reduction justifies the choice over the PE32
Specifications – B&C 12MH32
- Nominal Diameter: 320 mm (12 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.5 Ω
- Nominal Power Handling: 400 W
- Continuous Power Handling: 800 W
- Sensitivity: 101 dB
- Frequency Range: 50 Hz – 3000 Hz
- Voice Coil Diameter: 76 mm (3 in)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 14 mm (0.55 in)
- Magnetic Gap Depth: 8 mm (0.31 in)
- Flux Density: 1.4 T
- Magnet Material: Ferrite
- Cone Shape: Radial
- Cone Treatment: None
- Surround Shape: Double Roll
- Spider: Single
- Pole Design: T-Pole
- Net Weight: 7.5 kg (16.53 lb)
Thiele–Small Parameters – B&C 12MH32
- Fs: 53 Hz
- Re: 5.2 Ω
- Qes: 0.2
- Qms: 7.2
- Qts: 0.19
- Vas: 63 dm³ (2.2 ft³)
- Sd: 522 cm² (80.9 in²)
- η0: 4.8%
- Xmax: 5 mm
- Xvar: 7 mm
- Mms: 54 g
- Bl: 22.3 Tm
- Le: 0.83 mH
- EBP: 265 Hz
Mounting Information – B&C 12MH32
- Overall Diameter: 316 mm (12.4 in)
- Bolt Circle Diameter: 296 mm (11.6 in)
- Baffle Cutout Diameter: 282 mm (11.1 in)
- Depth: 133 mm (5.24 in)
- Flange and Gasket Thickness: 12 mm (0.47 in)
- Air Volume Occupied by Driver: 3.3 dm³ (0.12 ft³)
Conclusion – B&C 12MH32 Mid-Bass Driver
The B&C 12MH32 is the professional-grade mid-bass driver in B&C’s ferrite 12-inch range. It matches the PE32’s 101 dB sensitivity while adding the features that separate a professional system driver from a pure efficiency play — a demodulating ring for low distortion, a 3-inch copper coil for sustained power handling, a T-pole motor for concentrated flux delivery, and 5 mm of Xmax that nearly doubles the PE32’s displacement capability. Every upgrade targets a real-world performance gain.
The 0.83 mH inductance and 22.3 Tm force factor make the B&C 12MH32 particularly well-suited to horn-loaded designs and multi-way systems where clean, controlled mid-bass output through the crossover region is critical. The demodulating ring ensures the distortion stays low in the 200–2000 Hz frequency range where the ear is most sensitive — exactly the range this driver is designed to own.
For builders designing professional three-way and four-way systems, horn-loaded mid-bass sections, or any application where 101 dB sensitivity needs to come with genuine power handling and low distortion, the B&C 12MH32 is the ferrite 12-inch mid-bass driver that delivers both — without asking you to choose one at the expense of the other.
