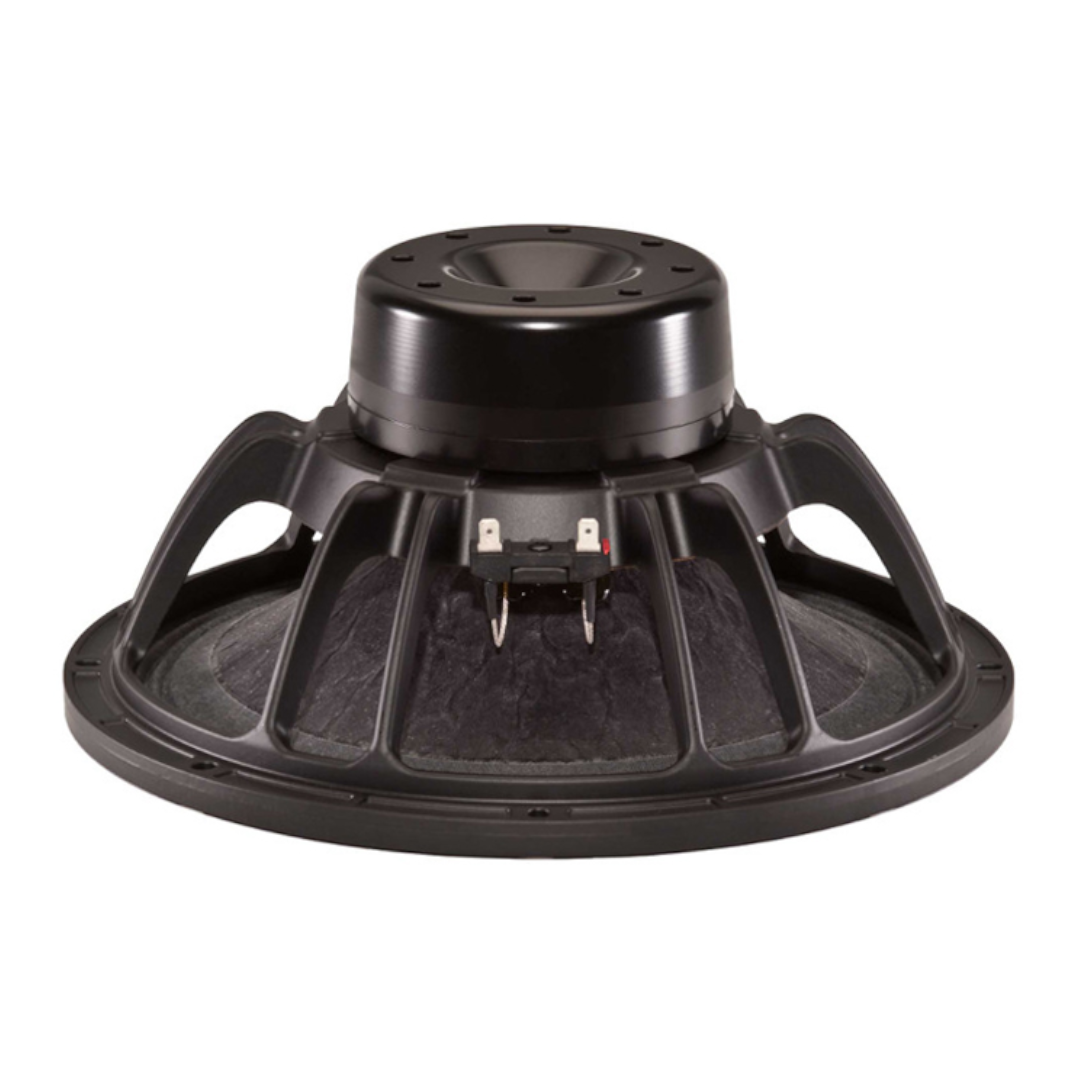

B&C 12NDL88 High-Efficiency 12-Inch Neodymium Woofer for Compact High-Output Systems
The B&C 12NDL88 is a high-performance 12-inch neodymium woofer designed for modern professional sound reinforcement systems that demand extreme sensitivity, strong midbass output, and wide-bandwidth vocal capability. As part of B&C’s NDL series, it is engineered for compact two-way loudspeakers, portable PA systems, and lightweight array modules where output per watt, reduced weight, and high intelligibility are critical design priorities.
With an 88 mm aluminium voice coil, high-flux neodymium motor, and extremely efficient acoustic conversion, the B&C 12NDL88 delivers very high SPL capability from minimal amplifier power. It is built for systems that need maximum efficiency without sacrificing control or midrange clarity.
Ultra-High Efficiency Neodymium Motor for Maximum Output
At the core of the B&C 12NDL88 is a high-energy neodymium inside-slug motor system designed to minimise moving mass while maximising flux density and efficiency. The motor produces a flux density of approximately 1.05 T and a BL factor of 19.9 Tm, ensuring strong electromagnetic control over cone motion even at high excursion levels.
This results in a sensitivity of 98 dB, allowing the driver to achieve high SPL levels with significantly reduced amplifier demand compared to lower-efficiency designs. The high sensitivity is a defining feature of the NDL series and is central to its “more output with less power” design philosophy.
The 88 mm aluminium voice coil is wound on a glass fibre former, giving a balance between thermal stability and low moving mass. A ventilated gap structure helps reduce power compression during sustained operation, maintaining consistent output in demanding live environments.
Wide-Band Performance for Midbass and Vocal Projection
The B&C 12NDL88 operates over a frequency range of 50 Hz to 3000 Hz, allowing it to function as both a low-frequency driver and a midrange vocal component in two-way systems.
This wide bandwidth makes it especially effective in compact high-output loudspeakers where crossover points typically fall between 1.2 kHz and 1.8 kHz. The driver integrates smoothly with compression drivers, maintaining clarity through the critical vocal region.
The tonal character is highly forward, fast, and articulate. That makes the B&C 12NDL88 particularly effective for speech intelligibility, live vocals, and high-energy music playback where projection and clarity matter more than extended sub-bass depth.
Thiele-Small Behaviour and Enclosure Design
The B&C 12NDL88 is strongly optimised for vented enclosure designs, with a Qts of 0.27 and an EBP of 176, indicating a clear preference for bass-reflex alignments focused on efficiency and punch rather than deep low-frequency extension.
With an Fs of 51 Hz and a Vas of 52 litres, it performs best in compact vented enclosures around 40 litres tuned to roughly 65 Hz. This alignment prioritises midbass impact, articulation, and system efficiency.
The moving mass of 71 g allows for controlled excursion while still maintaining fast transient response. Combined with the strong BL motor, cone control remains tight under load, reducing distortion at higher SPL levels.
Power Handling and Professional Reliability
The B&C 12NDL88 is rated at 700 W AES and 1400 W program power handling, giving it strong headroom for professional use in high-output systems.
The aluminium voice coil and ventilated motor structure provide stable thermal behaviour, reducing the risk of compression during long-term operation. This is critical in touring and installation environments where consistent performance matters more than short-term peak output.
Despite its relatively light construction, the driver is designed for real-world durability and high duty-cycle use in professional sound reinforcement.
Specifications
- Nominal Diameter: 320 mm (12″)
- Voice Coil Diameter: 88 mm (3.5″)
- Continuous Power Handling: 1400 W
- Nominal Power Handling: 700 W AES
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6 Ω
- Frequency Range: 50 Hz – 3000 Hz
- Sensitivity: 98 dB
- Resonance Frequency (Fs): 51 Hz
- Qes: 0.29
- Qms: 5
- Qts: 0.27
- Vas: 52 dm³
- BL Factor: 19.9 Tm
- Xmax: 8 mm
- Moving Mass (Mms): 71 g
- Effective Cone Area (Sd): 522 cm²
- Inductance (Le): 1.3 mH
- Recommended Enclosure Volume: 40 dm³
- Recommended Tuning Frequency: 65 Hz
Conclusion
The B&C 12NDL88 is a very high-efficiency neodymium woofer designed for professional systems that prioritise maximum output per watt, strong vocal projection, and compact enclosure integration. Its high sensitivity, powerful motor structure, and wide bandwidth make it ideal for modern two-way PA designs where clarity and efficiency are critical. For engineers building lightweight, high-output systems, the B&C 12NDL88 remains a reference-grade solution in its category.
