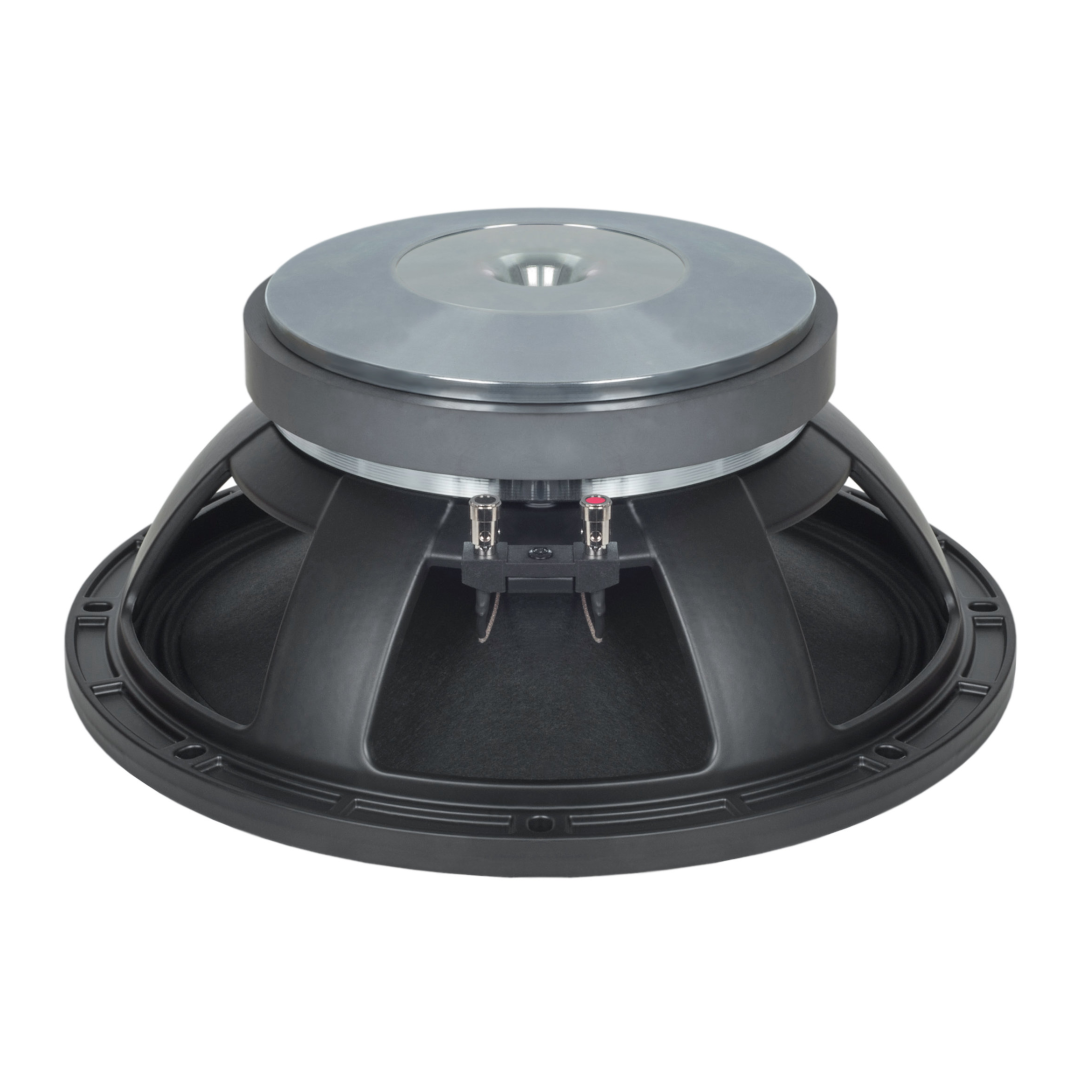

B&C 12PE32 – Best 12-Inch Mid-Bass Driver for Extreme Efficiency and Output
The B&C 12PE32 is the most efficient 12-inch driver in B&C’s entire range — and it’s not close. At 6.8% reference efficiency, 101 dB sensitivity, and a 37 g moving mass, this dedicated mid-bass driver converts nearly seven watts out of every hundred into acoustic energy. That’s a conversion rate that no woofer, subwoofer, or full-range driver in B&C’s LF lineup can match. The B&C 12PE32 exists for one purpose: maximum mid-bass output per watt from a 12-inch cone.
Classified as a mid-bass driver rather than a woofer, the B&C 12PE32 is designed to operate in the 85–4000 Hz range in multi-way speaker systems — handling the punchy mid-bass and vocal frequencies that carry the energy in live sound. The 50 Hz – 4000 Hz bandwidth and a 65 mm aluminium voice coil keep the output coherent from the upper bass through the mid-range, with enough headroom to cross over to a compression driver anywhere from 1.5 to 3.5 kHz.
B&C recommends an extremely compact 31-litre vented enclosure tuned to 85 Hz — the smallest and highest-tuned recommendation of any 12-inch driver in B&C’s range. At 7.6 kg, the B&C 12PE32 delivers its extreme efficiency from a practical, manageable package that fits easily into compact cabinet designs.
Design and Construction of the B&C 12PE32
The B&C 12PE32 uses a 65 mm (2.5-inch) aluminium voice coil wound on a glass fibre former. The 2.5-inch coil diameter is smaller than the 3-inch coils found on B&C’s woofer-class 12s, and that’s intentional — the smaller coil reduces the moving assembly weight, contributing to the featherweight 37 g Mms that makes 6.8% efficiency possible. The 12 mm winding depth operating in a 7 mm magnetic gap yields 2.8 mm of linear one-way excursion (Xmax) with an additional 5 mm of travel (Xvar) before mechanical limits.
The short Xmax is a defining characteristic — the B&C 12PE32 trades displacement for sensitivity without reservation. This is a mid-bass driver, not a bass transducer, and every design parameter reflects that priority. The 2.8 mm linear excursion combined with the 522 cm² radiating area is sufficient for the mid-bass and mid-range frequencies where wavelengths are shorter and less cone displacement is needed to generate high SPL.
The motor uses a ferrite magnet in a straight pole configuration, producing 1.4 T of flux density — the highest of any ferrite driver in B&C’s LF range, matched only by the 320K/C-A full-range driver. That extreme flux density drives a force factor (Bl) of 19.1 Tm, which acting on the 37 g moving mass creates the extreme acceleration factor responsible for the 6.8% efficiency figure. The motor snaps the cone with virtually no inertia, producing transient response that is instantaneous and precise.
The exponential cone profile supports pistonic behaviour well into the upper mid-range, enabling the 4000 Hz upper bandwidth — the widest of any 12-inch driver in B&C’s range. The cone has no waterproof treatment, keeping mass as low as possible. A single spider handles suspension, paired with a triple-roll surround. At 135 mm deep, the B&C 12PE32 is the shallowest 12-inch driver in B&C’s lineup — the compact motor assembly and short coil keep the overall depth minimal.
Performance and Applications for the B&C 12PE32
The B&C 12PE32 delivers 101 dB sensitivity and 6.8% reference efficiency across a 50 Hz – 4000 Hz bandwidth. To put 6.8% efficiency in practical terms: a 250 W amplifier channel driving the B&C 12PE32 produces the same mid-bass output as roughly 850 W driving a 96 dB woofer. The efficiency advantage is so large that it fundamentally changes system design — you need fewer amplifier channels, less rack weight, and less electrical power to achieve the same output levels.
The Thiele–Small parameters define a pure mid-bass specialist. A Qts of 0.18 and an EBP of 268 Hz — the second-highest EBP in B&C’s LF range — confirm that the B&C 12PE32 is designed exclusively for vented and horn-loaded enclosures with high tuning frequencies. B&C recommends a 31-litre (1.1 ft³) vented enclosure tuned to 85 Hz, which maximises output in the 90–500 Hz mid-bass range. This is not a driver that reaches into the low end — it’s a driver that owns the mid-bass frequencies with authority that no other 12-inch B&C driver can approach.
The 4000 Hz upper bandwidth opens up crossover options that other 12-inch drivers can’t offer. You can cross over to a compression driver at 2–3.5 kHz with substantial overlap, or use the B&C 12PE32 as a dedicated mid-bass section in a three-way or four-way system where a separate mid-range driver handles the upper frequencies. In either configuration, the 101 dB sensitivity ensures the mid-bass section keeps up with even the most efficient compression drivers without requiring disproportionate amplifier power.
Ideal applications for the B&C 12PE32 include:
- Dedicated mid-bass sections in three-way and four-way speaker systems
- Horn-loaded 12-inch mid-bass bins for live sound reinforcement
- High-efficiency two-way tops crossing over at 2–3.5 kHz
- Compact stage monitors where mid-bass punch and vocal clarity are priorities
- Systems where amplifier power is limited and maximum mid-band output per watt is essential
Specifications – B&C 12PE32
- Nominal Diameter: 320 mm (12 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.7 Ω
- Nominal Power Handling: 250 W
- Continuous Power Handling: 500 W
- Sensitivity: 101 dB
- Frequency Range: 50 Hz – 4000 Hz
- Voice Coil Diameter: 65 mm (2.5 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 12 mm (0.5 in)
- Magnetic Gap Depth: 7 mm (0.28 in)
- Flux Density: 1.4 T
- Magnet Material: Ferrite
- Cone Shape: Exponential
- Cone Treatment: None
- Surround Shape: Triple Roll
- Spider: Single
- Pole Design: Straight Pole
- Net Weight: 7.6 kg (16.7 lb)
Thiele–Small Parameters – B&C 12PE32
- Fs: 51 Hz
- Re: 5.8 Ω
- Qes: 0.19
- Qms: 7.6
- Qts: 0.18
- Vas: 101 dm³ (3.56 ft³)
- Sd: 522 cm² (80.9 in²)
- η0: 6.8%
- Xmax: 2.8 mm
- Xvar: 5 mm
- Mms: 37 g
- Bl: 19.1 Tm
- Le: 1.2 mH
- EBP: 268 Hz
Mounting Information – B&C 12PE32
- Overall Diameter: 315 mm (12.4 in)
- Bolt Circle Diameter: 296 mm (11.6 in)
- Baffle Cutout Diameter: 282 mm (11.1 in)
- Depth: 135 mm (5.3 in)
- Flange and Gasket Thickness: 15 mm (0.59 in)
- Air Volume Occupied by Driver: 3.1 dm³ (0.11 ft³)
- Recommended Enclosure Volume: 31 dm³ (1.1 ft³)
- Recommended Tuning Frequency: 85 Hz
Conclusion – B&C 12PE32 Mid-Bass Driver
The B&C 12PE32 is the most efficient driver in B&C’s entire LF range. The 6.8% reference efficiency and 101 dB sensitivity from a 37 g moving mass and 1.4 T ferrite motor put this driver in a category of its own — nothing else in the lineup converts amplifier watts into acoustic output at this rate. It’s a purpose-built mid-bass specialist that does one thing and does it better than any other 12-inch driver B&C makes.
The trade-offs are clear and intentional: 250 W AES power handling and 2.8 mm Xmax mean this is not a high-power bass driver. The B&C 12PE32 doesn’t need to be. In a properly designed multi-way system, the sub handles the low end and the compression driver handles the high end — the mid-bass section’s job is to deliver the punch and presence that the audience feels most, and the B&C 12PE32 does that with less amplifier power than any competing driver can match.
For dedicated mid-bass sections, horn-loaded bins, compact two-way tops, and any system where the 12-inch driver needs to deliver maximum mid-band output from minimum power, the B&C 12PE32 is the efficiency benchmark. The 31-litre enclosure keeps the cabinet tiny, the 4000 Hz bandwidth keeps the crossover options wide open, and the 6.8% efficiency makes every watt sound like three.
