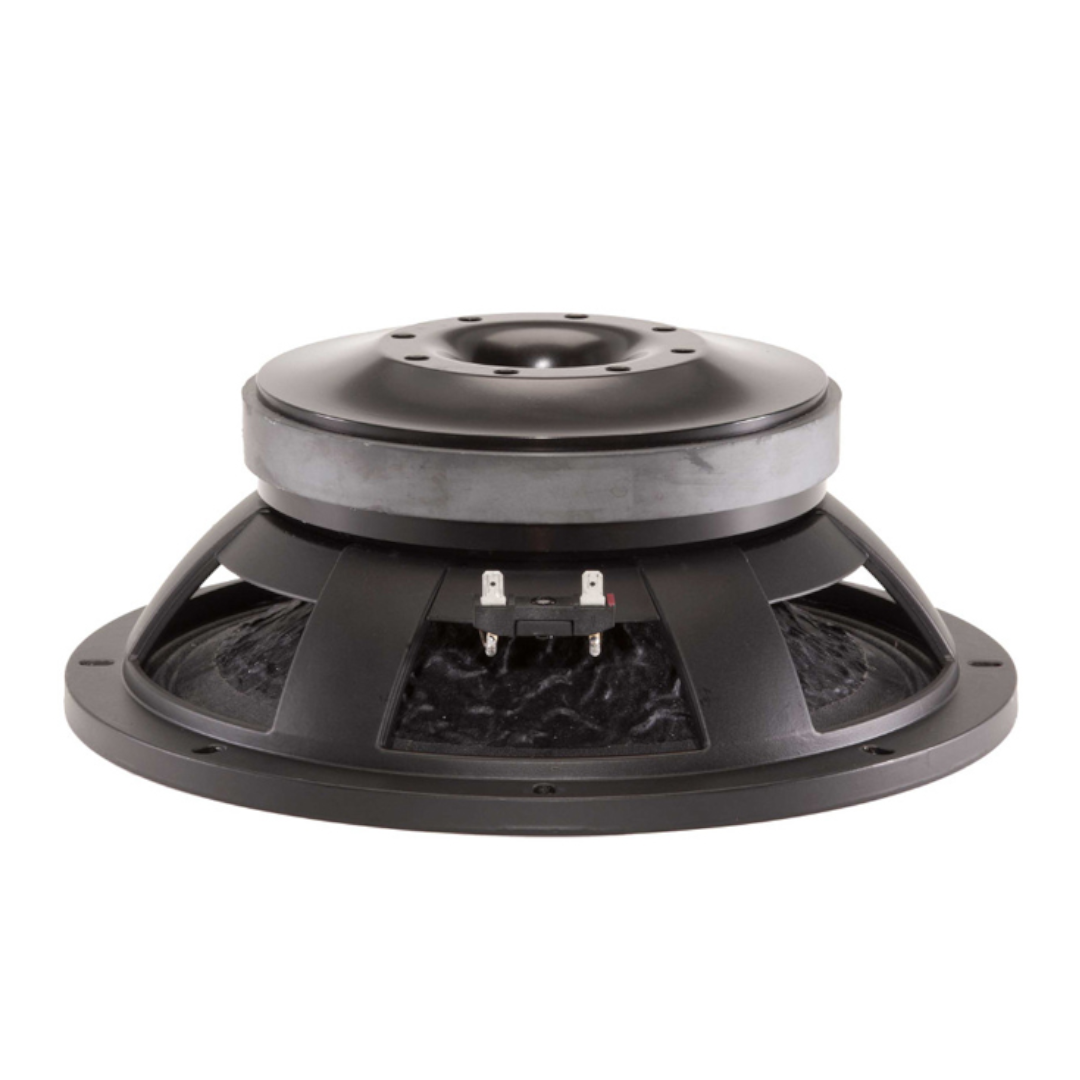

B&C 12PLB100 High-Efficiency 12-Inch Ferrite Woofer for Compact Professional Sound Systems
The B&C 12PLB100 is a high-output 12-inch ferrite woofer designed for professional audio systems that require a strong balance of sensitivity, power handling, and controlled bandwidth. Positioned within B&C’s PLB series, this driver is intended for compact two-way loudspeaker designs, portable PA systems, stage monitors, and installation enclosures where efficiency and vocal clarity are as important as low-frequency performance.
Built around a large 100 mm aluminium voice coil and a robust ferrite motor structure, the B&C 12PLB100 delivers high SPL capability while maintaining stability under continuous professional use. With a rated sensitivity of 97 dB and 1200 W program power handling, it is engineered to provide strong output from relatively compact cabinet volumes, making it a practical solution for system designers working within size and weight constraints.
High-Efficiency Motor System with Extended Thermal Stability
At the core of the B&C 12PLB100 is a 100 mm (4-inch) aluminium voice coil designed to handle significant thermal load while maintaining consistent performance under sustained power. The aluminium winding contributes to reduced moving mass and improved efficiency, allowing the driver to achieve fast transient response and strong midbass articulation.
The ferrite motor structure is engineered to provide a stable magnetic field with a flux density of approximately 1 Tesla, ensuring controlled cone movement even at higher excursion levels. An aluminium demodulating ring is incorporated into the motor design to reduce distortion and inductance modulation, resulting in cleaner midrange reproduction and improved linearity across the operating band.
Ventilation through the voice coil gap further enhances thermal management, reducing power compression during extended operation. This ensures that the B&C 12PLB100 maintains consistent output in demanding live sound environments where sustained SPL performance is required.
Designed for Controlled Midbass and Vocal Clarity
The B&C 12PLB100 is engineered with a frequency range of 50 Hz to 2.5 kHz, making it particularly effective in systems where midbass punch and vocal clarity are both critical. The driver’s 97 dB sensitivity ensures strong acoustic output even at moderate amplifier power levels, which is especially beneficial in portable reinforcement systems and cost-sensitive installations.
The Thiele-Small parameters indicate a driver optimised for vented enclosure designs, with a Qts of 0.37 and an EBP of approximately 132. This places the B&C 12PLB100 firmly in the category of efficient bass-reflex alignment drivers, where output and punch are prioritised over deep sub-bass extension.
With a moving mass of 77 g and a BL factor of 18.4 Tm, the driver maintains a balanced combination of control and responsiveness. This ensures that midbass remains tight and articulate, while still providing enough low-frequency extension for full-range operation in appropriately designed enclosures.
Practical Enclosure Design and System Integration
In practical system design, the B&C 12PLB100 performs best in compact vented enclosures around 40 litres tuned to approximately 52 Hz. This alignment supports a tight low-frequency response with strong punch in the upper bass region, making it well suited to live sound reinforcement and speech-focused applications.
The triple-roll surround and radial cone geometry contribute to stable cone behaviour under load, reducing distortion during high excursion operation. Combined with a 9 mm Xmax capability, the driver can handle dynamic musical content without compromising linearity within its intended operating range.
The relatively low inductance design helps maintain midrange clarity, allowing the 12PLB100 to integrate smoothly with a wide range of compression drivers and crossover configurations in two-way systems.
Reliable Power Handling for Professional Use
With a nominal AES rating of 600 W and a continuous program power rating of 1200 W, the B&C 12PLB100 is designed for consistent operation in demanding professional environments. The 100 mm voice coil provides excellent heat dissipation, ensuring that performance remains stable even under extended high-power use.
This combination of efficiency and durability makes the driver suitable for portable PA systems, stage monitors, and installation loudspeakers where reliability and predictable performance are essential. Its balance of sensitivity and power handling reduces amplifier strain while still delivering high SPL capability when required.
Specifications
- Nominal Diameter: 320 mm (12″)
- Voice Coil Diameter: 100 mm (4″)
- Continuous Power Handling: 1200 W
- Nominal Power Handling: 600 W AES
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6 Ω
- Frequency Range: 50 Hz – 2500 Hz
- Sensitivity: 97 dB
- Resonance Frequency (Fs): 50 Hz
- Qes: 0.38
- Qms: 9.2
- Qts: 0.37
- Vas: 47 dm³
- BL Factor: 18.4 Tm
- Xmax: 9 mm
- Moving Mass (Mms): 77 g
- Effective Cone Area (Sd): 531 cm²
- Inductance (Le): 1.6 mH
- Recommended Enclosure Volume: 40 dm³
- Recommended Tuning Frequency: 52 Hz
- Net Weight: 8.4 kg
Conclusion
The B&C 12PLB100 is a high-efficiency professional woofer designed for compact two-way systems that require strong midbass output, vocal clarity, and reliable power handling. Its 100 mm aluminium voice coil, low distortion motor design, and vented-box-optimised parameters make it a versatile solution for portable PA systems and installation loudspeakers. For designers seeking a balance of output, efficiency, and controlled bandwidth in a 12-inch format, the B&C 12PLB100 provides a dependable platform for professional sound reinforcement applications.
