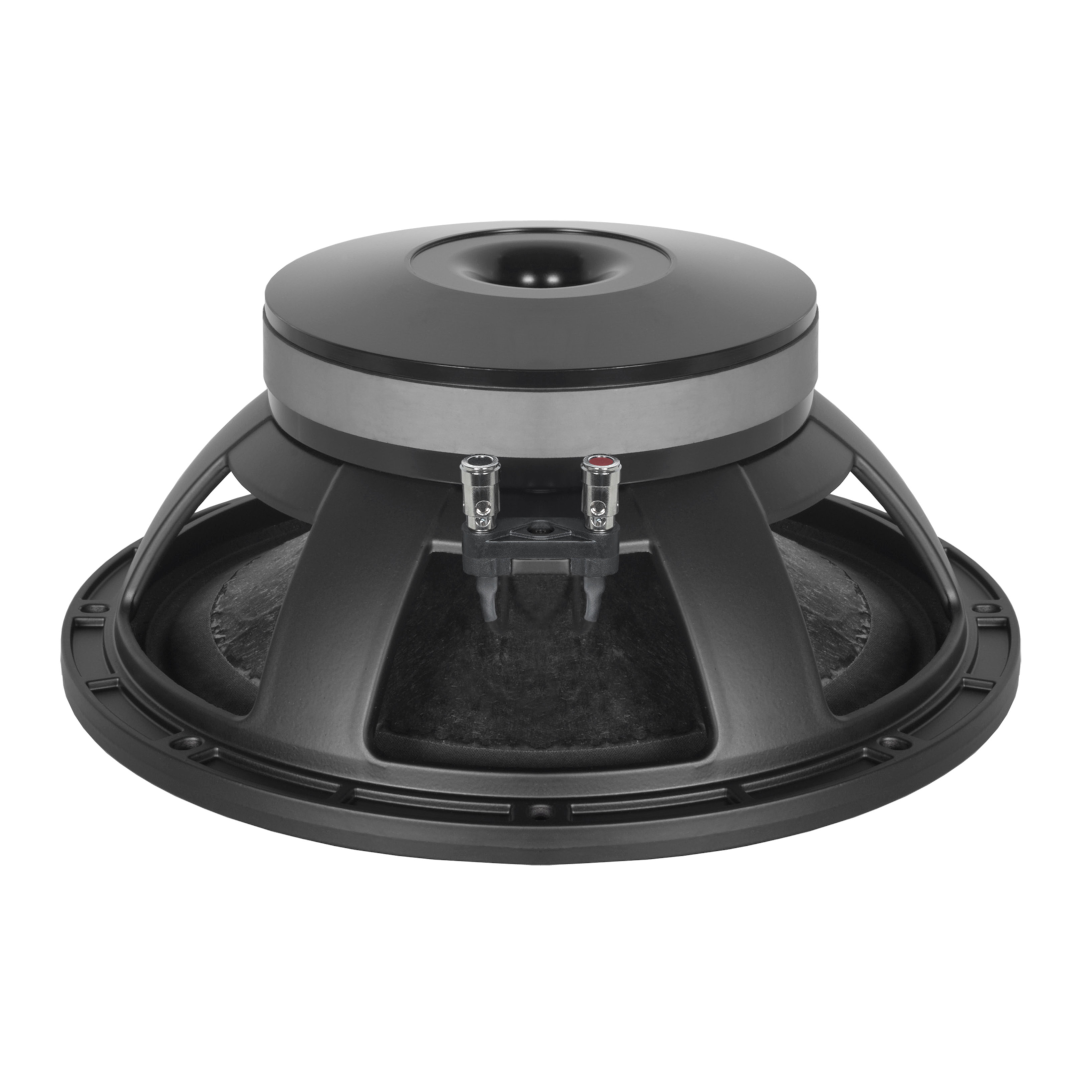

B&C 12PLB76 – High-Efficiency 12-Inch Ferrite Woofer for Compact Vented and Horn Designs
The B&C 12PLB76 is a 99 dB, 3.8% efficiency ferrite 12-inch woofer that strikes a practical balance between the FW64’s lightweight versatility and the FW76’s extreme motor dominance. With a 76 mm aluminium voice coil, 350 W AES power handling, and a 51 g moving mass, the B&C 12PLB76 delivers near-100 dB sensitivity from a 6.55 kg package that handles 40% more power than the FW64 while weighing 2 kg less than the FW76.
The PLB naming convention carries the same design philosophy across B&C’s range — a high-efficiency woofer with an aluminium coil, light moving mass, and a low Qts that favours vented and horn-loaded enclosures. The B&C 12PLB76 delivers on that promise with a Qts of 0.23 and an EBP of 208 Hz that place it firmly in vented and horn-loaded territory, producing tight, controlled output in the enclosure types where efficiency-first drivers perform best.
B&C recommends a 42-litre vented enclosure tuned to 65 Hz — a compact cabinet that maximises mid-bass punch and output density. At 6.55 kg and 136 mm deep, the B&C 12PLB76 fits easily into portable PA tops, compact stage monitors, and lightweight two-way speaker systems where the woofer section needs to deliver high output without adding unnecessary weight.
Design and Construction of the B&C 12PLB76
The B&C 12PLB76 uses a 76 mm (3-inch) aluminium voice coil wound on a glass fibre former. The aluminium winding is the key design difference from the copper-wound 12FW76 — it reduces the moving assembly weight to 51 g (vs the FW76’s 75 g) while still providing adequate thermal capacity for the 350 W AES power rating. The 16 mm winding depth operating in an 11 mm magnetic gap yields 5 mm of linear one-way excursion (Xmax) with an additional 7 mm of travel (Xvar) before mechanical limits.
The motor uses a ferrite magnet in a T-pole configuration, producing 1.05 T of flux density and a force factor (Bl) of 18.6 Tm. The flux density is lower than the FW76’s 1.35 T — the B&C 12PLB76 uses a lighter, more cost-effective ferrite motor assembly — but the 18.6 Tm Bl driving a 51 g moving mass still produces a strong acceleration factor that achieves 3.8% efficiency and 99 dB sensitivity. The efficiency figure actually edges the FW76’s 3.7% despite the lower flux, because the lighter aluminium coil reduces Mms enough to compensate.
The exponential cone profile supports pistonic behaviour into the upper frequencies, enabling the 2000 Hz upper bandwidth. The cone has no waterproof treatment, keeping mass minimal. A single spider handles suspension, paired with a double-roll surround.
At 6.55 kg, the B&C 12PLB76 saves 2 kg over the FW76 while adding less than 1 kg to the FW64’s 5.65 kg. That middle-ground weight — combined with 40% more power handling than the FW64 and efficiency that matches the FW76 — is the practical advantage that makes the B&C 12PLB76 the right choice for builders who find the FW64 underpowered and the FW76 too heavy.
Performance and Applications for the B&C 12PLB76
The B&C 12PLB76 delivers 99 dB sensitivity and 3.8% reference efficiency across a 50 Hz – 2000 Hz bandwidth. The 99 dB figure sits 1 dB below the FW76’s 100 dB and 1 dB above the FW64’s 98 dB — placing the B&C 12PLB76 squarely in the middle of B&C’s ferrite 12-inch woofer range on sensitivity, while matching or exceeding both on efficiency. A 350 W amplifier channel driving this driver produces output that would require roughly 550 W into a 97 dB driver to match.
The Thiele–Small parameters define a vented and horn-loaded enclosure driver. A Qts of 0.23 and an EBP of 208 Hz confirm that the B&C 12PLB76 thrives in tuned enclosures where its low Qts produces tight, well-controlled bass response. B&C recommends a 42-litre (1.48 ft³) vented enclosure tuned to 65 Hz — the same tuning frequency as the FW76, maximising output in the mid-bass punch zone where live sound energy is most concentrated.
The 2000 Hz upper bandwidth is narrower than the FW76’s 3000 Hz and the FW64’s 3000 Hz, which positions the B&C 12PLB76 for lower crossover points — typically 1–1.5 kHz to a compression driver. In systems where a dedicated mid-range handles the upper frequencies, this narrower bandwidth is not a limitation. In two-way systems requiring higher crossover points, the FW64 or FW76 offer more overlap with the HF section.
Ideal applications for the B&C 12PLB76 include:
- Compact vented two-way tops for portable PA and live sound
- Horn-loaded 12-inch mid-bass bins where efficiency and weight both matter
- Three-way systems where the 12-inch handles bass and low-mid duties below 1.5 kHz
- Stage monitors and wedges requiring high sensitivity from a lightweight driver
- DIY builds seeking a practical balance between the FW64’s versatility and the FW76’s output
Specifications – B&C 12PLB76
- Nominal Diameter: 320 mm (12 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.4 Ω
- Nominal Power Handling: 350 W
- Continuous Power Handling: 700 W
- Sensitivity: 99 dB
- Frequency Range: 50 Hz – 2000 Hz
- Voice Coil Diameter: 76 mm (3 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 16 mm (0.62 in)
- Magnetic Gap Depth: 11 mm (0.4 in)
- Flux Density: 1.05 T
- Magnet Material: Ferrite
- Cone Shape: Exponential
- Cone Treatment: None
- Surround Shape: Double Roll
- Spider: Single
- Pole Design: T-Pole
- Net Weight: 6.55 kg (14.44 lb)
Thiele–Small Parameters – B&C 12PLB76
- Fs: 50 Hz
- Re: 5 Ω
- Qes: 0.24
- Qms: 5.3
- Qts: 0.23
- Vas: 75 dm³ (2.6 ft³)
- Sd: 522 cm² (80.9 in²)
- η0: 3.8%
- Xmax: 5 mm
- Xvar: 7 mm
- Mms: 51 g
- Bl: 18.6 Tm
- Le: 1.2 mH
- EBP: 208 Hz
Mounting Information – B&C 12PLB76
- Overall Diameter: 316 mm (12.4 in)
- Bolt Circle Diameter: 296 mm (11.6 in)
- Baffle Cutout Diameter: 282 mm (11.1 in)
- Depth: 136 mm (5.35 in)
- Flange and Gasket Thickness: 16 mm (0.62 in)
- Air Volume Occupied by Driver: 3.3 dm³ (0.12 ft³)
- Recommended Enclosure Volume: 42 dm³ (1.48 ft³)
- Recommended Tuning Frequency: 65 Hz
Conclusion – B&C 12PLB76 Woofer
The B&C 12PLB76 occupies the sweet spot in B&C’s ferrite 12-inch woofer range. It matches the FW76’s efficiency at 3.8% while saving 2 kg of weight, and it adds 40% more power handling over the FW64 while staying under 7 kg. The aluminium voice coil is the engineering decision that makes this possible — it reduces the moving mass to 51 g, keeping efficiency high without requiring the extreme flux density and heavy motor assembly that the copper-wound FW76 uses to achieve its 100 dB sensitivity.
The Qts of 0.23 and EBP of 208 Hz make the B&C 12PLB76 a confident vented and horn-loaded enclosure driver. The 42-litre recommended enclosure keeps cabinets compact, and the 65 Hz tuning targets the mid-bass punch zone where this driver delivers its best work. The 2000 Hz upper bandwidth is narrower than the FW series’ 3000 Hz, which means crossover to a compression driver should sit at or below 1.5 kHz — perfectly suited for three-way systems or two-way designs with a lower crossover point.
For compact vented tops, horn-loaded bins, stage monitors, and any 12-inch application where the builder wants high efficiency from a lightweight ferrite platform with respectable power handling, the B&C 12PLB76 delivers the right balance. Not the loudest, not the lightest, not the most powerful — but the one that gets the combination right for the widest range of practical builds.
