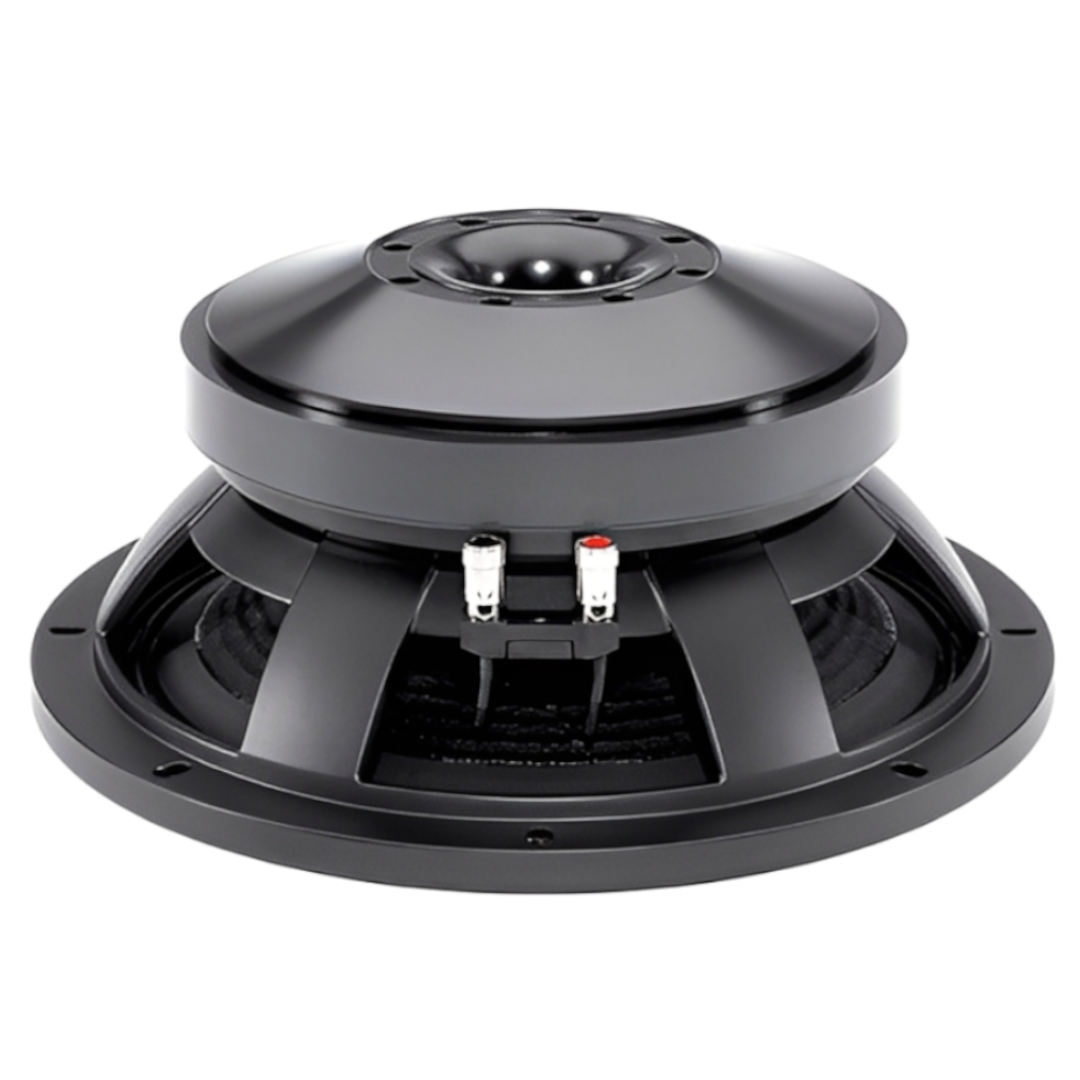

B&C 12TBX100 – 12″ High-Power Subwoofer Driver

The B&C 12TBX100 is a 12-inch subwoofer driver engineered for serious low-frequency output, high power handling, and reliable performance. Crafted for pro audio applications, it delivers deep, controlled bass with excellent efficiency, making it suitable for both portable PA systems and fixed installation subwoofer cabinets. The driver’s build quality and thermal design ensure consistent performance, even under demanding loads.

Deep, Clean Bass with Wide Reach

With a nominal diameter of 320 mm (12 inches), the 12TBX100 offers enough cone area to generate strong low frequencies and rich bass presence. Its frequency range from 45 Hz to 1500 Hz gives it a broad usable bandwidth: it covers sub-bass fundamentals and still handles low-mid frequencies with clarity. This range makes it versatile for vented subwoofer cabinets, full-range top boxes with bass duties, or as part of multi-cabinet low-frequency arrays.

Even when driven hard, the driver retains control over bass behavior, avoiding loose or muddy response down low. The upper limit extends smoothly, enabling better integration with midrange drivers.

Power Handling & Thermal Capacity

The 12TBX100 is rated for 1000 W nominal power handling and 2000 W continuous program power, giving it generous headroom for dynamic content and demanding playback volumes. The 100 mm (4-inch) copper voice coil is built for heat tolerance, aided by a ventilated magnetic gap and high-quality components.

This design minimizes power compression and thermal sag under extended use. Whether in long event sets or sustained subwoofer duty, it holds its output without losing firmness or clarity.

Efficiency & Output Performance

With a sensitivity of 95 dB (1W/1m), the 12TBX100 converts amplifier power into acoustic output efficiently. While not the highest sensitivity of smaller drivers, for a 12-inch subwoofer this is solid—especially considering its high power handling capability. It balances loud output with reliable performance under load, making it a good match for systems where both SPL and control are required.

Electrical Behavior & Integration

The driver operates at a nominal impedance of 8 Ω, with a minimum impedance of about 6.3 Ω, giving the 12TBX100 predictable loading characteristics for amplifiers and crossover networks. System designers can expect reasonable compatibility with standard amplifier channels and stable performance in systems using multiple drivers.

This makes it easier to integrate the 12TBX100 in passive or active systems without frequent mismatch issues or power delivery surprises.

Build & Mechanical Reliability

Mechanically, the 12TBX100 features a double silicone spider with optimized compliance to support excursion, and lead wires woven through the spider for improved excursion behavior. The voice coil, cone, and frame are built to endure sustained drive, with reduced distortion from a demodulation ring and ventilated coil gap helping preserve performance under stress.

These design features ensure that the driver maintains long-term reliability and consistent behavior even after many uses in high-SPL scenarios.

Ideal Applications

The 12TBX100 is well-suited to:

• Subwoofer cabinets in PA systems for clubs, events, or concerts

• Full-range top boxes needing strong bass extension

• Bass modules in line arrays or stacked configurations

• Fixed installs where deep bass and durability are required

• OEM speaker builds that need a rugged, high-output LF driver

This driver thrives in systems where bass impact, headroom, and reliability are non-negotiable.

Specifications

• Nominal Diameter: 320 mm (12 in)

• Voice Coil Diameter: 100 mm (4 in)

• Continuous Power Handling: 2000 W

• Nominal Power Handling: 1000 W

• Nominal Impedance: 8 Ω

• Minimum Impedance: 6.3 Ω

• Frequency Range: 45 Hz – 1500 Hz

• Sensitivity: 95 dB (1W/1m)

Performance Summary

The B&C 12TBX100 delivers powerful, efficient bass with strong excursion control and low distortion. Its thermal design and high power ratings allow it to sustain performance in demanding environments. Output remains solid even when pushed, and the driver manages to deliver both low frequency authority and reliable upper mid-bass clarity.

Conclusion

If you need a 12-inch subwoofer driver that balances deep bass output, robust power handling, and reliable efficiency, the 12TBX100 is a strong choice. It’s built for subsystems that demand clarity under load, high SPL, and consistent performance over time. For pro audio systems, fixed installations, or high-performance top boxes, 12TBX100 stands out as an excellent driver to build around.
