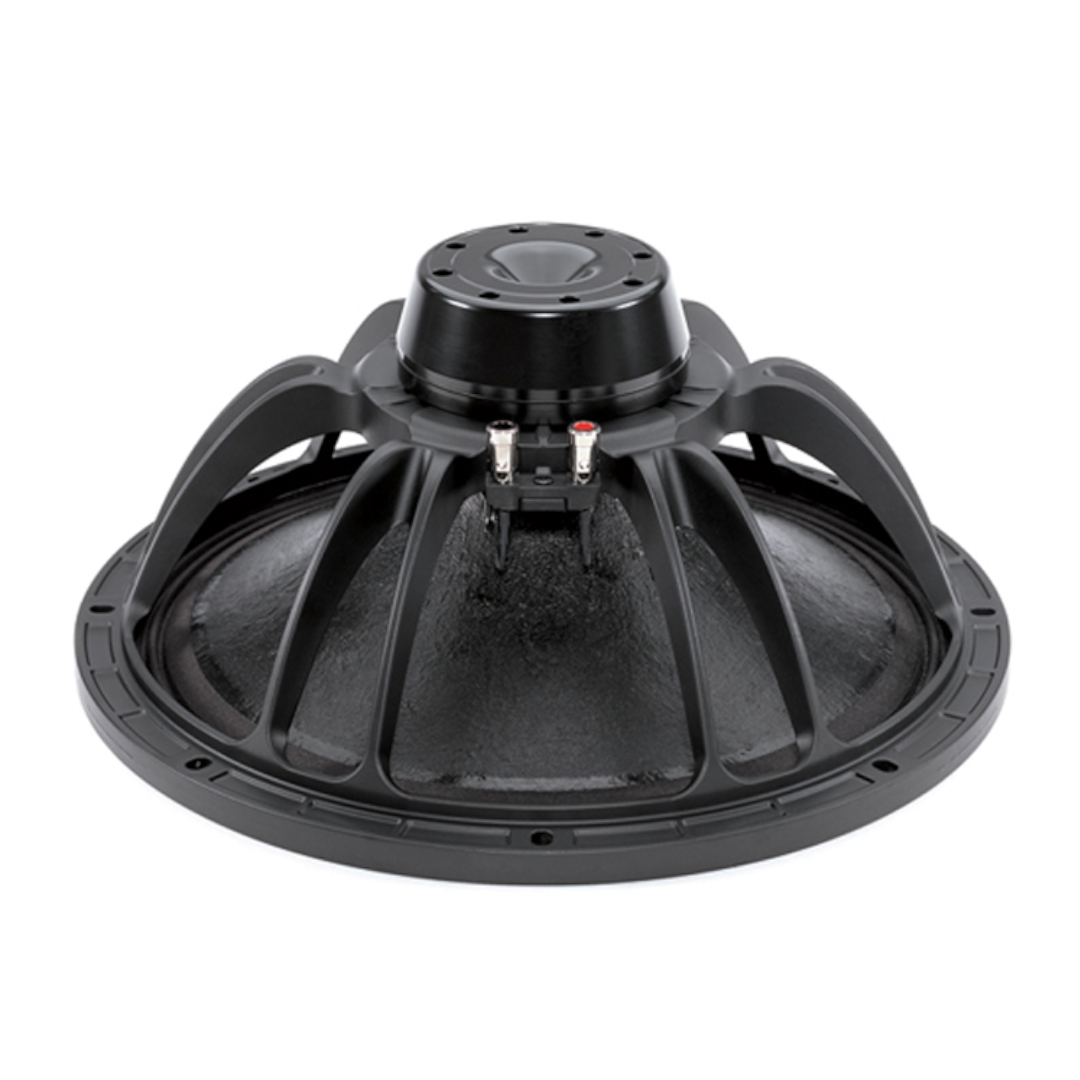

B&C 15NDL76 – Powerful 15-Inch Neodymium Woofer with Outstanding Sensitivity and Output

The B&C 15NDL76 is the highest-sensitivity lightweight neodymium 15-inch woofer in B&C’s range. At 99.5 dB sensitivity, 4.1% reference efficiency, and just 4.7 kg, this driver delivers near-100 dB output per watt from a package that weighs less than most budget ferrite 12-inch drivers. The 1.25 T neodymium motor producing 22.5 Tm of force factor on a 96 g moving assembly is the engineering behind those numbers — an extremely aggressive motor-to-mass ratio that converts amplifier watts into acoustic output with remarkable efficiency.

Where the CL76 and CLA76 prioritise minimum weight at 3.8 kg, the B&C 15NDL76 adds less than a kilogram and gains significantly more motor force, higher power handling, deeper low-frequency reach, and TWP waterproof treatment on both sides of the cone. It’s the next step up for builders who want the weight advantage of neodymium but need more output capability than the ultralight CL-series drivers can deliver.

With a 40 Hz – 2000 Hz bandwidth, a Qts of 0.22, and 500 W AES power handling, the B&C 15NDL76 is built for vented and horn-loaded enclosures where its extreme efficiency translates directly into real-world output. B&C recommends a 100-litre vented enclosure tuned to 47 Hz — compact, practical, and loud.

Design and Construction of the B&C 15NDL76

The B&C 15NDL76 uses a 76 mm (3-inch) copper voice coil wound on a glass fibre former. Copper is the deliberate winding choice here — denser and more conductive than aluminium, it provides better thermal transfer and contributes to the higher power handling that separates the NDL76 from the CCAW-wound CLA76. The 18 mm winding depth operating in an 11 mm magnetic gap yields 7 mm of linear one-way excursion (Xmax) with an additional 9 mm of travel (Xvar) before mechanical limits.

The motor is where the B&C 15NDL76 steps ahead of the CL-series. A neodymium inside-slug magnet in a straight pole configuration produces 1.25 T of flux density — the highest of any 76 mm coil 15-inch driver in B&C’s range — and a force factor (Bl) of 22.5 Tm. For comparison, the CLA76 produces 1.2 T and 19.8 Tm, while the CL76 sits at 1.15 T and 19.1–21 Tm depending on impedance. The B&C 15NDL76’s stronger motor drives the 96 g moving mass with more authority, which is why it achieves 4.1% efficiency — the highest of any neo 15-inch woofer in the lineup.

A ventilated voice coil gap allows air circulation around the coil, reducing power compression during sustained use. The exponential cone profile supports pistonic behaviour into the upper frequencies, enabling the 2000 Hz upper bandwidth. TWP waterproof treatment on both sides of the cone provides full weather resistance — an upgrade over the CL76 and CLA76’s front-side-only WP treatment.

Suspension is handled by a single spider and a triple-roll surround. At 4.7 kg and 171 mm deep, the B&C 15NDL76 adds 0.9 kg over the CL-series to accommodate the larger neodymium magnet assembly that produces the higher flux density. The standard 393 mm overall diameter and 354 mm baffle cutout match B&C’s other full-frame 15-inch drivers, making it a straightforward fit in existing cabinet designs.

Performance and Applications for the B&C 15NDL76

The B&C 15NDL76 delivers 99.5 dB sensitivity and 4.1% reference efficiency across a 40 Hz – 2000 Hz bandwidth. That 4.1% efficiency figure is extraordinary — it means this driver converts more than four watts out of every hundred into acoustic energy. A 500 W amplifier channel driving the B&C 15NDL76 produces output that would require roughly 900 W to match from a 97 dB driver. The efficiency advantage compounds across a full system — fewer amplifier channels, less rack weight, lower power bills.

The Thiele–Small parameters define a driver built specifically for vented and horn-loaded enclosures. A Qts of 0.22 and an EBP of 154 Hz leave no ambiguity — the B&C 15NDL76 does not belong in a sealed cabinet. The low 37 Hz Fs combined with the large 195-litre Vas means the driver responds well to a moderately sized vented enclosure. B&C recommends 100 litres (3.53 ft³) tuned to 47 Hz, which maximises output density in the punch zone between 50 and 200 Hz.

In horn-loaded applications, the B&C 15NDL76 is in its element. The very low Qts, exponential cone, light moving mass, and high Bl all favour horn loading, where the acoustic impedance match between driver and horn amplifies the already-extreme sensitivity even further. For builders designing 15-inch horn bins for live sound reinforcement, this driver’s parameters are textbook-ideal.

Ideal applications for the B&C 15NDL76 include:

• Horn-loaded mid-bass bins and bass cabinets for live sound
• High-efficiency vented enclosures for touring and portable PA
• Line array modules where sensitivity and weight both drive the design
• Two-way systems crossing over to a compression driver at 1.5–2 kHz
• Multi-driver configurations using 8 Ω parallel pairs for 4 Ω loading

Specifications – B&C 15NDL76

• Nominal Diameter: 380 mm (15 in)
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.7 Ω
• Nominal Power Handling: 500 W
• Continuous Power Handling: 1000 W
• Sensitivity: 99.5 dB
• Frequency Range: 40 Hz – 2000 Hz
• Voice Coil Diameter: 76 mm (3 in)
• Winding Material: Copper
• Former Material: Glass Fibre
• Winding Depth: 18 mm (0.68 in)
• Magnetic Gap Depth: 11 mm (0.4 in)
• Flux Density: 1.25 T
• Magnet Material: Neodymium (inside slug)
• Cone Shape: Exponential
• Cone Treatment: TWP Waterproof (both sides)
• Surround Shape: Triple Roll
• Spider: Single
• Pole Design: Straight Pole
• Net Weight: 4.7 kg (10.36 lb)

Thiele–Small Parameters – B&C 15NDL76

• Fs: 37 Hz
• Re: 5.3 Ω
• Qes: 0.24
• Qms: 4.5
• Qts: 0.22
• Vas: 195 dm³ (6.8 ft³)
• Sd: 855 cm² (132.5 in²)
• η0: 4.1%
• Xmax: 7 mm
• Xvar: 9 mm
• Mms: 96 g
• Bl: 22.5 Tm
• Le: 1.5 mH
• EBP: 154 Hz

Mounting Information – B&C 15NDL76

• Overall Diameter: 393 mm (15.5 in)
• Bolt Circle Diameter: 374 mm (14.7 in)
• Baffle Cutout Diameter: 354 mm (13.9 in)
• Depth: 171 mm (6.7 in)
• Flange and Gasket Thickness: 16 mm (0.62 in)
• Air Volume Occupied by Driver: 3.5 dm³ (0.12 ft³)
• Recommended Enclosure Volume: 100 dm³ (3.53 ft³)
• Recommended Tuning Frequency: 47 Hz

Conclusion – B&C 15NDL76 Woofer

The B&C 15NDL76 sits at the top of B&C’s lightweight neodymium 76 mm 15-inch woofer range. It takes everything the CL-series does well — low weight, high efficiency, exponential cone bandwidth — and pushes the motor harder. The 1.25 T flux density and 22.5 Tm Bl are the highest in the 76 mm coil lineup, producing 99.5 dB sensitivity and 4.1% efficiency that only the ferrite PLB76’s 100 dB can beat — and the PLB76 weighs nearly twice as much.

The extra 0.9 kg over the CL-series buys you meaningfully more motor authority, 25% more power handling (500 W vs 400 W AES on the CL76, 350 W on the CLA76), TWP waterproof treatment on both sides, and a lower 37 Hz Fs that extends usable low-frequency output. For builders who found the CL/CLA76 just slightly short on output or power handling, the B&C 15NDL76 fills that gap without adding significant weight.

For horn-loaded bass bins, high-efficiency vented tops, line arrays, and any application where output per watt per kilogram is the design criterion, the B&C 15NDL76 is the lightweight neodymium 15-inch woofer that delivers the most acoustic output from the least weight. At 4.7 kg and 99.5 dB, nothing else in B&C’s neo 15-inch range comes close on that ratio.
