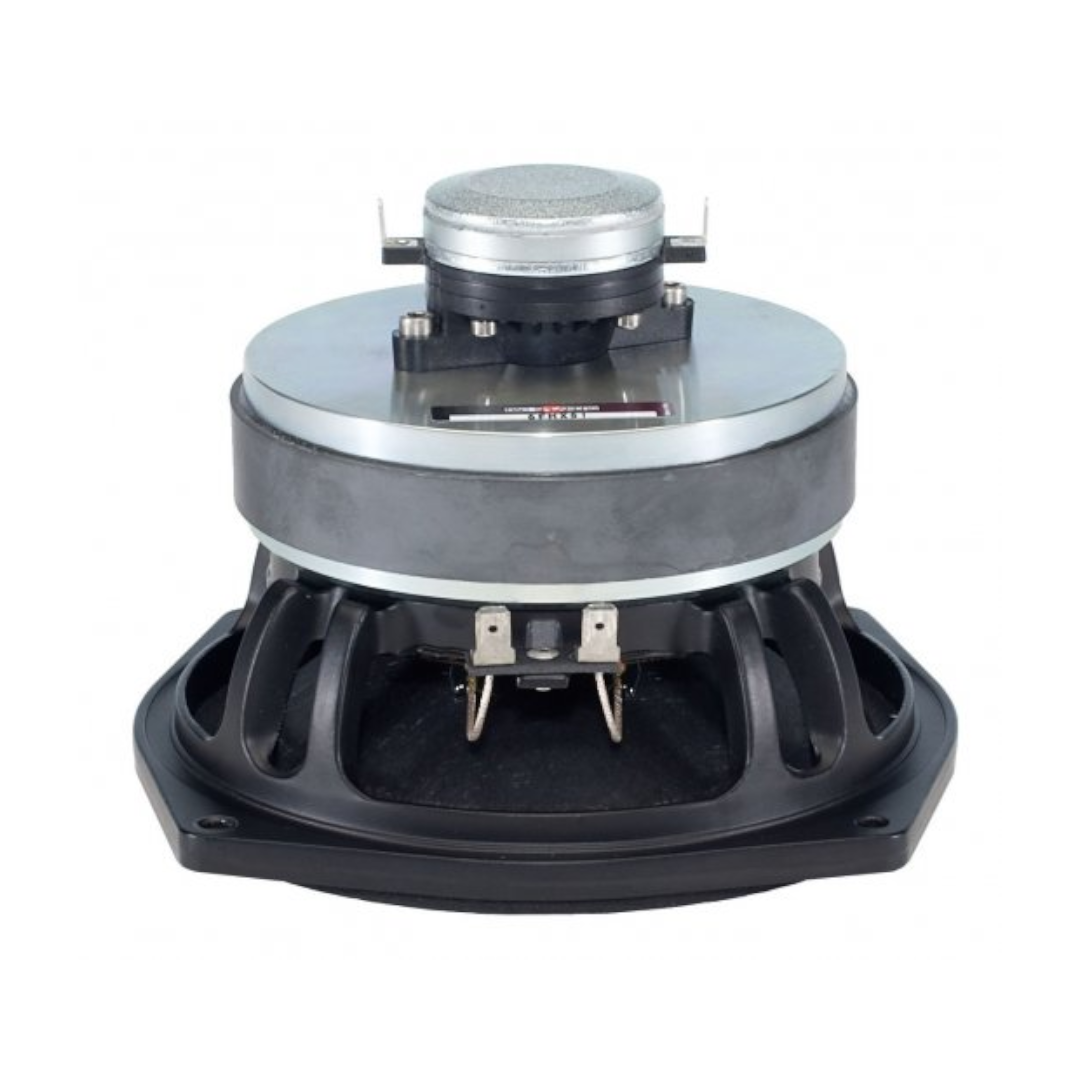

B&C 6FHX51 – Improve Your 6.5″ Coaxial Build with Ferrite Value and High-Sensitivity HF

The B&C 6FHX51 is the ferrite-motor option in B&C’s 6.5-inch coaxial range, and it brings something unique to the table: a hybrid magnet design. The LF section runs on a ferrite magnet for cost efficiency, while the HF compression driver uses its own neodymium ring magnet for maximum high-frequency sensitivity. The result is an impressive 108.5 dB HF sensitivity — the highest of any compression driver in B&C’s entire coaxial lineup.

The B&C 6FHX51 gives you 300 W continuous power handling, 93 dB LF sensitivity, and 70-degree coverage from a compact 6.5-inch frame. At 2.6 kg, it’s heavier than the fully neodymium 6HCX51 (1.6 kg) but still light for a ferrite-based driver, and its cost advantage makes it an attractive option for builds where budget matters.

For builders working on compact satellite speakers, small-venue installations, nearfield monitors, or any project where you want professional coaxial performance with an emphasis on vocal clarity and high-frequency projection, the B&C 6FHX51 offers a combination of features you won’t find in any other 6.5-inch driver.

Design and Construction of the B&C 6FHX51

The hybrid magnet design is what makes the B&C 6FHX51 genuinely distinctive. Most coaxial drivers use a single shared magnet for both sections — either ferrite or neodymium. The 6FHX51 uses a ferrite magnet for the woofer and a separate neodymium ring magnet for the compression driver. This lets B&C optimise each section independently.

The ferrite LF motor keeps the overall cost down while still pushing 1.05 T flux density — actually matching or exceeding several of B&C’s neodymium models at this driver size. The dedicated neodymium HF motor delivers 1.65 T flux density at the compression driver gap, which is what enables the remarkable 108.5 dB HF sensitivity.

The low-frequency section uses a 51 mm (2-inch) copper voice coil on a Kapton former. Copper winding provides better thermal conductivity than aluminium for less power compression under sustained load. The 16 g moving mass matches the 6HCX51 exactly — so you get the same ultra-fast transient response regardless of which magnet type you choose.

The 11.3 Tm Bl factor provides strong motor control over the featherweight cone, and 5.7 mm of linear excursion gives you clean bass output for the driver’s size class. The waterproof-treated paper cone handles moisture for outdoor and humid-venue durability.

The high-frequency section features a compact 25 mm (1-inch) aluminium voice coil driving a polyester diaphragm through a 20.1 mm exit. Despite the small HF driver size, the dedicated neodymium motor pushes that diaphragm to an extraordinary 108.5 dB sensitivity — meaning the highs will project with remarkable clarity and presence even in louder environments.

Polyester is inherently well-damped, producing smooth, natural highs without harshness. The recommended crossover at 2.5 kHz is higher than B&C’s larger coaxials, allowing the woofer to handle the full midrange band before the compact HF driver takes over for the upper frequencies.

Performance and Applications for the B&C 6FHX51

The B&C 6FHX51 handles 300 W continuous on the LF section and 20 W on the HF. The HF power rating is modest, but with 108.5 dB sensitivity, the compression driver doesn’t need much power to produce serious output. A few watts of HF signal translates into substantial SPL at the listening position.

The Thiele–Small parameters point toward vented enclosure designs. A Qts of 0.37 and EBP of 213 Hz confirm the 6FHX51 works best in a bass-reflex cabinet. The 5-litre Vas keeps enclosure requirements miniature — a well-tuned 3–5 litre vented box is a practical starting point for your design.

The 93 dB LF sensitivity is 1 dB higher than the neodymium 6HCX51, thanks to the slightly higher LF flux density. Combined with the 108.5 dB HF sensitivity, the 6FHX51 actually offers a wider sensitivity gap between the LF and HF sections than any other B&C coaxial. This makes it particularly effective in applications where vocal presence and high-frequency cut-through are priorities.

Builders commonly choose the B&C 6FHX51 for:

• Compact satellite speakers where vocal clarity is the priority
• Small-venue installed sound in cafés, boutiques, and reception areas
• Nearfield monitors and desktop reference speakers
• Budget-conscious builds where ferrite cost savings matter
• Paging and speech reinforcement systems needing high HF intelligibility
• Column array elements where high-frequency projection is essential

Both drivers share the same acoustic centre for true point-source output with coherent phase alignment. The 70-degree dispersion provides focused, controlled coverage that suits directional applications and nearfield listening, keeping the sound energy concentrated where your listeners are.

Specifications – LF Section

• Nominal Diameter: 170 mm (6.5 in)
• Voice Coil Diameter: 51 mm (2 in)
• Continuous Power Handling: 300 W
• Nominal Power Handling: 150 W
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6.5 Ω
• Frequency Range: 85 Hz – 18,000 Hz
• Sensitivity: 93 dB
• Winding Material: Copper
• Former Material: Kapton
• Winding Depth: 13 mm (0.51 in)
• Magnetic Gap Depth: 6 mm (0.24 in)
• Flux Density: 1.05 T
• Cone Treatment: WP Waterproof Front Side

Specifications – HF Section

• Voice Coil Diameter: 25 mm (1 in)
• Continuous Power Handling: 20 W
• Nominal Power Handling: 10 W
• Nominal Impedance: 8 Ω
• Minimum Impedance: 7 Ω
• Recommended Crossover: 2.5 kHz
• Sensitivity: 108.5 dB
• Winding Material: Aluminium
• Inductance: 0.1 mH
• Flux Density: 1.65 T
• Diaphragm Material: Polyester
• HF Exit Diameter: 20.1 mm (0.79 in)
• Magnet Material: Ferrite (LF) / Neodymium Ring (HF)

Conclusion

The B&C 6FHX51 is a uniquely engineered 6.5-inch coaxial that uses a hybrid ferrite/neodymium magnet design to deliver the highest HF sensitivity in B&C’s entire coaxial range at 108.5 dB. That means your build will project vocals, speech, and high-frequency detail with exceptional clarity and presence — even from a tiny cabinet.

With the same 16 g moving mass and 51 mm copper coil as the neodymium 6HCX51, plus a stronger LF sensitivity of 93 dB and the ferrite motor’s cost advantage, the B&C 6FHX51 is the smart choice for builders who want maximum high-frequency impact from a compact, budget-friendly coaxial. Whether you’re designing a vocal-focused satellite, a small-venue install speaker, or a paging system that demands crystal-clear intelligibility, this driver delivers where it matters most.
