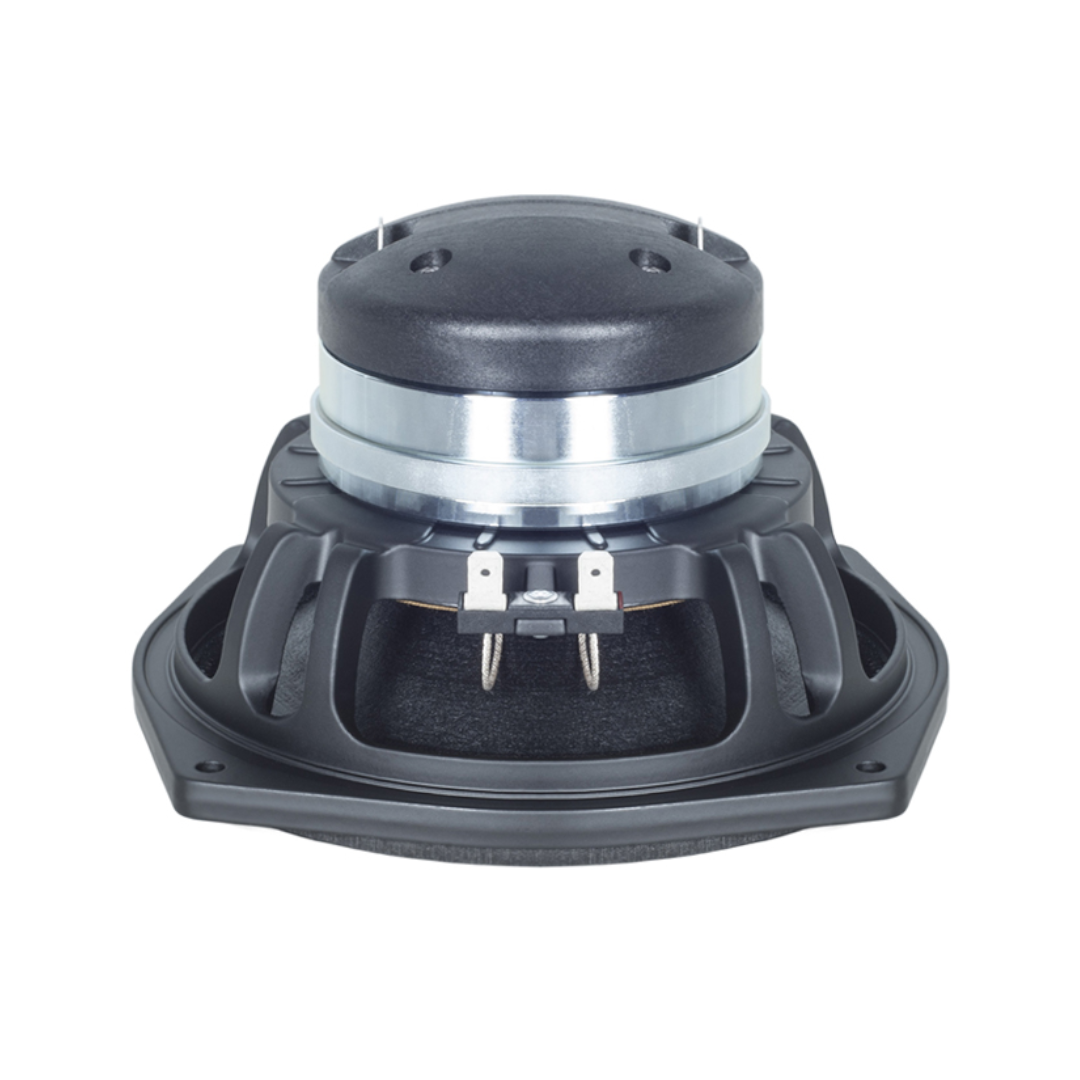

B&C 6HCX51 – Improve Your Micro Build with a 6.5″ Neodymium Coaxial

The B&C 6HCX51 is the smallest coaxial in B&C’s entire range — and quite possibly the smallest professional coaxial driver you’ll find anywhere. At just 1.6 kg and 104 mm deep, this 6.5-inch neodymium coaxial fits into enclosures that no other point-source two-way driver can reach.

Don’t let the size fool you. The B&C 6HCX51 packs a 51 mm copper voice coil, a polyester compression driver at 105 dB sensitivity, and a 16 g moving mass into a frame that measures just 187 mm across. It delivers 300 W continuous power handling with a frequency range from 90 Hz to 18 kHz — genuine full-range coaxial output from a driver smaller than most mid-bass speakers.

For builders designing ultra-compact satellite speakers, tiny nearfield monitors, architectural sound systems, column array elements, or any project where the driver needs to virtually disappear, the B&C 6HCX51 proves that truly small can still sound truly professional.

Design and Construction of the B&C 6HCX51

The low-frequency section of the B&C 6HCX51 uses a 51 mm (2-inch) copper voice coil on a Kapton former. That’s a remarkably large coil relative to the driver’s 6.5-inch frame — the coil-to-cone ratio is the highest in B&C’s coaxial range. This oversized coil gives the 6HCX51 more thermal handling than you’d expect from a driver this small.

Copper winding provides superior thermal conductivity over aluminium, helping the coil shed heat during continuous use. The 16 g moving mass is the absolute lightest in the entire B&C driver catalogue — across all product lines, not just coaxials. That ultra-low mass gives the 6HCX51 blisteringly fast transient response.

You’ll hear the speed in the clarity of speech, the snap of finger-picked guitar, and the fine detail in acoustic recordings. For nearfield monitoring or speech reinforcement, that transient precision is a genuine advantage over larger, heavier drivers that can sound sluggish by comparison.

The cone features TWP (Total Waterproof) treatment on both sides — a step up from the single-side WP treatment used on B&C’s larger coaxials. Both-side waterproofing provides even better moisture protection, making the B&C 6HCX51 particularly well-suited for outdoor installations, marine environments, and any build exposed to weather or humidity.

The 10.9 Tm Bl factor is impressive for a 6.5-inch driver, providing strong motor control over the featherweight 16 g cone. Combined with 5.5 mm of linear excursion, the woofer delivers tight, defined output that stays clean and composed even when pushed.

The high-frequency section features a 36 mm (1.4-inch) aluminium voice coil driving a polyester diaphragm at 105 dB sensitivity with 1.8 T flux density. Polyester is inherently well-damped, producing smooth, natural highs without harshness or fatigue. The recommended crossover at 2.2 kHz lets the woofer handle the entire midrange band before handing off, keeping the system simple and the integration seamless.

Performance and Applications for the B&C 6HCX51

The B&C 6HCX51 handles 300 W continuous on the LF section and 50 W on the HF. For a 6.5-inch coaxial, that’s solid headroom. Pair it with a compact 100–300 W amplifier and you’ll have a speaker that fills a small-to-medium room with clear, balanced sound from a cabinet you could fit on a bookshelf.

The Thiele–Small parameters suit both sealed and vented designs. A Qts of 0.38 and EBP of 223 Hz give you flexibility — a small sealed box for tight, accurate bass, or a vented design for a bit more low-end extension. The 5-litre Vas is tiny, meaning your enclosure can be genuinely miniature while still achieving proper alignment.

The 70-degree dispersion angle provides focused, even coverage that works well for nearfield listening and directional applications. At this driver size, 70 degrees gives you a natural, controlled coverage pattern that avoids the overly diffuse sound that wider-dispersion small drivers can produce.

Builders commonly choose the B&C 6HCX51 for:

• Ultra-compact satellite speakers in sub-sat systems
• Tiny nearfield studio monitors and desktop speakers
• Column array and line source elements where size per driver is critical
• Architectural and installed sound in galleries, boutiques, and reception areas
• Marine and outdoor installations requiring full waterproof protection
• Surround sound and immersive audio builds

Both drivers share the same acoustic centre for true point-source output. In a 6.5-inch format, the coaxial design is essentially the only way to achieve coherent two-way performance — there’s simply no room for a separate tweeter and crossover in a cabinet this small. The B&C 6HCX51 gives you that two-way quality in a single, integrated driver.

Specifications – LF Section

• Nominal Diameter: 170 mm (6.5 in)
• Voice Coil Diameter: 51 mm (2 in)
• Continuous Power Handling: 300 W
• Nominal Power Handling: 150 W
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6 Ω
• Frequency Range: 90 Hz – 18,000 Hz
• Sensitivity: 92 dB
• Winding Material: Copper
• Former Material: Kapton
• Winding Depth: 13 mm (0.51 in)
• Magnetic Gap Depth: 6 mm (0.24 in)
• Flux Density: 1.1 T
• Cone Treatment: TWP Waterproof Both Sides

Specifications – HF Section

• Voice Coil Diameter: 36 mm (1.4 in)
• Continuous Power Handling: 50 W
• Nominal Power Handling: 25 W
• Nominal Impedance: 8 Ω
• Minimum Impedance: 7.5 Ω
• Recommended Crossover: 2.2 kHz
• Sensitivity: 105 dB
• Winding Material: Aluminium
• Inductance: 0.06 mH
• Flux Density: 1.8 T
• Diaphragm Material: Polyester
• HF Exit Diameter: 20.1 mm (0.79 in)
• Magnet Material: Neodymium Ring

Conclusion

The B&C 6HCX51 is the absolute smallest coaxial in B&C’s range — 1.6 kg, 104 mm deep, and just 187 mm across. It’s a driver that redefines what’s possible from a 6.5-inch frame, delivering true point-source coaxial performance from a package that barely exists in your cabinet.

With the lightest moving mass in B&C’s entire product catalogue at 16 g, TWP double-side waterproofing for total moisture protection, a polyester HF driver at 105 dB sensitivity, and a 5-litre Vas that suits genuinely miniature enclosures, the B&C 6HCX51 is the building block for micro satellite speakers, column arrays, nearfield monitors, and architectural installs where size is everything. If your build needs real coaxial quality from the smallest possible driver, this is it.
