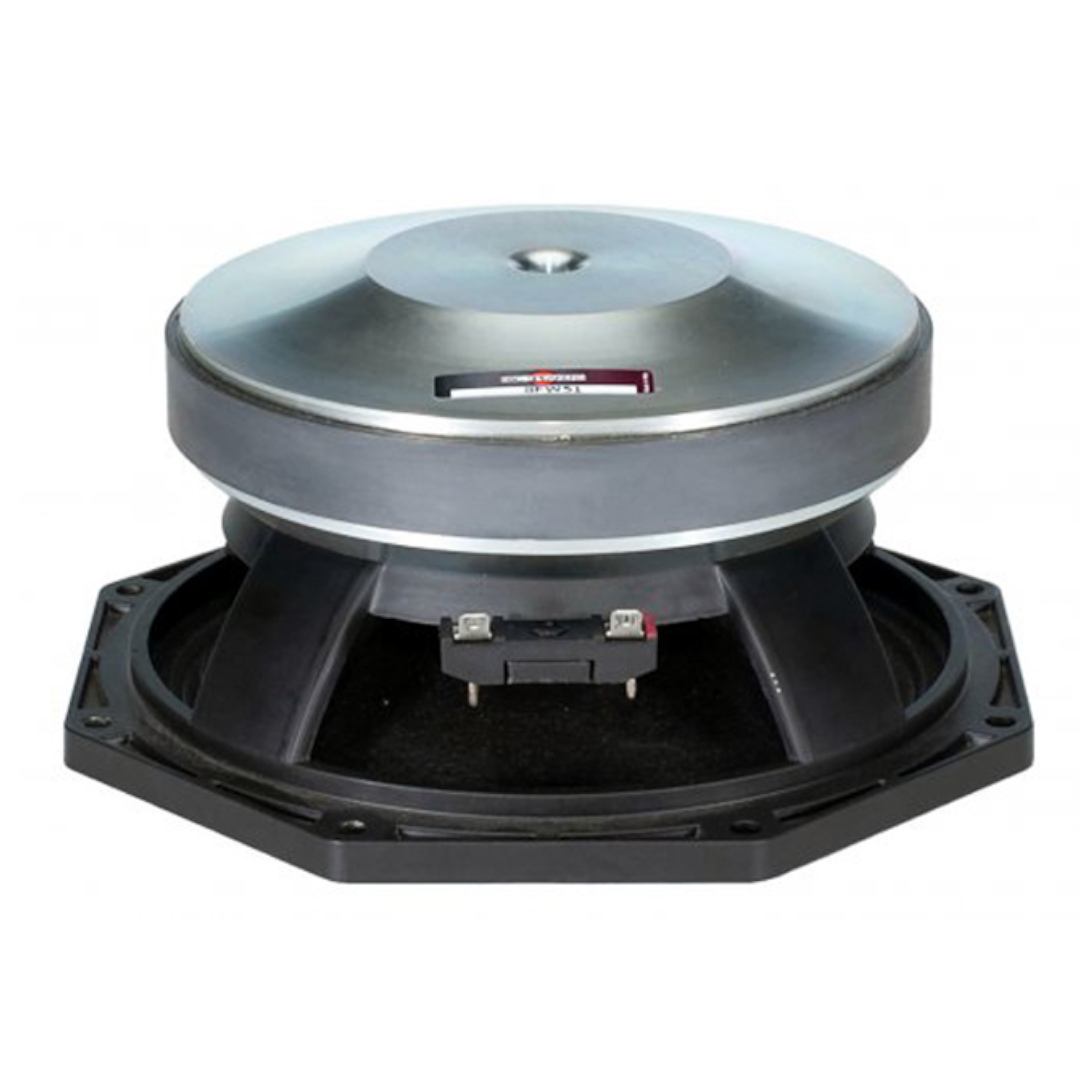

B&C 8FW51 8″ Professional Woofer LF Driver
The B&C 8FW51 is a professional 8-inch woofer engineered for compact low-frequency and mid-bass applications requiring strong sensitivity, controlled excursion performance, and reliable thermal stability. Developed around a ferrite motor structure with optimized cooling and inductance control features, the B&C 8FW51 delivers efficient acoustic output while maintaining excellent transient response and compact enclosure compatibility.
Designed for portable PA systems, stage monitors, compact two-way loudspeaker systems, and professional sound reinforcement applications, the B&C 8FW51 combines efficient motor force with carefully optimized suspension geometry. Its broad operating bandwidth and compact loading characteristics make it suitable for installations where both output density and enclosure size are important design considerations.
Key Features
- 200 W nominal power handling
- 400 W continuous program power capacity
- 51 mm (2 inch) copper voice coil
- Ferrite motor structure
- 97 dB sensitivity
- 70 Hz – 5000 Hz frequency response
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power compression
- TWP waterproof cone treatment on both sides
- Compact enclosure optimization for professional systems
Ferrite Motor Design and Magnetic Structure
The B&C 8FW51 utilizes a ferrite magnet motor assembly engineered for stable magnetic performance and reliable long-term operation. Ferrite motors remain widely used in professional sound reinforcement systems because they maintain thermal stability and provide predictable operating characteristics during continuous use.
A major feature of the motor assembly is the integrated shorting copper cap, designed to reduce inductance variation while extending upper-frequency response. Lower inductance modulation contributes to smoother response characteristics and cleaner integration in multi-way loudspeaker systems.
The driver also incorporates a ventilated voice coil gap that improves airflow through the motor structure. Better cooling reduces heat buildup and helps minimize power compression during sustained operation.
With a measured magnetic flux density of 1.35 T, the motor structure maintains strong cone control while supporting efficient acoustic conversion.
Voice Coil Construction and Thermal Management
At the center of the B&C 8FW51 is a 51 mm copper voice coil wound on a Kapton former. This configuration provides thermal stability while maintaining low moving mass characteristics that contribute to fast transient performance.
The driver supports 200 W nominal power handling and 400 W continuous program power handling, allowing it to maintain reliable operation in demanding professional applications. The voice coil geometry has been optimized for controlled thermal behavior during sustained use.
Its optimized moving assembly and relatively low mass contribute to improved articulation and controlled mid-bass reproduction, particularly in compact cabinet designs.
Cone Geometry and Suspension Design
The B&C 8FW51 uses an exponential cone profile combined with a double-roll surround geometry. This design maintains mechanical stability while supporting controlled excursion performance across the operating bandwidth.
A single spider suspension system provides controlled cone movement while maintaining lower moving mass characteristics. The suspension geometry contributes to improved transient behavior and predictable system integration.
The cone assembly incorporates TWP waterproof treatment on both sides, improving resistance against moisture and environmental exposure. This increases long-term reliability in portable systems and demanding installation environments.
Compact System Integration and Acoustic Performance
The B&C 8FW51 has been optimized for compact cabinet loading where space efficiency and output capability are priorities.
The manufacturer recommends a 12 dm³ enclosure volume with a 74 Hz tuning frequency, allowing designers to achieve useful low-frequency extension from relatively small enclosure sizes. These loading characteristics make the driver suitable for compact vented systems where efficiency and portability remain important.
Typical applications include:
- Compact bass reflex cabinets
- Portable PA systems
- Two-way loudspeaker systems
- Professional stage monitors
- Installed sound systems
- Mid-bass reinforcement applications
Its combination of efficiency and compact loading flexibility allows designers to maximize performance while minimizing cabinet size.
Technical Specifications
Nominal Diameter: 200 mm (8 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.4 Ω
Nominal Power Handling: 200 W
Continuous Program Power: 400 W
Sensitivity: 97 dB
Frequency Range: 70 Hz – 5000 Hz
Voice Coil Diameter: 51 mm (2 in)
Winding Material: Copper
Former Material: Kapton
Winding Depth: 17 mm
Magnetic Gap Depth: 10 mm
Flux Density: 1.35 T
Magnet Material: Ferrite
Cone Shape: Exponential
Surround Shape: Double Roll
Spider Design: Single
Pole Design: T-Pole
Cone Treatment: TWP Waterproof Both Sides
Thiele-Small Parameters
Fs: 74 Hz
Re: 5.2 Ω
Qes: 0.21
Qms: 9.3
Qts: 0.21
Vas: 12 dm³
Sd: 220 cm²
η₀: 2.1 %
Xmax: 6 mm
Xvar: 5 mm
Mms: 27 g
BL Factor: 17.7 Tm
Le: 0.56 mH
EBP: 352 Hz
Mounting Information
Overall Diameter: 225 mm
Bolt Circle Diameter: 210 mm
Baffle Cutout Diameter: 187 mm
Depth: 100 mm
Flange and Gasket Thickness: 9 mm
Air Volume Occupied by Driver: 1.5 dm³
Net Weight: 5.6 kg
Shipping Weight: 6.05 kg
Shipping Box: 255 × 255 × 150 mm
Recone Kit: RCK008FW518
Applications
The B&C 8FW51 is engineered for professional applications requiring compact dimensions, efficient output, and controlled mid-bass reproduction. Its combination of compact enclosure loading, extended upper-frequency capability, and durable construction makes it particularly suitable for portable PA systems, stage monitoring, compact two-way loudspeakers, and installed sound applications.
For designers looking for a compact professional woofer with strong efficiency and predictable system integration, the B&C 8FW51 delivers a balanced combination of output capability, durability, and compact enclosure flexibility.
