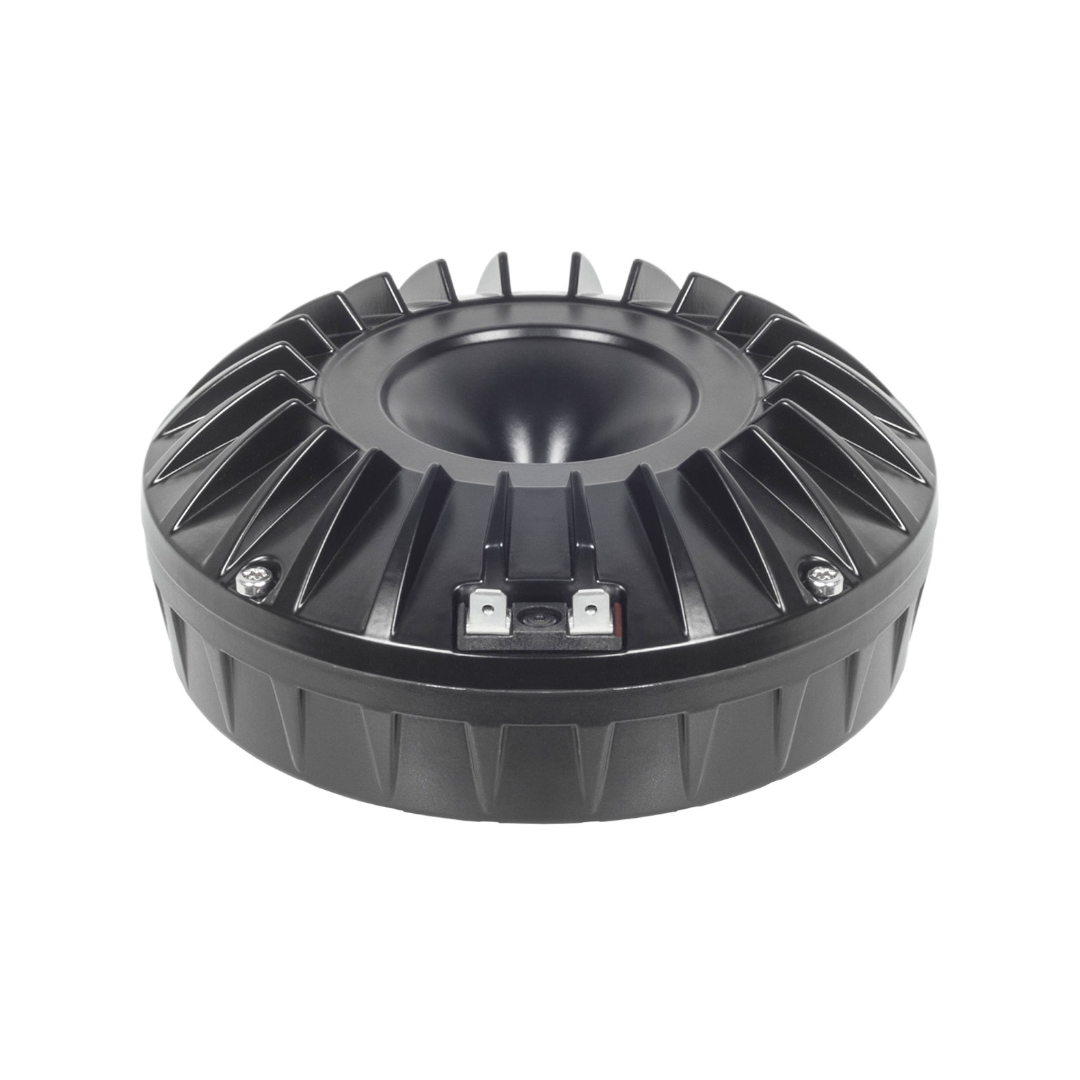

B&C DCM414 – High-Output 1.4-Inch Midrange Compression Driver for Exceptional Vocal Clarity and System Efficiency
The B&C DCM414 is a purpose-built midrange compression driver engineered to deliver extraordinary vocal intelligibility, exceptional sensitivity, and unmatched efficiency throughout the critical midrange frequencies. Unlike traditional high-frequency compression drivers that focus on extending response into the upper treble region, the B&C DCM414 has been specifically designed to reproduce the frequencies where human hearing is most sensitive, making it an ideal solution for high-performance professional loudspeaker systems that demand maximum clarity and projection.
Featuring a large 100 mm (4-inch) aluminium voice coil, an advanced 1.9 Tesla neodymium motor structure, and a lightweight HT Polymer diaphragm, the B&C DCM414 achieves an impressive 112 dB sensitivity, making it one of the most efficient compression drivers in the B&C professional audio portfolio. With a usable frequency range spanning 300 Hz to 6 kHz, the driver effectively covers the majority of the vocal spectrum, allowing loudspeaker designers to create highly efficient multi-way systems with superior coherence and reduced distortion.
The ability to operate from just 300 Hz fundamentally changes how system designers can approach loudspeaker architecture. Instead of relying on conventional cone midrange drivers, the B&C DCM414 allows critical vocal information to be reproduced by a horn-loaded compression driver, dramatically increasing sensitivity, projection, pattern control, and intelligibility.
For stadium sound systems, concert touring applications, large-format point source loudspeakers, theatre installations, houses of worship, and premium line array systems, the B&C DCM414 provides a powerful solution capable of delivering remarkable vocal presence while maintaining the reliability required for professional use.
Combining substantial power handling, exceptional efficiency, and wide midrange coverage, the B&C DCM414 stands as one of the most specialised and innovative compression drivers available for professional sound reinforcement applications.
Purpose-Built Midrange Compression Driver Technology
The B&C DCM414 differs significantly from conventional compression drivers.
Most compression drivers are designed to reproduce frequencies from approximately 1 kHz upwards, focusing primarily on high-frequency reproduction. The DCM414 takes a completely different approach by concentrating on the midrange region, which contains the majority of vocal information and many of the frequencies most critical to speech intelligibility.
With a frequency response extending from 300 Hz to 6 kHz, the driver is optimised to reproduce:
- Lead vocals
- Speech reinforcement
- Dialogue reproduction
- Instrument fundamentals
- Guitar harmonics
- Brass instruments
- Woodwind instruments
- Critical midrange programme material
This focus allows loudspeaker systems to achieve greater clarity and improved vocal projection compared to traditional cone-based midrange solutions.
The result is exceptional intelligibility, particularly in large venues where vocal clarity is often the primary performance requirement.
Massive 100 mm Voice Coil for Professional Reliability
At the heart of the B&C DCM414 is a substantial 100 mm (4-inch) aluminium voice coil.
This large voice coil provides significant advantages in terms of thermal management and long-term reliability.
Benefits of the oversized voice coil include:
- Increased heat dissipation
- Higher continuous power handling
- Improved thermal stability
- Reduced power compression
- Greater operational consistency
- Enhanced durability
The driver is rated at:
- 110 W nominal power handling
- 220 W continuous power handling
allowing it to maintain high output levels during demanding professional applications.
For touring systems, stadium installations, and fixed venue sound reinforcement where systems may operate continuously at elevated output levels, the thermal capacity provided by the large voice coil becomes an important contributor to overall reliability.
The large voice coil also supports the driver’s ability to operate efficiently at extremely low crossover frequencies.
Extraordinary 112 dB Sensitivity
One of the most impressive specifications of the B&C DCM414 is its remarkable 112 dB sensitivity.
This places it among the highest-efficiency compression drivers available for professional audio applications.
High sensitivity delivers numerous practical advantages:
Increased Acoustic Output
More of the amplifier’s power is converted into usable acoustic energy.
Greater System Headroom
Higher efficiency allows systems to operate with increased dynamic range before reaching their limits.
Reduced Amplifier Requirements
Less amplifier power is required to achieve target sound pressure levels.
Improved Dynamic Performance
The driver responds rapidly to transient information, helping preserve detail and articulation.
Enhanced System Efficiency
High sensitivity contributes to lower overall system stress and improved reliability.
These characteristics make the B&C DCM414 especially attractive for large-scale professional installations where efficiency and maximum output are critical.
Low-Frequency Operation Down to 300 Hz
A defining feature of the B&C DCM414 is its ability to operate from just 300 Hz.
This capability is highly unusual for a compression driver and opens significant possibilities for advanced loudspeaker system design.
The driver’s recommended crossover frequency is also specified at 300 Hz, allowing it to reproduce a large portion of the vocal spectrum directly.
Advantages include:
- Improved vocal projection
- Superior speech intelligibility
- Better pattern control
- Reduced midrange distortion
- Greater system coherence
- Increased efficiency
By reproducing critical vocal frequencies through a horn-loaded compression driver rather than a conventional cone driver, systems can achieve substantially greater coverage and intelligibility across large listening areas.
This makes the DCM414 particularly effective in stadiums, arenas, theatres, and large worship facilities.
HT Polymer Diaphragm Technology
The B&C DCM414 utilises an advanced HT Polymer diaphragm.
This diaphragm material has been selected specifically for midrange reproduction, where smooth response, controlled resonance behaviour, and excellent reliability are critical.
HT Polymer provides several advantages:
- Low moving mass
- Excellent damping characteristics
- Reduced resonance peaks
- Smooth frequency response
- High reliability
- Long operational life
Unlike metallic diaphragms that are often optimised for extreme high-frequency performance, HT Polymer diaphragms can deliver exceptionally natural midrange reproduction.
This makes the DCM414 particularly effective for speech and vocal applications where tonal accuracy is essential.
The diaphragm design contributes significantly to the driver’s ability to maintain clarity across its operating range while handling substantial power levels.
High-Performance Neodymium Motor Structure
The B&C DCM414 incorporates a powerful neodymium motor generating 1.9 Tesla of magnetic flux density.
A strong magnetic field is essential for maintaining precise control over the diaphragm assembly.
The benefits of this motor structure include:
- Enhanced efficiency
- Improved transient response
- Greater diaphragm control
- Reduced distortion
- Increased output capability
- Better dynamic accuracy
The motor works in conjunction with the large voice coil to ensure consistent performance across the driver’s entire operating range.
Even at high output levels, the motor maintains tight control over diaphragm movement, preserving clarity and intelligibility.
This contributes directly to the DCM414’s exceptional sensitivity and outstanding vocal reproduction capabilities.
Midrange Optimisation for Modern Loudspeaker Systems
The B&C DCM414 has been specifically developed for use in advanced professional loudspeaker systems.
Modern sound reinforcement increasingly demands:
- Higher intelligibility
- Better coverage consistency
- Increased efficiency
- Improved vocal projection
- Reduced distortion
The DCM414 addresses these requirements by allowing system designers to utilise horn loading throughout much of the vocal range.
This provides several advantages compared to conventional cone-based midrange systems:
- Higher sensitivity
- Better directivity control
- Increased output capability
- Improved vocal presence
- Enhanced long-distance projection
These characteristics make the driver especially valuable in large venues where maintaining intelligibility across long distances is essential.
Compact Installation-Friendly Design
Despite its impressive internal components, the B&C DCM414 remains relatively compact for a driver of this capability.
Physical dimensions include:
- Overall diameter: 152 mm
- Depth: 62 mm
- Net weight: 2.3 kg
The driver mounts using:
- Four M6 mounting holes
- 102 mm bolt circle
- 90-degree spacing
Its compact profile simplifies integration into professional loudspeaker designs while maintaining compatibility with standard 1.4-inch horn systems.
The relatively low weight is particularly beneficial for line arrays and flown sound reinforcement systems where weight considerations play a critical role.
Ideal Applications for the B&C DCM414
The B&C DCM414 is designed for professional applications where midrange performance is a primary concern.
Typical applications include:
- Touring sound systems
- Professional line arrays
- Stadium PA systems
- Arena sound reinforcement
- Festival sound systems
- High-output point source loudspeakers
- Theatre installations
- Houses of worship
- Performing arts centres
- Corporate AV systems
- Public address systems
- Concert venues
- Premium installed audio systems
Its exceptional efficiency and extended midrange coverage make it particularly suitable for applications where speech intelligibility and vocal projection are critical.
Technical Specifications
B&C DCM414 Technical Specifications
Throat Diameter: 36 mm (1.4 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.7 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 112 dB
Frequency Range: 300 Hz – 6 kHz
Recommended Crossover Frequency: 300 Hz
Voice Coil Diameter: 100 mm (4 in)
Winding Material: Aluminium
Inductance: 0.28 mH
Flux Density: 1.9 T
Diaphragm Material: HT Polymer
Mounting Information
B&C DCM414 Mounting Dimensions
Mounting Pattern: Four M6 mounting holes positioned 90° apart on a 102 mm (4 in) bolt circle
Overall Diameter: 152 mm (6 in)
Depth: 62 mm (2.44 in)
Net Weight: 2.3 kg (5.07 lb)
Shipping Weight: 2.5 kg (5.51 lb)
Shipping Box Dimensions: 170 x 170 x 140 mm (6.69 x 6.69 x 5.51 in)
Why Choose the B&C DCM414?
The B&C DCM414 is not simply another compression driver. It is a specialised midrange solution engineered to deliver exceptional vocal clarity, remarkable efficiency, and outstanding projection in demanding professional audio systems. Featuring a massive 100 mm voice coil, an advanced 1.9 Tesla neodymium motor, 112 dB sensitivity, and the ability to operate from just 300 Hz, it offers performance capabilities that conventional compression drivers cannot match.
Its ability to reproduce the majority of the vocal spectrum through a horn-loaded architecture allows system designers to achieve superior intelligibility, improved directivity control, and significantly higher efficiency compared to traditional cone-based midrange designs. The HT Polymer diaphragm delivers smooth and natural midrange reproduction, while the robust motor and voice coil assembly ensure reliable operation in high-output environments.
For loudspeaker manufacturers, system integrators, and professional audio engineers seeking a high-performance midrange compression driver capable of transforming vocal reproduction and overall system performance, the B&C DCM414 stands as one of the most advanced and effective solutions available in the B&C professional audio range.
