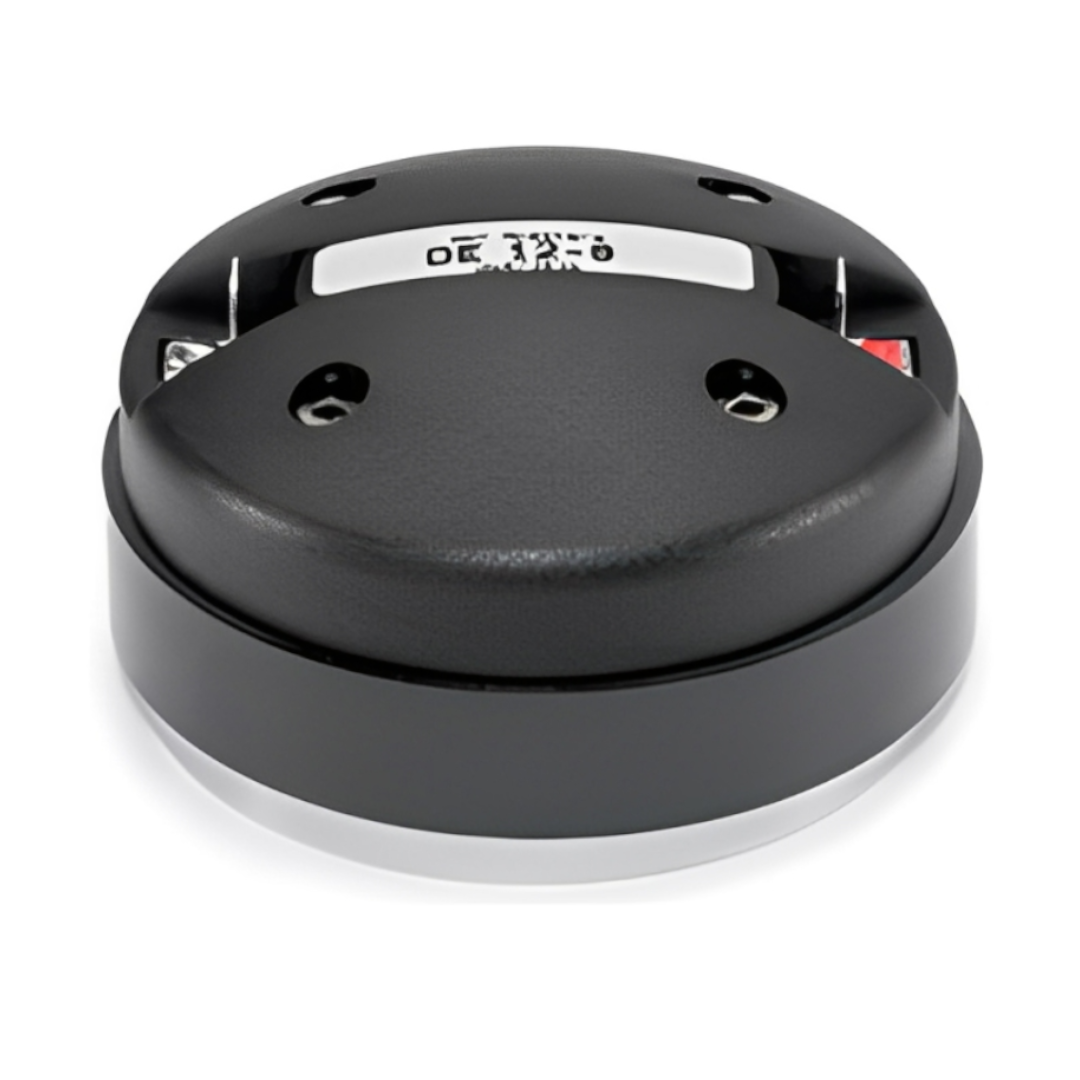

B&C DE12 – Ultimate Compact 1″ Compression Driver with Smooth Mylar Performance

Not every build needs a large-format compression driver. If you’re designing a compact two-way cabinet, a small monitor, or a lightweight PA top where the HF section needs to stay small, light, and affordable, the B&C DE12 delivers professional-quality highs from B&C’s smallest 1-inch exit compression driver.

The B&C DE12 produces 106 dB sensitivity from a Mylar (polyester) diaphragm driven by a 36 mm aluminium voice coil. That’s serious sensitivity for a 1-inch throat driver — high enough to match up well with 8, 10, and 12-inch woofers without needing excessive padding in your crossover network.

At just 1.05 kg, 90 mm across, and 49 mm deep, the B&C DE12 adds almost no weight or bulk to your cabinet. For builders who want smooth, fatigue-free highs without the brightness of titanium — and without the size and cost of a larger-format driver — this is B&C’s most compact and accessible compression driver option.

Design and Construction of the B&C DE12

The B&C DE12 is built around a 36 mm (1.4-inch) aluminium voice coil driving a Mylar diaphragm through a 25 mm (1-inch) throat exit. Mylar — also known as polyester — is an inherently well-damped diaphragm material that produces smooth, natural highs without the breakup peaks or harshness that metal diaphragms can exhibit at high SPL.

For your build, that means a high-frequency character that’s easy to listen to for hours. Vocals sound natural and present without being aggressive. Cymbals shimmer rather than spit. Acoustic instruments retain their tonal warmth rather than taking on a metallic edge. If you’re building a speaker for a venue, a studio, a church, or any environment where people listen for extended periods, Mylar’s smooth tonal character is a genuine advantage.

The aluminium voice coil keeps the moving assembly light for fast transient response while providing adequate thermal handling for the driver’s 50 W continuous rating. The 1.45 T flux density at the magnetic gap delivers the energy needed for the impressive 106 dB sensitivity figure.

The 25 mm (1-inch) throat diameter is the standard for compact compression drivers, giving you a wide selection of compatible 1-inch horns and waveguides to choose from. Whether you want a compact constant-directivity horn, a bullet-style diffuser, or a small waveguide, the DE12 mates with standard 1-inch throat hardware.

Mounting uses two M5 holes at 180° on a 76 mm bolt circle — a simple, standard pattern that makes integration straightforward. The entire driver measures just 90 mm in diameter and 49 mm deep, so it fits comfortably behind even the most compact horns and waveguides without encroaching on cabinet space.

Performance and Applications for the B&C DE12

The B&C DE12 handles 50 W continuous with a frequency response from 1.5 kHz to 18 kHz and a recommended crossover at 2.2 kHz. The 50 W rating is modest compared to the larger 1.4-inch throat drivers in B&C’s range, but for the compact applications this driver is designed for, it provides clean, reliable headroom.

The 2.2 kHz crossover point is higher than the 1.2 kHz recommended for B&C’s larger drivers. This means the woofer in your two-way system handles more of the midrange before handing off to the compression driver — which can be an advantage in builds where you want the midrange character to be dominated by the woofer’s cone rather than the compression driver’s diaphragm.

The 106 dB sensitivity is impressive for a 1-inch driver. It matches or exceeds many larger-format compression drivers, which means the B&C DE12 can hold its own in terms of output despite its compact size. You won’t need to pad the HF section heavily to balance with a reasonably sensitive woofer.

Builders commonly choose the B&C DE12 for:

• Compact two-way PA tops with 8–12″ woofers
• Small stage monitors and wedges for rehearsal and live use
• Installed sound in churches, conference rooms, and small venues
• Home studio monitors where smooth, non-fatiguing highs matter
• Budget-conscious builds where cost per driver is a factor
• Replacement drivers for existing 1″ throat cabinets

The B&C DE12 is particularly well-suited for builds where the listener is close to the speaker — nearfield monitors, small venue installs, and rehearsal room monitors. At close range, the Mylar diaphragm’s smooth, forgiving character makes a real difference to long-term listening comfort compared to harder titanium diaphragms.

Specifications

• Throat Diameter: 25 mm (1 in)
• Voice Coil Diameter: 36 mm (1.4 in)
• Continuous Power Handling: 50 W
• Nominal Power Handling: 25 W
• Nominal Impedance: 8 Ω
• Minimum Impedance: 7.8 Ω
• Frequency Range: 1.5 kHz – 18 kHz
• Recommended Crossover: 2.2 kHz
• Sensitivity: 106 dB
• Winding Material: Aluminium
• Inductance: 0.14 mH
• Flux Density: 1.45 T
• Diaphragm Material: Mylar (Polyester)

Mounting Information

• Bolt Pattern: Two M5 holes, 180° on 76 mm (3 in) diameter
• Overall Diameter: 90 mm (3.5 in)
• Depth: 49 mm (2 in)
• Net Weight: 1.05 kg (2.31 lb)
• Replacement Diaphragm: MMD0128

Conclusion

The B&C DE12 is B&C’s most compact and accessible compression driver — 1.05 kg, 90 mm across, and 49 mm deep. It’s the entry point into B&C’s HF driver range, but the 106 dB sensitivity and smooth Mylar diaphragm deliver sound quality that competes well above its price class.

If your build needs smooth, fatigue-free highs without the brightness of titanium, the B&C DE12 gives you a professional compression driver that sounds natural and refined at close range. Whether you’re building a compact PA top, a small monitor, a church install speaker, or your first serious DIY two-way cabinet, this driver provides the kind of polished, approachable high-frequency performance that makes a speaker genuinely enjoyable to listen to.
