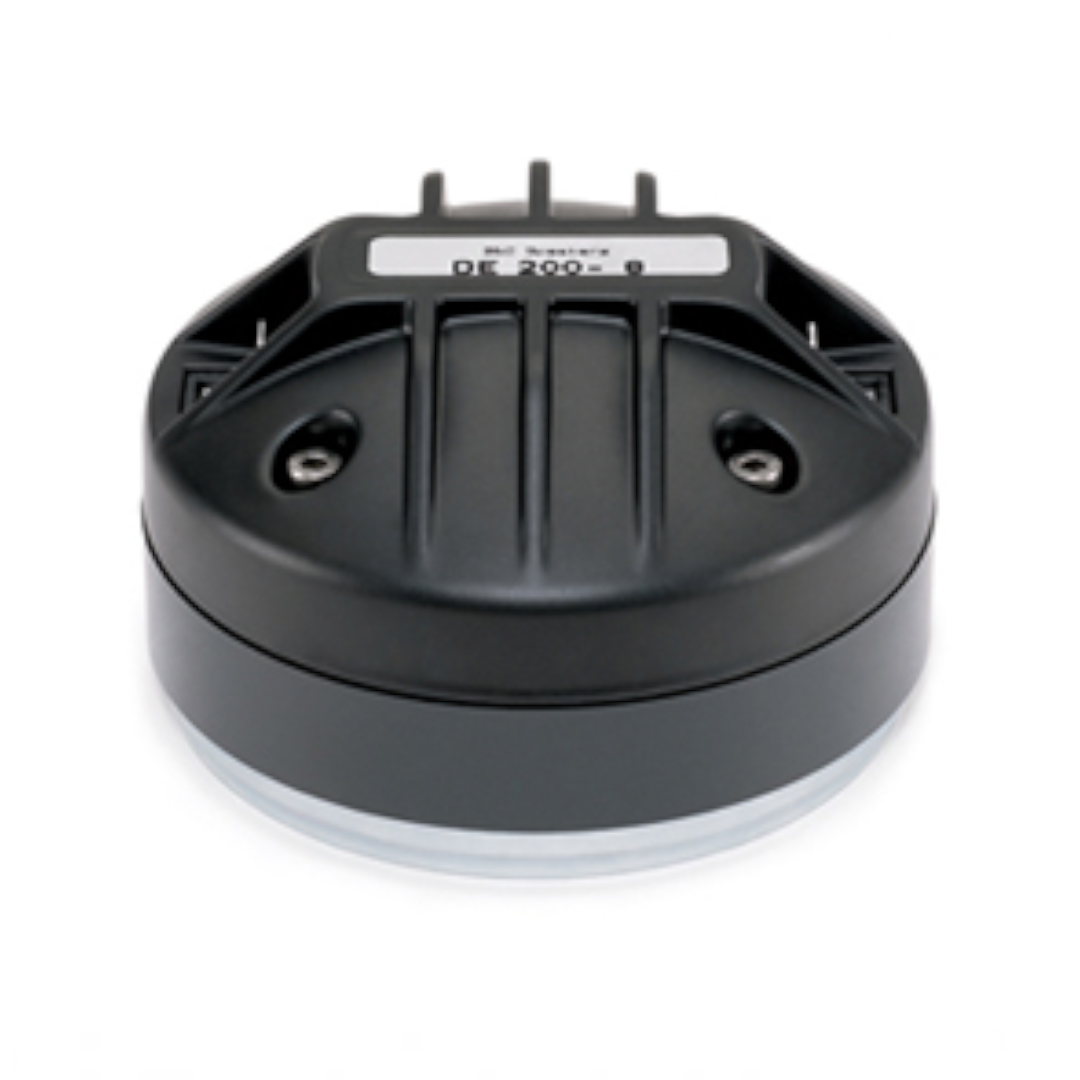

B&C DE200 1″ Professional High Frequency Compression Driver
The B&C DE200 is a professional 1-inch high frequency compression driver engineered to deliver exceptional output capability, high efficiency, and precise high-frequency reproduction for demanding sound reinforcement applications. Developed for professional loudspeaker systems requiring extended bandwidth, excellent vocal clarity, and long-term reliability, the B&C DE200 combines advanced motor technology with a robust titanium diaphragm assembly to produce consistent performance in portable, installed, and touring audio environments.
Designed for integration into professional PA systems, stage monitors, compact line arrays, and two-way or multi-way loudspeaker systems, the B&C DE200 utilizes a powerful magnetic structure and large diameter voice coil to achieve excellent transient response and acoustic efficiency. Its professional-grade construction enables the driver to operate reliably under demanding conditions while maintaining clarity and low distortion characteristics.
At the core of the B&C DE200 is a precision-engineered 44 mm aluminium voice coil coupled to a lightweight titanium diaphragm. This combination provides improved thermal management, excellent high-frequency extension, and increased mechanical stability, making the driver suitable for applications requiring both output capability and detailed reproduction.
With a frequency response extending from 1 kHz to 18 kHz, high sensitivity, and flexible mounting options, the B&C DE200 provides loudspeaker designers with a versatile compression driver solution capable of delivering professional performance across numerous applications.
Key Features
- 1-inch throat diameter
- 50 W nominal power handling
- 100 W continuous power handling
- 106 dB sensitivity
- 1 kHz – 18 kHz frequency response
- 44 mm (1.7 inch) aluminium voice coil
- Titanium diaphragm assembly
- High-efficiency compression driver design
- 1.5 T magnetic flux density
- Low inductance motor structure
- Dual mounting configuration compatibility
- Available in Button-On version
Professional Compression Driver Architecture
The B&C DE200 has been engineered to provide professional high-frequency performance while maintaining excellent reliability and acoustic consistency. Featuring a 25 mm (1 inch) throat diameter, the driver integrates easily with a wide range of professional horns and waveguides used in modern loudspeaker systems.
Its compression driver architecture promotes efficient acoustic coupling between the diaphragm assembly and horn structure, helping maximize sensitivity while maintaining controlled dispersion characteristics. This design contributes to improved projection, better intelligibility, and smoother integration with low-frequency transducers.
With a sensitivity rating of 106 dB, the driver provides strong acoustic output with relatively modest amplifier power requirements. This high efficiency makes it suitable for portable sound reinforcement systems and professional installation projects where output capability and reliability are critical.
The compact form factor also allows designers greater flexibility when developing high-performance loudspeaker systems.
High-Energy Magnetic Circuit Design
At the heart of the B&C DE200 is a carefully optimized magnetic structure engineered to provide precise diaphragm control and consistent performance.
The motor assembly generates 1.5 Tesla magnetic flux density, creating the magnetic force required for accurate diaphragm movement and efficient power conversion. The strong magnetic field contributes to improved transient response, low distortion characteristics, and stable performance across the operating range.
A properly controlled magnetic circuit is essential in compression driver applications where diaphragm movement must remain accurate even under high-output conditions. The B&C DE200 is engineered to maintain consistency during demanding operation while preserving articulation and musical detail.
Combined with the lightweight moving assembly, the magnetic structure contributes directly to the driver’s excellent sensitivity and acoustic efficiency.
Large Diameter Voice Coil Technology
The B&C DE200 utilizes a 44 mm (1.7 inch) aluminium voice coil designed to provide strong thermal performance and improved reliability.
The large diameter voice coil enables the driver to manage 50 W nominal power handling and 100 W continuous power handling, allowing it to perform effectively in professional applications where sustained output capability is required.
Aluminium winding material helps reduce moving mass, improving transient response and preserving high-frequency detail. This contributes to more accurate reproduction of vocals, speech content, and musical information.
The driver also features extremely low inductance at 0.11 mH, helping maintain extended high-frequency response and smooth operation throughout its bandwidth.
Titanium Diaphragm Performance
A major feature of the B&C DE200 is its titanium diaphragm, engineered for high output capability, durability, and extended high-frequency reproduction.
Titanium diaphragm construction offers increased rigidity compared to softer diaphragm materials, allowing improved control and enhanced high-frequency extension. This results in detailed reproduction of complex musical material while preserving clarity at higher output levels.
The diaphragm design contributes to the driver’s ability to reproduce frequencies up to 18 kHz, ensuring accurate vocal articulation, improved intelligibility, and detailed musical performance.
Its mechanical strength also supports long-term reliability in demanding professional environments where compression drivers are subjected to sustained use.
Wide Bandwidth Performance
The B&C DE200 offers a broad operating frequency range extending from 1 kHz to 18 kHz, providing wide bandwidth coverage for professional sound reinforcement applications.
Its lower frequency capability provides additional flexibility for system designers developing compact two-way loudspeaker systems or larger multi-way configurations.
B&C recommends a crossover frequency of 1.6 kHz, allowing designers to integrate the driver effectively while maintaining reliability and consistent performance.
The wide operating bandwidth contributes to natural vocal reproduction, clear speech intelligibility, and smooth integration within professional loudspeaker systems.
Professional System Integration
The B&C DE200 is designed for integration into numerous professional loudspeaker applications.
Typical applications include:
- Professional two-way loudspeakers
- Portable PA systems
- Stage monitoring systems
- Compact line array systems
- Installed sound systems
- Multi-way loudspeaker systems
- Speech reinforcement systems
- Touring sound reinforcement products
Its combination of strong power handling, flexible mounting options, and high efficiency provides designers with exceptional versatility.
Technical Specifications
Throat Diameter: 25 mm (1 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 7.5 Ω
Nominal Power Handling: 50 W
Continuous Power Handling: 100 W
Sensitivity: 106 dB
Frequency Range: 1 kHz – 18 kHz
Recommended Crossover: 1.6 kHz
Voice Coil Diameter: 44 mm (1.7 in)
Winding Material: Aluminium
Inductance: 0.11 mH
Flux Density: 1.5 T
Diaphragm Material: Titanium
Design Features
Driver Type: High Frequency Compression Driver
Throat Diameter: 25 mm (1 in)
Voice Coil Diameter: 44 mm (1.7 in)
Diaphragm Material: Titanium
Winding Material: Aluminium
Magnetic Flux Density: 1.5 T
Recommended Crossover Frequency: 1.6 kHz
Available Version: Button-On Version Available
Mounting Information
Mounting Configuration: Two M6 holes 180° on 76 mm (3 in) diameter
Additional Mounting Configuration: Three M6 holes 120° on 57 mm (2.2 in) diameter
Overall Diameter: 102 mm (4 in)
Depth: 61 mm (2.4 in)
Net Weight: 1.75 kg (3.86 lb)
Shipping Units: 1 Piece
Shipping Weight: 1.78 kg (3.92 lb)
Shipping Box: 105 × 105 × 65 mm
Replacement Diaphragm: MMD2008
Applications
The B&C DE200 is engineered for professional applications requiring reliable output capability, extended bandwidth performance, and accurate high-frequency reproduction. Its titanium diaphragm, large diameter voice coil, and professional magnetic structure make it particularly suitable for portable PA systems, stage monitors, installed sound reinforcement products, compact line arrays, and professional loudspeaker systems.
With excellent efficiency, flexible mounting compatibility, and proven B&C engineering, the B&C DE200 provides system designers with a professional compression driver solution capable of delivering consistent high-frequency performance under demanding operating conditions. For applications requiring durability, output capability, and detailed sound reproduction, the B&C DE200 remains an excellent choice for professional audio system design.
