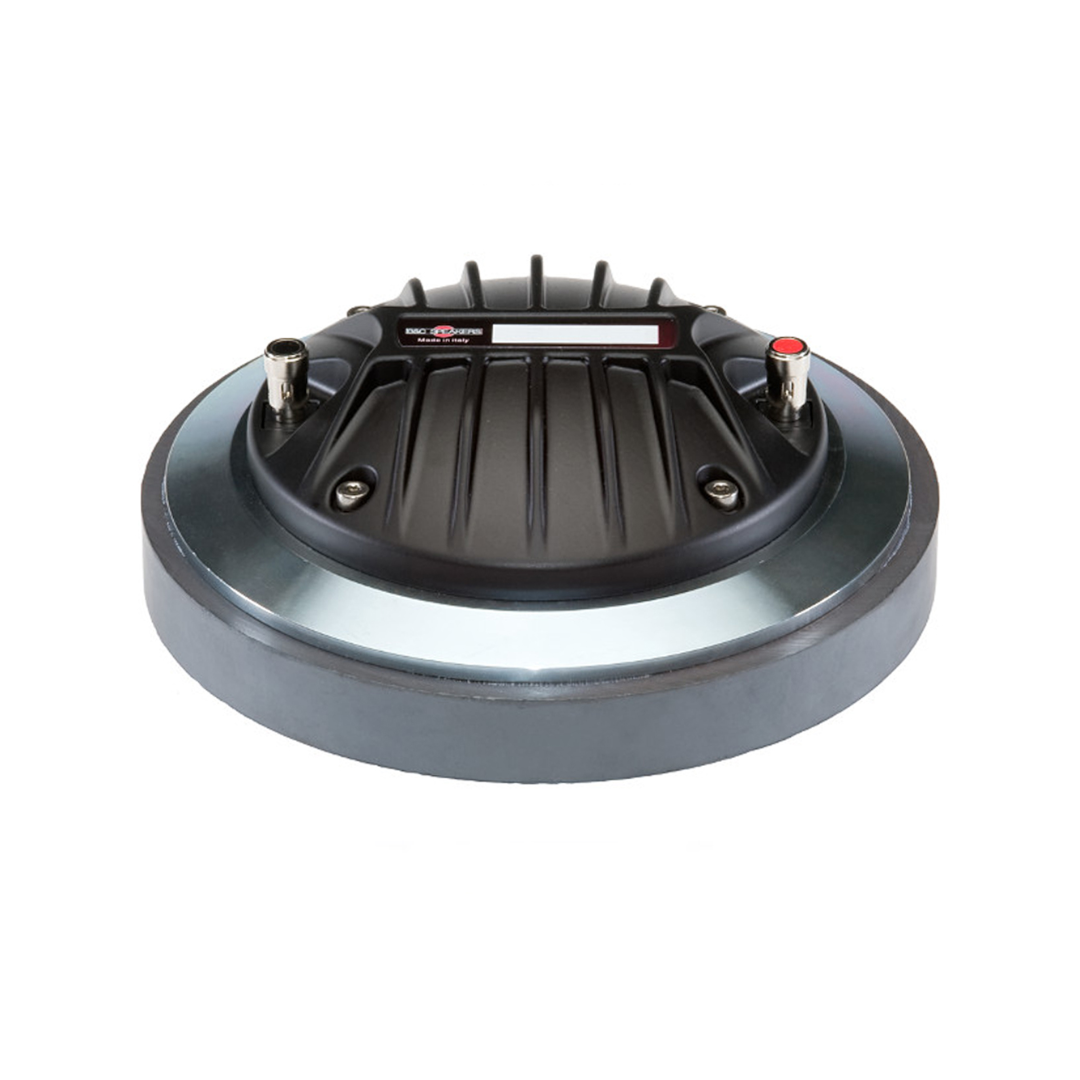

B&C DE95TN – High-Output 2-Inch Titanium Compression Driver for Professional Touring and Large-Scale Sound Reinforcement
The B&C DE95TN is a premium large-format 2-inch high-frequency compression driver designed to deliver exceptional output, outstanding reliability, and extended frequency response for the most demanding professional audio applications. Built around a powerful 75 mm (3-inch) aluminium voice coil, high-flux neodymium magnetic assembly, and precision titanium diaphragm, the B&C DE95TN is engineered to meet the rigorous demands of modern touring systems, stadium sound reinforcement, concert venues, large-scale installations, and high-performance professional loudspeaker designs.
When designing professional sound systems, compression drivers must deliver more than simply high-frequency reproduction. They must provide the power handling, sensitivity, and bandwidth necessary to maintain vocal intelligibility, musical detail, and dynamic impact at extremely high sound pressure levels. The B&C DE95TN has been specifically developed to excel in these areas, providing an impressive combination of 110 W AES power handling, 220 W continuous programme power capacity, and a highly efficient 107.5 dB sensitivity rating.
One of the defining characteristics of the B&C DE95TN is its ability to operate effectively from 500 Hz to 18 kHz, making it suitable for systems requiring lower crossover points and wider bandwidth coverage. This extended low-frequency capability allows smoother integration with midrange and low-frequency sections while improving coherence through the critical vocal spectrum. The result is a more natural, articulate, and powerful listening experience across a wide range of professional applications.
The titanium diaphragm provides excellent stiffness-to-weight characteristics, ensuring accurate transient response and low distortion throughout the driver’s operating range. Combined with a powerful 1.8 Tesla neodymium motor structure, the DE95TN delivers the efficiency, clarity, and reliability demanded by professional audio engineers worldwide.
Whether deployed in a touring line array, a high-output point-source loudspeaker, a stadium PA system, or a permanent installation requiring exceptional performance and durability, the B&C DE95TN offers the acoustic performance and engineering excellence expected from one of the industry’s most respected loudspeaker component manufacturers.
Built for Professional Sound Reinforcement
The B&C DE95TN has been developed specifically for professional applications where maximum performance and long-term reliability are essential.
Modern sound reinforcement systems must satisfy increasingly demanding requirements, including:
- High continuous output levels
- Excellent speech intelligibility
- Wide frequency coverage
- Consistent performance at elevated SPLs
- Low distortion reproduction
- Extended operating bandwidth
- Reliable long-term operation
The DE95TN addresses these requirements through a carefully engineered combination of advanced materials, high-efficiency motor technology, and precision acoustic design.
Its large-format architecture allows it to reproduce critical vocal frequencies and high-frequency content with authority and clarity while maintaining the dynamic capability necessary for live music reinforcement and large venue applications.
For system designers seeking a premium compression driver capable of delivering consistent professional performance, the B&C DE95TN is an outstanding solution.
Powerful 75 mm Voice Coil for Exceptional Thermal Stability
At the heart of the B&C DE95TN is a large 75 mm (3-inch) aluminium voice coil.
The voice coil plays a crucial role in determining the driver’s overall performance characteristics, including power handling, thermal stability, dynamic capability, and long-term reliability.
The large-diameter voice coil offers several significant benefits:
Improved Heat Dissipation
Greater surface area allows heat to be distributed and dissipated more efficiently.
Higher Power Handling
The driver can comfortably manage demanding programme material without performance degradation.
Reduced Thermal Compression
Output levels remain more consistent during prolonged operation.
Enhanced Reliability
The voice coil is better equipped to withstand continuous professional use.
Increased Dynamic Headroom
The driver can reproduce demanding musical peaks with greater authority.
The DE95TN achieves:
- 110 W nominal power handling
- 220 W continuous programme power handling
These specifications make it highly suitable for large-scale professional sound reinforcement systems where sustained output and reliability are critical.
High-Energy Neodymium Motor Assembly
The B&C DE95TN incorporates a powerful neodymium magnetic system generating an impressive 1.8 Tesla flux density.
This high-energy motor structure contributes directly to the driver’s efficiency, control, and acoustic performance.
Benefits include:
Superior Efficiency
More acoustic output is generated from available amplifier power.
Improved Diaphragm Control
Greater magnetic force ensures accurate diaphragm movement.
Enhanced Transient Response
Fast programme material is reproduced with excellent precision.
Reduced Distortion
Improved motor control helps minimise unwanted artefacts.
Increased Dynamic Accuracy
The driver responds quickly to changes in programme content.
The result is a compression driver capable of reproducing music and speech with exceptional clarity and consistency even at high sound pressure levels.
Premium Titanium Diaphragm Performance
The B&C DE95TN utilises a precision-engineered titanium diaphragm, a material widely regarded as one of the most effective solutions for professional compression driver applications.
Titanium offers an excellent combination of:
- High rigidity
- Low mass
- Excellent durability
- Strong fatigue resistance
- Outstanding transient response
- Long-term stability
These characteristics allow the diaphragm to maintain accurate motion throughout its operating range while preserving clarity and detail.
The titanium diaphragm contributes significantly to the DE95TN’s ability to reproduce:
- Vocals with exceptional articulation
- Musical transients with precision
- High-frequency detail with accuracy
- Dynamic programme material with authority
This makes the driver particularly well suited for professional touring systems, live performance venues, and premium installation projects.
Wide Frequency Response for Greater Design Flexibility
The B&C DE95TN delivers an exceptionally useful frequency response spanning:
500 Hz – 18 kHz
This broad bandwidth provides loudspeaker designers with increased flexibility when developing professional systems.
Benefits of the extended operating range include:
- Lower crossover capabilities
- Improved system integration
- Enhanced vocal reproduction
- Reduced crossover complexity
- Better directivity control
- Smoother overall frequency response
The ability to reproduce frequencies down to 500 Hz allows the driver to cover a significant portion of the critical vocal range while maintaining the efficiency and projection advantages of a compression driver.
For high-performance loudspeaker systems, this capability can significantly improve overall coherence and intelligibility.
Optimised for Low Crossover Frequencies
The B&C DE95TN features a recommended crossover frequency of:
1 kHz
This relatively low crossover point offers numerous advantages for professional loudspeaker design.
A lower crossover frequency can provide:
- Improved vocal consistency
- Better phase integration
- Enhanced directivity matching
- Smoother system response
- Improved speech intelligibility
In large-format sound reinforcement systems, maintaining consistency through the vocal spectrum is essential.
The DE95TN’s low crossover capability allows it to integrate effectively with larger low-frequency sections while maintaining excellent tonal balance.
Outstanding Sensitivity for Maximum Output
With a sensitivity rating of 107.5 dB, the B&C DE95TN delivers exceptional acoustic efficiency.
High sensitivity offers several important advantages:
Higher Acoustic Output
Greater SPL can be achieved with less amplifier power.
Improved System Efficiency
Amplifiers operate more effectively across the system.
Increased Dynamic Headroom
Additional reserve output is available for demanding programme peaks.
Lower Thermal Stress
The driver requires less power input to achieve target levels.
Enhanced Reliability
Reduced amplifier strain contributes to overall system stability.
This combination of efficiency and power handling makes the DE95TN ideal for professional systems where high output and long-term reliability are priorities.
Low Inductance for Accurate High-Frequency Reproduction
The B&C DE95TN features a low inductance value of:
0.14 mH
Low inductance contributes to:
- Improved transient response
- Better phase behaviour
- Enhanced high-frequency extension
- Cleaner crossover integration
- Greater detail retrieval
These characteristics allow the DE95TN to reproduce complex programme material with excellent accuracy and definition.
Whether reproducing vocals, acoustic instruments, orchestral material, or modern live music content, the driver maintains clarity throughout its operating range.
Engineered for Demanding Professional Applications
The B&C DE95TN is ideally suited for a wide range of professional audio systems, including:
- Touring sound systems
- Arena PA systems
- Stadium installations
- Festival sound reinforcement
- Theatre sound systems
- Houses of worship
- Concert venues
- High-output point source loudspeakers
- Premium installation systems
- Professional line arrays
- Corporate AV environments
- Performing arts centres
Its combination of efficiency, power handling, and bandwidth makes it a versatile choice for system designers and manufacturers seeking premium compression driver performance.
Rugged Mechanical Construction
The B&C DE95TN is built to withstand the challenges of professional use.
Installation features include:
- Four M6 mounting holes
- 102 mm bolt circle
- Industry-standard mounting compatibility
- Robust aluminium construction
- Precision manufacturing tolerances
Physical dimensions include:
- Overall diameter: 170 mm
- Depth: 66 mm
- Net weight: 4.32 kg
The substantial motor assembly and durable construction ensure reliable operation in demanding touring and installation environments.
Technical Specifications
B&C DE95TN Technical Specifications
Throat Diameter: 50 mm (2 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 8.3 Ω
Nominal Power Handling: 110 W
Continuous Power Handling: 220 W
Sensitivity: 107.5 dB
Frequency Range: 500 Hz – 18 kHz
Recommended Crossover Frequency: 1 kHz
Voice Coil Diameter: 75 mm (3 in)
Winding Material: Aluminium
Inductance: 0.14 mH
Flux Density: 1.8 T
Diaphragm Material: Titanium
Mounting Information
B&C DE95TN Dimensions and Installation Data
Mounting Pattern: Four M6 holes positioned 90° apart on a 102 mm (4 in) bolt circle
Overall Diameter: 170 mm (6.7 in)
Depth: 66 mm (2.6 in)
Net Weight: 4.32 kg (9.52 lb)
Shipping Weight: 4.44 kg (9.79 lb)
Shipping Box Dimensions: 190 x 190 x 80 mm (7.48 x 7.48 x 3.15 in)
Why Choose the B&C DE95TN?
The B&C DE95TN is a high-performance 2-inch compression driver that combines substantial power handling, excellent efficiency, and wide bandwidth in a rugged professional package. Its 75 mm aluminium voice coil, 1.8 Tesla neodymium motor, and precision titanium diaphragm work together to deliver the output, reliability, and sonic performance required for today’s most demanding professional audio systems.
With 110 W AES power handling, 220 W programme power capacity, 107.5 dB sensitivity, and a frequency response extending from 500 Hz to 18 kHz, the B&C DE95TN offers exceptional flexibility for loudspeaker manufacturers, system integrators, and professional audio engineers.
Whether used in touring systems, stadium sound reinforcement, theatre installations, or premium fixed installations, the B&C DE95TN delivers the clarity, projection, reliability, and acoustic performance that have made B&C Speakers a trusted choice throughout the global professional audio industry.
