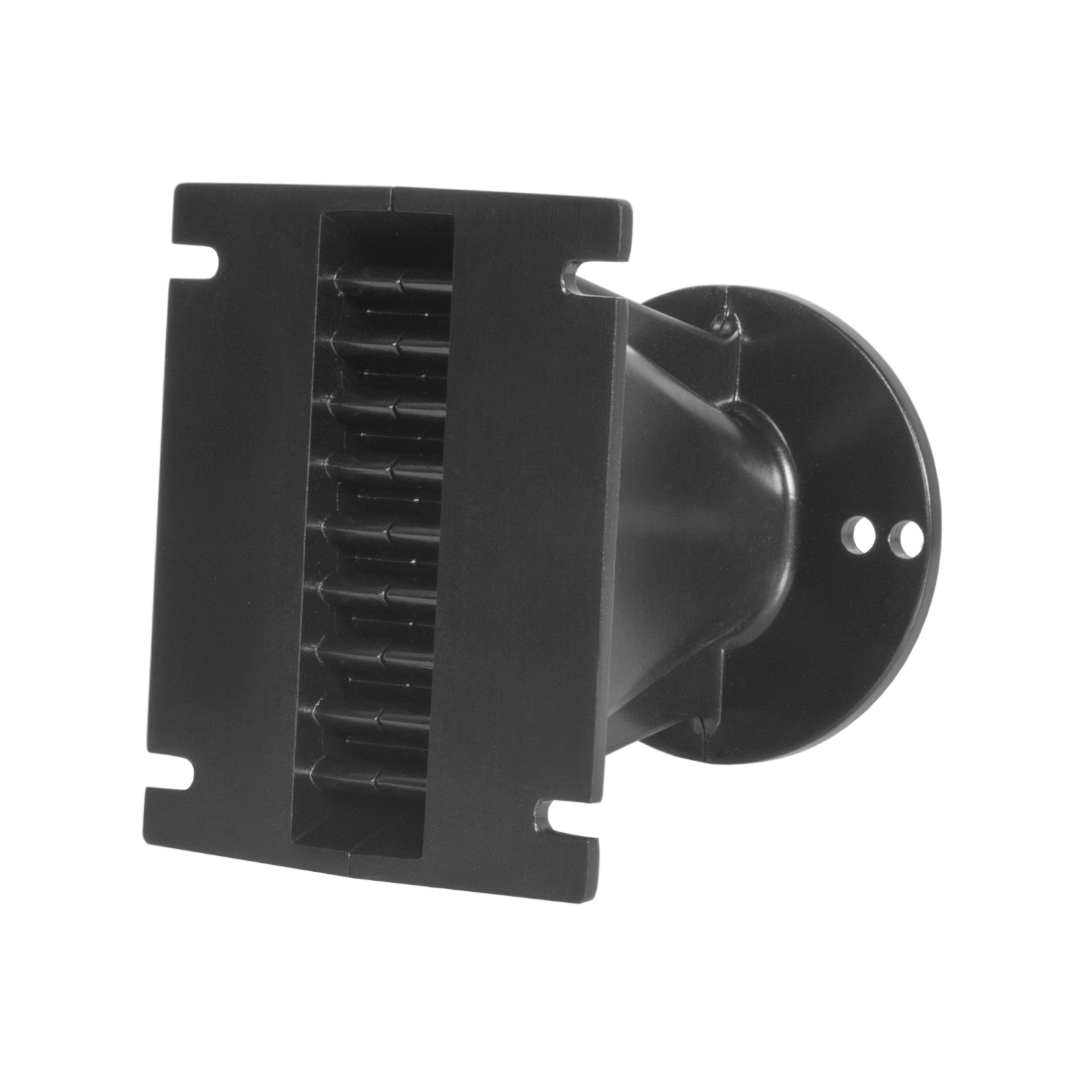

B&C ME102 Line Array Optimized Waveguide
The B&C ME102 is a professional-grade 1-inch line array optimized waveguide engineered to provide exceptional horizontal coverage, precise acoustic coupling, and superior performance in modern line array and high-output loudspeaker systems. Designed specifically for applications where consistent coverage, controlled directivity, and maximum intelligibility are essential, the B&C ME102 combines advanced acoustic engineering with durable cast aluminium construction to deliver reliable results in demanding professional audio environments.
Unlike conventional horns that are designed for standalone loudspeaker systems, the B&C ME102 has been developed as a specialized waveguide solution optimized for line array applications. Its unique geometry allows sound engineers and loudspeaker designers to achieve smooth horizontal coverage while maintaining the controlled vertical characteristics required for effective line source behavior. This design approach helps create more consistent audience coverage, improved system coherence, and enhanced long-throw performance in venues ranging from theaters and houses of worship to stadiums and large-scale touring systems.
One of the defining characteristics of the B&C ME102 is its exceptionally wide 140-degree horizontal coverage pattern. This broad dispersion enables designers to cover large audience areas with fewer components while maintaining uniform sound distribution throughout the listening space. Combined with a low 1 kHz cutoff frequency and rugged cast aluminium construction, the waveguide offers a powerful solution for demanding professional sound reinforcement applications.
Whether incorporated into OEM loudspeaker designs, custom line array systems, or advanced installation projects, the B&C ME102 delivers the coverage control, durability, and acoustic performance expected from B&C professional audio products.
Designed Specifically for Line Array Applications
The B&C ME102 differs from traditional constant-directivity horns because it has been specifically engineered as a line array optimized waveguide. This specialized design allows it to integrate seamlessly into modern line source loudspeaker systems where multiple high-frequency devices must work together as a coherent acoustic system.
In line array applications, maintaining consistent coupling between adjacent waveguides is essential for achieving predictable coverage and minimizing interference effects. The B&C ME102 has been developed to support this objective by providing optimized wavefront control and improved acoustic integration between array elements.
The result is a smoother frequency response throughout the coverage area, improved intelligibility, and more uniform sound pressure levels across audience zones. These characteristics make the ME102 particularly attractive for manufacturers and designers developing professional touring arrays and fixed-installation line array systems.
Its specialized design supports the demanding performance requirements of modern sound reinforcement while helping engineers achieve greater consistency throughout large venues.
Ultra-Wide 140° Horizontal Coverage
One of the most significant advantages of the B&C ME102 is its exceptionally wide 140-degree horizontal coverage pattern. This expansive dispersion allows a single waveguide to cover a broader audience area than many conventional horn designs.
Wide horizontal coverage is particularly beneficial in venues where audience seating extends significantly to the left and right of the loudspeaker system. By distributing acoustic energy evenly across a larger listening area, the ME102 helps ensure consistent sound quality and coverage throughout the venue.
This broad dispersion pattern can also reduce the number of loudspeaker elements required to achieve complete audience coverage, improving system efficiency and simplifying overall design requirements.
For large venues, performance spaces, houses of worship, theaters, and live event environments, the wide coverage characteristics of the B&C ME102 contribute significantly to improved audience experiences and more predictable system performance.
Low 1 kHz Cutoff Frequency
The B&C ME102 features a low cutoff frequency of 1 kHz, providing exceptional flexibility for system designers and loudspeaker manufacturers.
A lower cutoff frequency allows the waveguide to maintain directivity control deeper into the midrange region, improving integration between low-frequency and high-frequency transducers. This contributes to smoother crossover implementation, enhanced vocal reproduction, and more consistent dispersion through critical crossover frequencies.
The ability to operate effectively down to 1 kHz allows designers greater freedom when selecting compression drivers and crossover points. This flexibility is especially valuable in professional systems where maintaining uniform directivity and consistent frequency response is a primary design goal.
The low cutoff frequency also supports improved speech intelligibility and enhanced musical accuracy, particularly in applications where vocal clarity is critical.
Cast Aluminium Construction for Maximum Durability
Professional loudspeaker components must maintain performance under demanding operating conditions. To ensure long-term reliability, the B&C ME102 utilizes a rugged cast aluminium construction.
Cast aluminium offers substantial advantages over lightweight plastic alternatives. Its superior rigidity helps maintain the waveguide’s precise acoustic geometry even under high-output conditions where vibration and mechanical stress may be present.
Maintaining dimensional accuracy is essential for preserving the intended coverage pattern and acoustic performance. The robust structure of the ME102 helps ensure consistent operation throughout years of professional use.
In addition to acoustic benefits, cast aluminium provides excellent resistance to physical impacts, environmental stress, and transportation-related wear. This makes the B&C ME102 particularly suitable for touring systems, rental inventories, and fixed installations where durability is a critical consideration.
The combination of strength, stability, and reliability contributes significantly to the professional-grade performance expected from B&C components.
Optimized Acoustic Performance
The B&C ME102 has been carefully engineered to maximize acoustic efficiency while maintaining smooth and controlled dispersion characteristics.
Efficient acoustic loading allows compatible compression drivers to transfer energy more effectively into the listening environment. This improved efficiency can contribute to higher system output levels, reduced distortion, and improved overall performance.
The waveguide geometry has been optimized to minimize acoustic anomalies while promoting consistent frequency response throughout the intended coverage area. This attention to detail helps maintain tonal balance and listening consistency across the audience.
For professional audio engineers, predictable performance is essential. The ME102 provides the consistency needed to create reliable system designs that perform as intended in real-world environments.
Enhanced Speech Intelligibility
Clear speech reproduction remains one of the most important objectives in professional sound reinforcement. The B&C ME102 contributes significantly to speech intelligibility through its controlled acoustic behavior and wide horizontal coverage pattern.
By directing sound energy efficiently toward listeners, the waveguide helps minimize acoustic losses and maintain vocal clarity throughout the coverage area. Consistent dispersion ensures that audience members receive balanced sound regardless of their seating location.
Applications such as conference centers, educational facilities, transportation terminals, houses of worship, and public address systems can benefit greatly from the ME102’s ability to maintain clear and intelligible speech reproduction.
The waveguide’s optimized performance helps ensure that spoken content remains understandable even in challenging acoustic environments.
Ideal for High-Performance Music Reinforcement
While speech clarity is important, the B&C ME102 also excels in professional music reinforcement systems. Its wide horizontal coverage and efficient acoustic loading contribute to accurate musical reproduction with excellent detail and definition.
Vocals remain natural and articulate, while instruments retain their tonal balance and dynamic character. The controlled dispersion characteristics help deliver consistent sound quality throughout the listening area, ensuring that audience members experience similar performance regardless of location.
The ME102’s ability to maintain coverage uniformity makes it particularly valuable in concert venues, live performance spaces, entertainment facilities, and large-scale event systems.
Its line array optimization further enhances its suitability for professional music reinforcement where long-throw capability and consistent audience coverage are essential.
Compact Design for Flexible Integration
Despite its professional capabilities, the B&C ME102 maintains compact physical dimensions that simplify integration into loudspeaker enclosures and array systems.
Measuring just 110.6 x 87 x 111.6 mm, the waveguide offers exceptional performance while minimizing space requirements. This compact design allows loudspeaker manufacturers greater flexibility when developing modern cabinet designs.
The relatively small footprint makes the ME102 especially attractive for line array applications where multiple waveguides must be positioned in close proximity to achieve optimal coupling and system performance.
Its compact size also contributes to reduced system weight and improved installation flexibility.
Broad Compatibility with 1-Inch Compression Drivers
The B&C ME102 utilizes a standard 25 mm (1 inch) throat diameter, ensuring compatibility with a wide range of professional compression drivers.
This industry-standard interface allows designers to select drivers based on specific performance objectives while maintaining straightforward integration into existing designs. Proper acoustic coupling between the driver and waveguide helps maximize efficiency and preserve intended performance characteristics.
The waveguide’s compatibility with numerous professional compression drivers increases its versatility and makes it suitable for a wide range of OEM and custom loudspeaker projects.
Whether designing new products or upgrading existing systems, the ME102 provides flexibility without compromising performance.
Suitable Applications
The B&C ME102 is engineered for a wide range of professional audio applications, including:
- Line array systems
- Touring sound reinforcement
- Concert audio systems
- Large-scale venue installations
- Theaters
- Auditoriums
- Houses of worship
- Stadium sound systems
- Arena audio systems
- Conference facilities
- Public address systems
- OEM loudspeaker manufacturing
- Custom loudspeaker projects
- Entertainment venues
- High-performance installation systems
Its combination of wide coverage, compact dimensions, and line array optimization makes it a highly versatile component for modern professional audio designs.
Technical Specifications
General Specifications
- Product Model: B&C ME102
- Throat Diameter: 25 mm (1 in)
- Nominal Horizontal Coverage: 140°
- Cutoff Frequency: 1 kHz
- Material: Cast Aluminium
- Design: Line Array Optimized Waveguide
Dimensions
- Dimensions: 110.6 x 87 x 111.6 mm (4.35 x 3.43 x 4.39 in)
- Baffle Cutout Dimension: 102.4 mm (4.03 in)
- Air Volume Occupied by Driver: 0.15 dm³ (0.01 ft³)
Mounting and Shipping Information
- Net Weight: 0.43 kg (0.95 lb)
- Shipping Units: 1 Piece
- Shipping Weight: 0.49 kg (1.08 lb)
- Shipping Box Dimensions: 165 x 165 x 100 mm (6.50 x 6.50 x 3.94 in)
Conclusion
The B&C ME102 is a professional line array optimized waveguide designed to deliver exceptional horizontal coverage, reliable directivity control, and outstanding acoustic performance in demanding sound reinforcement applications. Featuring a wide 140° horizontal dispersion pattern, low 1 kHz cutoff frequency, rugged cast aluminium construction, and compatibility with standard 1-inch compression drivers, the ME102 provides an excellent solution for modern line array systems and high-performance loudspeaker designs. Whether deployed in touring systems, large-scale installations, concert venues, or custom speaker projects, the B&C ME102 delivers the consistency, durability, and professional performance required by today’s audio engineers and system designers.
