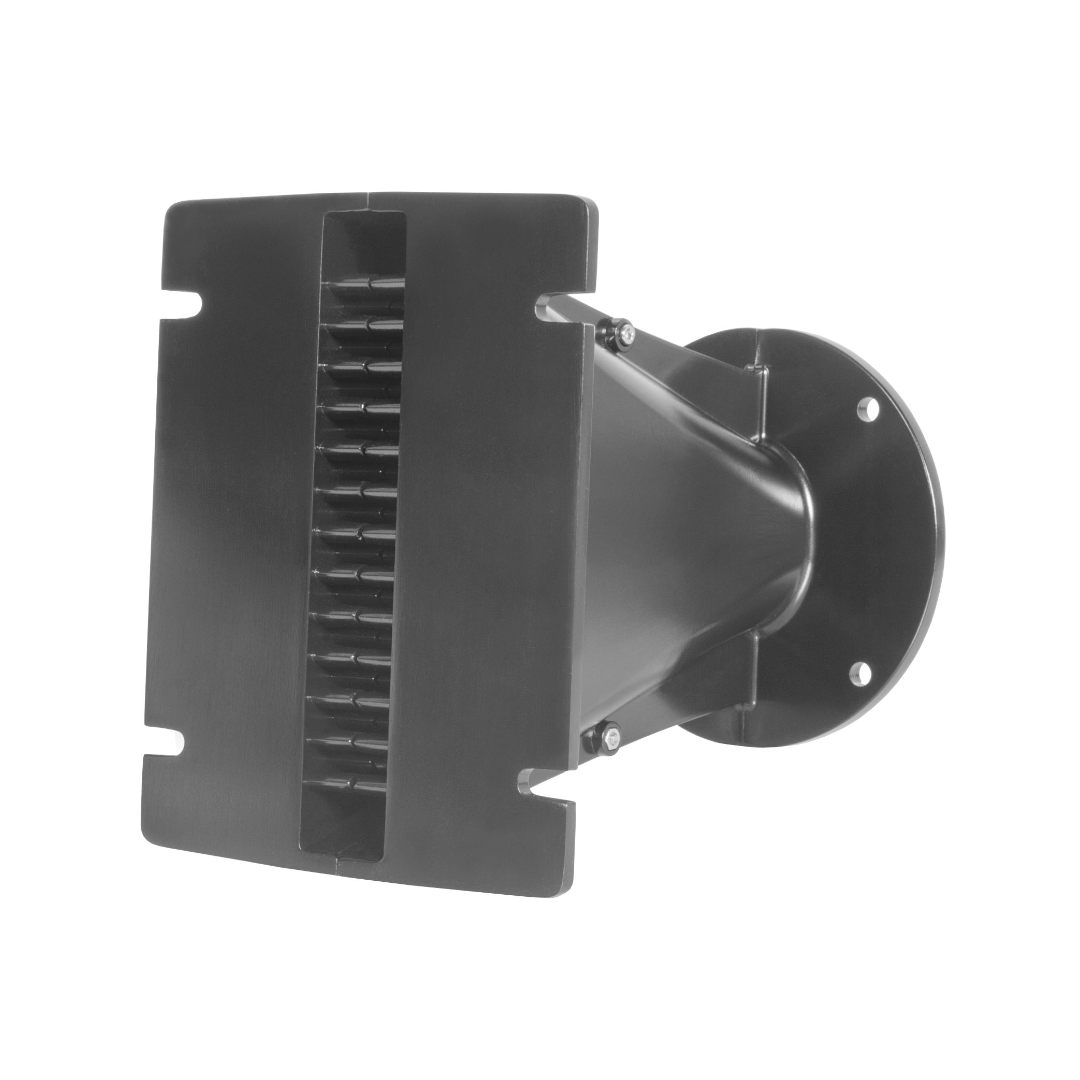

B&C ME142 Line Array Optimized Waveguide
The B&C ME142 is a professional line array optimized waveguide engineered to provide precise coverage control, exceptional acoustic consistency, and seamless integration with high-performance compression drivers. Designed specifically for modern line array systems and advanced loudspeaker designs, the ME142 combines a wide horizontal coverage pattern with controlled directivity characteristics that help deliver uniform sound distribution across large audience areas.
In professional sound reinforcement, the waveguide plays a critical role in determining how sound is projected throughout a venue. While the compression driver generates the acoustic energy, the waveguide shapes and directs that energy to achieve the desired coverage pattern. Effective waveguide design is essential for maintaining tonal consistency, maximizing audience coverage, improving intelligibility, and reducing unwanted acoustic interactions between adjacent loudspeaker elements.
The B&C ME142 has been developed specifically for these demanding requirements. Featuring a 1.4-inch throat diameter, a wide 120° horizontal coverage pattern, an 800 Hz cutoff frequency, and a line array optimized design, the waveguide delivers the control and performance required in professional touring, installation, and large-scale sound reinforcement systems.
Constructed from durable cast aluminium, the ME142 provides excellent structural rigidity and long-term reliability while maintaining the precise acoustic geometry necessary for consistent performance. Whether used in line arrays, installation systems, performance venues, houses of worship, theatres, or custom loudspeaker projects, the B&C ME142 offers the coverage control and acoustic precision required by modern professional audio applications.
Purpose-Built for Line Array Systems
The B&C ME142 has been specifically engineered as a line array optimized waveguide, making it an ideal solution for applications where multiple loudspeaker elements must operate together as a coherent system.
Line arrays require carefully controlled wavefront behaviour to ensure smooth summation between adjacent cabinets. Poorly controlled dispersion can result in comb filtering, inconsistent coverage, and tonal variations throughout the listening area.
The ME142 helps address these challenges through its optimized waveguide geometry, allowing sound energy to be distributed more predictably across the audience. This contributes to improved array performance, smoother coverage transitions, and greater overall system consistency.
For system designers and manufacturers developing modern line array solutions, the ME142 provides an effective foundation for achieving professional results.
Wide 120° Horizontal Coverage
One of the most significant features of the B&C ME142 is its exceptionally wide 120° horizontal coverage pattern.
Wide horizontal dispersion allows sound systems to cover larger audience areas while maintaining consistent frequency response and tonal balance. This can reduce the number of loudspeaker cabinets required while helping ensure that listeners throughout the venue receive a similar listening experience.
The 120° coverage pattern is particularly beneficial in:
- Large auditoriums
- Houses of worship
- Performance venues
- Conference facilities
- Outdoor event spaces
- Educational institutions
- Sports venues
- Entertainment complexes
By delivering broad horizontal coverage, the ME142 helps maximize audience coverage while maintaining excellent sound quality and intelligibility.
1.4-Inch Throat Compatibility
The B&C ME142 features a 36 mm (1.4-inch) throat diameter, making it compatible with a wide range of professional compression drivers.
The 1.4-inch format has become one of the most widely used standards in professional audio due to its balance of output capability, bandwidth, and system flexibility. This compatibility allows system designers to integrate the ME142 with numerous high-performance driver options while maintaining optimal acoustic performance.
The throat geometry has been carefully engineered to provide smooth acoustic coupling between the compression driver and waveguide, helping maximize efficiency while minimizing unwanted response anomalies.
This makes the ME142 a versatile solution for both OEM loudspeaker manufacturers and custom loudspeaker designers.
Low 800 Hz Cutoff Frequency
The B&C ME142 provides an 800 Hz cutoff frequency, allowing compression drivers to operate effectively at lower crossover points.
A lower cutoff frequency provides several important benefits during loudspeaker design. It enables smoother integration between low-frequency and high-frequency components while reducing the crossover region where directivity inconsistencies may occur.
Advantages include:
- Improved crossover integration
- Enhanced vocal reproduction
- Better tonal consistency
- Increased system coherence
- More natural frequency response
- Improved directivity control
These characteristics make the ME142 particularly well suited for high-performance professional sound reinforcement systems.
Improved Array Performance
When multiple loudspeaker elements are combined within a line array system, maintaining consistent coverage becomes increasingly important.
The B&C ME142 has been optimized to support smooth interaction between adjacent waveguides, helping reduce interference and improve overall array behaviour. This allows sound energy to be projected more effectively across large audience areas while preserving tonal consistency.
Improved array performance contributes to:
- More uniform audience coverage
- Reduced acoustic interference
- Improved frequency response consistency
- Better intelligibility
- Enhanced long-throw performance
- Greater system predictability
These benefits are critical in modern touring and installation systems where audience coverage requirements can be extremely demanding.
Excellent Speech Intelligibility
Speech clarity remains one of the most important objectives in professional audio system design.
The controlled dispersion characteristics of the B&C ME142 help direct sound energy toward listeners while minimizing unwanted reflections and acoustic interactions. This improves speech intelligibility and helps preserve vocal clarity throughout the coverage area.
Applications that benefit significantly from enhanced intelligibility include:
- Houses of worship
- Educational facilities
- Conference centres
- Government buildings
- Transportation hubs
- Corporate AV systems
- Public address installations
By maintaining consistent coverage and reducing off-axis irregularities, the ME142 helps ensure that spoken content remains clear and understandable.
Accurate Music Reproduction
In addition to speech applications, the B&C ME142 performs exceptionally well in music reinforcement systems.
Wide and consistent coverage allows audiences throughout a venue to experience balanced sound reproduction with minimal tonal variation. This improves the listening experience while preserving musical detail and dynamics.
Benefits for music applications include:
- Improved instrument separation
- Enhanced vocal definition
- Better tonal balance
- Greater clarity
- Consistent audience experience
- Improved high-frequency detail
These characteristics make the ME142 suitable for live music venues, touring systems, theatres, entertainment facilities, and large-scale sound reinforcement applications.
Durable Cast Aluminium Construction
The B&C ME142 is manufactured from cast aluminium, providing outstanding durability and structural integrity.
Professional audio equipment often operates in demanding environments where reliability is essential. Cast aluminium construction offers several advantages, including exceptional strength, resistance to impact damage, and long-term dimensional stability.
Benefits include:
- High structural rigidity
- Excellent durability
- Reduced resonance
- Long-term reliability
- Stable acoustic geometry
- Professional-grade construction
This robust design makes the ME142 suitable for both touring applications and permanent installations where equipment must withstand years of continuous operation.
Precision Acoustic Geometry
Waveguide performance depends heavily on maintaining precise acoustic geometry throughout the product’s lifespan.
The cast aluminium construction of the B&C ME142 helps preserve the exact shape and dimensions required for optimal performance. This ensures that the waveguide continues to provide predictable dispersion characteristics even after extended use.
Maintaining accurate geometry contributes to:
- Consistent directivity
- Stable frequency response
- Reliable system performance
- Reduced acoustic variation
- Improved array consistency
For professional users, this translates into dependable performance and greater confidence during system deployment.
Compact Dimensions for Flexible Integration
Despite its impressive coverage capabilities, the B&C ME142 maintains relatively compact dimensions of 163 x 130 x 180 mm.
The compact design allows the waveguide to be integrated into a wide range of loudspeaker systems without requiring excessive enclosure space. This flexibility is particularly valuable for manufacturers developing compact line array elements and installation loudspeakers.
Its efficient form factor supports:
- Compact array designs
- Portable sound systems
- Installation loudspeakers
- OEM speaker manufacturing
- Custom loudspeaker projects
- Performance-oriented cabinet designs
The result is greater flexibility during system development without compromising acoustic performance.
Suitable for a Wide Range of Professional Applications
The versatility of the B&C ME142 allows it to perform effectively across numerous professional audio environments.
Common applications include:
- Line array systems
- Touring sound reinforcement
- Installation loudspeakers
- Houses of worship
- Theatres
- Auditoriums
- Corporate AV systems
- Educational facilities
- Entertainment venues
- Performance spaces
- OEM loudspeaker manufacturing
- Custom audio projects
Its combination of wide coverage, low cutoff frequency, durable construction, and optimized waveguide design makes it suitable for virtually any application requiring professional coverage control.
Technical Specifications
General Specifications
- Product Model: B&C ME142
- Throat Diameter: 36 mm (1.4 in)
- Nominal Coverage Horizontal: 120°
- Cutoff Frequency: 0.8 kHz
- Material: Cast Aluminium
- Design: Line Array Optimized Waveguide
Dimensions
- Dimensions: 163 x 130 x 180 mm (6.42 x 5.12 x 7.09 in)
- Baffle Cutout Dimension: 153 mm (6 in)
- Air Volume Occupied by Driver: 0.34 dm³ (0.01 ft³)
Mounting and Shipping Information
- Net Weight: 1.05 kg (2.31 lb)
- Shipping Units: 1 pc
- Shipping Weight: 1.15 kg (2.53 lb)
- Shipping Box Dimensions: 190 x 135 x 165 mm (7.48 x 5.31 x 6.50 in)
Conclusion
The B&C ME142 is a professional line array optimized waveguide designed to deliver wide coverage, controlled directivity, and reliable long-term performance. Featuring a 1.4-inch throat diameter, broad 120° horizontal coverage pattern, low 800 Hz cutoff frequency, precision waveguide geometry, and durable cast aluminium construction, the ME142 provides the performance and flexibility required for modern professional audio systems.
Whether used in touring line arrays, installation loudspeakers, theatres, houses of worship, auditoriums, or custom loudspeaker projects, the B&C ME142 offers the coverage consistency, acoustic control, and reliability needed to achieve exceptional results. For audio professionals seeking a high-performance waveguide optimized for demanding sound reinforcement applications, the B&C ME142 is an outstanding choice.
