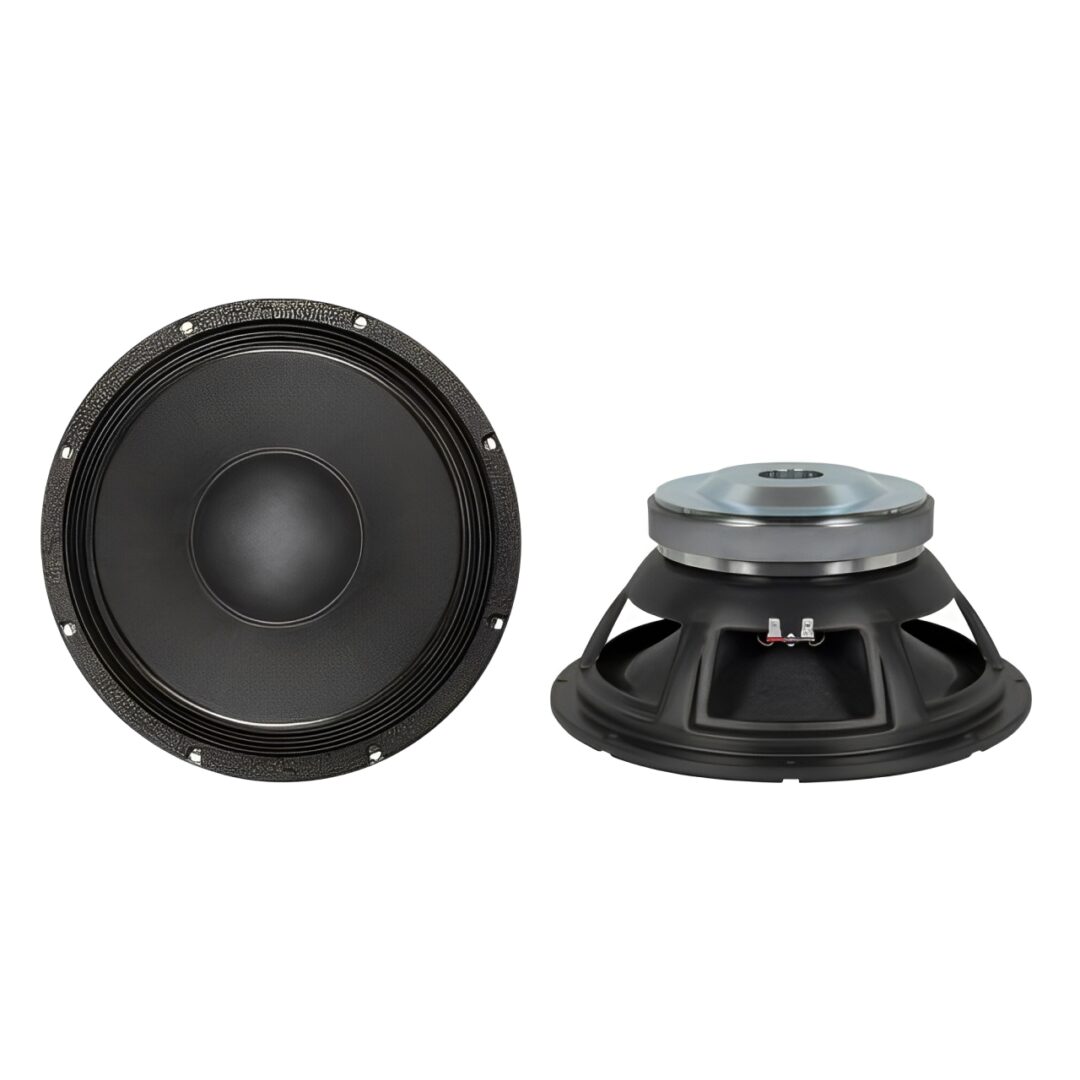

Ciare PWA12.75 – 12″ High-Efficiency Mid-Bass/Woofer Driver
The Ciare PWA12.75 is a high-power, 12-inch mid-bass/woofer driver engineered for professional loudspeaker systems that demand strong low-mid extension, reliable power handling, and clean response. Built in Italy with high-quality materials and precision engineering, this driver is ideal for vented cabinets, full-range top boxes, or mid-bass modules in touring and install systems.
With a balance of sensitivity, excursion, and efficiency, the Ciare PWA12.75 brings loud, accurate mids, punchy bass definition, and robustness required in real-world audio situations.
Solid Mid-Bass Output & Wide Frequency Reach
The Ciare PWA12.75 features a nominal diameter of 320 mm (12 inches), which allows it to move sufficient air for impactful low-mid frequency performance while maintaining manageable enclosure size. Its frequency range from 50 Hz to 3000 Hz ensures it covers both fundamental bass tones and upper midrange detail.
This range lets it reproduce bass guitar, mid-bass drums, vocals and rhythm instruments with authority and clarity, whether used in two-way systems or as a mid-bass driver feeding a tweeter.
High Power Handling and Thermal Stability
Designed with durability and performance in mind, the Ciare PWA12.75 offers nominal power handling of 450 W and continuous program power handling (or max program) of 900 W. Its 75 mm (3-inch) voice coil is wound with copper and mounted on a strong former, enabling good excursion and thermal tolerance.
These characteristics ensure it can work reliably under high SPLs and endure peaks without premature failure or significant power compression, making it suitable for demanding environments and prolonged performance periods.
Efficient Sensitivity and Headroom
With a sensitivity of 97.5 dB (1W/1m), the Ciare PWA12.75 converts amplifier power into sound efficiently. This allows for lower amplifier demand to achieve high output, benefiting systems where power budget or weight is constrained.
High sensitivity also translates to better dynamic contrast, helping this driver deliver punch and clarity even when pushed hard, without sounding compressed or dull.
Electrical Stability and Ease of Integration
The driver operates at a nominal impedance of 8 Ω, with a minimum impedance of approximately 6.6 Ω. This stable electrical behavior makes it easier to pair with amplifiers and crossover networks with predictable load.
For system designers, this means planning passive crossovers or active DSP settings is more straightforward, and the driver behaves consistently over its working range—even under heavy load.
Durability and Mechanical Design
Ciare has built the PWA12.75 to take real-world use. The cone is treated paper with water resistance, the suspension uses a triple-roll surround for strength and excursion control, and the basket is rugged steel. Motor construction includes a magnet assembly with sufficient gap depth and winding to sustain high excursion without distortion or mechanical failure.
These design choices contribute to long lifespan, resistance to environmental stress, and consistent performance when show after show or install after install.
Ideal Applications
The Ciare PWA12.75 is especially suitable for:
-
Vented mid-bass cabinets in pro audio PA systems
-
Top boxes in full-range speaker enclosures
-
Mid-bass roles in multi-way systems where clarity up to the upper mids is needed
-
Fixed installations in clubs, venues, and churches
-
OEM speaker designs where consistency and robust output are required
Its blend of power handling, sensitivity, and frequency reach make it a very versatile driver choice for many professional audio scenarios.
Specifications
-
Nominal Diameter: 320 mm (12 in)
-
Voice Coil Diameter: 75 mm (3 in)
-
Continuous Power Handling: 900 W
-
Nominal Power Handling: 450 W
-
Nominal Impedance: 8 Ω
-
Minimum Impedance: ~6.6 Ω
-
Frequency Range: 50 Hz – 3000 Hz
-
Sensitivity: 97.5 dB (1W/1m)
Performance Summary
The Ciare PWA12.75 delivers robust mid-bass performance with excellent headroom, clarity, and efficiency. Its high excursion capability, combined with good thermal support and high sensitivity, allows it to maintain punch and accuracy even under heavy use and challenging acoustic conditions.
In vented or bandpass enclosures or when paired with appropriate horn or high-frequency drivers, it contributes significantly to overall system dynamic range without introducing harshness or coloration.
Conclusion
If you need a 12-inch driver that balances efficiency, power, and versatile frequency coverage, the Ciare PWA12.75 stands out. It offers the sound quality and durability expected in professional setups, whether you’re designing top boxes, mid-bass bartops, or full-range cabinets.
For demanding installations or touring systems where reliable mid-bass and balanced performance are essential, Ciare PWA12.75 delivers performance you can build around.
