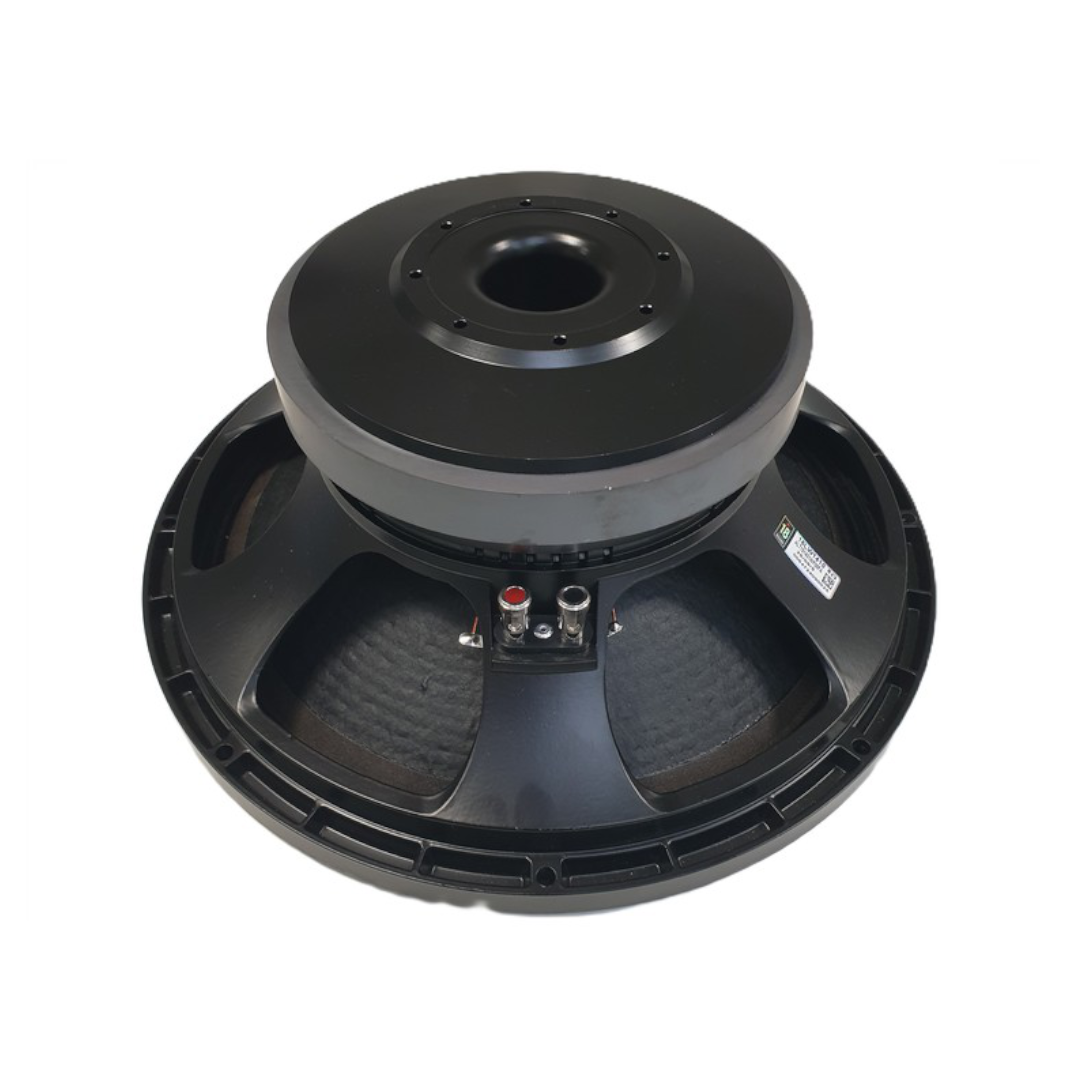

18 Sound 15LW1410 – Updated Industry-Standard 15-Inch Subwoofer Replacing the 15LW1401
The 18 Sound 15LW1410 represents the updated version of the industry standard 15LW1401, for which it can be a direct replacement with improved construction. The transducer has been redesigned for use as a low bass or subwoofer component in either a more compact reflex, bandpass, or horn-loaded configuration.
In its reflex configuration, it can be used in extremely compact enclosures (65–130 litres) which is ideal for touring applications, including indoor and outdoor concert reinforcement systems. The reinforced, straight-sided ribbed cone assures smooth response and exceptional strength, with maximum reliability under high mechanical stress.
At 12.9 kg, the 18 Sound 15LW1410 is, by a margin of half a kilogram, the heaviest 15-inch driver documented across this entire session — exceeding the previously heaviest 15LW1500 (12.4 kg). Yet despite this substantial weight, the driver delivers a genuinely improved 1.0 mH inductance figure, dramatically lower than both the 15LW1500’s 2.4 mH and the 15LW2400’s 1.25 mH — confirming the “improved construction” claim translates into a real, measurable electrical performance gain over its predecessor.
The already low distortion and sound quality of this loudspeaker has been further improved by the Double Demodulation Rings (DDR) designed to dramatically reduce the intermodulation and harmonic distortion whilst improving the transient response.
Design and Construction of the 18 Sound 15LW1410
The 100 mm copper voice coil, with a 24.0 mm winding depth operating in a 14.0 mm magnetic gap, employs the Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a mass-balanced coil. The weight of the windings is evenly distributed, providing a uniform motive drive. This, in conjunction with the use of state-of-the-art high-temperature resin adhesives, results in an extremely linear motor assembly.
The already low distortion and sound quality of this loudspeaker has been further improved by the Double Demodulation Rings (DDR) designed to dramatically reduce the intermodulation and harmonic distortion whilst improving the transient response. This DDR implementation is the specific engineering that produces the driver’s exceptionally low 1.0 mH inductance — a considerable improvement over the closely related 15LW1500’s 2.4 mH despite both drivers sharing broadly similar coil scale.
The 24.1 Tm force factor driving 138 g of moving mass produces 98.5 dB sensitivity, 2.6% reference efficiency, and the 0.27 Qts / 150 Hz EBP alignment — a genuinely strong sensitivity figure for a driver of this substantial mass and power class.
The reinforced, straight-sided ribbed cone assures smooth response and exceptional strength, with maximum reliability under high mechanical stress. The 18 Sound 15LW1410’s ability to perform properly under inclement weather conditions has been achieved using an exclusive cone treatment improving pulp strength, which gives water-repellent properties to both sides of the cone. In addition, a special treatment has been applied to both the top and back plates that is far more resistant to the corrosive effects of salts and oxidisation than any other in use today.
At 12.9 kg, 387 mm overall diameter, 353 mm baffle cutout, 163 mm depth, and 19 mm flange, the 18 Sound 15LW1410 carries the heaviest construction of any 15-inch driver documented in this session, reflecting its substantial 100 mm coil, ferrite motor, and reinforced cone structure.
Performance and Applications for the 18 Sound 15LW1410
The 18 Sound 15LW1410 delivers 98.5 dB sensitivity across a 40 Hz – 2400 Hz bandwidth — a genuinely excellent sensitivity figure for the driver’s substantial power and mass class, exceeding several lighter 15-inch subwoofer drivers documented earlier in this session.
18 Sound recommends a 120-litre (4.24 ft³) vented enclosure tuned to 55 Hz. In its reflex configuration, the driver can be used in extremely compact enclosures (65–130 litres), which is ideal for touring applications, including indoor and outdoor concert reinforcement systems.
The 1000 W AES / 2000 W continuous program power handling is substantial, and combined with the 8.5 mm Xmax and 10.0 mm Xvar, produces genuine high-SPL, high-displacement subwoofer performance. The DDR’s dramatic reduction of intermodulation and harmonic distortion, combined with improved transient response, ensures this output remains clean at the driver’s rated power ceiling.
For touring subwoofer applications and concert reinforcement systems demanding both high sensitivity and substantial power handling from an improved, updated industry-standard platform, the 18 Sound 15LW1410 delivers a genuinely capable specification as the direct successor to the 15LW1401.
Conclusion – 18 Sound 15LW1410 Subwoofer Driver
The 18 Sound 15LW1410 is the updated, improved-construction replacement for the industry-standard 15LW1401 — and at 12.9 kg, it is the heaviest 15-inch driver documented across this entire session. Despite this substantial mass, the DDR technology delivers a genuinely improved 1.0 mH inductance, dramatically lower than the closely related 15LW1500 and 15LW2400 platforms documented earlier in this session.
For touring applications, indoor and outdoor concert reinforcement systems, and any application demanding maximum sensitivity (98.5 dB) combined with substantial power handling (2000 W continuous program) from a genuinely improved industry-standard subwoofer platform, the 18 Sound 15LW1410 is the driver 18 Sound built to directly succeed the 15LW1401.
