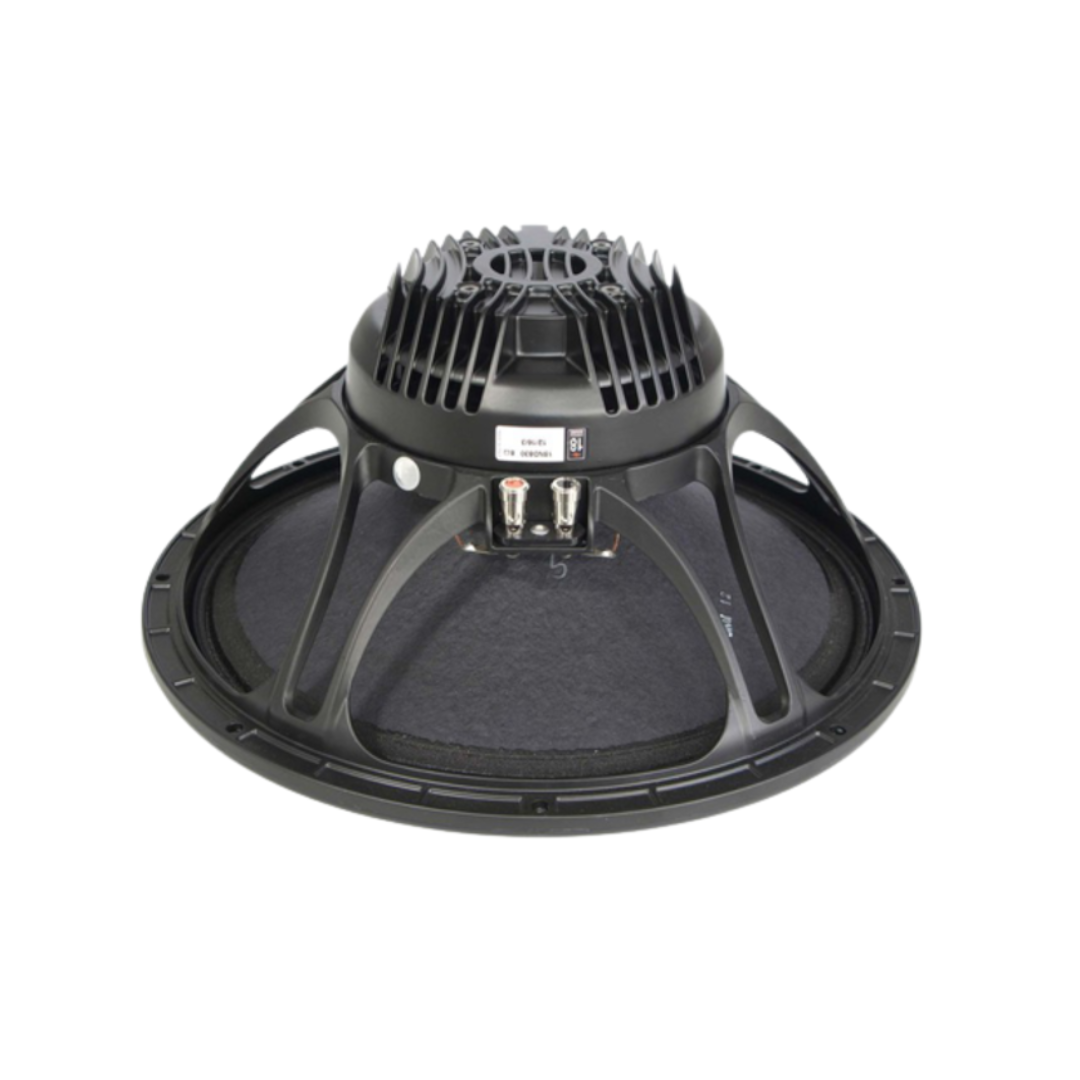

18 Sound 15ND830 – Original Flagship 15-Inch Neodymium Woofer with 5000 Hz Bandwidth
The 18 Sound 15ND830 is a high power, high output, low frequency woofer meeting the most stringent requirements in high-quality professional transducers — the original flagship platform that the 15ND840 documented immediately prior in this session explicitly claims to update and replace with improved construction. Thanks to its versatility, the 18 Sound 15ND830 can be used in two-way compact reflex enclosures and reflex/bandpass subwoofers, ideal for compact reflex subwoofer and reflex multiway systems.
The 38 Hz – 5000 Hz bandwidth is the widest of any 15-inch ND-series driver documented across this entire session — 1000 Hz wider than the 15ND840’s 4000 Hz upper limit and 900 Hz wider than the 15ND940’s 3500 Hz. This is a genuine, distinctive advantage the original platform retains over both of its claimed successors.
The neodymium magnet assembly assures high flux concentration, low power compression, and excellent heat exchange, since the external magnet configuration is considerably more efficient than traditional under-pole magnet topology. This results in high levels of force factor and power handling with an optimum power-to-weight ratio. The direct contact between the heat sink and basket, together with the magnetic structure, represents a fundamental improvement in thermal connection and heat dissipation.
At 4.6 kg with an aluminium edgewound ISV coil, available in both 4 and 8 Ω, the 18 Sound 15ND830 delivers a genuinely capable specification that, notably, carries no listed alternative model on its own product page — unlike nearly every other legacy driver documented in this session.
Design and Construction of the 18 Sound 15ND830
The 75 mm Interleaved Sandwich Voice Coil (ISV) assembly is wound on a strong fibreglass former which improves force transmission and thermal power handling — aluminium winding with edgewound construction, packing more conductor into the magnetic gap per unit of coil height for maximum force output.
The direct contact between the heat sink and basket, together with the magnetic structure, represents a fundamental improvement in thermal connection and heat dissipation. Hence, power handling capabilities are increased and power compression lowered.
The deep-profile curvilinear cone, created from a special high-strength wood pulp, has been designed to achieve the best possible linearity within its frequency range. The cone surround, made from a linen material, is highly resistant to ageing and fatigue. The in-house developed cone treatment is fully water repellent and also gives a significant degree of rigidity to the cone — a dual-function treatment where the water-repellent coating additionally stiffens the cone structure, the same treatment philosophy documented on the 12ND830 at the smaller diameter.
The 18.0 Tm force factor driving 80 g of moving mass produces 98 dB sensitivity and the 0.32 Qts / 111 Hz EBP alignment — solidly motor-dominant and vented-oriented, though with more enclosure flexibility than the tightest-Qts drivers in the range.
A special coating applied to both the top and back plates makes the 18 Sound 15ND830 far more resistant to the corrosive effects of salts and oxidisation.
At 4.6 kg, 387 mm overall diameter, 353 mm baffle cutout, 177 mm depth, and 11 mm flange — 100 g lighter than both the 15ND840 and 15ND930/940, and with a marginally smaller baffle footprint (353 vs 354 mm cutout) than its claimed successors.
Performance and Applications for the 18 Sound 15ND830
The 18 Sound 15ND830 delivers 98 dB sensitivity across a 38 Hz – 5000 Hz bandwidth — the widest of any 15-inch ND-series driver documented in this session. 18 Sound recommends a 110-litre (3.88 ft³) vented enclosure tuned to 42 Hz.
The 450 W AES / 700 W continuous program power handling is lower than both the 15ND840 and 15ND930/940 — the older platform’s more modest thermal engineering compared to its claimed successors. The 6.5 mm Xmax is also less than the 9.5 mm figures documented on both the 15ND840 and 15ND940.
The 1.54 mH inductance is considerably higher than the 15ND840’s exceptional 0.43 mH — confirming the 15ND840’s aluminium coil and updated construction genuinely deliver a meaningful inductance improvement over this original platform, even though both drivers use aluminium winding.
For applications specifically requiring the widest available 15-inch ND-series bandwidth (up to 5000 Hz), the 18 Sound 15ND830 offers a genuine advantage its claimed successors don’t match — otherwise, the 15ND840 and 15ND940 both deliver higher power handling, more Xmax, and (in the 15ND840’s case) dramatically lower inductance.
Conclusion – 18 Sound 15ND830 Woofer
The 18 Sound 15ND830 is the original 15-inch ND-series flagship platform, delivering the widest bandwidth (38–5000 Hz) of any driver in this family documented across this session — a genuine advantage over both drivers that claim to succeed it. The DDR technology, direct-contact heatsink, and water-repellent, rigidity-enhancing cone treatment confirm this remains a well-engineered professional transducer.
For applications where the extended 5000 Hz upper bandwidth is specifically required, or where replacement compatibility with existing 15ND830 installations matters, this driver remains a capable specification within 18 Sound’s 15-inch neodymium range — notably without an explicit alternative model pointer on its own product page.
