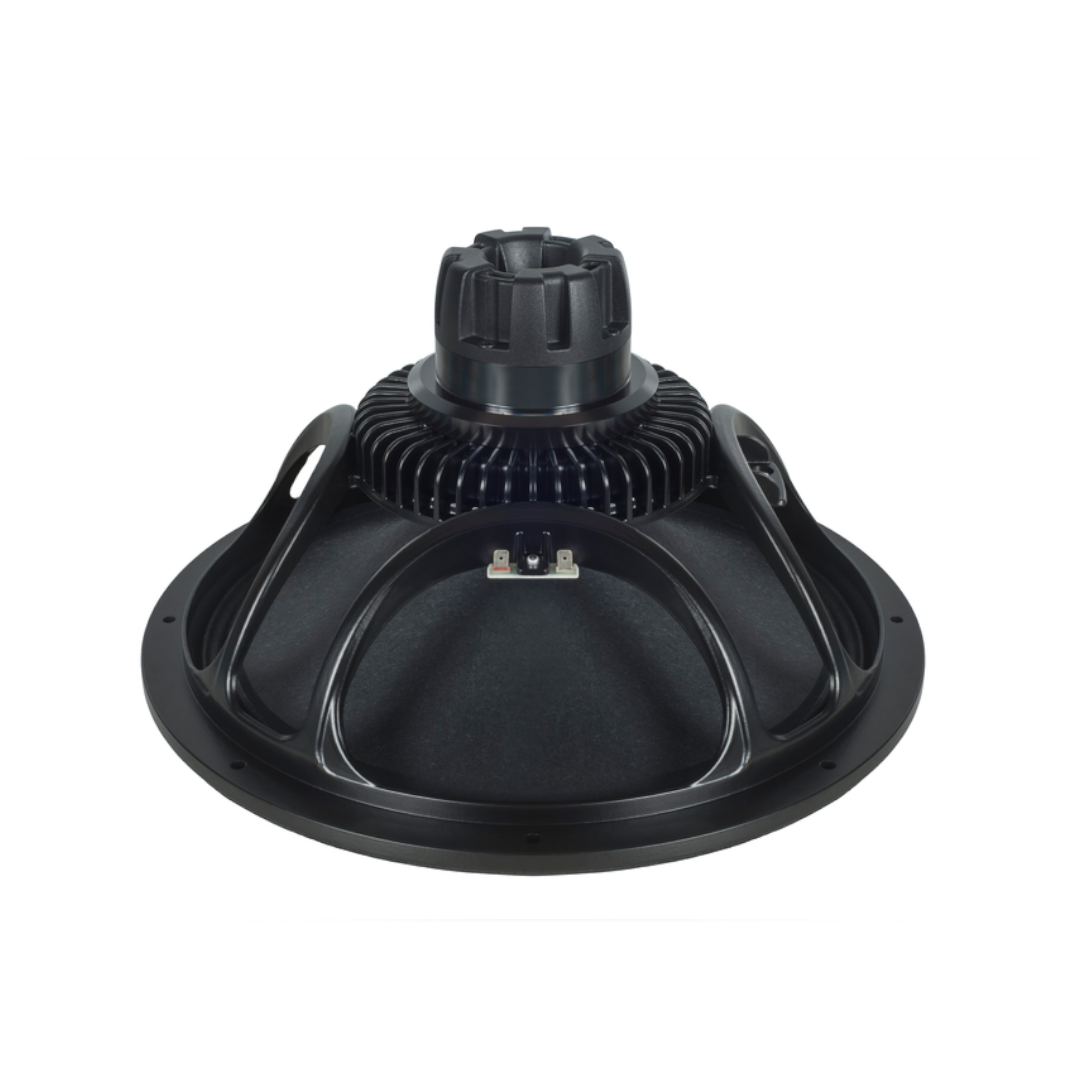

18 Sound 15NTLW2500 – Dual Gap Family Completion with 2.5″ Coil for Line Arrays and Two/Three-Way Systems
The dual gap family is now complete with the NTLW2500 (2.5″ voice coil) speaker platform. The 18 Sound 15NTLW2500 represents 18 Sound’s latest technology for high quality, low distortion applications. The Dual Gap technology comes directly from the Tetracoil motor structure and uses the same concept to maximise its benefits in terms of thermal dissipation and Bl symmetry to a wider frequency band, making the 18 Sound 15NTLW2500 the perfect component both as a woofer and a midbass, in a perfect power/weight ratio.
This is a genuinely recent product — the drawing and product imagery are dated 2026, confirming this as one of 18 Sound’s newest catalogue entries, and it explicitly closes out the smaller-coil end of the Dual Gap platform lineup already documented across the 10, 12, and 15-inch NTLW3500 drivers earlier in this session.
The brand new Neo Dual Gap motor linearises inductance and minimises heating and power compression thanks to the high coil surface that makes heat exchange twice as efficient as with standard single-coil drivers. A copper flat-wire voice coil with extra turns compared to the smaller diameters of the 2500 family was chosen to increase Bl and maximise sensitivity and performance.
Design and Construction of the 18 Sound 15NTLW2500
The perfect balance reached between the motor and the ultra-linear M-roll suspension allows both very high excursion and extreme precision in the mid band with the lowest intermodulation distortion in the professional market. The 21.2 Tm force factor driving 95 g of moving mass produces 100.5 dB sensitivity, 2.4% reference efficiency, and the 0.30 Qts / 145 Hz EBP alignment.
The 0.65 mH inductance is genuinely low for a Dual Gap driver at this coil scale, confirming the motor’s inductance-linearisation benefit translates directly into simplified crossover behaviour, consistent with the Dual Gap advantage documented throughout this session’s coverage of the platform.
This feature, together with its extreme low weight — only 3.8 kg — makes the 18 Sound 15NTLW2500 the perfect component for the highest quality line arrays and two/three-way systems, thanks also to its 1200 W power handling capabilities, which put the NTLW2500 above the average performance of 3-inch voice coil traditional speakers.
At 3.8 kg, 393 mm overall diameter, 355 mm baffle cutout, and 210 mm depth, the 18 Sound 15NTLW2500 is genuinely lighter than the 15NW530 (4.0 kg) despite delivering considerably higher power handling (1200 vs 800 W) — a direct demonstration of the Dual Gap architecture’s efficiency advantage over single-gap designs at a comparable coil scale.
Performance and Applications for the 18 Sound 15NTLW2500
The 18 Sound 15NTLW2500 delivers 100.5 dB sensitivity across a 45 Hz – 3200 Hz bandwidth. 18 Sound recommends a 70-litre (2.47 ft³) vented enclosure tuned to 55 Hz — a genuinely compact cabinet volume for a driver handling 1200 W continuous program.
Ideal for two-way and line array applications, per 18 Sound’s own feature summary, the 18 Sound 15NTLW2500’s power-to-weight ratio makes it particularly compelling for touring line array elements, where per-driver weight compounds directly across dozens of array units.
18 Sound now lists the 15ND940 as the alternative/current model, giving builders a direct comparison point between this new Dual Gap platform and 18 Sound’s established ISV-coil flagship woofer.
Conclusion – 18 Sound 15NTLW2500 Woofer/Midbass Driver
The 18 Sound 15NTLW2500 completes 18 Sound’s Dual Gap family at the smaller 2.5-inch coil scale — a genuinely recent (2026) addition delivering 1200 W continuous program power handling from just 3.8 kg, with the same inductance-linearising, thermally efficient Dual Gap architecture documented across the larger NTLW3500 platforms throughout this session.
For high-quality line arrays and two/three-way systems where power-to-weight ratio is the defining specification, the 18 Sound 15NTLW2500 delivers a genuinely compelling new option within 18 Sound’s 15-inch range.
