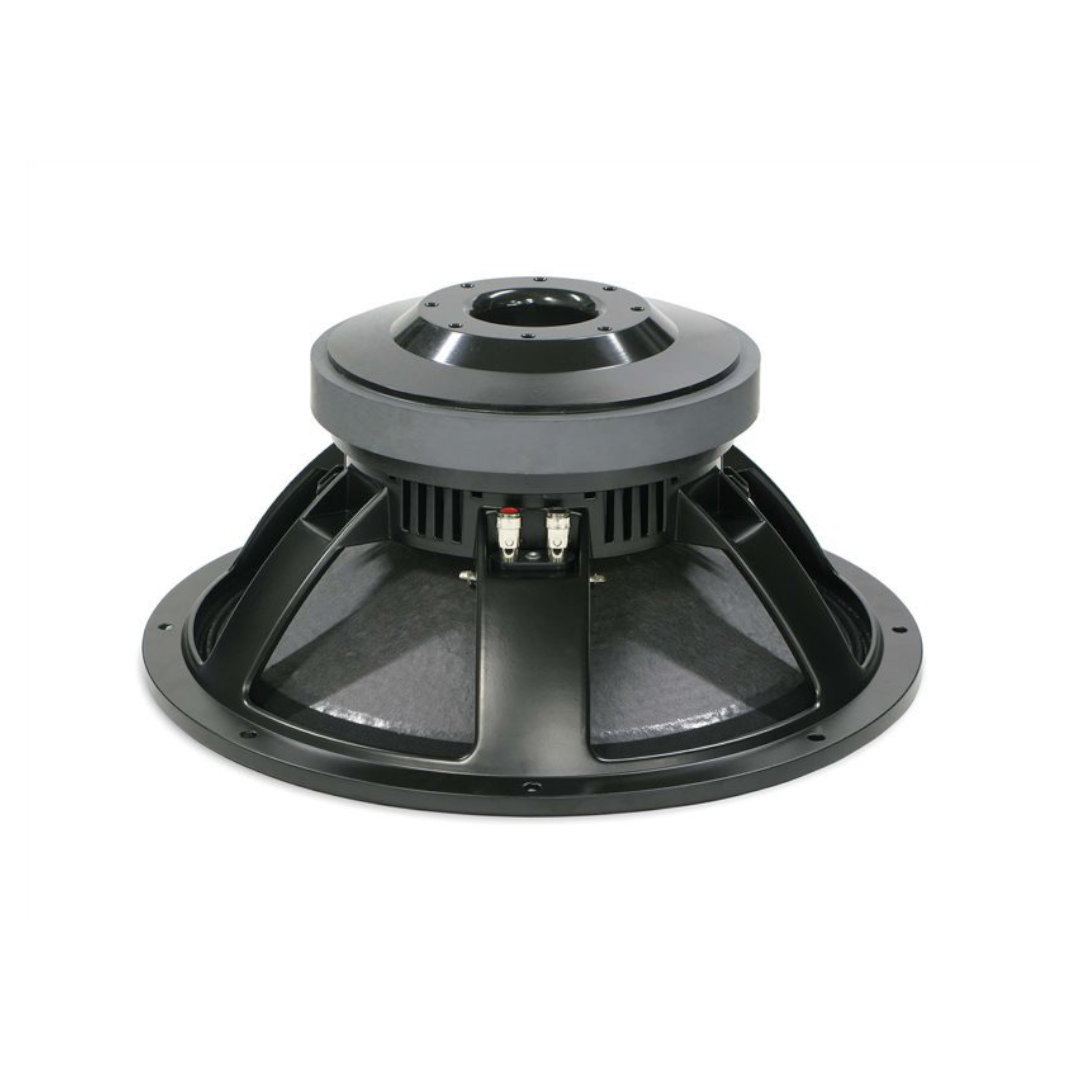

18 Sound 15LW2400 – Evolved Industry-Standard 15-Inch Ferrite Subwoofer with DSS, DDR, and Quantified Predecessor Improvements
The 18 Sound 15LW2400 has been developed as an evolution of the 15LW1401 low frequency transducer, setting a new industry standard in 15-inch (380 mm) ferrite high-performance transducers. The speaker has been designed for use as a low bass or subwoofer component in a compact cabinet (60–130 litres) reflex configuration, providing clean, linear, undistorted low-frequency reproduction at very high power levels.
This is one of only three drivers documented across this entire session combining both DSS (Double Silicon Spider) suspension technology and DDR (Double Demodulating Rings) distortion reduction simultaneously — joining the 12LW1400 and the neodymium 15NLW9500 in this small, elite category of dual-technology 18 Sound platforms.
Uniquely among the drivers documented in this session, 18 Sound provides specific, quantified performance improvements over the 15LW2400’s own named predecessor: as a final result, the transducer shows 1 dB reduction in full-power power compression value if compared to 15LW1401, and a program power handling value of 2400 Watt. A 10% reduction in weight has been obtained by optimising the magnetic structure through advanced FEA CAD simulation tools. This kind of direct, quantified generational comparison is rare in 18 Sound’s published documentation and worth noting as a model of transparent engineering disclosure.
In order to further increase power handling and reduce the power compression figure, the 18 Sound 15LW2400 uses the same voice coil ventilation technology developed for 18 Sound’s flagship 9000 neodymium transducer series — directly connecting this ferrite subwoofer’s cooling engineering to the company’s premium neodymium platform documented earlier in this session (the 15NLW9500).
Design and Construction of the 18 Sound 15LW2400
The high excursion capabilities of the Double Silicon Spider (DSS) enable the 18 Sound 15LW2400 to achieve high levels of linear travel and maintain full control of the moving mass. The fibreglass fibre reinforced, straight-sided ribbed cone assures smooth response with high internal damping.
The 100 mm copper voice coil employs the Interleaved Sandwich Voice Coil (ISV) technology, in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a mass-balanced coil. The weight of the windings is evenly distributed, providing a uniform motive drive. 18 Sound specifically highlights unlimited life lead wire construction as a feature — a durability claim about the electrical connection between the terminal and the voice coil that addresses one of the more common failure points in high-excursion, high-power subwoofer drivers over extended service life.
The already low distortion and sound quality of the 18 Sound 15LW2400 has been further improved by the Double Demodulation Rings (DDR) designed to dramatically reduce the intermodulation and harmonic distortion whilst improving the transient response.
Excellent heat dissipation has been achieved by incorporating air channels between the basket and the top plate of the magnet. Further ventilation is provided using air vents in the back plate that direct air into the lower part of the voice coil gap. In order to further increase power handling and reduce the power compression figure, the 18 Sound 15LW2400 uses the same voice coil ventilation technology developed for 18 Sound’s flagship 9000 neodymium transducer series. A low-density material air diffractor is placed into the backplate acting as a cooling system, increasing power handling capability and lowering the power compression figure.
The 24.0 Tm force factor driving 138 g of moving mass produces 97 dB sensitivity and the 0.30 Qts / 125 Hz EBP alignment.
The 18 Sound 15LW2400’s ability to perform properly under inclement weather conditions has been achieved using an exclusive cellulose treatment which gives water-repellent properties to both sides of the cone. In addition, an epoxy coating is applied to metal plates in order to resist against the corrosive effects of salts and oxidisation.
At 11.2 kg, 393 mm overall diameter, 354 mm baffle cutout, 181 mm depth, and 12 mm flange, the driver’s 10% weight reduction versus the 15LW1401 was achieved specifically by optimising the magnetic structure through advanced FEA CAD simulation tools — a targeted engineering improvement rather than a general redesign.
Performance and Applications for the 18 Sound 15LW2400
The 18 Sound 15LW2400 delivers 97 dB sensitivity across a 40 Hz – 2200 Hz bandwidth. The speaker has been designed for use as a low bass or subwoofer component in a compact cabinet (60–130 litres) reflex configuration, with 18 Sound’s own published specification recommending a 110-litre (3.88 ft³) enclosure tuned to 42 Hz.
The 1200 W AES / 2400 W continuous program power handling, combined with 18 Sound’s specific quantified claim of 1 dB less full-power compression than the 15LW1401 predecessor, confirms this driver sustains cleaner output at maximum power over extended operation than the platform it evolved from.
The 10.0 mm Xmax, combined with the 850 cm² radiating area, produces substantial volume displacement appropriate for the compact reflex subwoofer applications this driver targets — the DSS suspension’s symmetric large-signal behaviour keeps this excursion range clean and well-controlled even at the driver’s maximum power rating.
The unlimited life lead wire construction addresses a specific reliability concern in high-excursion subwoofer applications — the electrical connection between the fixed terminal and the moving voice coil experiences constant flexing as the cone reciprocates through 10 mm of travel millions of times over a driver’s service life, and 18 Sound’s specific claim here suggests this connection has been engineered to eliminate fatigue failure as a practical concern.
Available in both 4 and 8 Ω, the 18 Sound 15LW2400 provides system design flexibility for single-driver and multi-driver subwoofer configurations at this premium performance tier — and notably, this ferrite driver’s own listed alternative model is the neodymium 15NLW9401 documented earlier in this session, closing a cross-referencing loop between the two platforms.
Conclusion – 18 Sound 15LW2400 Subwoofer Driver
The 18 Sound 15LW2400 is 18 Sound’s evolved industry-standard 15-inch ferrite subwoofer, combining DSS suspension technology and DDR distortion reduction — one of only three drivers documented across this entire session carrying both simultaneously. The specific, quantified 1 dB power compression improvement and 10% weight reduction over its own named predecessor (15LW1401) represent a genuinely transparent engineering disclosure rare elsewhere in 18 Sound’s documentation.
The unlimited life lead wire construction and voice coil ventilation technology borrowed from 18 Sound’s flagship 9000 neodymium series confirm this driver was engineered specifically to address the sustained high-power, high-excursion reliability demands of professional compact reflex subwoofer applications.
For touring and installed subwoofer systems requiring 2400 W continuous program handling with genuinely improved power compression and reduced weight over the platform it replaces, the 18 Sound 15LW2400 is a formidably engineered ferrite subwoofer that 18 Sound itself now cross-references against its neodymium 15NLW9401 sibling.
