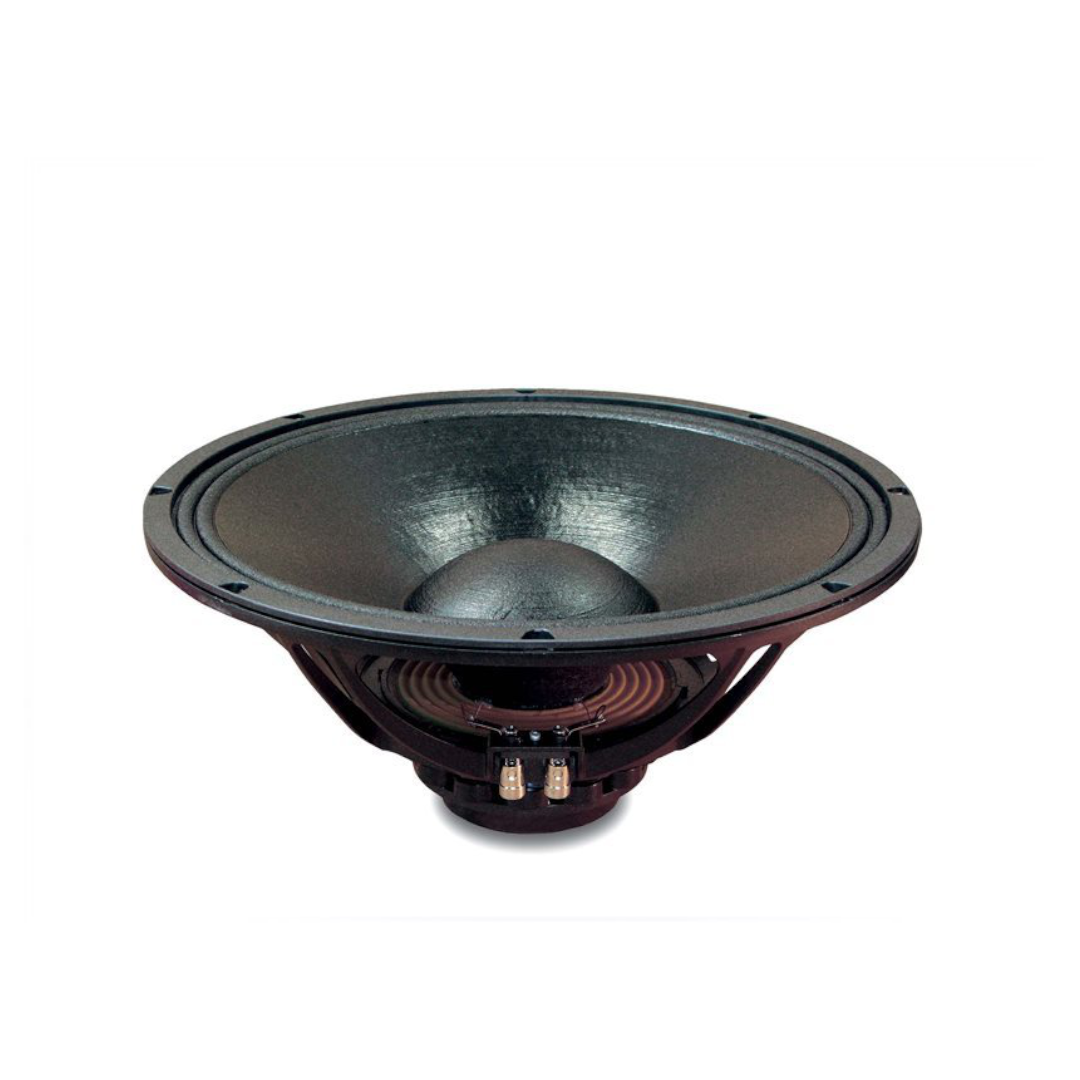

18 Sound 15NMB420 – Lightweight Neodymium 15-Inch Mid-Bass for Compact Two-Way Systems
The 18 Sound 15NMB420 is a 380 mm (15-inch) neodymium mid-bass transducer designed for professional monitoring and sound reinforcement, specially designed for compact two-way systems. The most extended bass, lowest distortion, and best control is usually realised in properly designed vented enclosures. Typical enclosure sizes range from 80 litres up, with tunings from 40 to 50 Hz. Low-frequency equalisation is suggested in order to improve the bass output, and a conservative amplifier size ranges from 400–800 W, allowing maximum output with no risk of speaker damage when properly used.
The neodymium magnet assembly assures high flux concentration, low power compression, and excellent heat exchange, since the external magnet configuration is considerably more efficient than the traditional under-pole magnet topology. This allows the 18 Sound 15NMB420 to obtain high levels of force factor and power handling with a power-to-weight ratio at the upper level of the category — at just 3.9 kg, this is dramatically lighter than every ferrite 15-inch driver documented in this session, less than half the weight of the comparable 15W700.
SDR (Single Demodulating Ring) technology has been used to reproduce instantaneous peaks on mid frequencies, reducing intermodulation distortion. The high-quality paper cone has a smooth, curvilinear profile design that eliminates bell-mode resonances within the intended frequency range, carried by a specially treated and damped multiple roll linen suspension designed to control excursion while maintaining piston action linearity.
18 Sound now lists the ferrite 15MB700 as the alternative/current model. For applications specifically valuing neodymium’s weight advantage, the 18 Sound 15NMB420 remains a genuinely capable specification within 18 Sound’s 15-inch mid-bass range.
Design and Construction of the 18 Sound 15NMB420
The 18 Sound 15NMB420 employs a 75 mm aluminium Interleaved Sandwich Voice Coil (ISV), in which a high-strength fibreglass former carries windings on both the outer and inner surfaces to achieve a mass-balanced coil, resulting in an extremely linear motor assembly with reduced tendency for eccentric behaviour when driven hard.
SDR (Single Demodulating Ring) technology has been used to reproduce instantaneous peaks on mid frequencies, reducing intermodulation distortion — producing the driver’s 0.8 mH Le, a reasonably well-controlled figure for a 75 mm ISV coil without dual-ring assistance.
The 19.0 Tm force factor driving 73 g of moving mass produces 99 dB sensitivity and the 0.29 Qts / 140 Hz EBP alignment — solidly motor-dominant and vented-oriented, consistent with a driver engineered for professional monitoring and sound reinforcement where compact two-way integration is the priority.
The high-quality paper cone has a smooth, curvilinear profile design that eliminates bell-mode resonances within the intended frequency range. This is carried by a specially treated and damped multiple roll linen suspension designed to control excursion while maintaining piston action linearity through the 6.5 mm Xmax.
A proprietary humidity-block cone treatment has been implemented in order to perform in outdoor environments under adverse weather conditions. In addition, special treatment of both the face and back plates results in a product which is far more resistant to the corrosive effects of salts and oxidisation than any other treatment in use.
At 3.9 kg, 387 mm overall diameter, 353 mm baffle cutout, and 169 mm depth, the 18 Sound 15NMB420 shares its baffle cutout with the 15NW530 and 15W700, but at less than half the weight of the ferrite alternatives.
Performance and Applications for the 18 Sound 15NMB420
The 18 Sound 15NMB420 delivers 99 dB sensitivity across a 40 Hz – 5000 Hz bandwidth — a genuinely wide bandwidth for a mid-bass driver of this class, matching or exceeding the ferrite W-series woofers’ upper extension despite the driver’s dedicated mid-bass positioning.
18 Sound recommends a 60-litre (2.12 ft³) vented enclosure tuned to 55 Hz for the specific published specification, though the descriptive text also mentions typical enclosure sizes ranging from 80 litres up with tunings from 40 to 50 Hz — builders should treat the 60L/55Hz figure as the formal specification and the broader range as general guidance for related enclosure approaches.
Low-frequency equalisation is suggested in order to improve the bass output — a specific recommendation for builders using this driver in applications where extended low-frequency reproduction is desired beyond what the passive vented alignment alone provides. A conservative amplifier size of 400–800 W allows maximum output with no risk of speaker damage when properly used.
The comparison to the ferrite 15W700 shows the clear neodymium-vs-ferrite trade-off documented throughout this session: similar sensitivity (99 dB on both), but the 18 Sound 15NMB420 delivers this at 3.9 kg versus the 15W700’s 8.5 kg — a genuinely dramatic weight saving for touring and portable applications, at the cost of somewhat lower power handling (450 vs 450 W AES — actually matching) and narrower Xmax (6.5 vs 6.5 mm — also matching), with the primary difference being the neodymium motor’s weight advantage rather than any performance compromise.
Conclusion – 18 Sound 15NMB420 Mid-Bass Driver
The 18 Sound 15NMB420 is a lightweight neodymium 15-inch mid-bass transducer specially designed for compact two-way systems, delivering 99 dB sensitivity and 450 W AES power handling from a 75 mm ISV coil with SDR distortion reduction — at 3.9 kg, less than half the weight of the comparable ferrite 15-inch drivers documented in this session.
Professional monitoring and sound reinforcement applications benefit directly from this weight advantage, particularly where the driver must be handled repeatedly or transported as part of touring rigs. 18 Sound now lists the 15MB700 as the current alternative, but for weight-critical applications specifically valuing the neodymium platform’s power-to-weight ratio, the 18 Sound 15NMB420 remains a genuinely strong specification.
