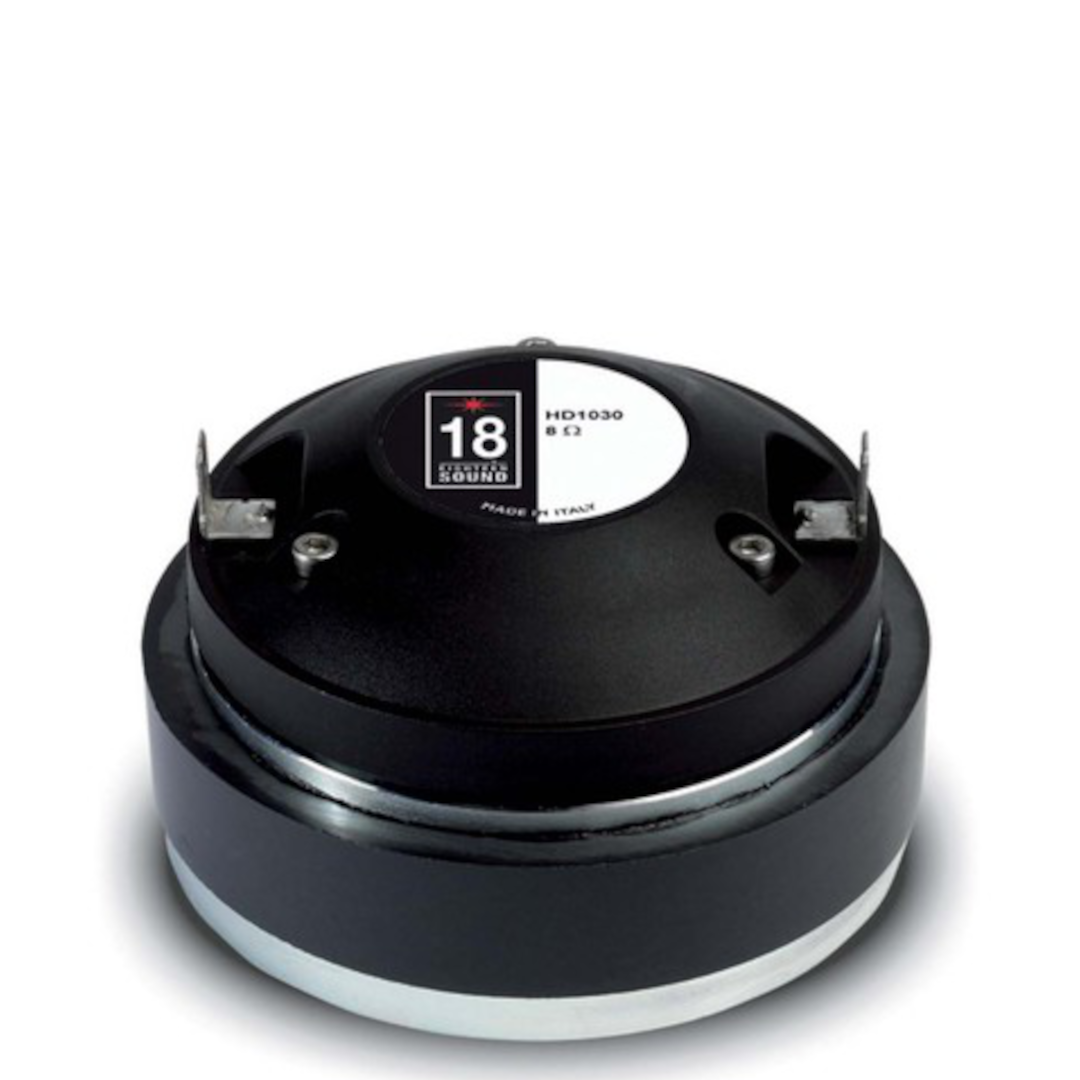

18 Sound HD1030 – Smallest and Lightest Conventional Compression Driver with Ellipsoidal Suspension
The 18 Sound HD1030 1-inch exit high-frequency compression driver has been designed for use in two-way audio systems. The transducer exhibits a constant slope response from 1.5 kHz to 18 kHz with a uniform and smooth roll-off. With an 800 Hz free-air resonance frequency, the HD1030 can easily be cut off at 1800 Hz and is capable of 60 W continuous power handling with an 1800 Hz pink-noise signal and a 6 dB crest factor with a minimum 12 dB/octave crossover slope.
At just 1.0 kg and 91 mm overall diameter, the 18 Sound HD1030 is, by a genuine margin, both the lightest and smallest-diameter conventional compression driver documented across this entire comprehensive session — smaller and lighter even than the entry-level HD1000 (1.4 kg, 100 mm) and the ultra-compact ND-series neodymium platforms (1.5–1.65 kg, 104–120 mm) covered earlier.
Equipped with unique Phase Plug architecture, the HD1030 has been designed to give a smooth coherent wavefront at the horn entrance in the whole working frequency range, as well as high level manufacturing consistency. The phase plug, with its short openings and high flare rate value, assures low distortion and demonstrates remarkable improvements in mid-high frequency reproduction.
Design and Construction of the 18 Sound HD1030
The titanium diaphragm assembly, with its ellipsoidal suspension shape, exhibits a constant slope response from 1.5 kHz up to 18 kHz with uniform smooth roll-off behaviour — this ellipsoidal suspension geometry is a distinctive shape not documented on the HD1000’s simpler diaphragm construction, specifically engineered to produce this driver’s smooth, predictable frequency response character.
An edge-wound aluminium voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly. Nomex shows a 30% higher value of tensile elongation at a working operative temperature (200°C) when compared to Kapton — the identical figure documented consistently throughout every compression driver covered in this session’s HF range. This feature enables proper energy transfer control from the voice coil to the dome in real working conditions, and this proprietary former material is also suitable for use in higher moisture content environments.
The HD1030 powerful ceramic magnet assembly has been designed to obtain 15 kGauss in the gap within a compact ferrite motor structure — matching the HD1000’s flux density exactly, from an even more compact overall chassis.
At 1.0 kg, 91 mm overall diameter, and 51 mm depth, the 18 Sound HD1030 represents 18 Sound’s smallest and most minimal conventional compression driver platform documented anywhere in this comprehensive session.
Performance and Applications for the 18 Sound HD1030
The 18 Sound HD1030 delivers 106 dB sensitivity across a 1.8 – 20 kHz frequency range, with a recommended crossover of 1.8 kHz using a minimum 12 dB/octave high-pass filter slope — the highest recommended crossover point of any compression driver documented across this entire session, a direct consequence of the driver’s genuinely minimal 34 mm coil and compact scale.
The 30 W AES / 60 W continuous power handling is modest, appropriate for a driver of this genuinely entry-level scale — 18 Sound explicitly notes the driver is usable in two-way or multiway systems, positioning it as a compact HF option for smaller-format speaker designs rather than high-power professional touring applications.
For genuinely compact two-way audio systems where minimum weight and size are the defining requirements, and where the higher practical crossover point is acceptable, the 18 Sound HD1030 delivers 18 Sound’s smallest and lightest conventional compression driver solution.
Conclusion – 18 Sound HD1030 Compression Driver
The 18 Sound HD1030 is 18 Sound’s smallest and lightest conventional compression driver documented across this entire comprehensive session — a genuinely minimal 1.0 kg, 91 mm diameter platform built around a titanium diaphragm with distinctive ellipsoidal suspension geometry and the proven 3P phase plug architecture.
For compact two-way audio systems where size and weight are the primary constraints, the 18 Sound HD1030 delivers 18 Sound’s most minimal HF driver solution.
