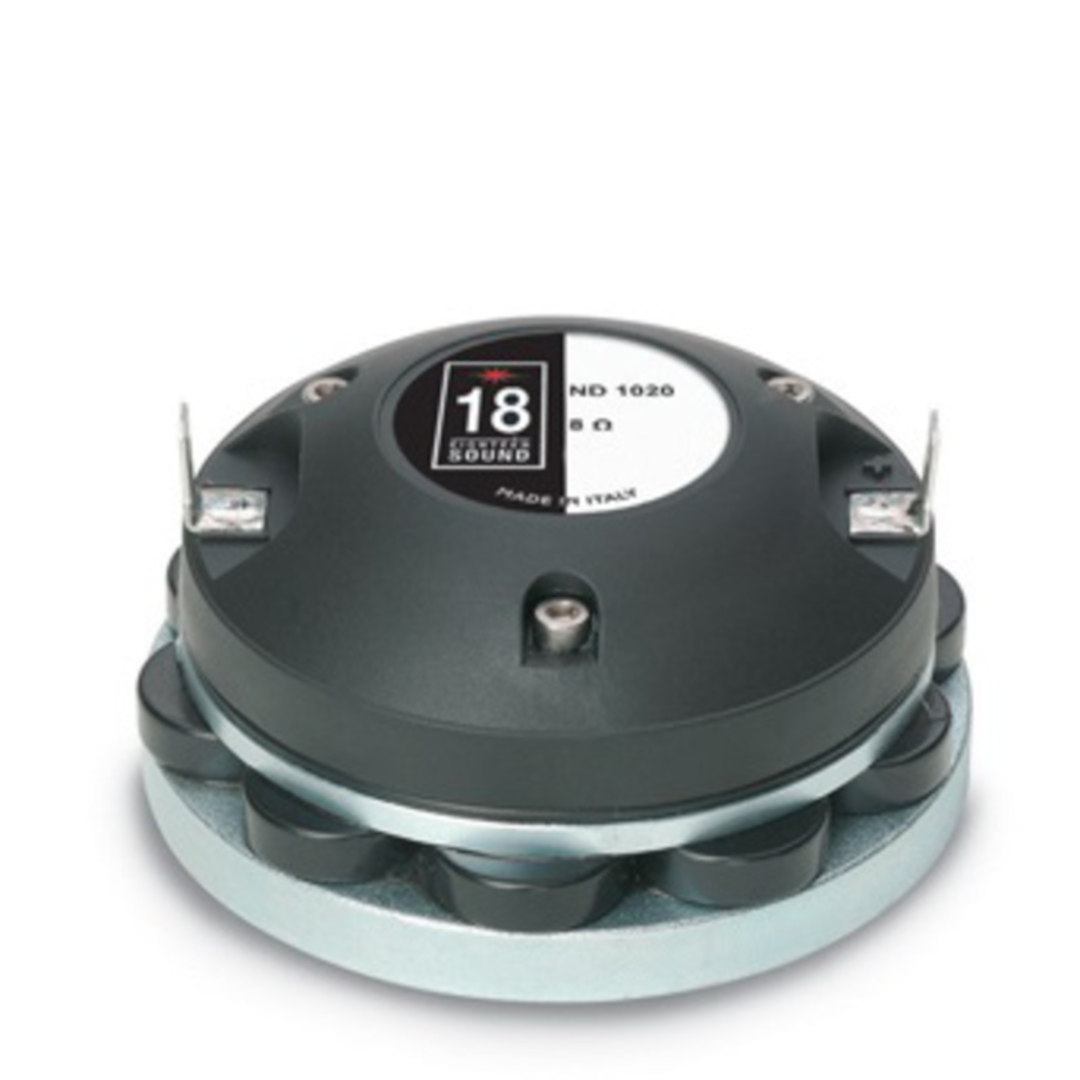

18 Sound ND1020 – The Lightest and Shallowest Compression Driver in 18 Sound’s Entire Range
The 18 Sound ND1020 1-inch exit high-frequency compression driver has been designed for use in situations where the highest possible sound quality is required. At just 0.7 kg and 40 mm deep, this driver sets two genuine records across this entire comprehensive session — the lightest compression driver documented at any throat size, and the shallowest mounting depth of any driver covered anywhere in this exploration.
Polyethylene Naphthalate (PEN) has been used for the diaphragm assembly, giving the 18 Sound ND1020 a superior diaphragm dimensional stability compared to conventional Mylar film — specifically, 160°C thermal rating compared to 105°C for PET. PEN film, with its very high value of elasticity modulus — 6000 MPa compared to 4000 MPa for PET and 2800 MPa for polyimide film — is capable of a superior transient and intermodulation distortion response. This is the single most precisely quantified elasticity comparison documented anywhere across this session’s entire HF driver coverage, giving genuine numerical figures rather than the percentage comparisons found on most other drivers.
The flat punched suspension shape has been designed to maintain low stiffness for superior low mid-band distortion and response.
Design and Construction of the 18 Sound ND1020
An edge-wound copper-clad aluminium voice coil, wound on treated Nomex, completes the diaphragm assembly. Nomex shows a 20% higher value of tensile elongation at 200°C than the value at room temperature — in comparison, Kapton tensile elongation is 30% lower at 200°C than the value at room temperature. This is a more detailed and differently framed version of the Nomex-versus-Kapton comparison documented throughout this session, here expressing both materials’ behaviour relative to their own room-temperature baseline rather than a direct percentage comparison between the two. Hence, Nomex is capable of keeping energy transfer from the voice coil to the dome under control, especially when the voice coil reaches high temperatures. As a plus, the treated Nomex former voice coil can work well even in high-moisture-content environments, thanks to its very low porosity.
The 18 Sound ND1020 is equipped with unique Phase Plug architecture, designed to give a smooth coherent wavefront at the horn entrance over the whole working frequency range, as well as high-level manufacturing consistency. The phase plug design shows short openings and high flare rate value, assuring low distortion and demonstrating remarkable improvements in mid-high frequency reproduction.
By carefully using elementary pieces of neodymium magnets, 18 Sound engineers have developed a powerful neodymium magnet assembly capable of reaching 18 kGauss in the gap within a compact and lightweight structure — matching the exact flux density and construction philosophy documented on the ND1018BT.
At 0.7 kg, 85 mm overall diameter, and 40 mm depth, the 18 Sound ND1020 achieves this session’s most extreme combination of light weight and shallow mounting depth from any compression driver documented across the company’s entire catalogue.
Performance and Applications for the 18 Sound ND1020
The 18 Sound ND1020 delivers 108.5 dB sensitivity across a 1.6 – 20 kHz frequency range, with a recommended crossover of 1.6 kHz using a 12 dB/octave or steeper high-pass filter — matching the ND1018BT’s crossover recommendation, from a chassis 300 g lighter and 10 mm shallower.
The 30 W AES / 60 W continuous power handling is modest but appropriate for a driver of this genuinely minimal scale, positioned for situations where the highest possible sound quality is required rather than maximum output — 18 Sound’s own stated design priority for this specific model.
For applications where minimum weight and minimum mounting depth are the absolute priorities — the most space- and weight-constrained cabinet designs documented across this entire session — the 18 Sound ND1020 delivers a genuinely unmatched combination within 18 Sound’s compression driver catalogue.
Conclusion – 18 Sound ND1020 Compression Driver
The 18 Sound ND1020 closes out this exceptionally comprehensive session’s exploration of 18 Sound’s complete compression driver range with two definitive records: the lightest driver at 0.7 kg, and the shallowest mounting depth at 40 mm, of any transducer documented across every throat size, chassis platform, and diaphragm material covered in this entire session. The PEN diaphragm’s precisely quantified elasticity advantage — 6000 MPa versus 4000 MPa for PET and 2800 MPa for polyimide — delivers the superior transient and intermodulation distortion response 18 Sound specifically engineered this driver to achieve.
For the most weight- and space-constrained applications where “the highest possible sound quality” from the smallest possible footprint is the defining requirement, the 18 Sound ND1020 represents the genuine pinnacle of compactness within 18 Sound’s entire HF driver catalogue.
