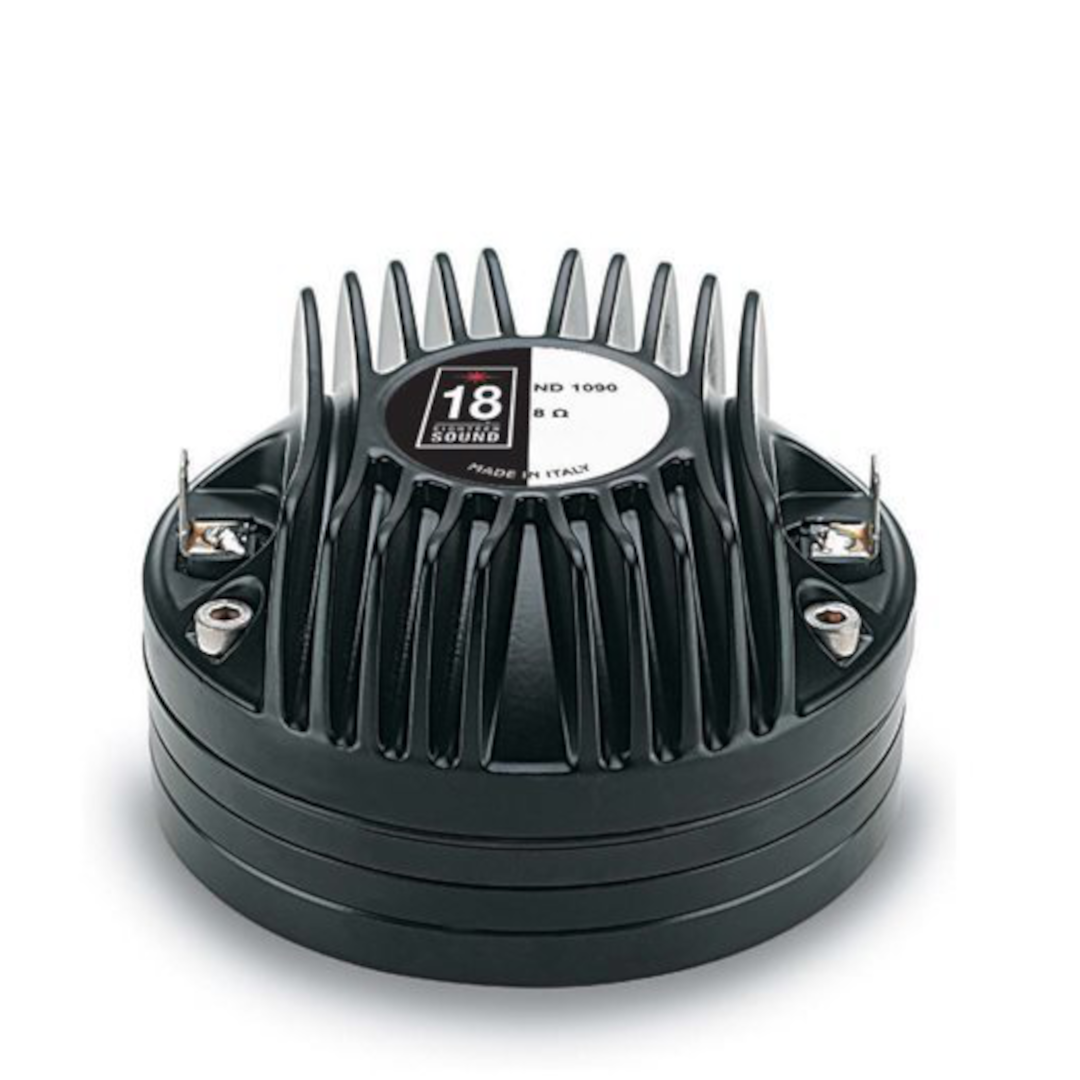

18 Sound ND1090 – Highest-Sensitivity 1-Inch Driver, Ring-Magnet Successor to the ND1070
The 18 Sound ND1090 1-inch exit neodymium high-frequency compression driver has been designed for situations where the highest quality is required — the ring-magnet successor generation to the titanium-polyester ND1070, sharing that driver’s exact diaphragm philosophy but delivering 110 dB sensitivity, the highest documented on any 1-inch driver across this entire comprehensive session.
The ND1090 diaphragm assembly is composed of a titanium dome sandwiched to a proprietary treated polyester suspension. This design maintains low resonance and lowers the minimum crossover point value to 1.6 kHz — matching the ND1070’s exact diaphragm construction and design goal.
The powerful neodymium magnet assembly has been designed to obtain 20 kGauss in the gap, giving major benefits in transient response — matching the ND1085’s ring magnet exactly, confirming both drivers represent 18 Sound’s current-generation ring-magnet successors to the earlier elementary-piece platform documented on the ND1060/ND1070/ND1075 trio.
Design and Construction of the 18 Sound ND1090
Equipped with unique Phase Plug architecture, the 18 Sound ND1090 has been designed to give high-level manufacturing consistency and a smooth coherent wavefront at the horn entrance across the whole working frequency range. The phase plug’s short openings and high flare rate value assure low distortion, showing remarkable improvements in mid-high frequency reproduction.
An edge-wound aluminium voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly. Nomex shows a 30% higher value of tensile elongation at a working operative temperature (200°C) when compared to Kapton, and this proprietary former material is also suitable for use in high-moisture-content environments.
A copper ring on the pole piece reduces inductance above 10 kHz, improving phase and impedance linearisation. The custom designed O-ring creates a tight seal between the plate and the cover, assuring air chamber loading. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminium cover, which leads to a lower power compression value.
The ability to perform properly under inclement weather conditions is a key feature of 18 Sound’s philosophy. A special treatment has been applied to the magnet and the top and back plates of the magnetic structure, making the driver more resistant to the corrosive effects of salts and oxidisation. This treatment is more effective than any other treatment used by other manufacturers.
At 1.1 kg, 93 mm overall diameter, and 53 mm depth, the 18 Sound ND1090 matches the ND1085’s compact ring-magnet chassis scale closely, confirming both drivers share this successor-generation platform’s genuine size efficiency over the earlier elementary-piece family.
Performance and Applications for the 18 Sound ND1090
The 18 Sound ND1090 delivers 110 dB sensitivity across a 1.6 – 20 kHz frequency range, with a recommended crossover of 1.6 kHz using a 12 dB/octave or steeper high-pass filter — 1 dB above the ND1070’s 109 dB, and 1 dB above even the treated-polyethylene ND1085’s 109 dB, making this the single highest-sensitivity 1-inch driver documented anywhere across this entire comprehensive session.
The 50 W AES / 100 W continuous power handling exceeds the ND1085’s 80 W, matching the ND1070’s power class from the newer, stronger-magnet platform. Available in both 8 and 16 Ω, the 18 Sound ND1090 provides genuine system design flexibility.
For applications where the highest quality is required — 18 Sound’s own explicit positioning — and maximum available 1-inch sensitivity is the defining requirement, the 18 Sound ND1090 delivers 18 Sound’s definitive answer at this throat size.
Conclusion – 18 Sound ND1090 Compression Driver
The 18 Sound ND1090 delivers the highest sensitivity of any 1-inch compression driver documented across this entire comprehensive session — 110 dB from a 20 kGauss ring magnet paired with the proven titanium-polyester diaphragm technology shared with the ND1070. This closes out this session’s exceptionally thorough exploration of 18 Sound’s complete 1-inch compression driver range, spanning ferrite and neodymium platforms, elementary-piece and ring-magnet architectures, and titanium, treated polyethylene, PEN, titanium-PEN, and phenolic diaphragm materials.
For applications demanding the absolute highest sensitivity available in this throat format, the 18 Sound ND1090 represents 18 Sound’s current flagship within its 1-inch compression driver range.
