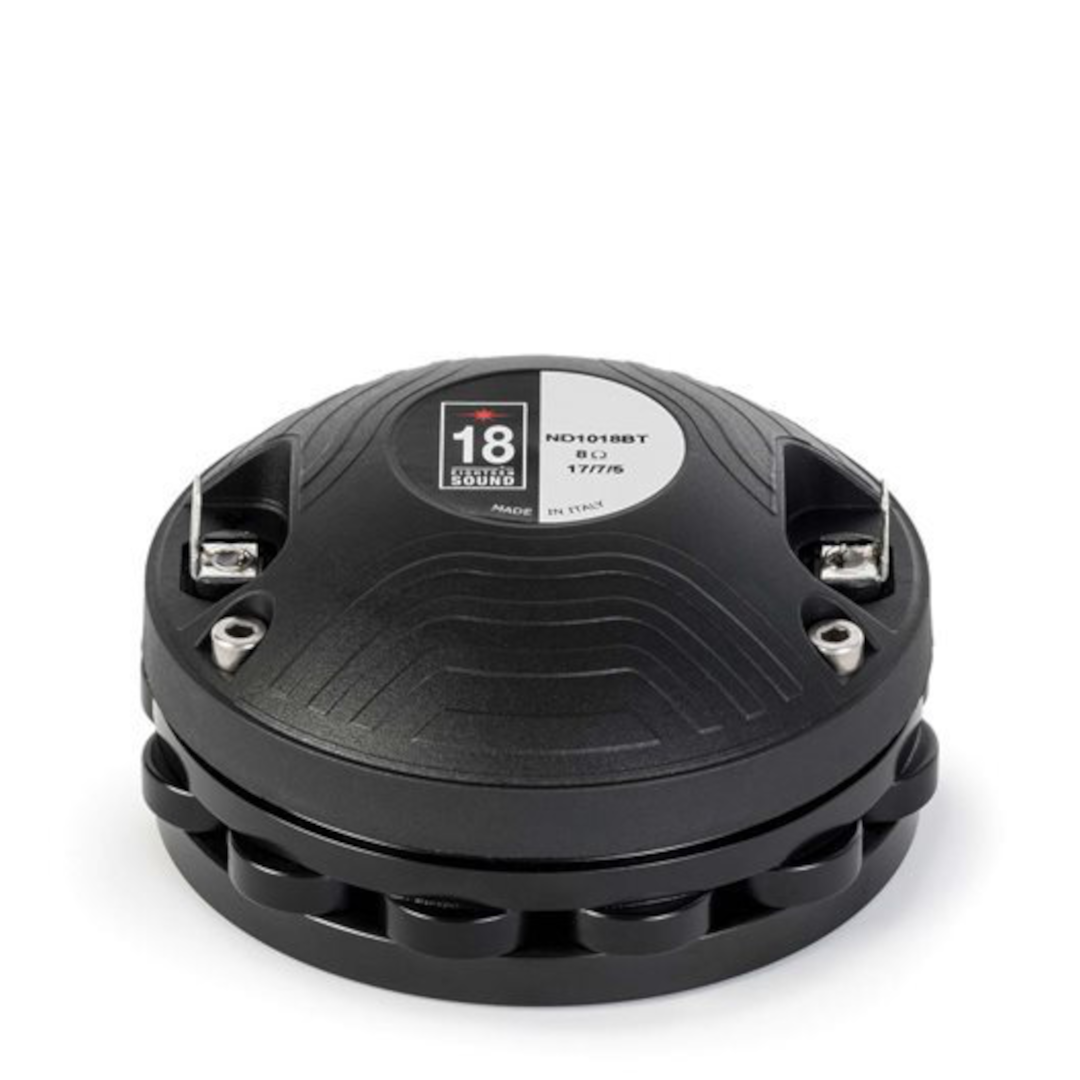

18 Sound ND1018BT – Neodymium 1-Inch Driver with Ellipsoidal Titanium Diaphragm and Elementary-Piece Magnet
The 18 Sound ND1018BT 1-inch exit high-frequency compression driver is designed for high-quality two-way systems applications. Equipped with proprietary Phase Plug architecture, the ND1018BT compression driver offers high-level manufacturing consistency and a smooth coherent wavefront at the horn entrance over all the working frequency range.
With its ellipsoidal suspension shape, the 18 Sound ND1018BT titanium diaphragm assembly exhibits a constant slope response from 1 kHz to 18 kHz with uniform smooth roll-off behaviour — the same ellipsoidal suspension geometry documented on the ferrite HD1030, here brought to a neodymium platform with a considerably larger 44 mm coil (versus the HD1030’s 34 mm).
Through careful use of elementary pieces of neodymium magnets, 18 Sound engineers have developed a powerful neodymium magnet assembly able to reach 18 kGauss in the gap in a compact and lightweight structure — the same elementary-piece construction philosophy documented on the ND2060, ND1424BT, and ND1460 family at larger throat sizes, here scaled to the 1-inch format.
Design and Construction of the 18 Sound ND1018BT
The phase plug design, with short openings and high flare rate value, assures low distortion and remarkable improvements in mid-high frequency reproduction. An edge-wound aluminium voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly — carrying the same 30% higher tensile elongation figure versus Kapton documented consistently across 18 Sound’s HF range.
A copper ring on the pole piece reduces inductance above 10 kHz, improving phase and impedance linearisation — a specific, quantified frequency threshold for this ring’s effectiveness, worth noting as more precise than the general “reduces inductance and distortion” language documented on most other compression drivers in this session. The custom designed O-ring creates a tight seal between the plate and the cover, assuring air chamber loading.
For the increase in use of high power audio systems at outdoor events or in marine environments, the ability to perform properly under inclement weather conditions is a key point of 18 Sound’s philosophy. The special treatment applied to the magnet and the top and back plates of the magnetic structure makes the driver more resistant to the corrosive effects of salts and oxidisation.
At 1.0 kg, 98 mm overall diameter, and 50 mm depth, the 18 Sound ND1018BT is genuinely more compact than the ferrite HD1000 (1.4 kg, 100 mm) and HD1050 (1.6 kg, 110 mm) at matching or superior power handling, confirming the neodymium platform’s clear weight advantage at this throat size as well.
Performance and Applications for the 18 Sound ND1018BT
The 18 Sound ND1018BT delivers 108 dB sensitivity across a 1.6 – 20 kHz frequency range, with a recommended crossover of 1.6 kHz using a 12 dB/octave or steeper high-pass filter — matching the HD1000’s crossover recommendation, with 100 W continuous power handling matching both the HD1000 and HD1050.
For high-quality two-way systems requiring 1-inch throat neodymium compression driver performance with genuine weight savings over the ferrite alternatives, the 18 Sound ND1018BT delivers a proven titanium diaphragm and elementary-piece magnetic architecture from 18 Sound’s lightest available 1-inch throat platform documented in this session.
Conclusion – 18 Sound ND1018BT Compression Driver
The 18 Sound ND1018BT completes this session’s exploration of 18 Sound’s comprehensive 1-inch compression driver range with the neodymium option — matching the HD1000/HD1050’s 100 W power handling from a chassis 400–600 g lighter, using the proven ellipsoidal titanium diaphragm and elementary-piece neodymium magnetic architecture documented across 18 Sound’s broader compression driver catalogue.
For high-quality two-way systems where the smallest throat size, genuine weight savings, and proven titanium diaphragm performance all matter simultaneously, the 18 Sound ND1018BT delivers 18 Sound’s neodymium answer at this format.
