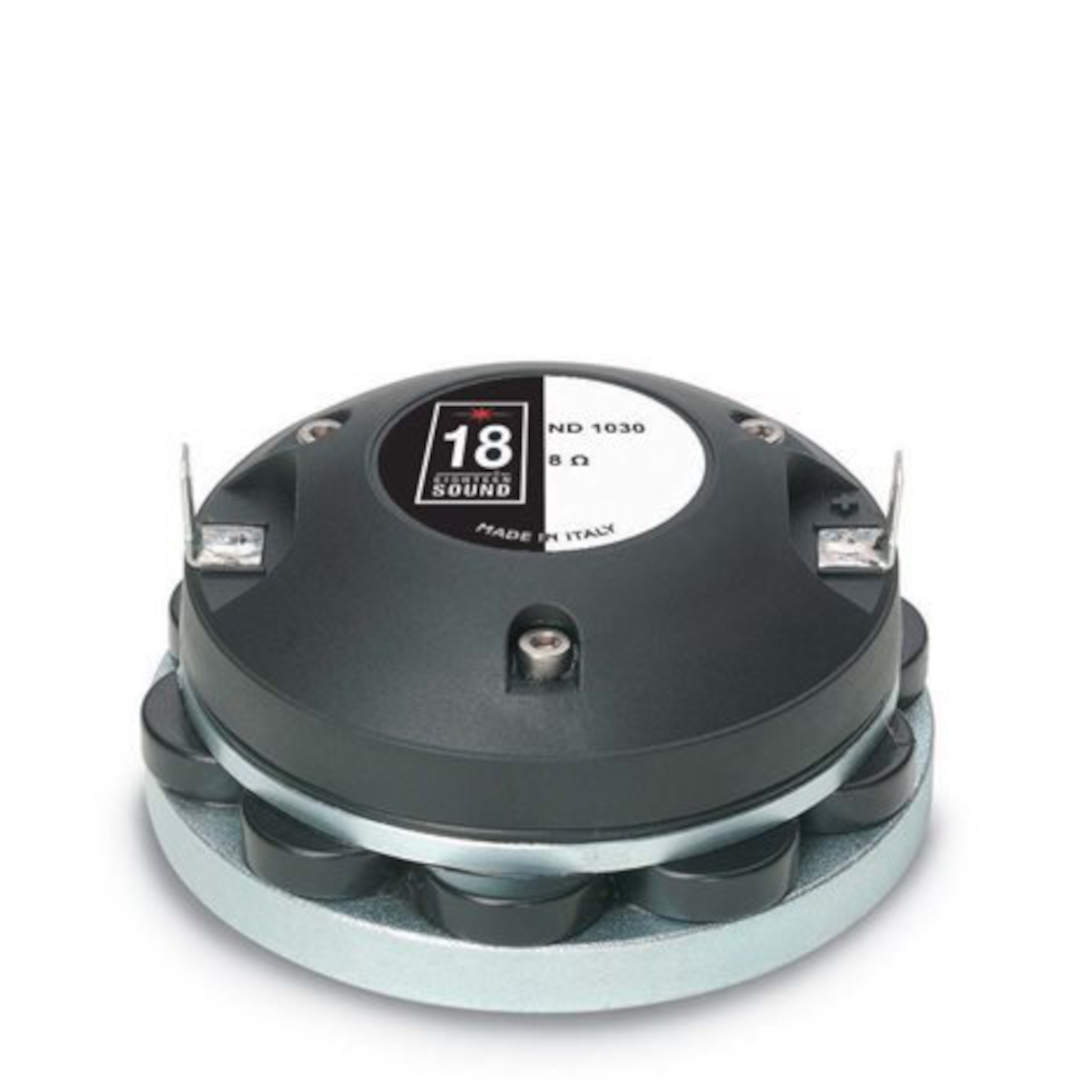

18 Sound ND1030 – Neodymium Ellipsoidal Titanium Counterpart to the HD1030, Tying the Record for Lightest Driver
The 18 Sound ND1030 1-inch exit high-frequency compression driver has been designed for use in high-quality two-way audio systems. The ND1030 exhibits a constant slope response from 1.5 kHz to 18 kHz with a uniform and smooth roll-off. With a 900 Hz free-air resonance frequency, the ND1030 can easily be cut off at 1800 Hz and is capable of 60 W continuous power handling with an 1800 Hz pink-noise signal and a 6 dB crest factor with a minimum 12 dB/octave crossover slope — matching the ferrite HD1030’s exact performance framing and application positioning, but built on 18 Sound’s elementary-piece neodymium platform instead.
The ND1030 titanium diaphragm assembly, with its ellipsoidal suspension shape, exhibits a constant slope response from 1 kHz to 18 kHz with uniform smooth roll-off behaviour — the same ellipsoidal geometry documented on both the ferrite HD1030 and the larger-coil ND1018BT, here at the smaller 34 mm coil scale matching the HD1030 directly.
At 0.7 kg and 40 mm deep, the 18 Sound ND1030 ties the ND1020 exactly for both the lightest weight and shallowest depth documented across this entire comprehensive session — confirming these two drivers share an identical, genuinely minimal chassis platform despite their different diaphragm materials (pure titanium here versus PEN on the ND1020).
Design and Construction of the 18 Sound ND1030
Equipped with unique Phase Plug architecture, the 18 Sound ND1030 has been designed to give a smooth coherent wavefront at the horn entrance in the whole working frequency range, as well as high-level manufacturing consistency. The phase plug design, with its short openings and high flare rate value, assures low distortion and demonstrates remarkable improvements in mid-high frequency reproduction.
An edge-wound aluminium voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly. Nomex shows a 30% higher value of tensile elongation at a working operative temperature (200°C) when compared to Kapton — the standard figure documented throughout this session, here using the more common percentage framing rather than the ND1020’s room-temperature-relative comparison.
By careful use of elementary pieces of neodymium magnets, 18 Sound engineers have developed a powerful neodymium magnet assembly capable of reaching 18 kGauss in the gap within a compact and lightweight structure — matching the ND1018BT and ND1020’s exact flux density and construction philosophy.
At 0.7 kg, 85 mm overall diameter, and 40 mm depth, the 18 Sound ND1030 matches the ND1020’s physical footprint precisely, confirming both drivers share the identical elementary-piece neodymium chassis platform at the smaller 34 mm coil scale.
Performance and Applications for the 18 Sound ND1030
The 18 Sound ND1030 delivers 107 dB sensitivity across a 1.8 – 20 kHz frequency range, with a recommended crossover of 1.8 kHz using a minimum 12 dB/octave high-pass filter slope — 1.5 dB below the ND1020’s 108.5 dB, with a marginally higher crossover recommendation, reflecting the different diaphragm material’s acoustic behaviour despite the identical chassis.
The 30 W AES / 60 W continuous power handling matches the ND1020 precisely. For high-quality two-way audio systems requiring the lightest, shallowest available neodymium compression driver with pure titanium diaphragm construction, the 18 Sound ND1030 delivers the direct neodymium counterpart to the ferrite HD1030 documented earlier in this session.
Conclusion – 18 Sound ND1030 Compression Driver
The 18 Sound ND1030 is the neodymium, pure-titanium counterpart to the ferrite HD1030, sharing the identical ellipsoidal suspension diaphragm geometry and 34 mm coil, while matching the ND1020’s record-tying 0.7 kg weight and 40 mm depth. This completes 18 Sound’s full 1-inch compression driver family documented across this session — nine distinct drivers spanning ferrite and neodymium construction, titanium, polyethylene, PEN, and phenolic diaphragm materials, and weight classes ranging from 0.7 kg to 1.6 kg.
For high-quality two-way audio systems requiring the lightest and shallowest available neodymium 1-inch compression driver with pure titanium diaphragm performance, the 18 Sound ND1030 delivers 18 Sound’s answer at this format, closing out this exceptionally comprehensive exploration of 18 Sound’s entire compression driver catalogue.
