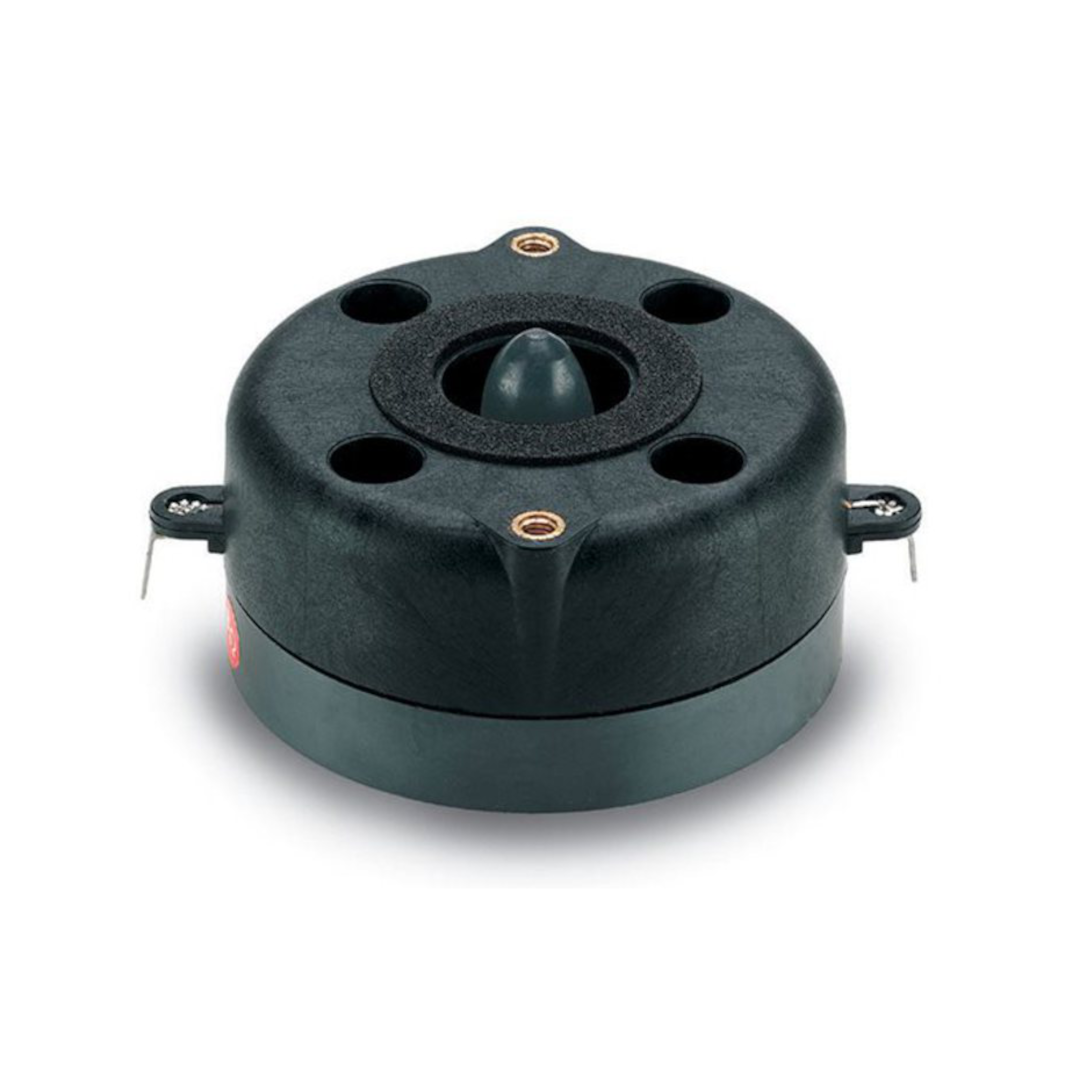

18 Sound HD125 – Natural Evolution of the Industry-Standard HD120 with Radial-Ribbed Surround
The 18 Sound HD125 1-inch exit HF unit has been designed as the natural evolution of the industry-standard HD120 compression driver. It delivers an unmatched combination of extended linear frequency response and very high efficiency — this is a genuinely named succession claim, explicitly positioning the 18 Sound HD125 as the direct replacement for a specific, named predecessor model not otherwise documented in this session’s HF coverage.
The HD125 diaphragm assembly is made in proprietary treated polyethylene material. This design maintains the minimum resonance frequency point value at 1600 Hz, extending the frequency response in the mid region when compared to the HD120 compression driver — a specific, quantified improvement claim against the named predecessor.
The design of the diaphragm and its surround in polyester material allows for the best movement and stress control; the special radial ribs increase stiffness, avoiding uncontrolled vibration modes in the usable frequency range — this radial-ribbed surround geometry is a genuinely distinct construction detail not documented on the flat-suspension HD1040 or the ellipsoidal-suspension HD1030, confirming the 18 Sound HD125 uses its own specific surround engineering approach.
Design and Construction of the 18 Sound HD125
An edge-wound aluminium voice coil, wound on proprietary treated Nomex, completes the diaphragm assembly. Thanks to its physical properties, the voice coil former shows a 30% higher value of tensile elongation at working operative temperature (200°C) when compared to Kapton — the identical figure documented consistently throughout every compression driver covered in this session’s HF range. This plus is capable of keeping proper energy transfer control to the dome in real working conditions, and this particular former material is suitable to work also in higher moisture content environments.
The polypropylene phase plug is the result of a meticulous design exercise. Its shape assures the correct acoustic impedance of the radiating dome, reducing distortion levels across a very wide frequency range. At the end, it results in a smooth coherent wavefront in the horn entrance, high thermal stability, and manufacturing consistency.
The HD125’s compact size and lightweight ceramic magnet assembly has been designed to obtain 16 kGauss — expressed in the specification table as 1.65 T, the highest flux density figure of any 1-inch driver documented in this session, exceeding the HD1000/HD1040/HD1050’s shared 1.6 T.
At 0.8 kg, 87 mm overall diameter, and just 46 mm depth, the 18 Sound HD125 is the shallowest driver of any throat size documented across this entire comprehensive session — even shallower than the ultra-compact ND32ST’s 53 mm and the ND3-family’s 53 mm.
Performance and Applications for the 18 Sound HD125
The 18 Sound HD125 delivers 109 dB sensitivity across a 2.0 – 18 kHz frequency range, with a recommended crossover of 2.5 kHz using a 12 dB/octave or steeper high-pass filter — notably, this is the only 1-inch driver documented in this session with an 18 kHz upper limit rather than 20 kHz, a genuine bandwidth trade-off against the driver’s other advantages.
The 25 W AES / 50 W continuous power handling sits between the HD1030’s 60 W and HD110’s 40 W, positioning this driver within the lighter-duty tier of 18 Sound’s 1-inch range. Available in both 8 and 16 Ω, the 18 Sound HD125 provides system design flexibility matching the HD1040.
Usable in two-way or multiway systems, per 18 Sound’s own positioning, the 18 Sound HD125’s genuinely shallow depth and light weight make it a compelling option for cabinet designs where mounting depth is the primary constraint.
Conclusion – 18 Sound HD125 Compression Driver
The 18 Sound HD125 is 18 Sound’s named successor to the industry-standard HD120, delivering a specifically quantified 1600 Hz minimum resonance improvement through its treated polyethylene diaphragm and radial-ribbed polyester surround. At just 46 mm deep, this is the shallowest compression driver documented across this entire comprehensive session, packed into an 0.8 kg chassis with the highest flux density of any 1-inch driver covered.
For applications where minimum mounting depth is the defining cabinet design constraint, the 18 Sound HD125 delivers 18 Sound’s most space-efficient answer within the 1-inch throat format.
