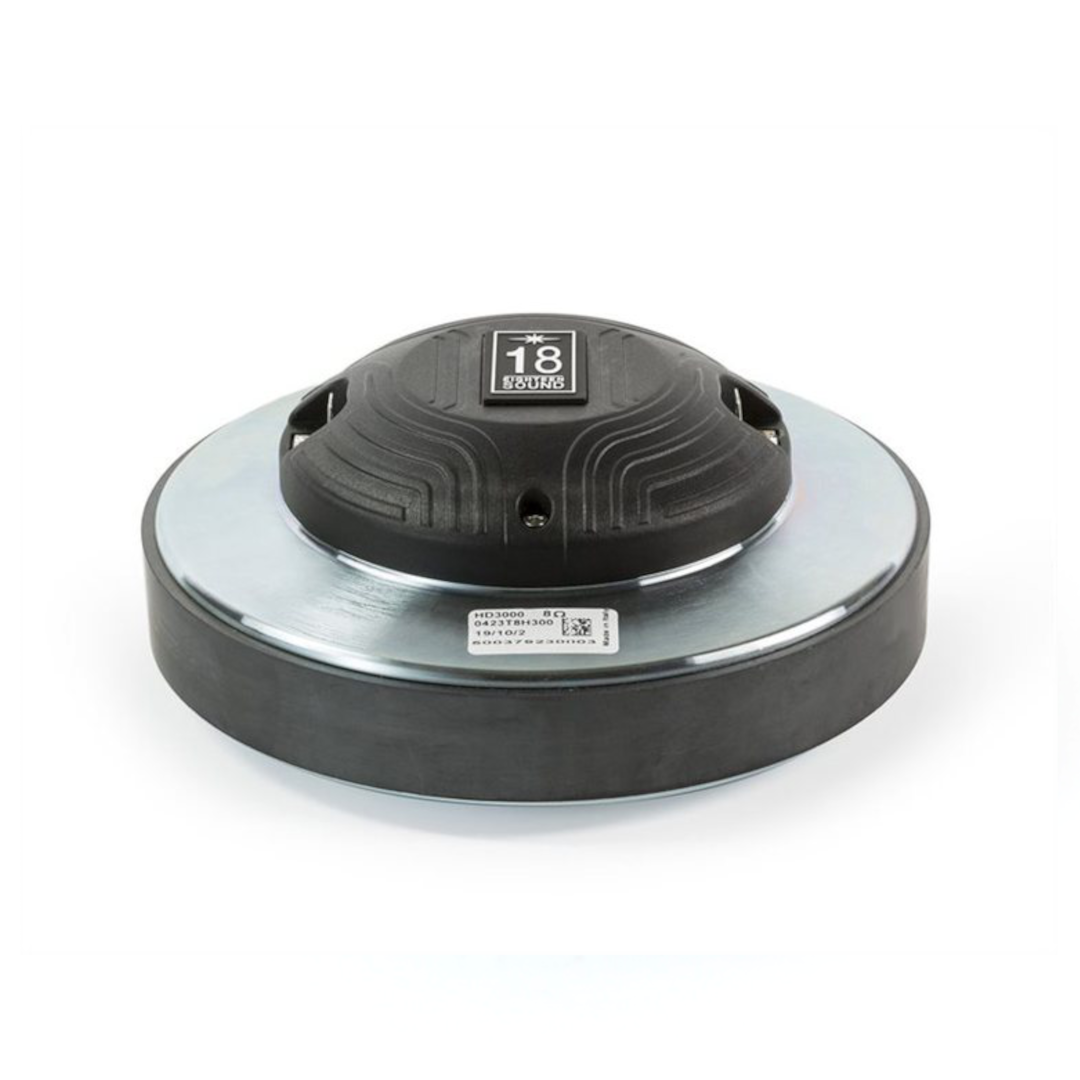

18 Sound HD3000T – 1.4-Inch Sibling of the HD3020T with Higher Sensitivity and Power Handling
The 18 Sound HD3000T is the 1.4-inch throat counterpart to the HD3020T documented earlier in this session, sharing the identical 75 mm edgewound CCAW voice coil, next-gen 4-slot phase plug design, titanium-over-PEN diaphragm construction, and 2.0 T flux density. Despite the smaller throat, this driver actually delivers marginally higher headline figures than its 2-inch sibling — 112 dB sensitivity versus 110 dB, and 240 W continuous program power handling versus 220 W.
The next-gen 4-slot phase plug design is the same evolved geometry documented on the HD3020T — an additional slot over the 3-slot designs found on the HD2080T and HD1480T, improving wavefront coherence and reducing comb-filtering artefacts at the phase plug’s exit.
The titanium dome over PEN suspension diaphragm assembly combines titanium’s stiffness and projection characteristics with PEN’s superior dimensional stability and resistance to mid-band distortion — identical diaphragm technology to the HD3020T, here at the smaller throat scale.
Design and Construction of the 18 Sound HD3000T
The edgewound 75 mm (3-inch) CCAW voice coil matches the HD3020T’s coil diameter and material exactly. The HF copper ring for reduced distortion and increased output provides the same electromagnetic distortion-control approach documented across 18 Sound’s premium compression driver range.
At 4.9 kg, 170 mm overall diameter, and 68 mm depth, the 18 Sound HD3000T matches the HD3020T’s physical footprint precisely — confirming both drivers share the identical chassis platform, differing only in throat diameter and the resulting acoustic loading that produces this driver’s marginally higher sensitivity and power handling figures.
Performance and Applications for the 18 Sound HD3000T
The 18 Sound HD3000T delivers 112 dB sensitivity across a 0.8 – 20 kHz frequency range, with a recommended crossover of 1.2 kHz using a 12 dB/octave or steeper high-pass filter — a higher crossover recommendation than the HD3020T’s 1.0 kHz, despite this driver’s marginally better raw sensitivity and power handling figures, likely reflecting the smaller throat’s different acoustic loading characteristics at the low end of the operating range.
The 120 W AES / 240 W continuous program power handling is the highest of any ferrite compression driver documented across this session’s HF coverage, matching the neodymium ND32ST’s power handling figure exactly, while using a considerably more affordable ferrite motor.
For system integrators requiring a 1.4-inch throat interface with 18 Sound’s current-generation phase plug and diaphragm technology, the 18 Sound HD3000T delivers genuinely competitive performance against even some neodymium alternatives documented in this session.
Conclusion – 18 Sound HD3000T Compression Driver
The 18 Sound HD3000T is the 1.4-inch throat sibling of the HD3020T, sharing an identical chassis, phase plug, and diaphragm technology while delivering marginally superior sensitivity (112 dB) and power handling (240 W) at the smaller throat size. This represents 18 Sound’s current-generation ferrite compression driver engineering at its most capable within the 1.4-inch format.
For two-way and multi-way systems requiring a 1.4-inch throat with 18 Sound’s most current phase plug and diaphragm technology, the 18 Sound HD3000T delivers a genuinely strong specification.
