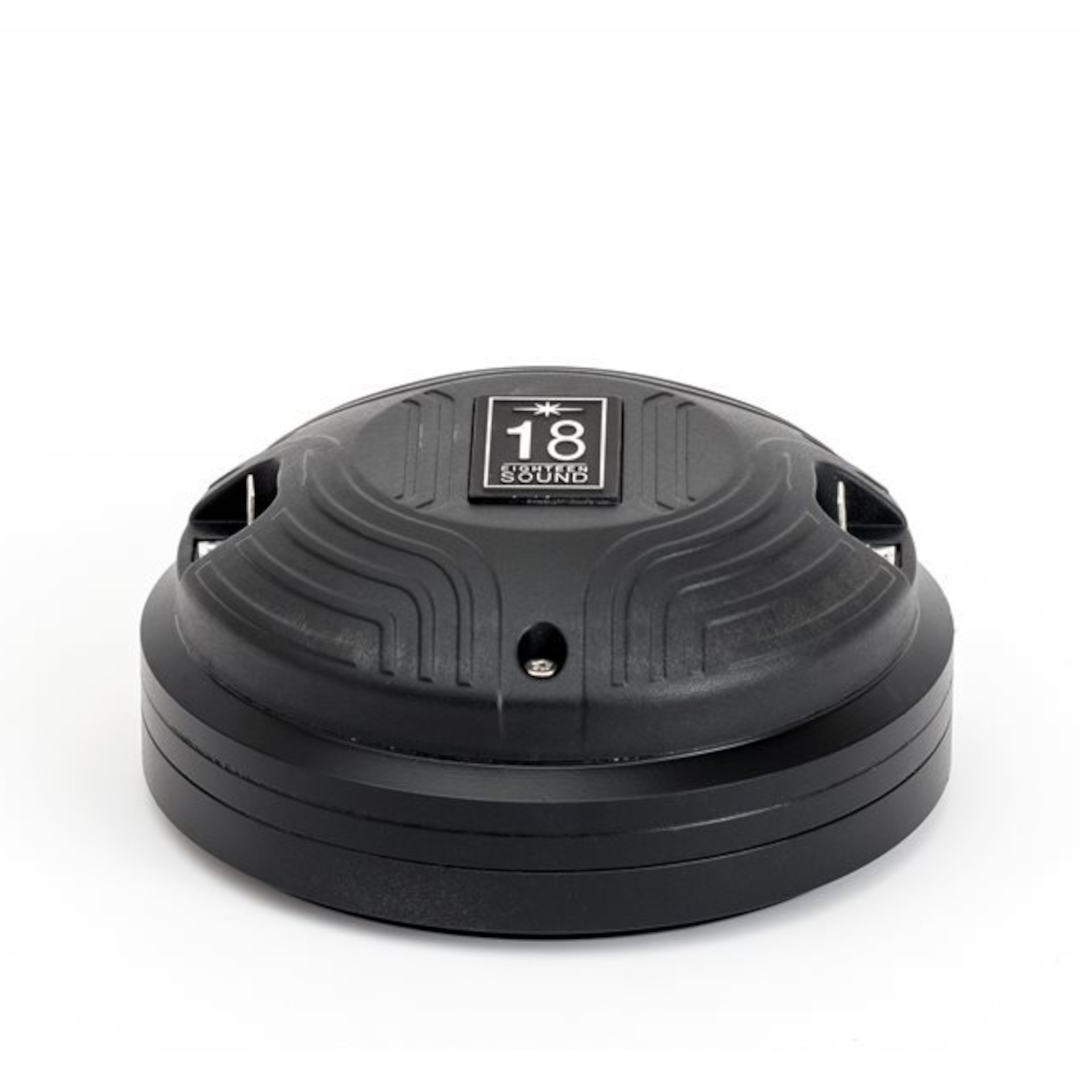

18 Sound ND3ST – Standard Titanium Reference Within the Larger 120mm Chassis Family
The 18 Sound ND3ST 1.4-inch exit Natural Sound neodymium high-frequency compression driver has been designed to fulfil state-of-the-art performances needed for present and future very high-quality sound reinforcement applications — the baseline titanium platform that both the aluminium-PEN ND3SA and TPM nitride-coated ND3SN documented earlier in this session explicitly reference as their shared chassis origin.
The next-gen titanium diaphragm is produced in-house and has been developed to assure unmatched transient response. The diaphragm assembly is made by joining the former directly to the titanium dome on its upper bend edge. In comparison with a usual straight former joint, the driver’s design assures extended frequency energy transfer for improved response linearity and unparalleled reliability, facilitating proper motion control of the dome in real working conditions.
The ND3ST neodymium magnet assembly has been designed to obtain 21 kGauss in the gap for major benefits in transient response — matching the ND3SA and ND3SN’s flux density exactly, confirming all three drivers share the identical magnetic architecture within this larger chassis family.
Design and Construction of the 18 Sound ND3ST
A proprietary treated Nomex former is used, carrying the same 30% higher tensile elongation figure versus Kapton documented consistently across 18 Sound’s HF range, suitable for use in higher moisture content environments.
The motor structure, through the precisely coherent proprietary designed metal alloy phase plug with 4 circumferential slots and copper ring on the pole piece, reduces inductance effect and distortion. The diaphragm kit self-centering design allows high-precision mounting and at the same time makes the servicing procedure very easy.
The ability to perform properly under inclement weather conditions is a key point of 18 Sound’s philosophy — the special treatment applied to the magnet and plates is more effective than any other coating commonly used.
At 2.3 kg, 120 mm overall diameter, and 53 mm depth, the 18 Sound ND3ST matches both the ND3SA and ND3SN precisely, confirming all three drivers documented within this larger chassis family share an identical physical platform.
Performance and Applications for the 18 Sound ND3ST
The 18 Sound ND3ST delivers 112 dB sensitivity across a 0.8 – 20 kHz frequency range, with a recommended crossover of 1.2 kHz using a 12 dB/octave or steeper high-pass filter. The 120 W AES / 240 W continuous power handling matches the ND3SN exactly, and represents the correct 240 W figure that the ND3SA’s own page inconsistently referenced between its feature bullets and specification table.
This now completes the full three-diaphragm-material comparison within 18 Sound’s larger 120 mm chassis family: the aluminium-PEN ND3SA for maximum sensitivity within this platform, the TPM nitride-coated ND3SN for minimum harmonic distortion, and the 18 Sound ND3ST documented here as the standard titanium baseline against which both siblings explicitly benchmark themselves.
Very fast impulse response for excellent transient reproduction and natural sound frequency response extended up to 20 kHz confirm this driver’s positioning at the premium tier of 18 Sound’s 1.4-inch range, matching the state-of-the-art framing documented on its ND3SN sibling.
Conclusion – 18 Sound ND3ST Compression Driver
The 18 Sound ND3ST is the standard titanium reference point within 18 Sound’s larger 120 mm compression driver chassis family — the baseline that both the ND3SA and ND3SN explicitly cite as their shared platform. This closes out an exceptionally comprehensive exploration of 18 Sound’s complete 1.4-inch compression driver range across two distinct chassis sizes and seven total diaphragm material variants documented in this session.
For applications requiring 18 Sound’s proven titanium diaphragm technology within the larger, stronger-magnet 120 mm chassis, the 18 Sound ND3ST delivers the reference specification this entire family is built around.
