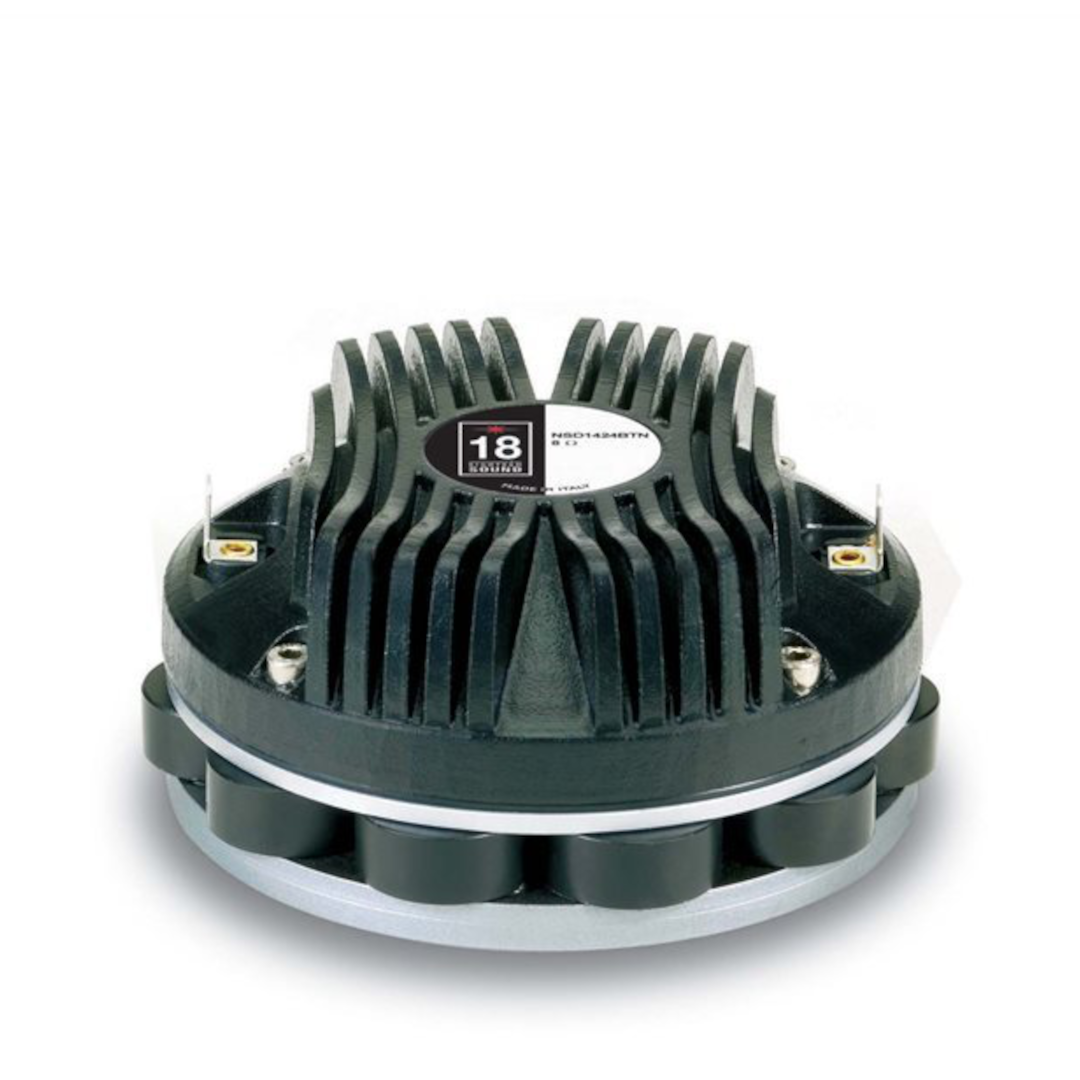

18 Sound NSD1424BTN – TPM Nitride Titanium with Elasticity Exceeding Beryllium, Deposited via PVD
The 18 Sound NSD1424BTN 1.4-inch exit neodymium high-frequency compression driver has been designed for high-level sound systems applications. This new HF unit uses 18 Sound’s proprietary True Piston Motion (TPM) technology, based on a thin film nitride coating deposited over the titanium diaphragm. The thin film is just several microns thick and is realised in a PVD (Physical Vapour Deposition) vacuum chamber — the most detailed manufacturing explanation of the TPM process documented anywhere across this session’s HF coverage, revealing the specific vacuum-deposition technique behind the coating documented more briefly on the NSD4015N, ND3N, and ND3SN.
With its very high value of elasticity modulus — six times higher than titanium and two times higher than beryllium — the nitride-coated titanium diaphragm is capable of doubling the diaphragm’s overall stiffness, with obvious benefits in terms of impulse response and intermodulation distortion reduction. This is a genuinely notable claim: TPM’s nitride coating, per 18 Sound’s own figures, exceeds even beryllium’s elasticity modulus, positioning this thin-film technology as arguably superior to the premium natural material on this specific mechanical property.
The frequency response is then extended by 25%, showing a predictable, ideal pistonic behaviour, avoiding top-end spurious resonances — the same quantified extension figure documented consistently on every beryllium and TPM driver throughout this session.
Design and Construction of the 18 Sound NSD1424BTN
A proprietary treated Nomex bended former, edge-wound aluminium 60 mm voice coil completes the diaphragm assembly. It has been made by joining the proprietary treated Nomex former directly to the titanium dome through its upper bend edge. In comparison with the usual straight former joint, the driver design assures extended frequency energy transfer for improved response linearity and unparalleled reliability, allowing proper motion control of the dome to be maintained in real working conditions.
Equipped with Proprietary Phase Plug 3P architecture, the 18 Sound NSD1424BTN has been designed to give a smooth coherent wavefront at the horn entrance across all working frequency ranges with high-level manufacturing consistency. The phase plug, with its short openings and high flare rate value, assures low distortion and remarkable improvements in mid-high frequency reproduction.
Through careful use of elementary pieces of neodymium magnets, 18 Sound engineers have developed a powerful neodymium magnet assembly able to reach 19 kGauss in the gap in a compact and lightweight structure — matching the exact architecture documented on the ND1424BT, ND1460, and ND1460A siblings sharing this same 1.4-inch elementary-piece neodymium platform.
The motor structure, through the precisely coherent phase plug with 3 circumferential slots and copper ring on the pole piece, reduces inductance effects and distortion. The custom designed O-ring creates a tight seal between the plate and the cover, assuring air chamber loading. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminium cover, allowing a lower power compression value to be obtained.
At 1.7 kg, 116 mm overall diameter, and 54 mm depth, the 18 Sound NSD1424BTN is just 100 g heavier than the standard titanium ND1424BT (1.6 kg) — the TPM coating adds minimal mass while delivering its substantial stiffness advantage.
Performance and Applications for the 18 Sound NSD1424BTN
The 18 Sound NSD1424BTN delivers 110 dB sensitivity across a 0.8 – 20 kHz frequency range, with a recommended crossover of 1.2 kHz using a 12 dB/octave or steeper high-pass filter — matching the ND1424BT’s sensitivity exactly, from a chassis just 100 g heavier.
The 70 W AES / 140 W continuous power handling also matches the ND1424BT precisely, confirming the TPM coating’s benefit here is purely in stiffness, impulse response, and intermodulation distortion reduction, rather than any change to raw power handling capacity.
For applications where the TPM technology’s genuinely superior elasticity modulus — exceeding both titanium and beryllium per 18 Sound’s own figures — is the defining requirement, the 18 Sound NSD1424BTN delivers this benefit from essentially the same lightweight, compact platform as the standard titanium ND1424BT.
Conclusion – 18 Sound NSD1424BTN Compression Driver
The 18 Sound NSD1424BTN brings TPM nitride-coated titanium technology to the elementary-piece neodymium 1.4-inch platform shared with the ND1424BT, ND1460, and ND1460A — and reveals, in the most detail documented across this session, exactly how TPM works: a several-micron-thick nitride film deposited via PVD vacuum chamber process, producing an elasticity modulus that 18 Sound claims exceeds not just titanium but beryllium itself.
For applications demanding this specific stiffness advantage from a genuinely lightweight, compact 1.4-inch neodymium platform, the 18 Sound NSD1424BTN delivers 18 Sound’s most detailed and technically substantiated TPM implementation documented in this comprehensive session.
