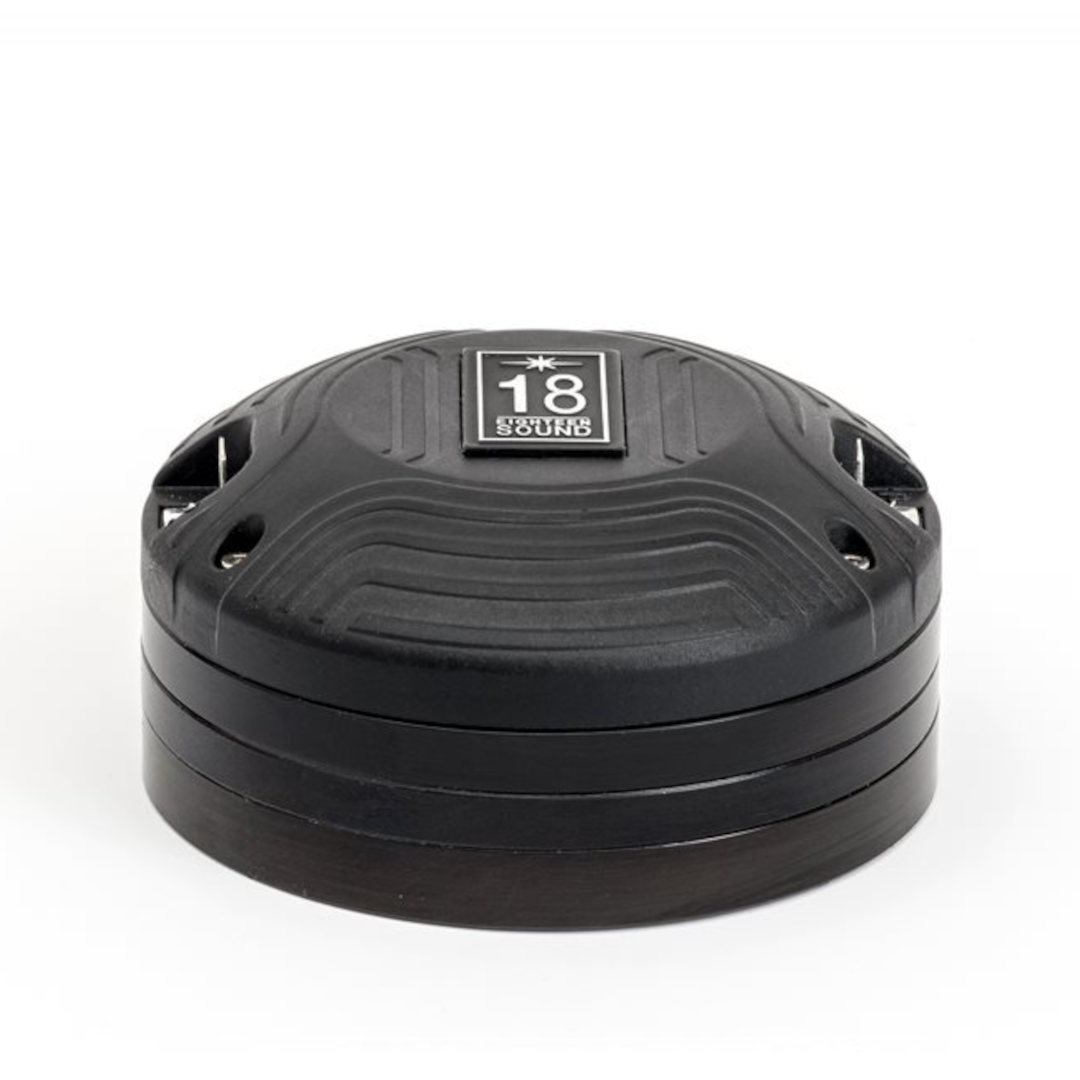

18 Sound ND3BE – Pure Beryllium Benchmark in the Ultra Compact 109mm Platform
The 18 Sound ND3BE 1.4-inch exit Natural Sound neodymium high-frequency compression driver has been designed for high-level sound systems applications. The unit has been designed to fulfil tight geometrical requirements, thanks to its ultra compact 109 mm overall diameter — sharing the exact same ultra-compact chassis documented on the ND3A, but stepping up to pure beryllium as the diaphragm material.
In addition to the next-gen titanium diaphragm of the standard ND3T version, pure beryllium has been used for this benchmark component, avoiding spurious resonances at very high frequencies, assuring the lowest possible harmonic distortion over the whole working range. This is a genuine pure beryllium dome — distinct from the beryllium-on-polymer-suspension hybrid construction documented on the ND4015BE and ND1480BE — confirming 18 Sound treats this as its true reference-grade material within the compact ultra-small-format platform.
18 Sound’s own “benchmark component” language here is notable — a stronger, more definitive claim than the general premium-tier positioning applied to most other drivers throughout this session, signalling that the ND3BE represents the absolute reference point within its specific ultra-compact chassis category.
Design and Construction of the 18 Sound ND3BE
A proprietary treated Nomex former is used, showing the identical 30% higher tensile elongation figure versus Kapton documented consistently across 18 Sound’s entire HF range, and suitable for use in higher moisture content environments.
Despite its compact size, the ND3BE neodymium magnet assembly has been designed to obtain 20 kGauss in the gap for major benefits in transient response — matching the ND3A’s exact flux density figure, confirming both drivers share the identical magnetic architecture within this compact chassis platform.
The motor structure, through the precisely coherent metal alloy phase plug with 4 circumferential slots and copper ring on the pole piece, reduces inductance effect and distortion. The diaphragm kit self-centering design allows high-precision mounting and at the same time makes the servicing procedure very easy — a particularly valuable feature given beryllium’s inherent fragility relative to titanium or aluminium-PEN alternatives, where precise centering directly protects the delicate dome during both initial assembly and any subsequent field service.
The ability to perform properly under inclement weather conditions is a key point of 18 Sound’s philosophy — the special treatment applied to the magnet and plates is more effective than any other coating commonly used.
At 1.65 kg, 109 mm overall diameter, and 53 mm depth, the 18 Sound ND3BE matches the ND3A’s physical footprint exactly — confirming both diaphragm variants share the identical ultra-compact chassis platform.
Performance and Applications for the 18 Sound ND3BE
The 18 Sound ND3BE delivers 112 dB sensitivity across a 0.8 – 20 kHz frequency range, with a recommended crossover of 1.2 kHz using a 12 dB/octave or steeper high-pass filter — matching the ND3A’s sensitivity exactly, from the identical chassis and magnetic architecture.
The 90 W AES / 180 W continuous power handling is lower than the ND3A’s 110 W AES / 220 W — beryllium’s typically lighter, more delicate dome construction trading some thermal and mechanical power capacity for its characteristic freedom from spurious high-frequency resonance and lowest-possible harmonic distortion across the entire working range.
For applications where beryllium’s reference-grade sonic accuracy is the defining requirement within this specific ultra-compact chassis format — tight geometrical constraints combined with uncompromising sound quality — the 18 Sound ND3BE delivers 18 Sound’s benchmark answer.
Conclusion – 18 Sound ND3BE Compression Driver
The 18 Sound ND3BE is 18 Sound’s pure beryllium benchmark within the ultra-compact 109 mm platform shared with the ND3A — avoiding spurious resonances at very high frequencies and assuring the lowest possible harmonic distortion over the whole working range, at the cost of reduced power handling relative to its aluminium-PEN sibling.
For applications combining tight geometrical requirements with the absolute highest sonic accuracy standard, the 18 Sound ND3BE represents 18 Sound’s definitive answer within this compact chassis category, closing out this session’s comprehensive exploration of 18 Sound’s 1.4-inch compression driver family.
